vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 3:15 am    Post subject: Reply with quote  Mark this post and the followings unread

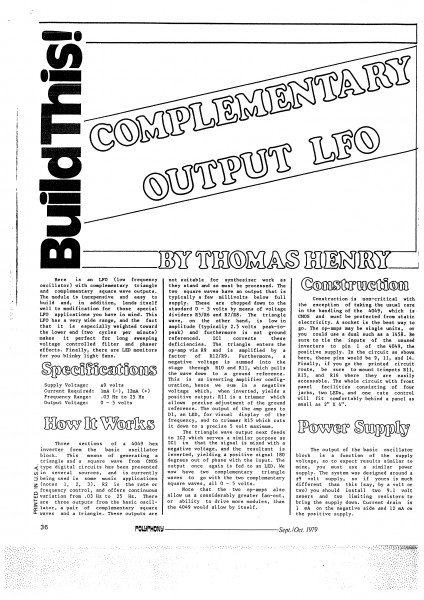

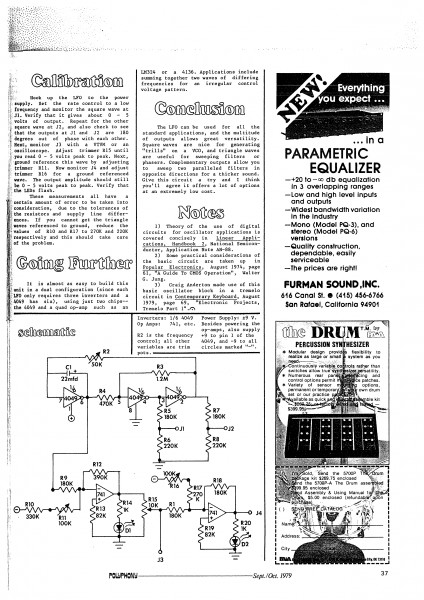

CMOS based LFO from Thomas Henry featured in Polyphony Magazine


Polyphony-1979-09 complementary lfo-32.jpg
 Description:
 Filesize:  2.18 MB
 Viewed:  1242 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Polyphony-1979-09 complementary lfo-32.jpg



Polyphony-1979-09 complementary lfo-33.jpg
 Description:
 Filesize:  2.46 MB
 Viewed:  1622 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Polyphony-1979-09 complementary lfo-33.jpg


Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 3:40 am    Post subject: Reply with quote  Mark this post and the followings unread

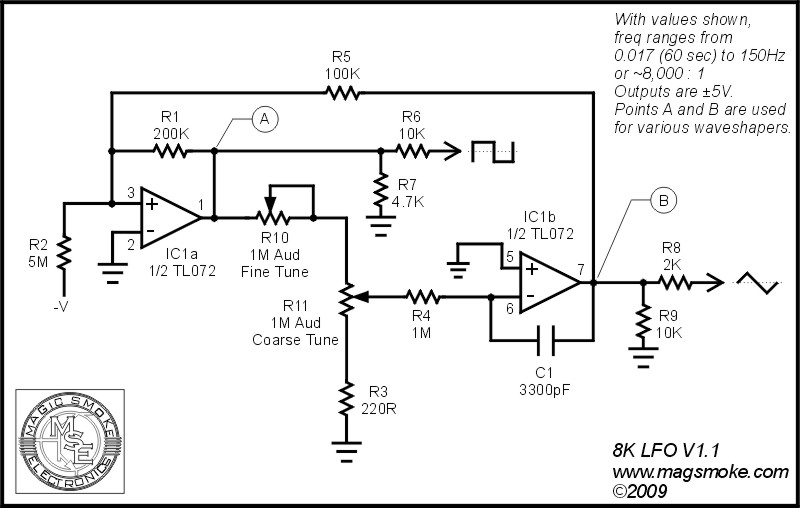

Magic Smoke LFO ,design by Tim Servo , more on this thread : http://electro-music.com/forum/topic-32372.html as he explains : Here's one of the LFOs I've cooked up recently. This runs on a +/-15V supply and puts out standard +/-5V outputs. For the most part, it's a basic triangle oscillator built around a comparator and an integrator. I wanted something with a LOT more range than the other LFOs I was finding, so I made a few tweaks and came up with a design I really liked. This one goes from 0.017Hz (1 cycle / 60 seconds) to 150Hz, or a factor of 8,800:1 (hence the name).
A few points:
1) You can use Linear pots for the tuning controls, but it's MUCH easier to make fine changes in the lower portion of the range with Audio taper pots.
2) You can eliminate the Fine Tune control if you want. This reduces the range to 0.033Hz to 150Hz (approx 4,400 : 1) but this will probably do the trick for many applications.
3) The Fine Tune pot is set up so that it really does have less range than the Coarse Tune. When Coarse is at maximum, Fine will adjust from 50Hz to 150Hz. When Coarse is at minimum, Fine will adjust from 60 sec/cycle to 30 sec/cycle.
4) The timing cap can be found in polystyrene (23PS233 or 23PW233 from Mouser) if you want the best frequency stability, but you can also sub a film cap or other type. 3300pF works out to 3.3nF or .0033uF

I'll be making a few additions to this (sync, additional waveforms, Indicator LEDs), but the basic core will remain the same. Any thoughts?

Tim (got my LFO hat on) Servo

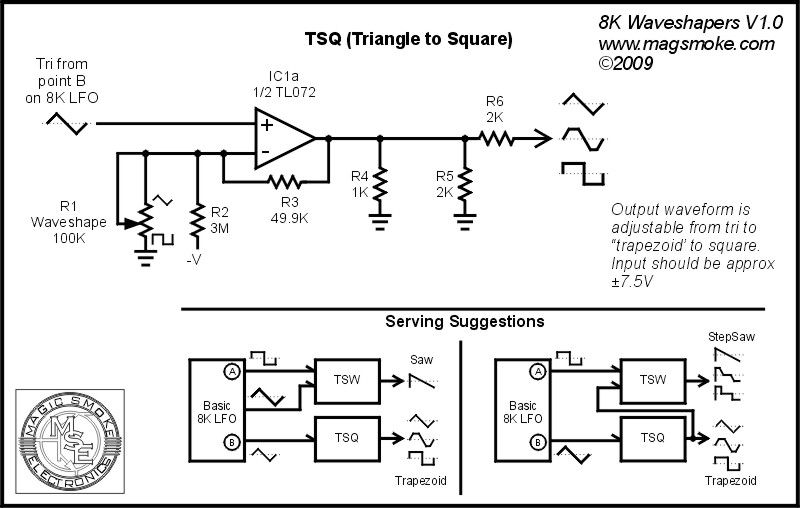

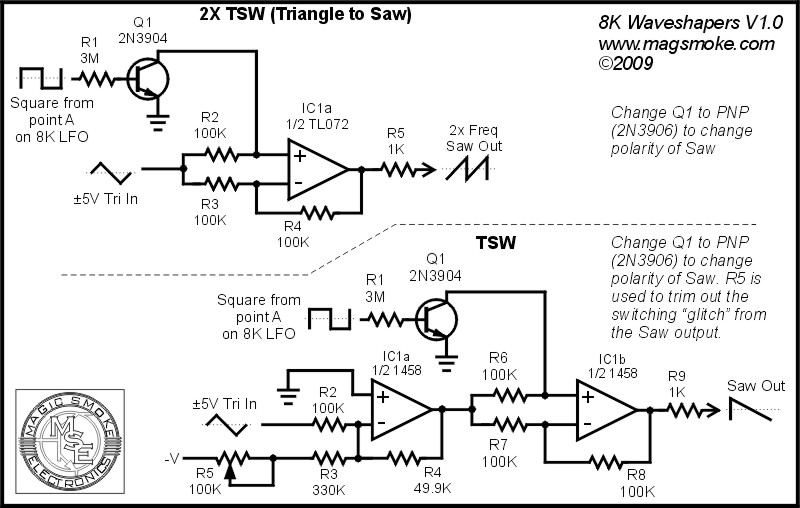

and about the waveshaper add on :Here's a coupla add-ons for the 8K LFO. The first (TSW) uses the Tri and Square to make a Saw, or even a 2X Saw. The second (TSQ) takes a Tri and puts out a wave that is continuously variable from Tri to Square, with a "Trapezoid" shape in the middle. You can even take the output of the TSQ and put it into the TSW, and now you have a Tri to Square on one output and a Saw to Square on the other (both varied at the same time with the Waveshape control on the TSQ). By the way, a 1458 or other "low bandwidth" op amp works a little better for the TSW because it helps minimize the glitch in the reconstructed Saw output. I've got some more add ons that I'm still working on, but I thought I'd throw these out here because these variable outputs are so much fun.

Tim (also looks like a trapezoid in the middle) Servo


 Description:
 Filesize:  73.21 KB
 Viewed:  2093 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  80.88 KB
 Viewed:  1617 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  97.82 KB
 Viewed:  1084 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 3:45 am    Post subject: Reply with quote  Mark this post and the followings unread

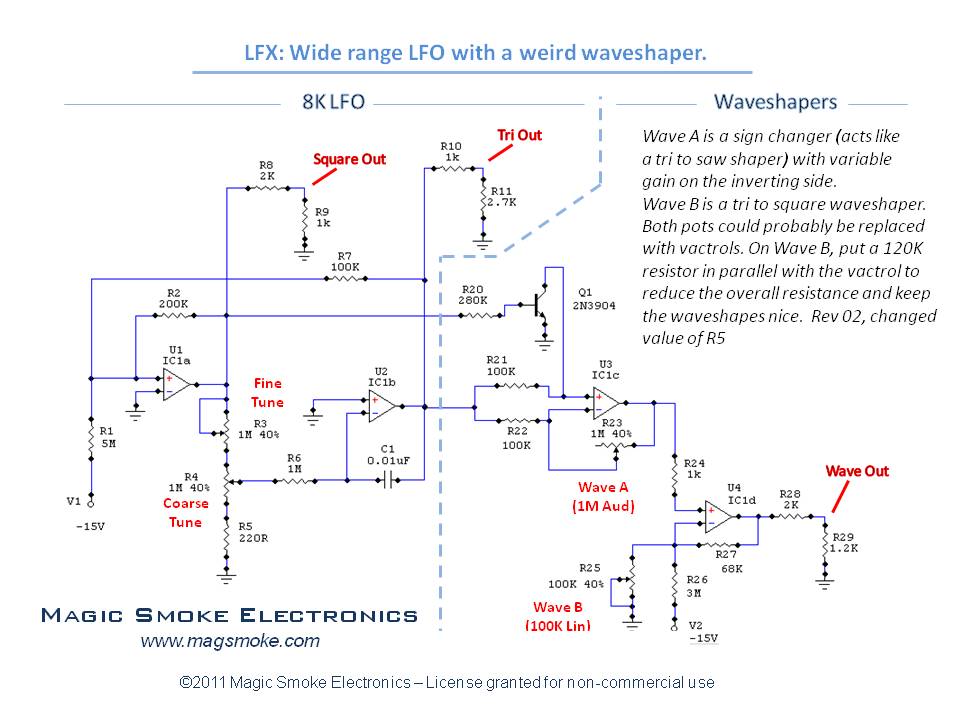

Magic Smoke LFX - LFO ,with a waveshaper output ,more on this thread : http://electro-music.com/forum/viewtopic.php?highlight=lfo&t=49081 ,from Tim Servo : Here's a LFO design I've been having a lot of fun with lately. The LFO core is my "8K" design that some of you have seen before. It's a variation on the standard Integrator / Comparator triangle core LFO, and I tweaked it a bit to give it a wider range (about 8,000 : 1, hence the name). The waveshapers are a combination of a tri-to-saw waveshaper ("Wave A" which is basically a sign changer) and my own TSQ tri-to-square waveshaper ("Wave B"). Here's a link to a YouTube vid where I put in a different cap to see (and hear) what the various wave combinations looked like:
http://youtu.be/FA88F1nxHDU

I call it the LFX. It's a pretty easy circuit to build, and will definitely provide you some very different LFO waveforms. Enjoy!!

NOTE: THIS IS AN UPDATED REV 02 VERSION WITH A NEW VALUE FOR R5.


 Description:
 Filesize:  78.48 KB
 Viewed:  1335 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 3:52 am    Post subject: Reply with quote  Mark this post and the followings unread

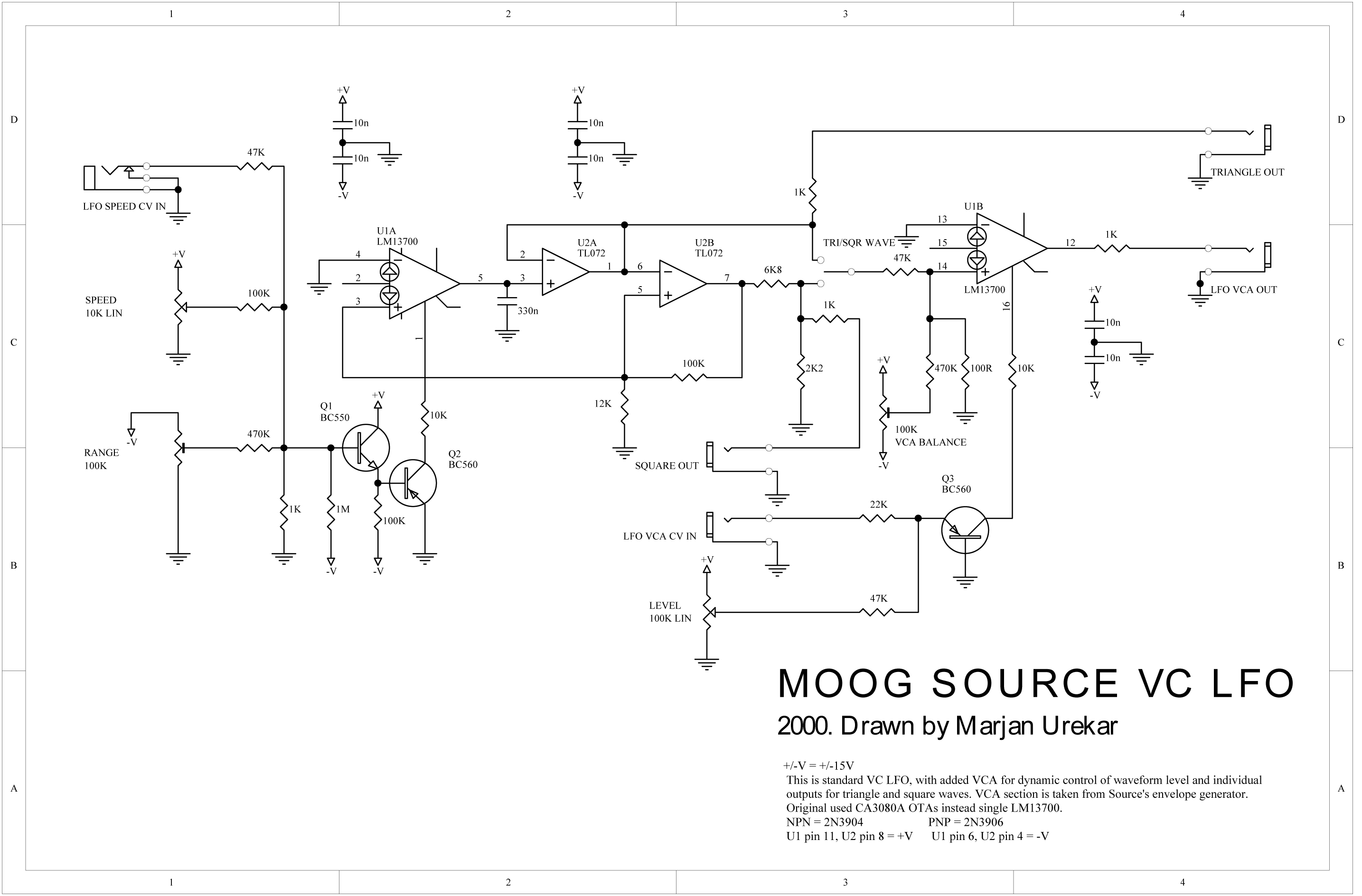

Moog Source VCLFO redrawn by Marjan Urekar ,site : http://urekarm.tripod.com/synth/download.html


 Description:
 Filesize:  427.37 KB
 Viewed:  1681 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 4:09 am    Post subject: Reply with quote  Mark this post and the followings unread

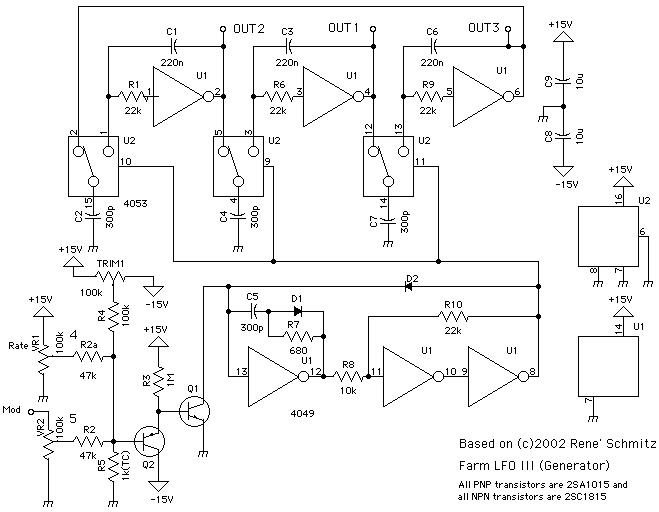

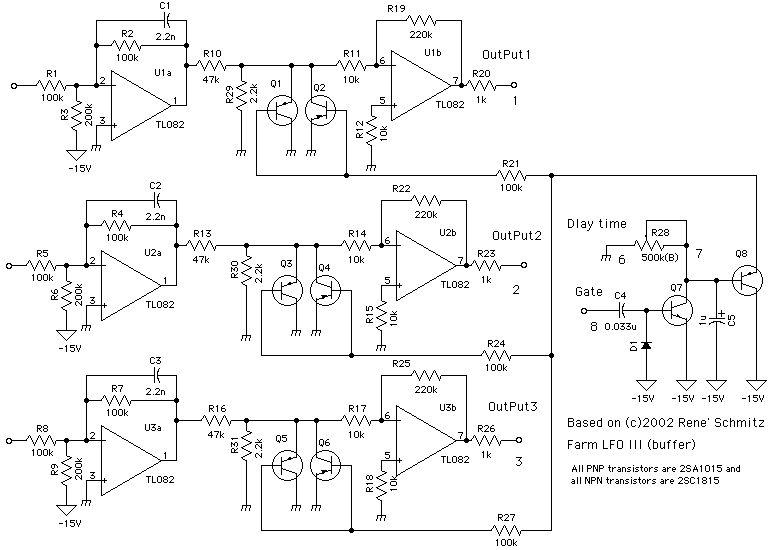

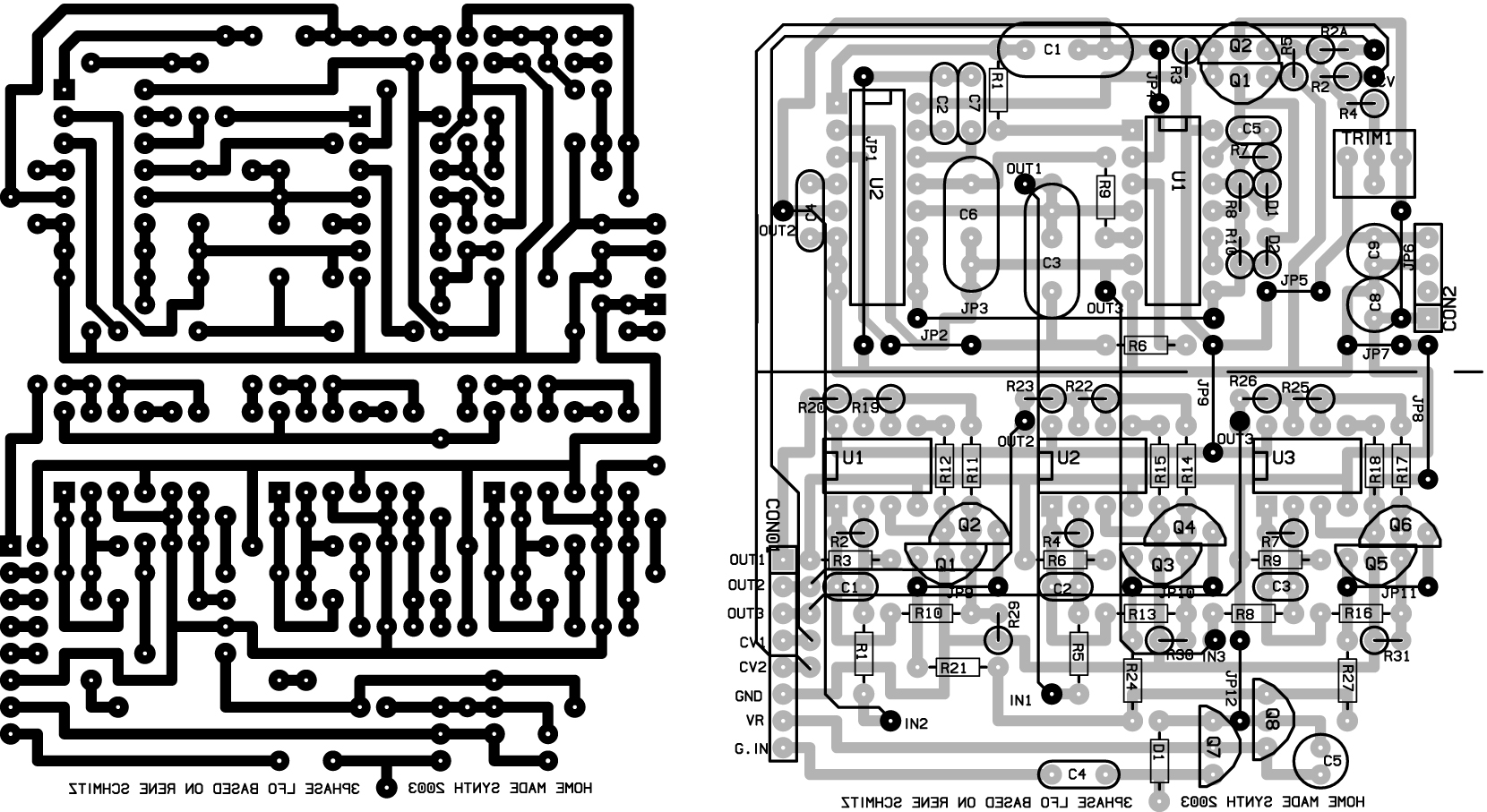

3 Phase LFO originally by Rene Schmitz ,redrawn and adapted with pcb layout by Motohiko Takeda ,added vca buffers ,page here : http://www.aleph.co.jp/~takeda/radio/homemadesynth.html


 Description:
 Filesize:  575.18 KB
 Viewed:  1336 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  10.48 KB
 Viewed:  1279 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  12.83 KB
 Viewed:  1437 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 4:53 am    Post subject: Reply with quote  Mark this post and the followings unread

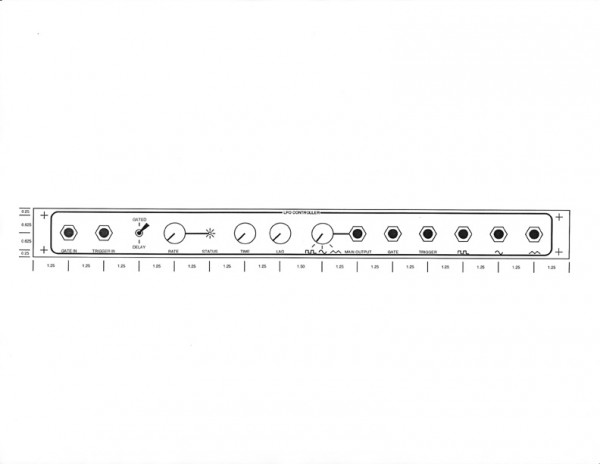

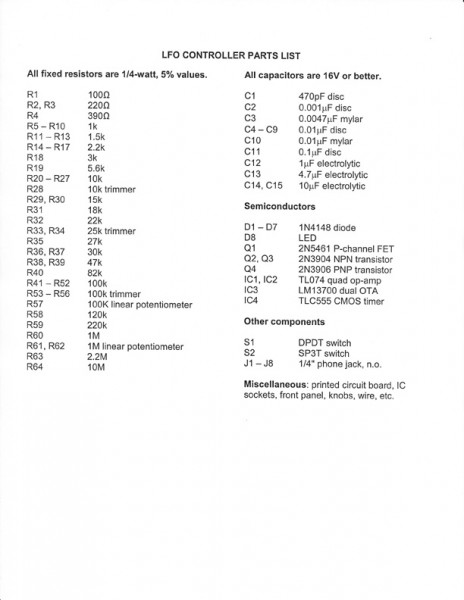

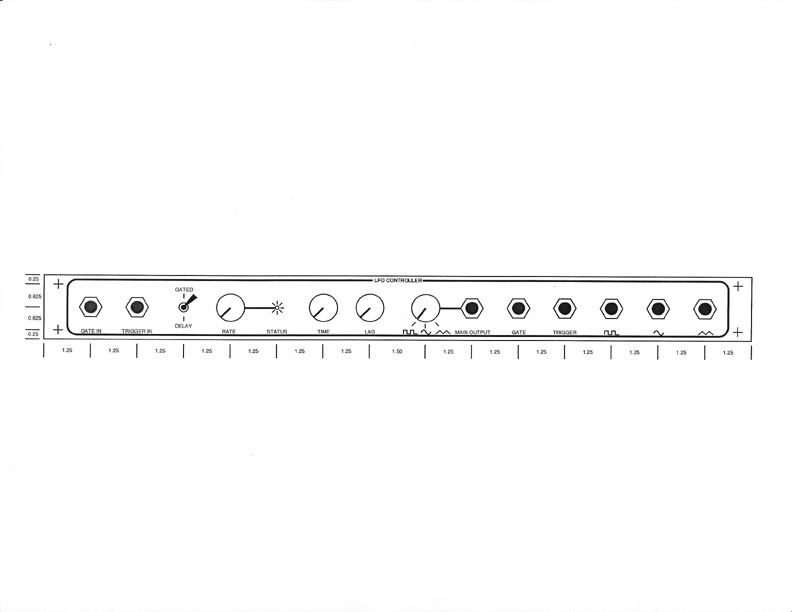

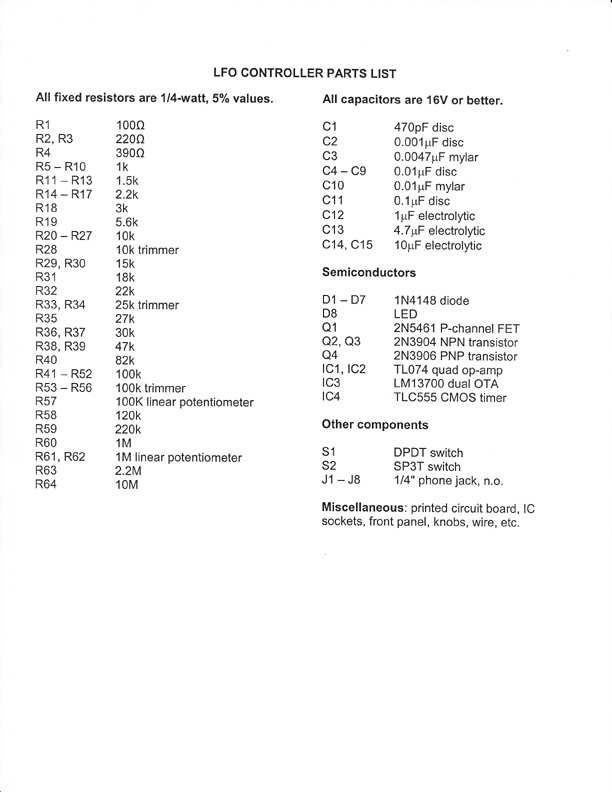

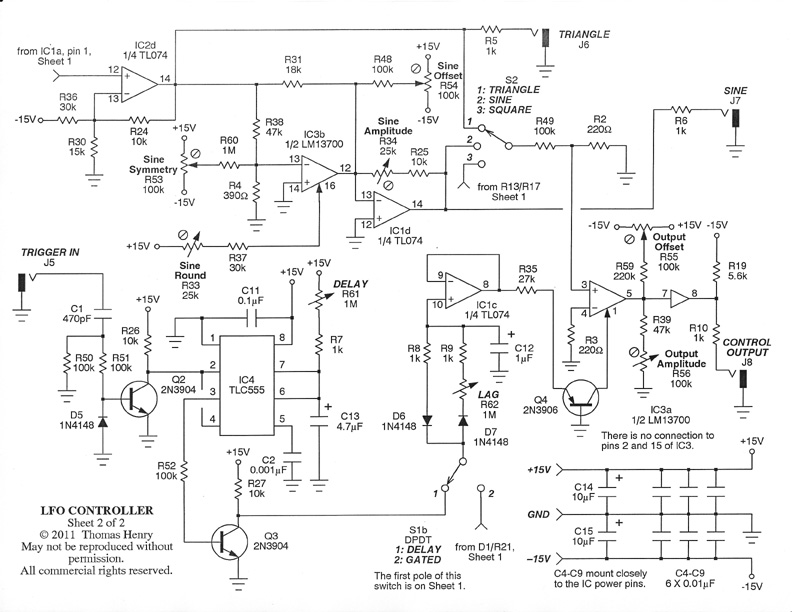

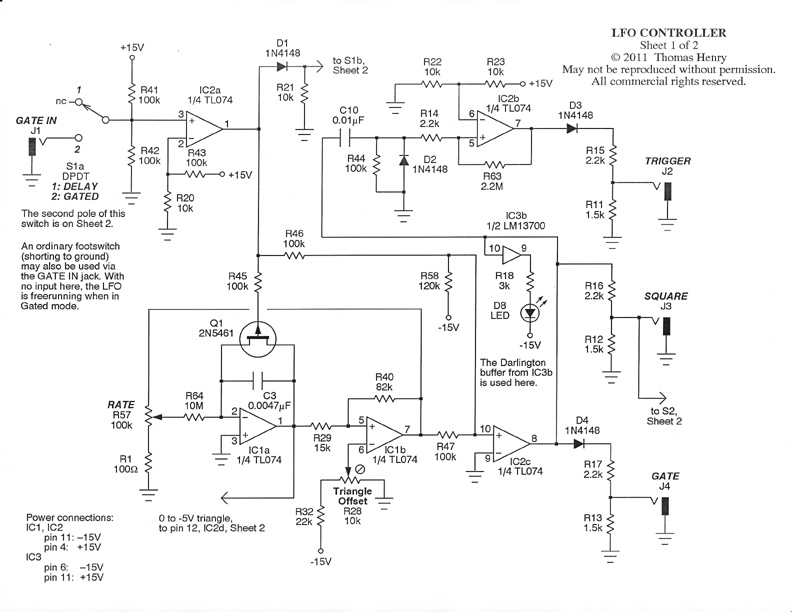

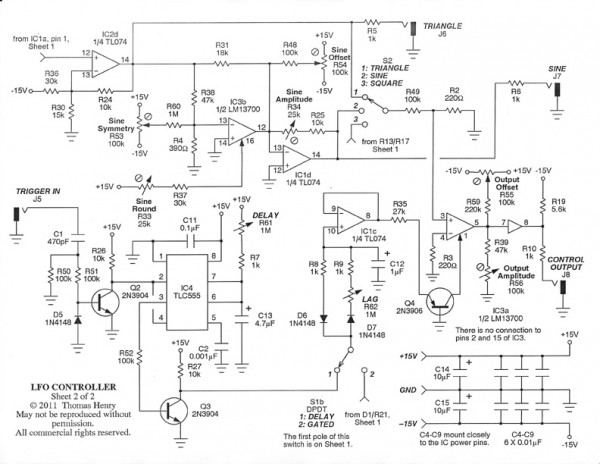

Controller LFO by Thomas Henry ,the whole thread is here featuring an article on it http://electro-music.com/forum/topic-54665.html ,from Thomas Henry himself : Hi gang,

Well here we go again with another project. This really is the best LFO I've done to date, from a musical point of view. There are lots of features and its behavior is very smooth on all fronts, if that makes sense.

Also included is a complete article I wrote up for it. I had originally intended this to go to a magazine, but somehow things got in the way.

As usual, I would appreciate it if you keep this stuff for your own personal use and not pass it around or try to go commercial with it. Always link back to the source in EM. Get in touch if you feel the need to do a PCB or something.

Dig in!

Thomas Henry

make sure you check : http://www.birthofasynth.com/ for more Thomas Henry designs as well as his Books on Synthesizer construction at Magic Smoke http://www.magsmoke.com/thomas_henry_books.asp


 Description:
 Filesize:  130.05 KB
 Viewed:  1167 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  101.42 KB
 Viewed:  1100 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  33.68 KB
 Viewed:  955 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  78.28 KB
 Viewed:  997 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




Last edited by vladosh on Sat Feb 02, 2013 11:34 am; edited 1 time in total
Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 5:55 am    Post subject: Reply with quote  Mark this post and the followings unread

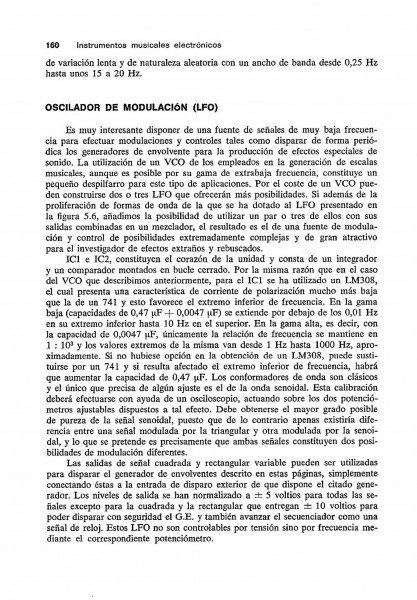

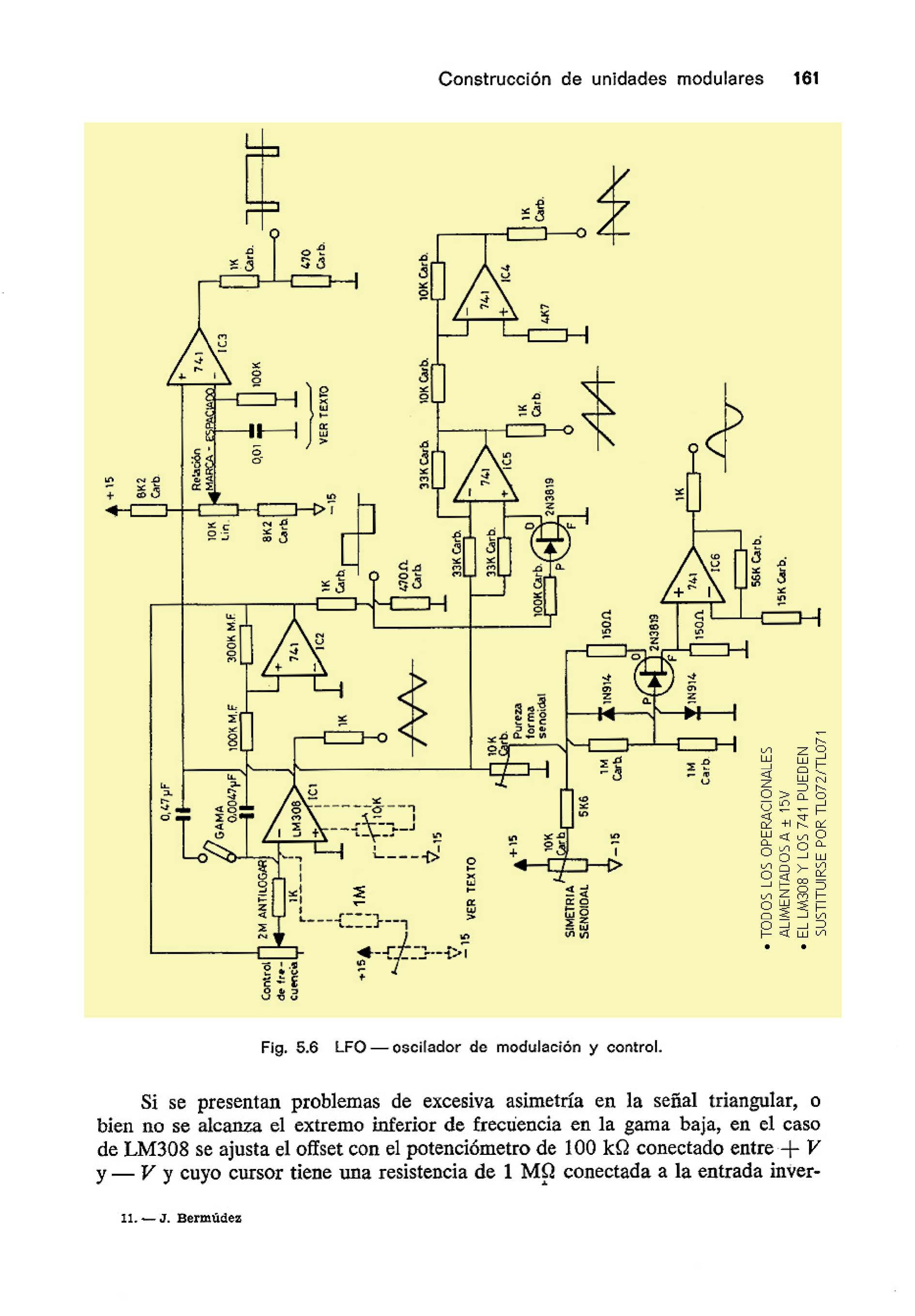

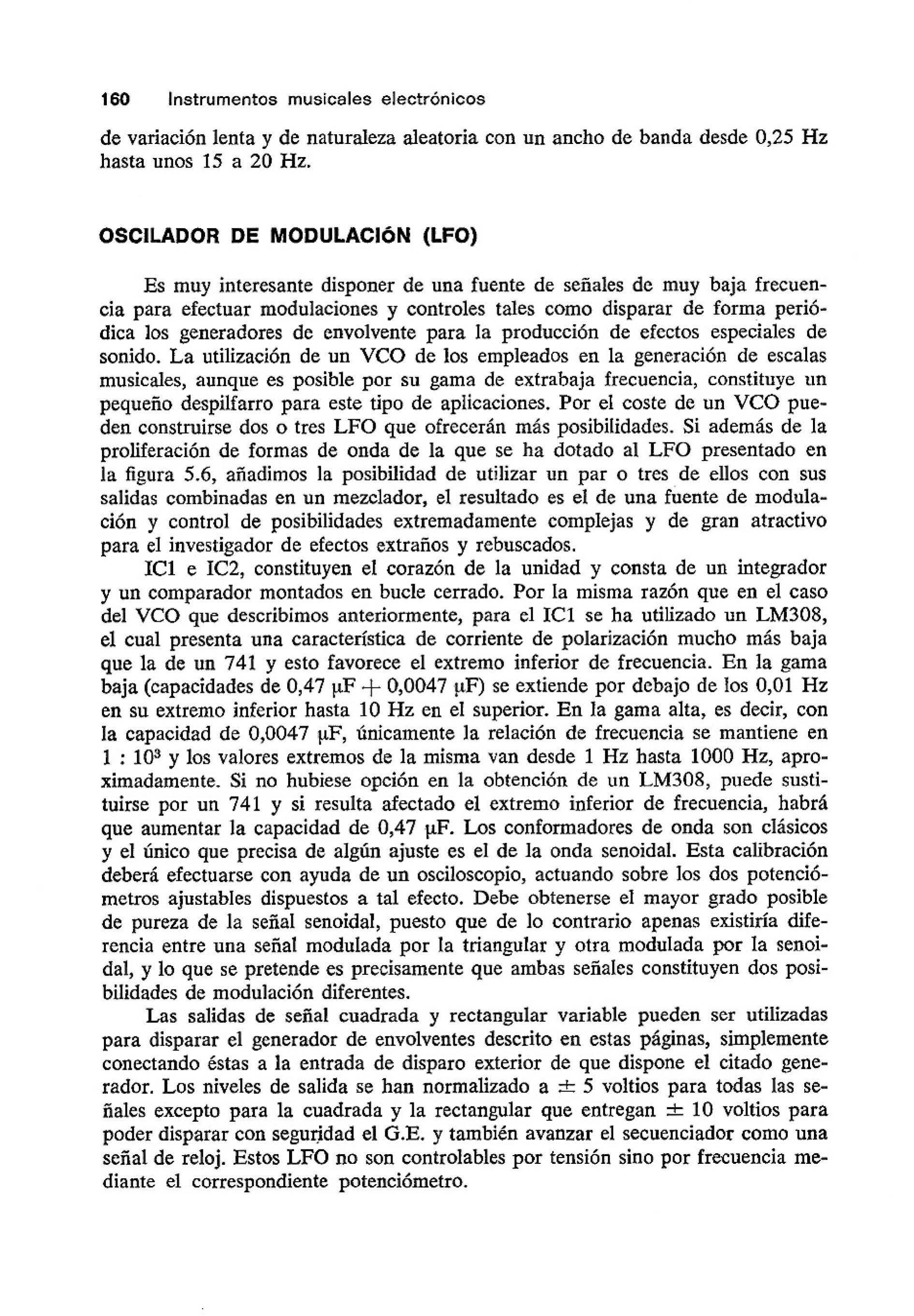

LFO by Juan Bermudez from his Book on Synthesizer construction : Nueva Genration de instrumentos musicales Electronicos which is freely available on the web in Italian


 Description:
 Filesize:  1.56 MB
 Viewed:  1039 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  963.68 KB
 Viewed:  1212 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 5:59 am    Post subject: Reply with quote  Mark this post and the followings unread

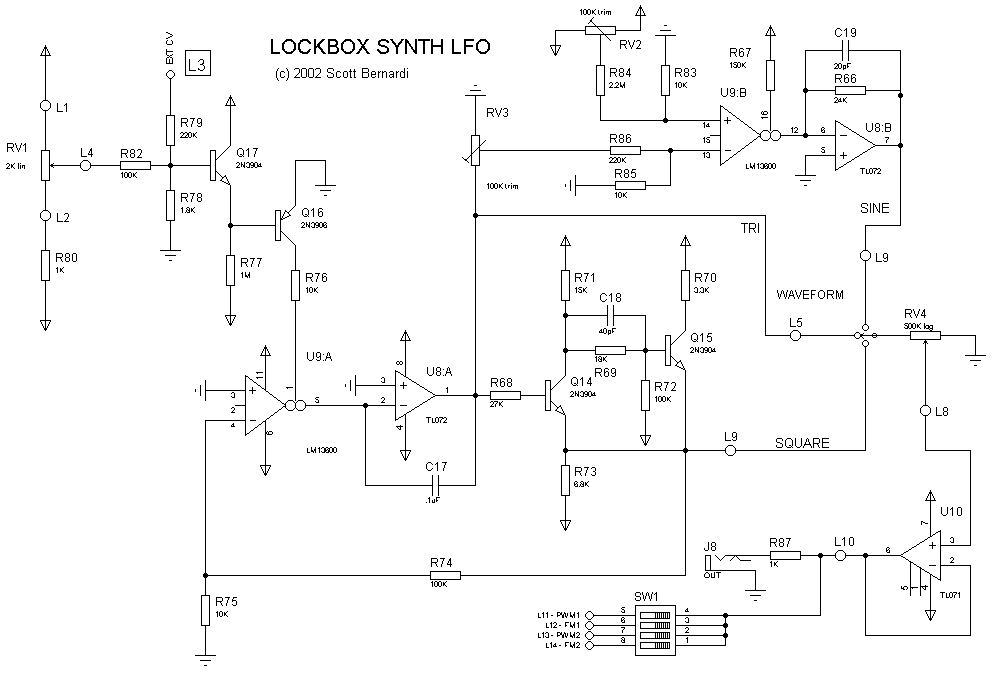

LockBox Synth LFO by Scott Bernardi


 Description:
 Filesize:  15.6 KB
 Viewed:  1837 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 6:08 am    Post subject: Reply with quote  Mark this post and the followings unread

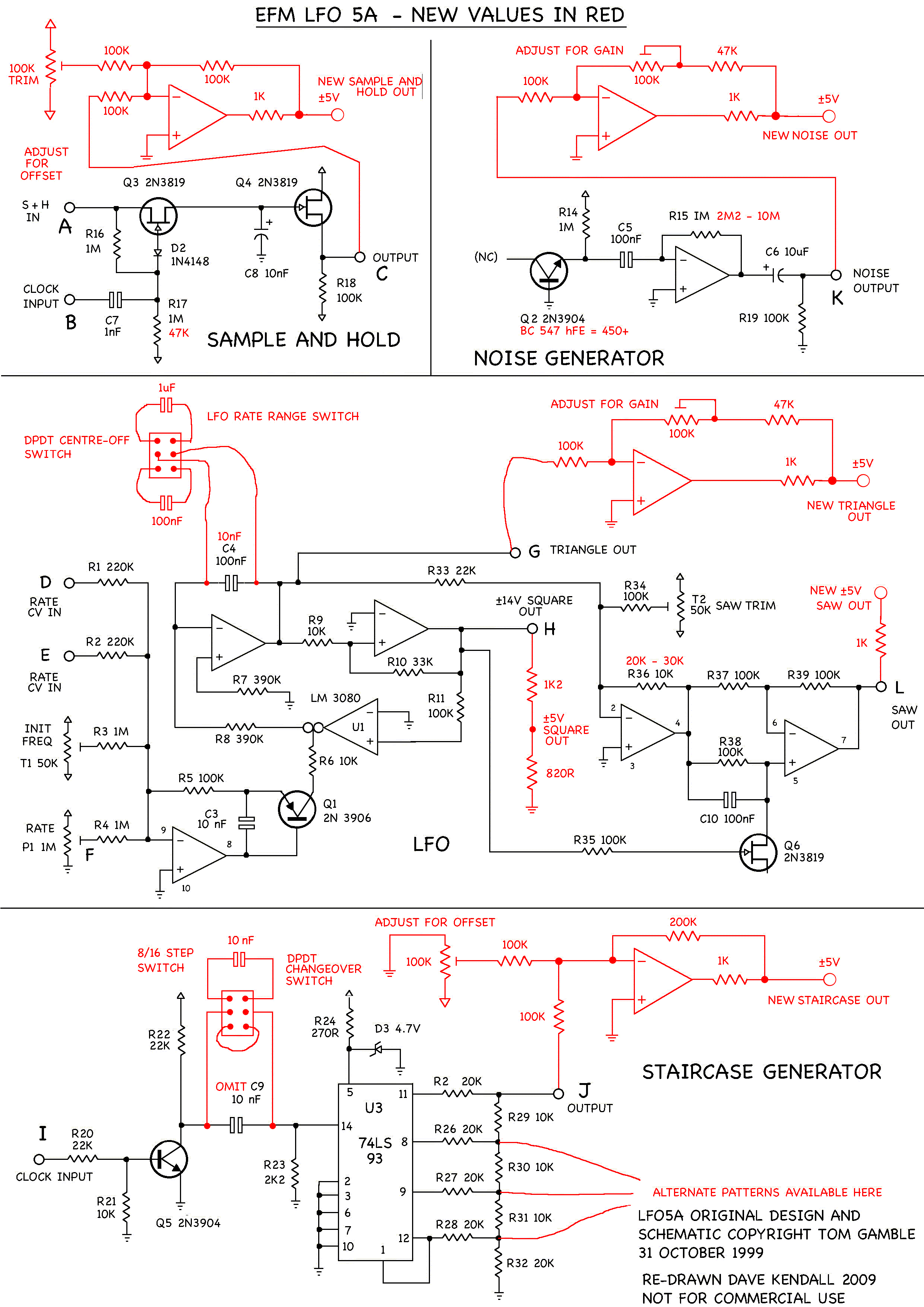

Electronics For Music LFO ,modified by Dave Kendall along with a staircase generator and sample and hold ,all EFM documents are available on line at Fonitronik's web page : http://www.modular.fonik.de


 Description:
 Filesize:  251.14 KB
 Viewed:  1350 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 6:40 am    Post subject: Reply with quote  Mark this post and the followings unread

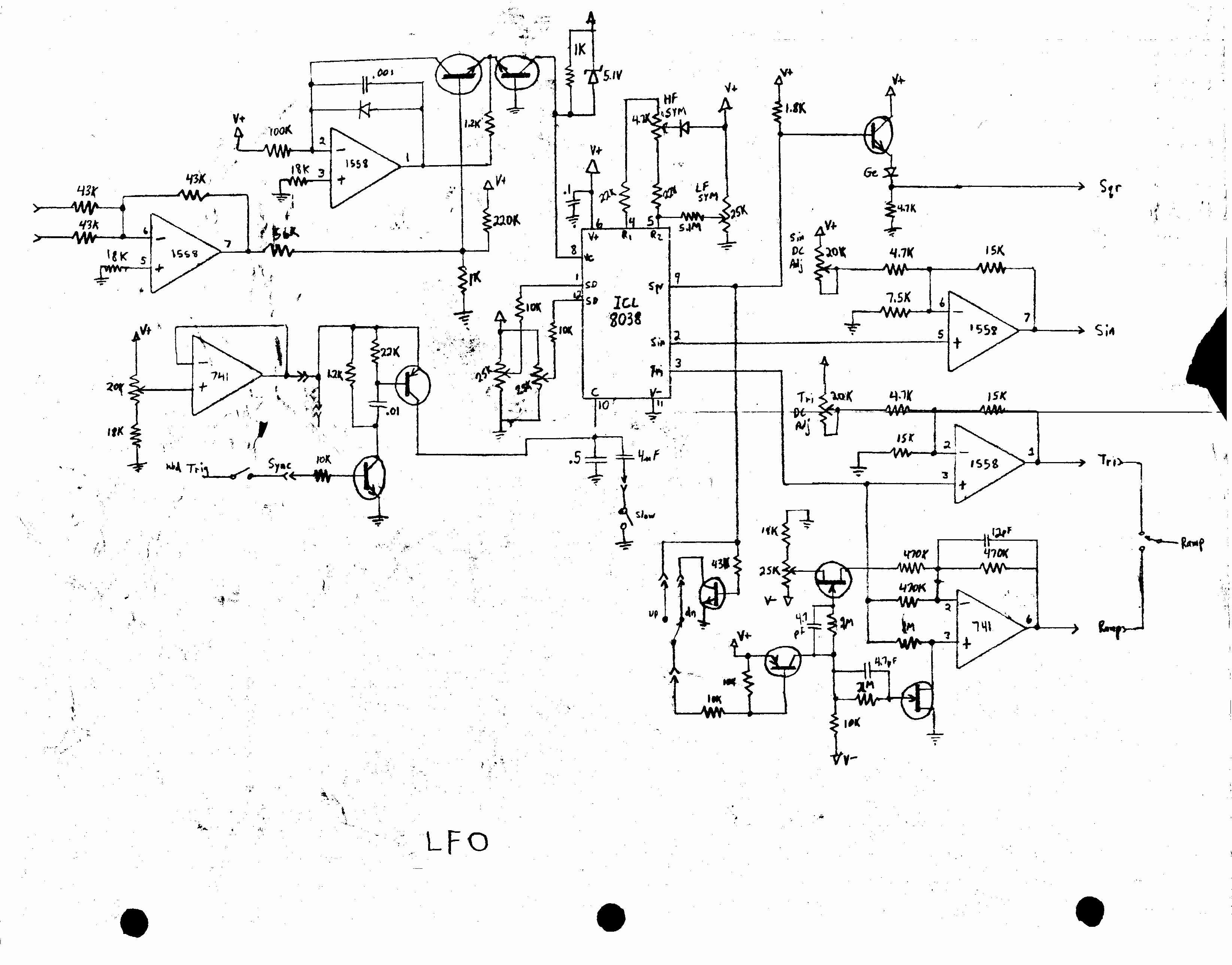

8038 Based LFO from - Tim's Ancient Analog Synthesizer Page http://www.chromaticsound.com/tim/Monophonic/MonophonicSynthPage.html


 Description:
 Filesize:  325.09 KB
 Viewed:  1110 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 6:56 am    Post subject: Reply with quote  Mark this post and the followings unread

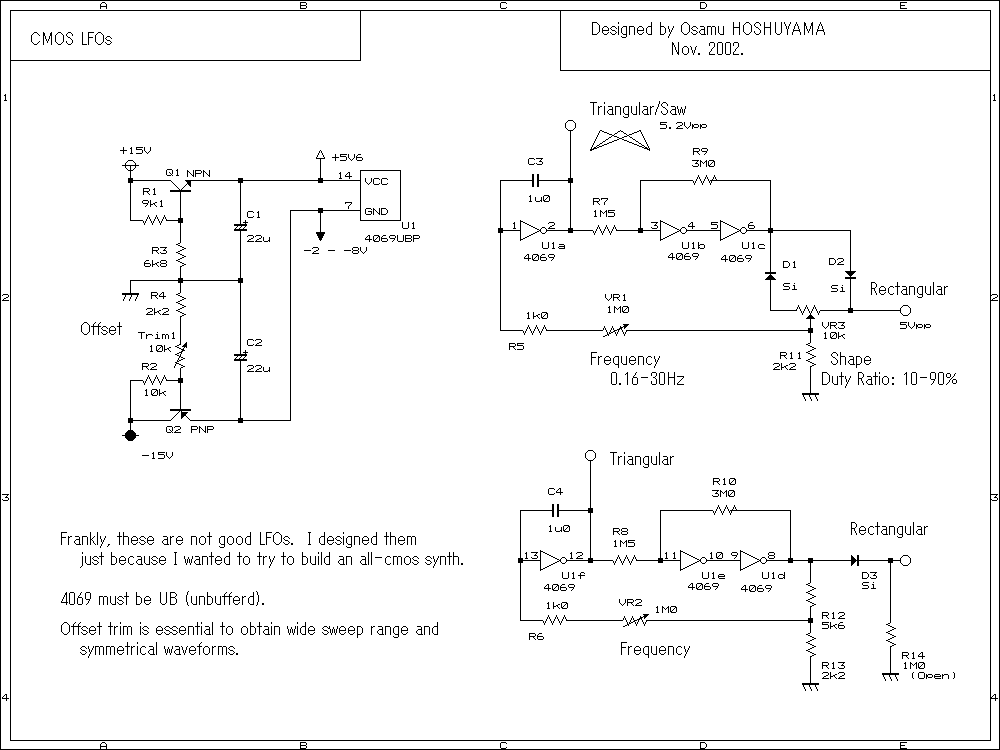

CMOS LFO by Osamu Hoshuyama ,page here: http://www5b.biglobe.ne.jp/~houshu/synth/


 Description:
 Filesize:  17.31 KB
 Viewed:  1448 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 7:05 am    Post subject: Reply with quote  Mark this post and the followings unread

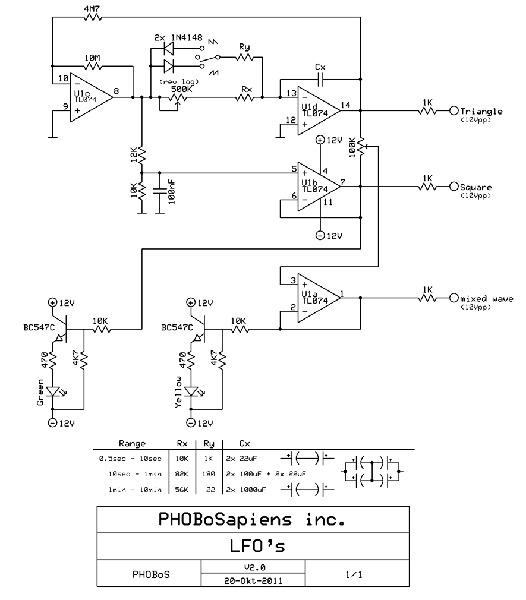

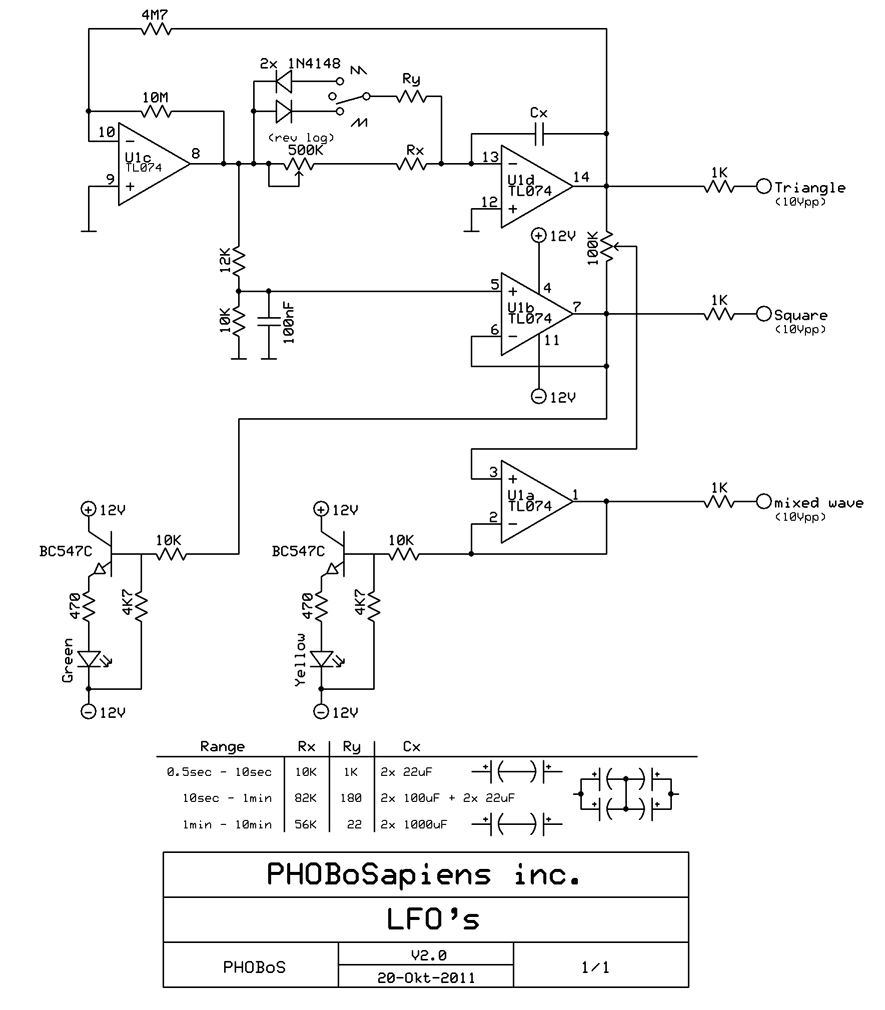

PHOBoS LFO's this is his description :
The LFO's are actually what I started with made of a basic 2 opamp inverter/integrator configuration, with square
and triangle outputs, similar to the MFOS supersimple LFO. It has a switch to select between saw/triangle/inverse saw
and a 3rd output which you can mix between the square and triangle. Originally I made it with only one LED,
attached to the mixed output, but you can never have enough blinky lights, so I added one to the square out
aswell. I made 3 versions with different caps to get a total range of ± 0.5 sec. to 10 minutes. You could offcourse
use a switch to select different caps and have the full range in 1 LFO. The 100nF cap attached to the voltage divider
for the squarewave (non inverting input of U1b) is added to suppress voltage spikes.

more on this thread : http://www.electro-music.com/forum/post-357536.html


PHOBoS - LFOs.gif
 Description:
 Filesize:  51.5 KB
 Viewed:  1302 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

PHOBoS - LFOs.gif


Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 8:08 am    Post subject: Reply with quote  Mark this post and the followings unread

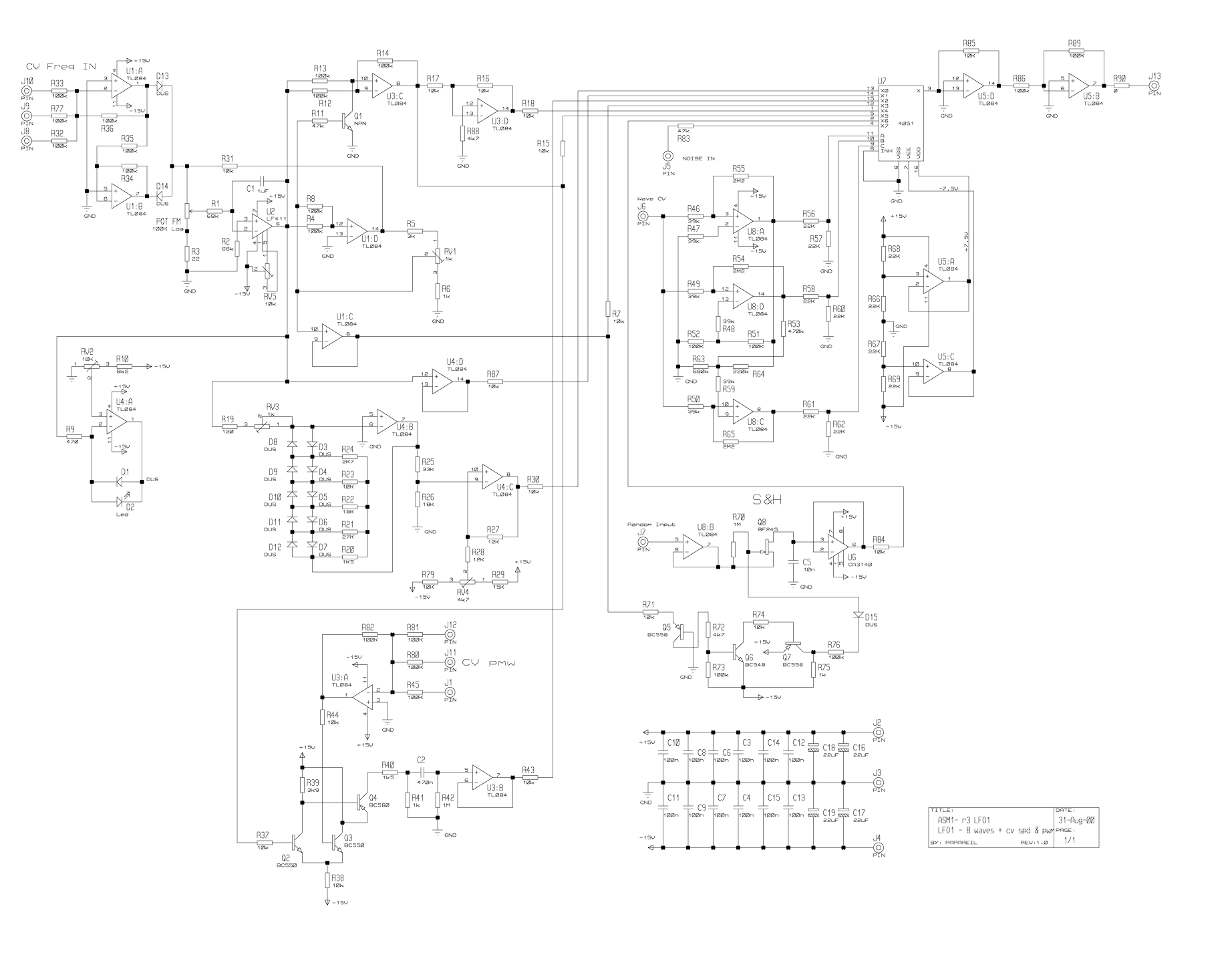

CV LFO by Papareil based on Formant Synth Book II ,more info on the page : http://m.bareille.free.fr/asm1/asm1x_lfo.htm


 Description:
 Filesize:  84.02 KB
 Viewed:  1229 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 8:17 am    Post subject: Reply with quote  Mark this post and the followings unread

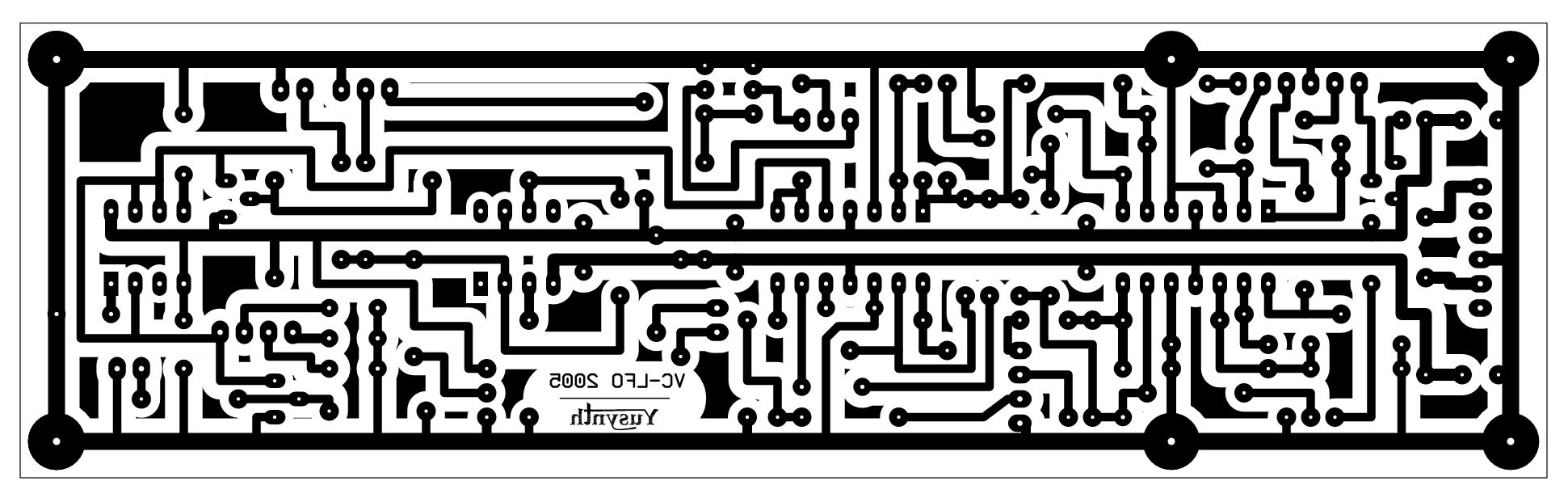

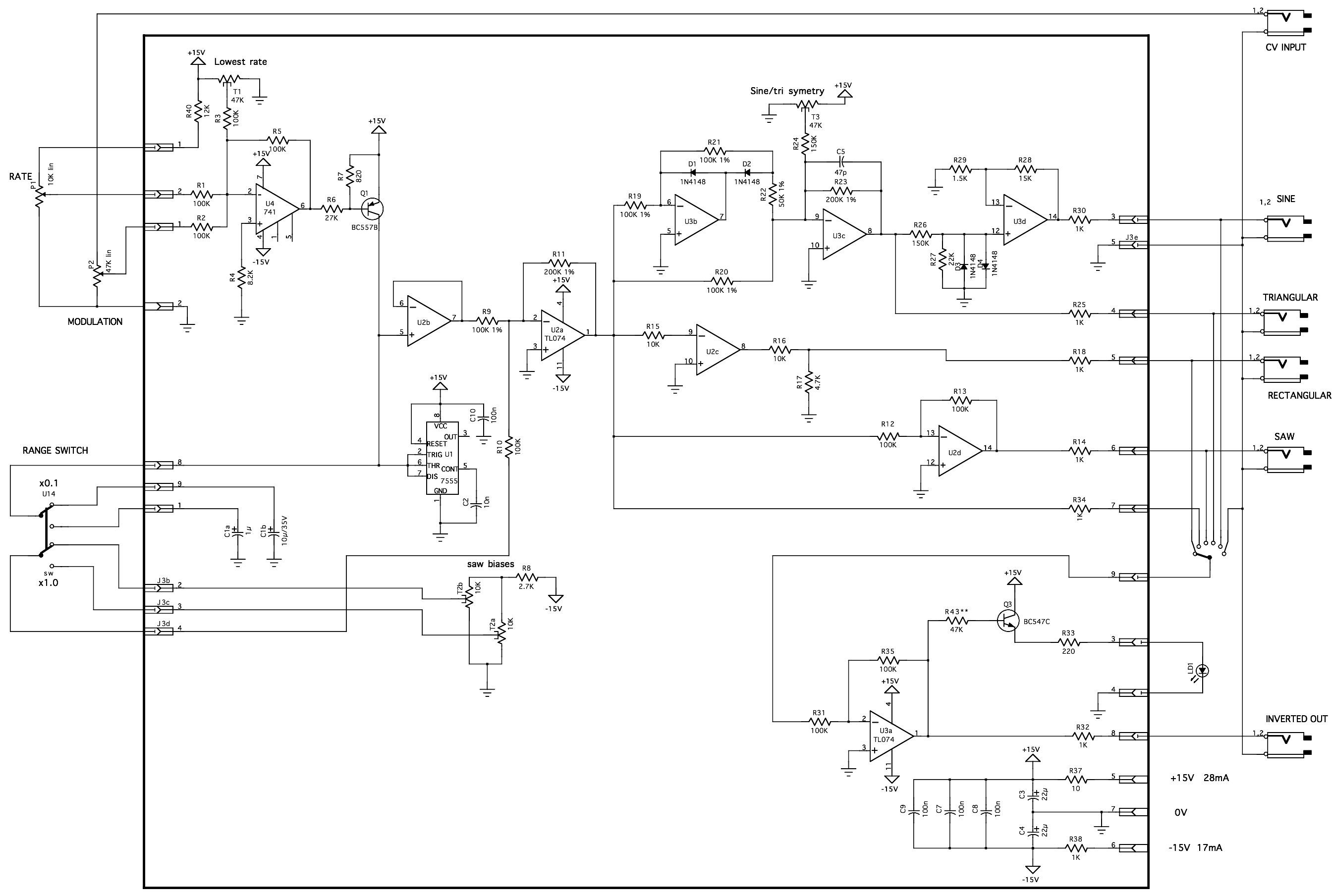

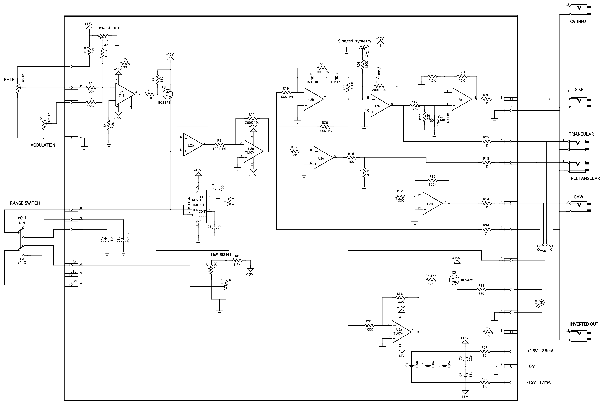

Voltage controlled low frequency oscillator by Yves Usson ,details on the construction on his page : http://yusynth.net/Modular/index_en.html ,from there : This module is a very useful utilty module in a modular synthesizer. It provides low frequency signals with different waveshapes that can be used to modulate and control many other modules. Another interesting feature of such a module is that its oscillation rate can be controlled by a CV.
In this version, the frequency can be set with the RATE knob between 0.1Hz (10s repetition rate) and 100Hz (0.01s repetition rate) or between 0.01Hz (100s rate) and 10 Hz, depending on the rate switch.
The frequency can be modulated in an exponential manner using the FM socket, the FM level knob let us control the amount of modulation.


 Description:
 Filesize:  134.71 KB
 Viewed:  1318 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  204.36 KB
 Viewed:  1150 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 8:24 am    Post subject: Reply with quote  Mark this post and the followings unread

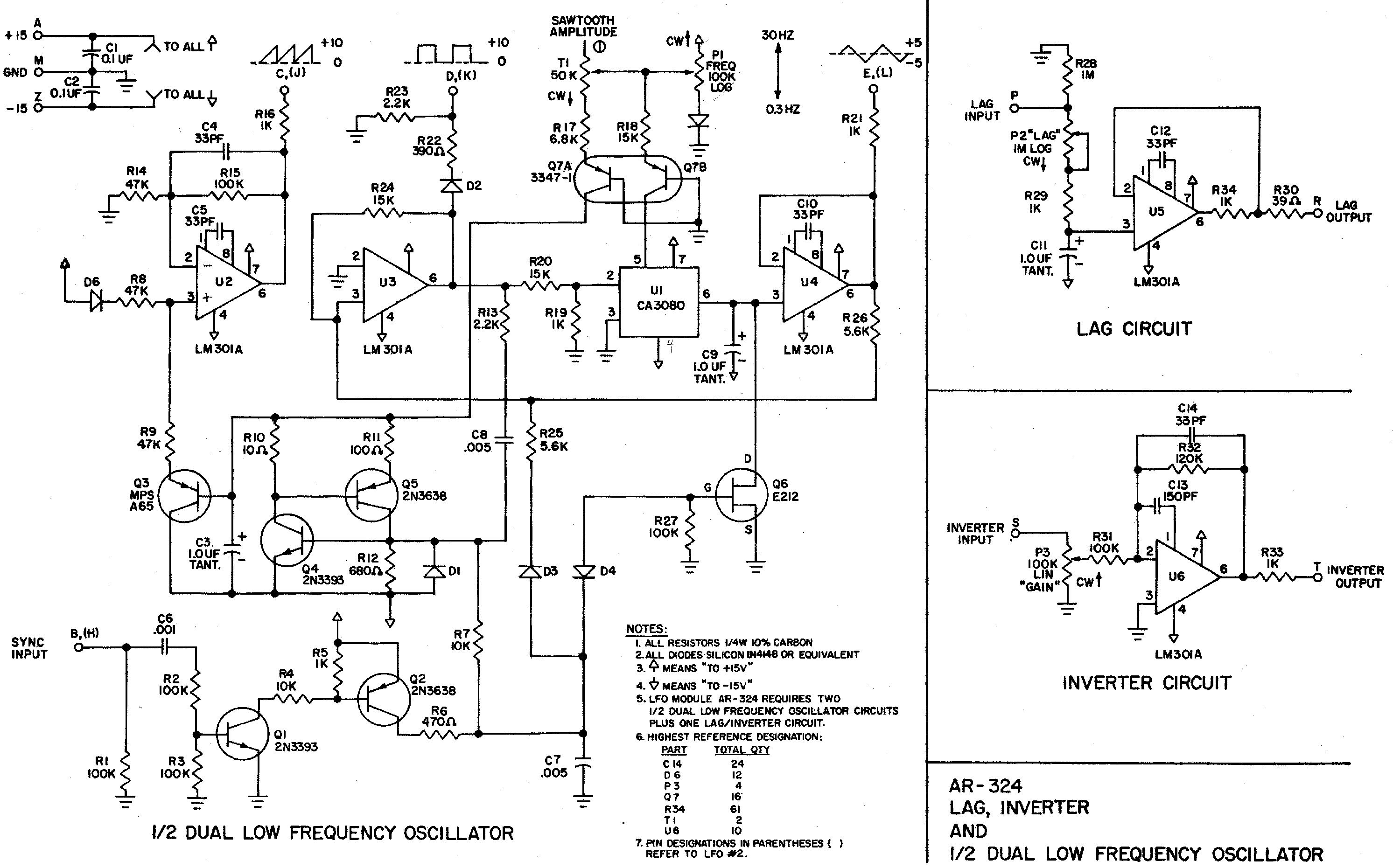

Aries - AR-324 Lag and LFO circuit , more info on the Aries Modular http://leinermedia.net/aries/home.html and more on this LFO and Lag Inverter on David Brown's page http://modularsynthesis.com/aries/AR-324/ar-324.htm


AR-324 Lag and LFO.gif
 Description:
 Filesize:  102.64 KB
 Viewed:  1292 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

AR-324 Lag and LFO.gif



Last edited by vladosh on Wed Jan 30, 2013 1:02 pm; edited 1 time in total
Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 9:25 am    Post subject: Reply with quote  Mark this post and the followings unread

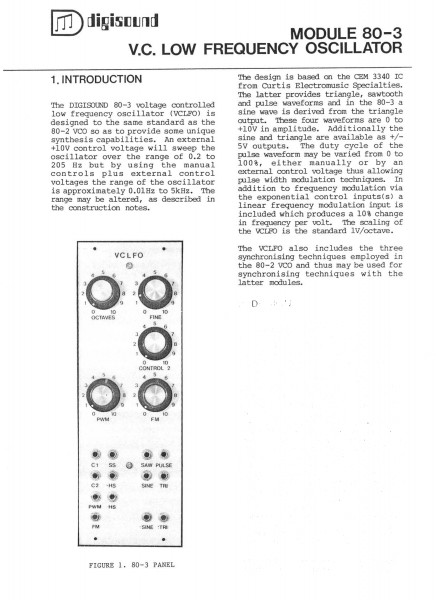

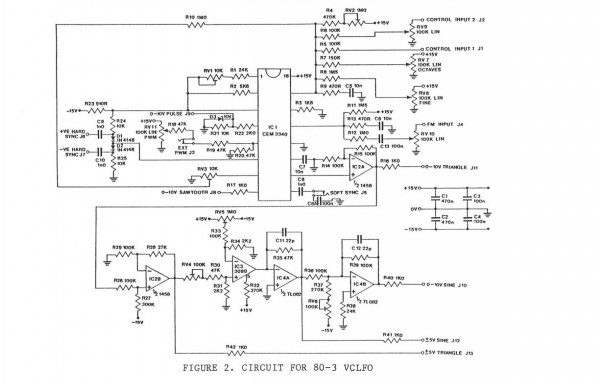

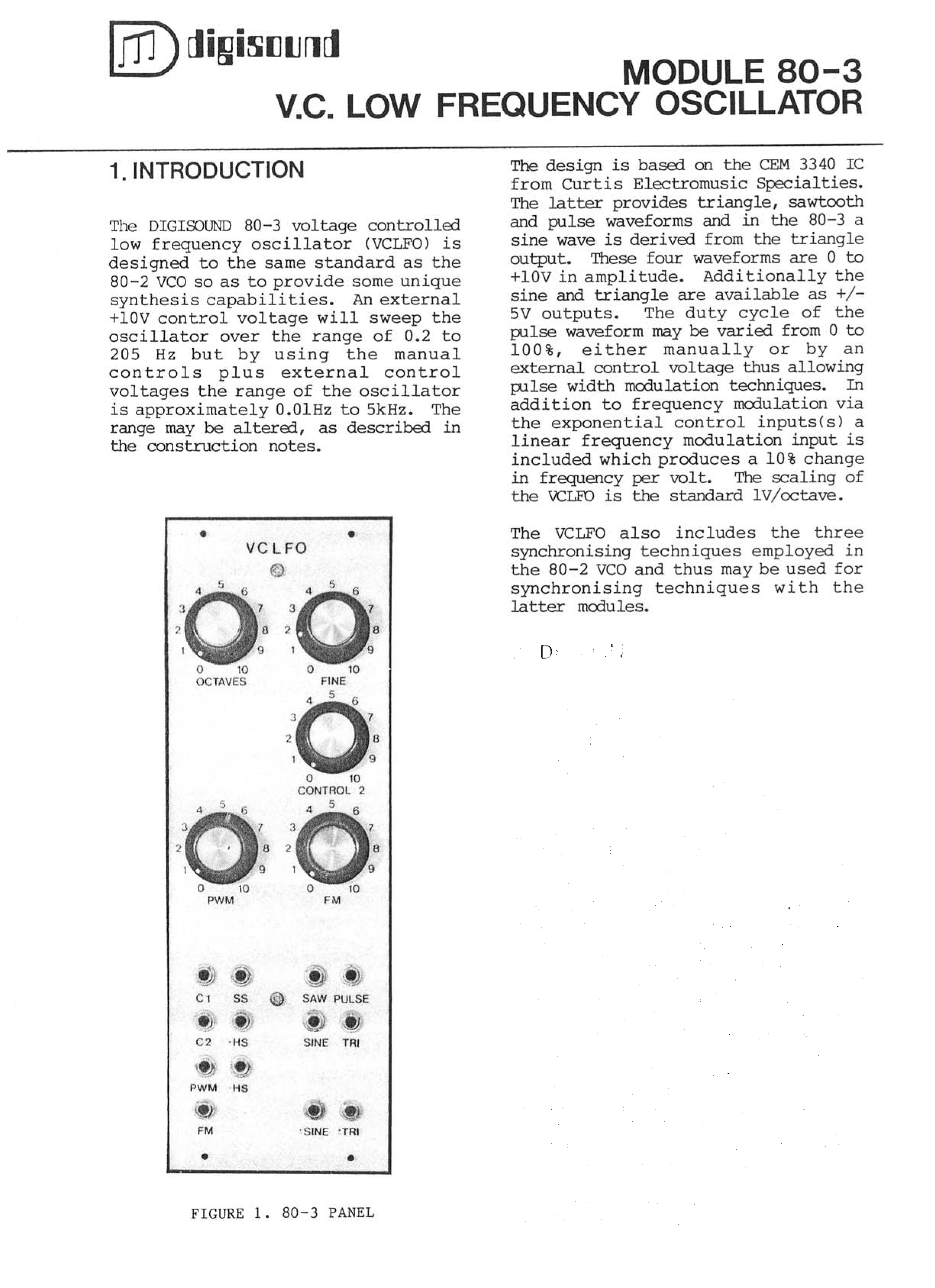

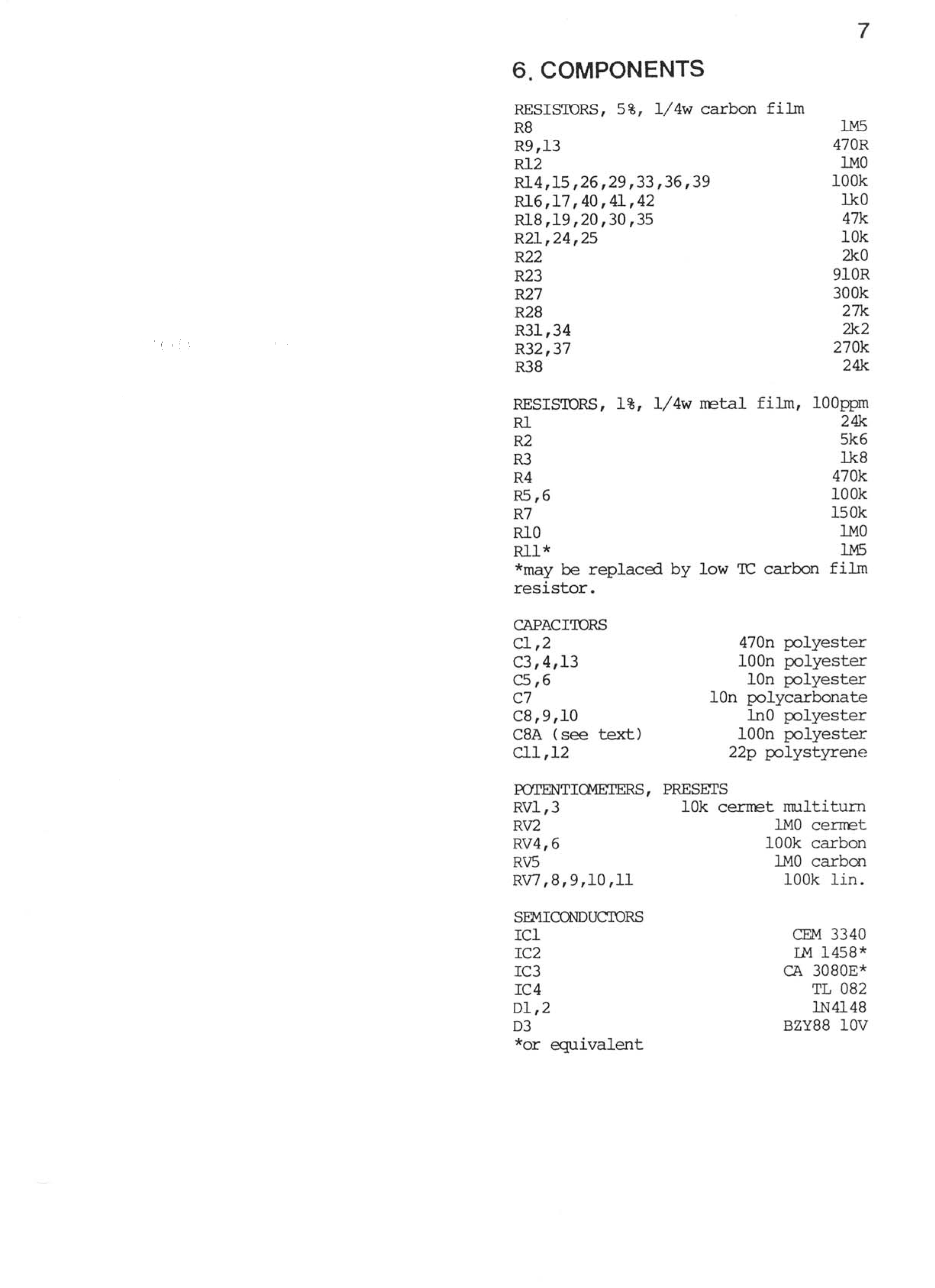

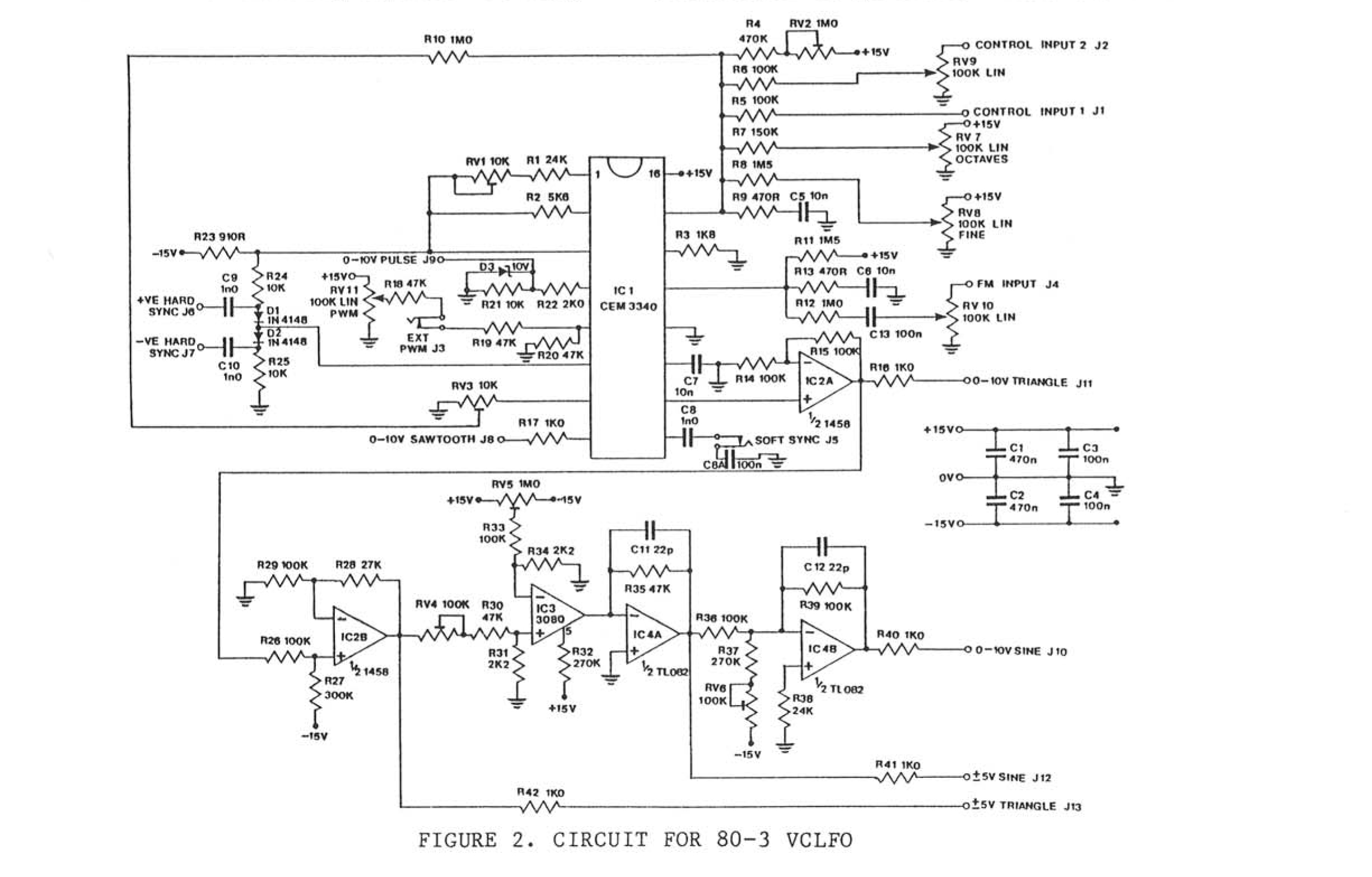

Digisound Modular CEM3340 based V.C. LFO ,the whole construction document for this and other Digisound modules is available on the site : http://www.digisound80.co.uk/digisound/modules/modules.htm in the description stands: Voltage Controlled Low Frequency Oscillator based on CEM 3340.
Same features as 80-2 VCO but operating in the range 0.2Hz to 205Hz. This range can be altered easily to suit specific needs. The total capability is about 500,000 : 1 by using CVs in conjunction with manual control.


 Description:
 Filesize:  1.32 MB
 Viewed:  939 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  594.4 KB
 Viewed:  1388 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  513.51 KB
 Viewed:  977 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 9:53 am    Post subject: Reply with quote  Mark this post and the followings unread

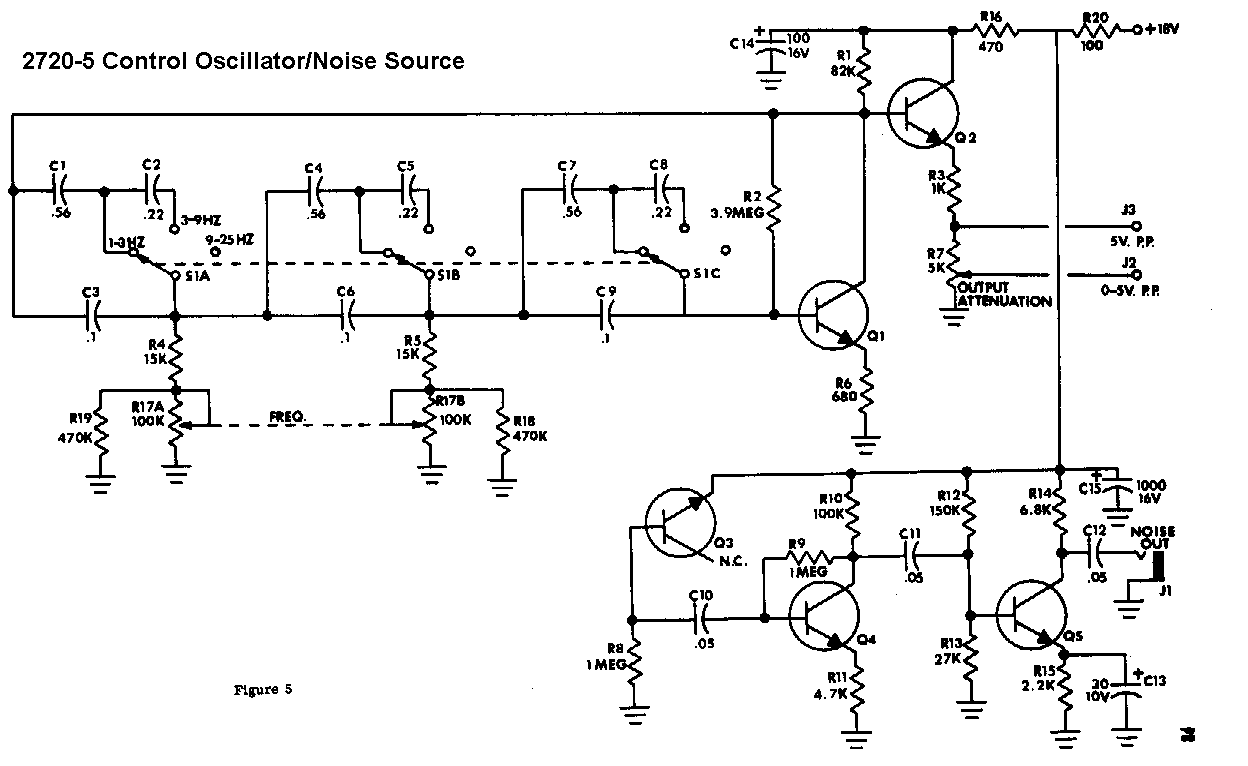

Paia 2720-5 Control Oscillator and Noise Source , for more details on old Paia designs visit Paia talk on their website : http://www.paia.com/


PAIA 2720-5 Control Oscillator and Noise Source.gif
 Description:
 Filesize:  19.14 KB
 Viewed:  1071 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

PAIA 2720-5 Control Oscillator and Noise Source.gif


Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 10:11 am    Post subject: Reply with quote  Mark this post and the followings unread

Super Psycho Modulation Source by Ken Stone ,details on construction on the website : http://www.cgs.synth.net/
- This module is a much expanded version of the Psycho LFO, featuring six free-running oscillators, each variable between LFO and audio ranges, two of which can be switched to have triangular wave outputs. Each oscillator can be switched between low and high ranges, as well as off, and also has a rate LED, to allow visual determination of the frequency at which it is running. As per the original, there are also level and glide controls.


 Description:
 Filesize:  26.78 KB
 Viewed:  63681 Time(s)



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 10:48 am    Post subject: Reply with quote  Mark this post and the followings unread

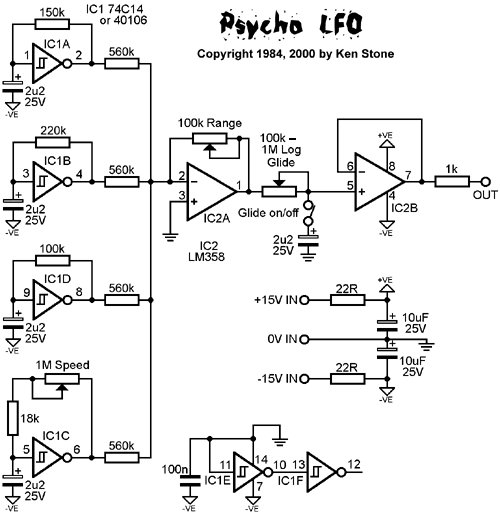

Psycho LFO by Ken Stone and his description on the page : This is a bizarre little LFO that produces a wide range of pseudo random effects. It is essentially a reworked version of my 1984 "fluorescent simulator" for model railways, and came about when I was wondering what I could do with a left-over PCB from this project. The effect was so good, I've designed a PCB specifically for it. http://www.cgs.synth.net/modules/psycho_lfo.html


 Description:
 Filesize:  21.57 KB
 Viewed:  63662 Time(s)



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Wed Jan 30, 2013 11:25 am    Post subject: Reply with quote  Mark this post and the followings unread

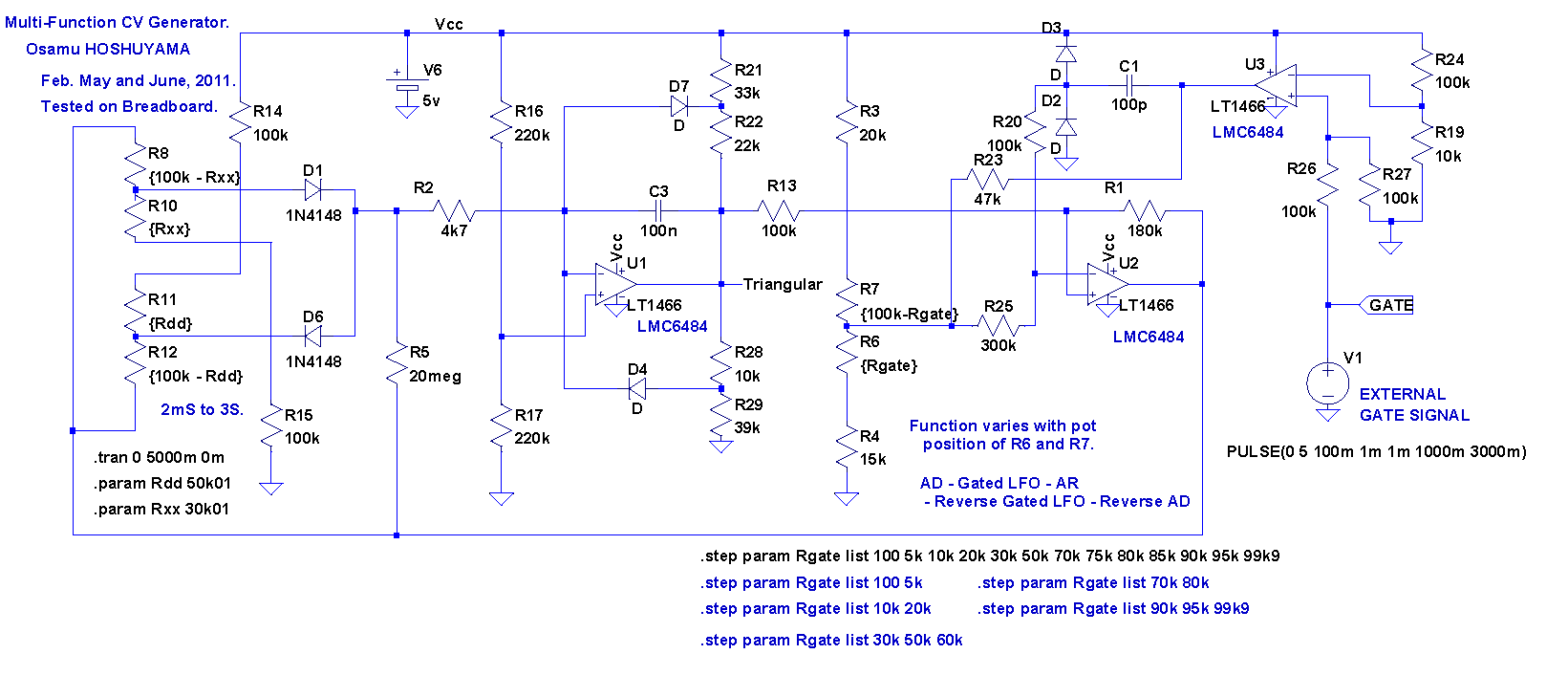

Multifunction LFO/EG Generator by Osamu Hoshuyama ,the article in Japanese : http://houshu.at.webry.info/201106/article_3.html (Tested on Breadboard )


 Description:
 Filesize:  35.76 KB
 Viewed:  1042 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Thu Jan 31, 2013 3:01 am    Post subject: Reply with quote  Mark this post and the followings unread

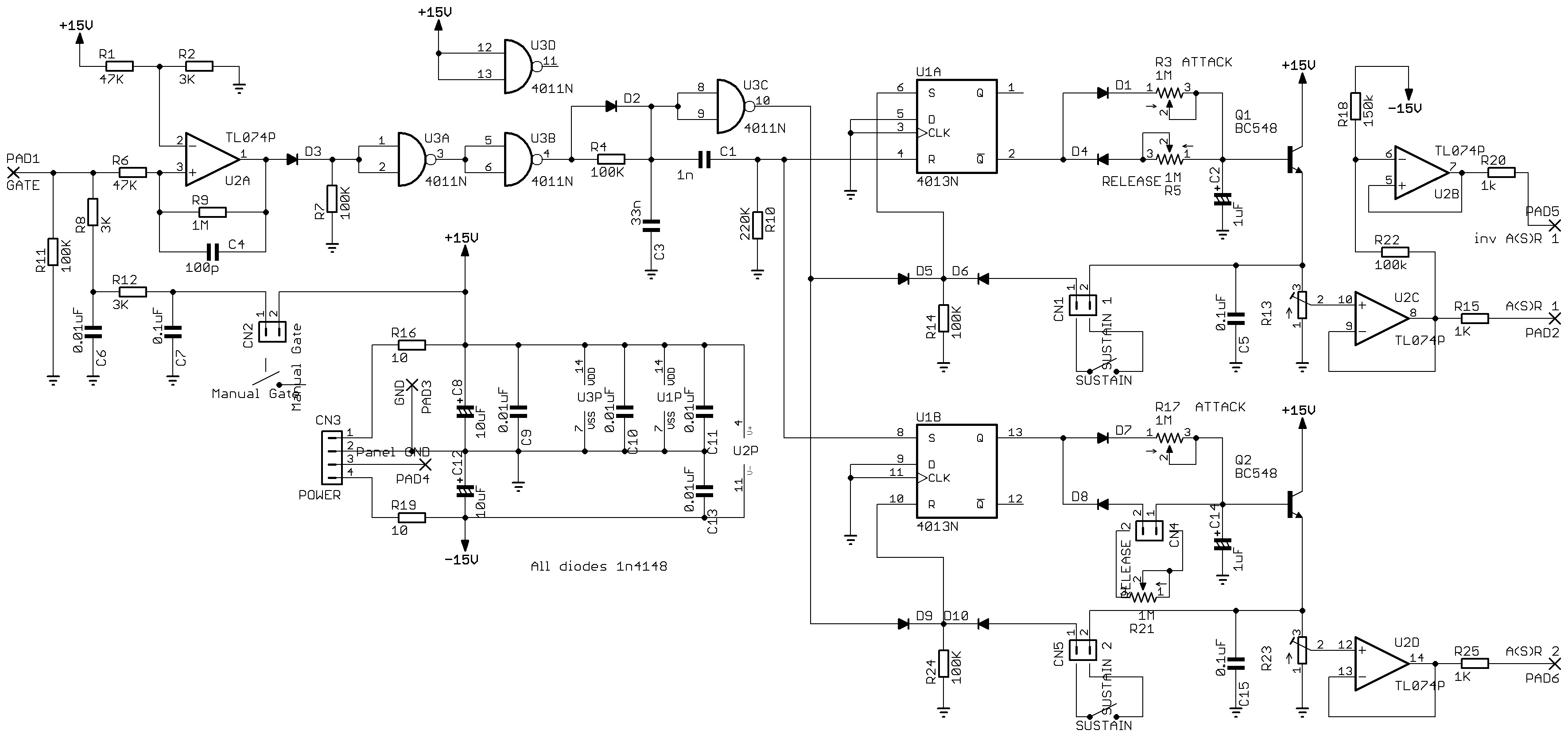

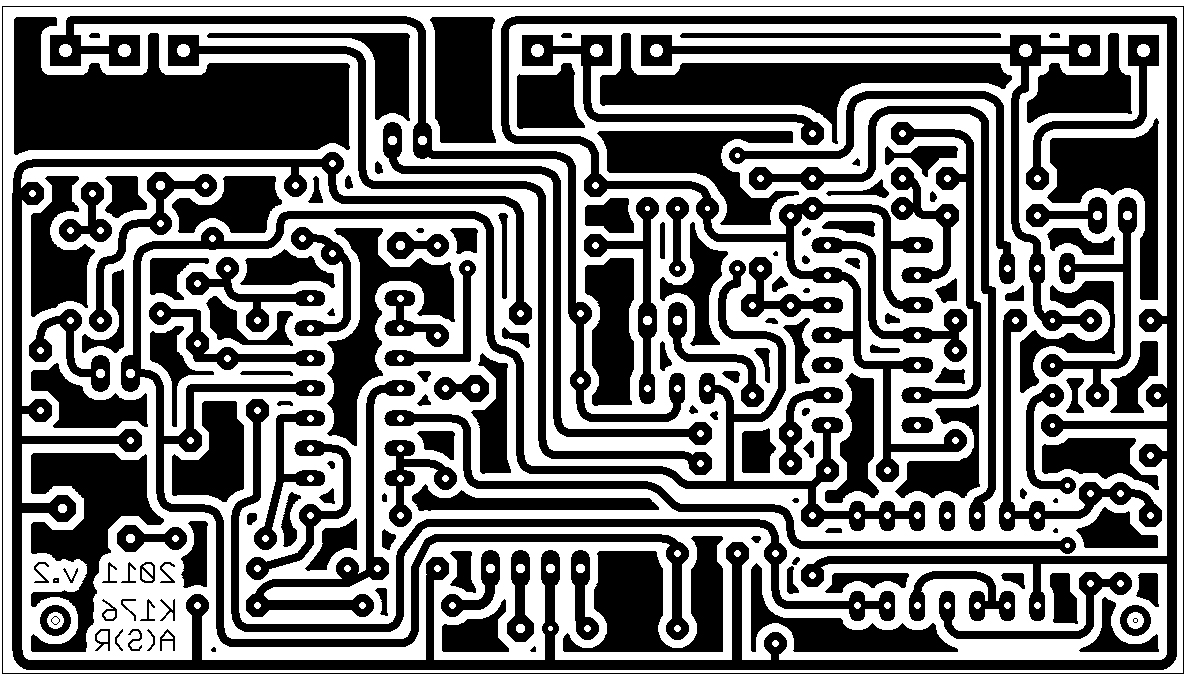

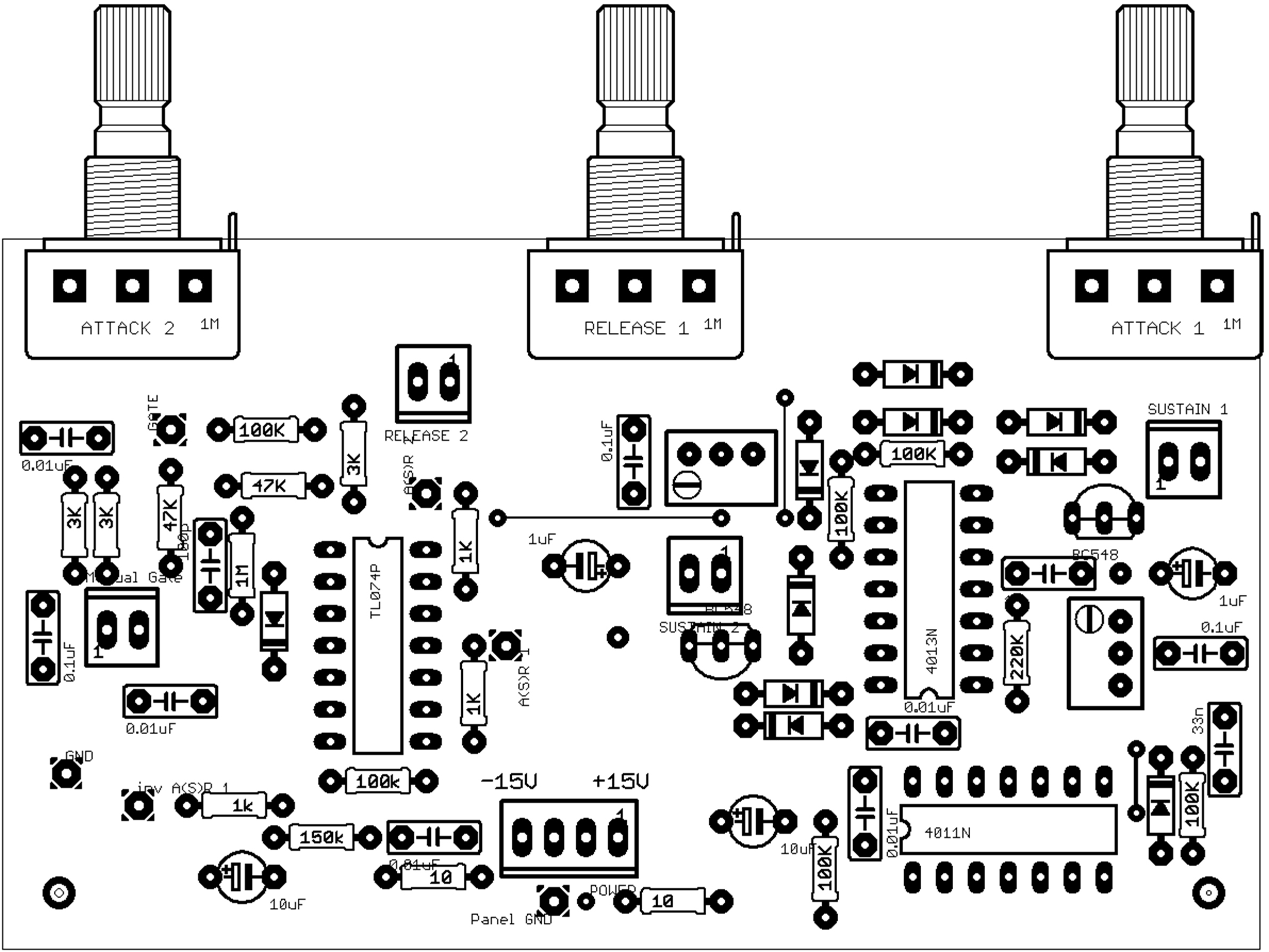

Simple dual A(S)R by Strazdas ,following this thread http://electro-music.com/forum/topic-50401.html as it's noted : Idea is taken from old russian Radio 1992 magazine, but adopted to modern modular needs .

All diodes n4148.
With trimmers R13, R20 you set max EG voltage (you may vary from near 15V to 0V).
Timing caps are C2 & C4 (tantalum are best), but you can change them for your needs or make switch for different timing eg. FAST-SLOW-MEDIUM as shown in MFOS dual EG.
With R1 and R2 you set GATE voltage (now it's +0,9V), for ±12V users calculate your own needs.
Will work with ±12V PSU.

NOT TESTED! but breadboarded and tested with +8V with no op-amps as on original schematics (it uses russian K176 series CMOS with operational voltage max +9V)

This is V2 of this Envelope Generator .


ASR 1.jpeg
 Description:
 Filesize:  565.65 KB
 Viewed:  1184 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

ASR 1.jpeg



 Description:
 Filesize:  364.76 KB
 Viewed:  983 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  646.48 KB
 Viewed:  1010 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Thu Jan 31, 2013 3:32 am    Post subject: Reply with quote  Mark this post and the followings unread

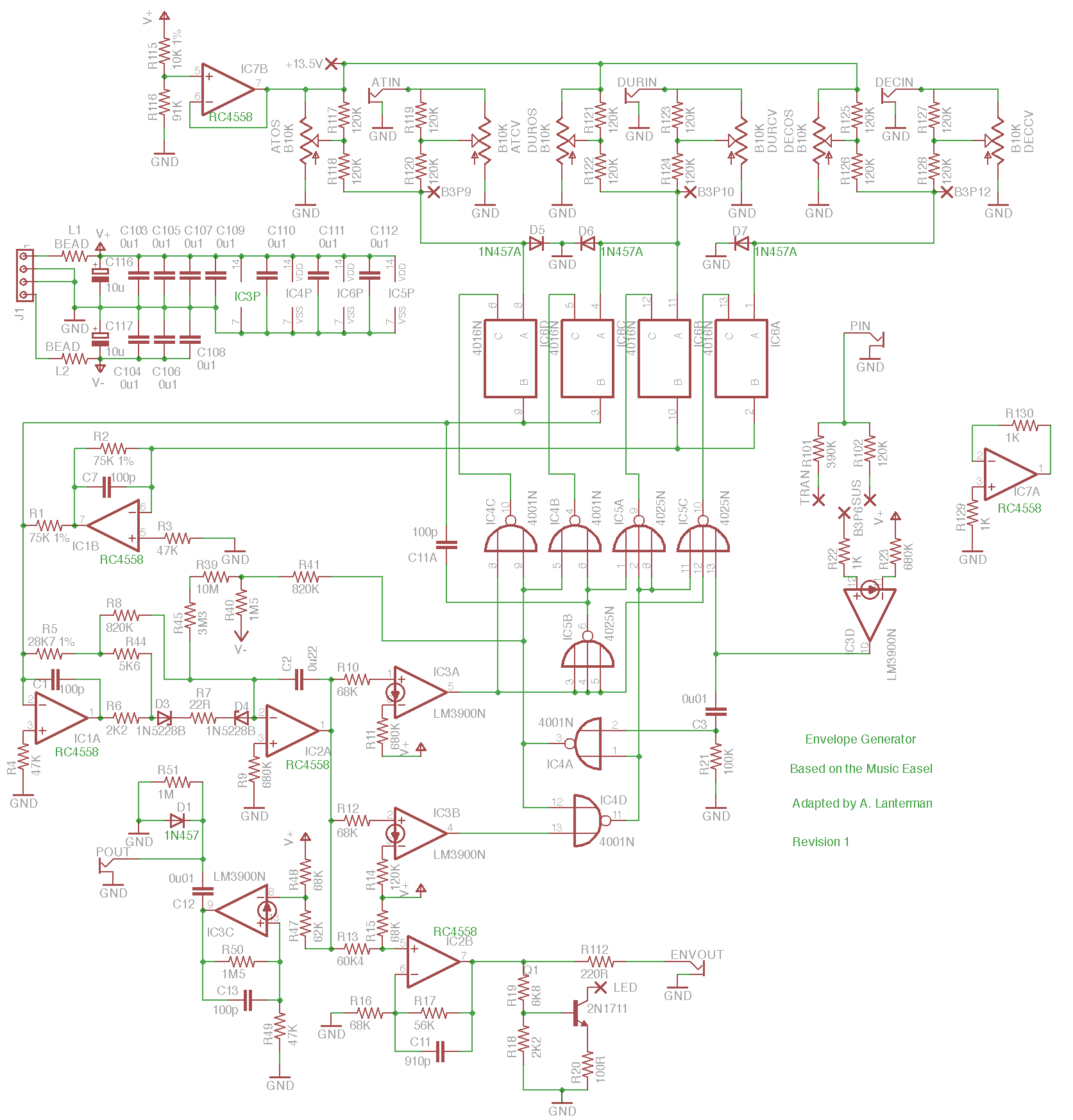

Music Easel Adaptation - Envelope Generator (voltage controlled) by Aaron Lanterman ,following this thread http://www.electro-music.com/forum/viewtopic.php?highlight=buchla&t=36554 ,visit Aaron's page on Buchla Easel for details on construction of this module or getting pcb's for the project : http://users.ece.gatech.edu/~lanterma/buchla/boards/mea_envgen/mea_envgen_rev1.html


 Description:
 Filesize:  75.39 KB
 Viewed:  1079 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Thu Jan 31, 2013 3:55 am    Post subject: Reply with quote  Mark this post and the followings unread

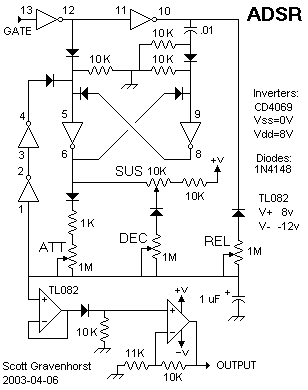

ADSR From Scott Gravenhorst ,as he mention in this thread http://electro-music.com/forum/topic-41514.html :It uses a TL082, 4069UB and a bunch of diodes.

This was designed for a FatMan, hence the odd power supply voltages, but these can be changed. I believe that the output voltage rises to 6.5 volts at peak.


 Description:
 Filesize:  4.73 KB
 Viewed:  63549 Time(s)



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Thu Jan 31, 2013 4:06 am    Post subject: Reply with quote  Mark this post and the followings unread

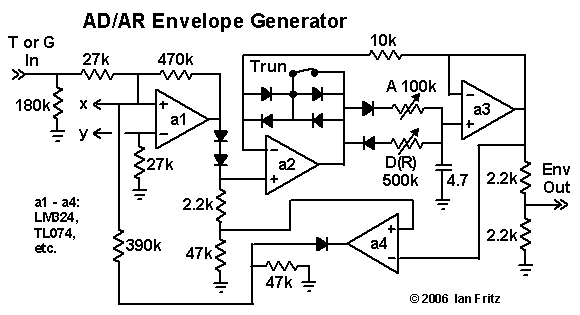

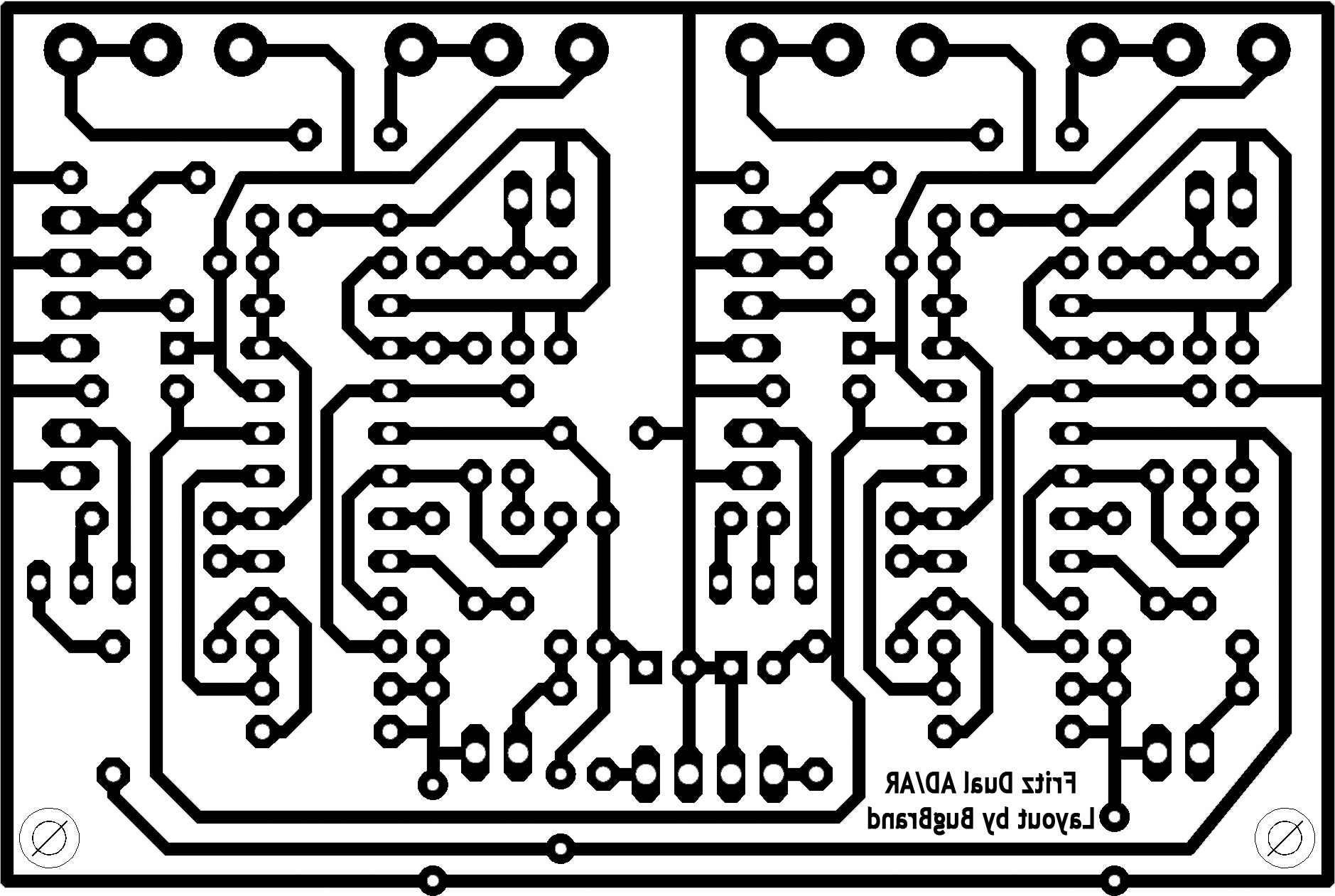

AD / AR by Ian Fritz as he present it here on this thread : http://electro-music.com/forum/topic-21723.html&postorder=asc&highlight=envelope+generator+ian more details on this design on Ian's page : http://home.comcast.net/~ijfritz/sy_over.htm ,Dual AD/AR PCB layout by Bugbrand


 Description:
 Filesize:  6.38 KB
 Viewed:  63543 Time(s)




AD-AR High Resolution by Bugbrand.jpg
 Description:
 Filesize:  329.16 KB
 Viewed:  970 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

AD-AR High Resolution by Bugbrand.jpg


Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Thu Jan 31, 2013 4:14 am    Post subject: Reply with quote  Mark this post and the followings unread

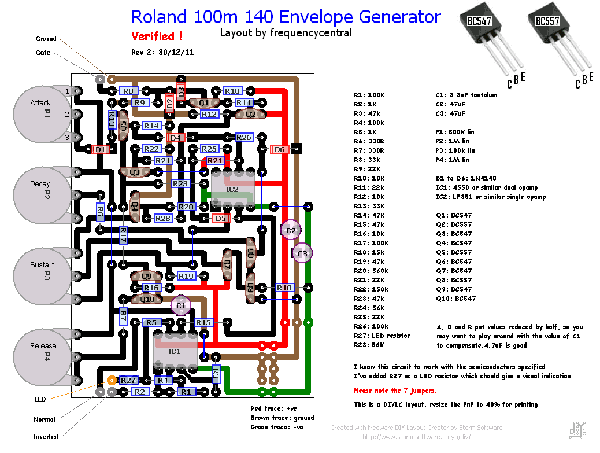

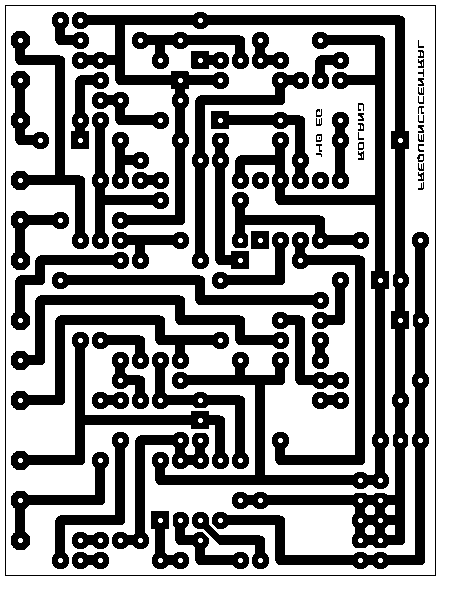

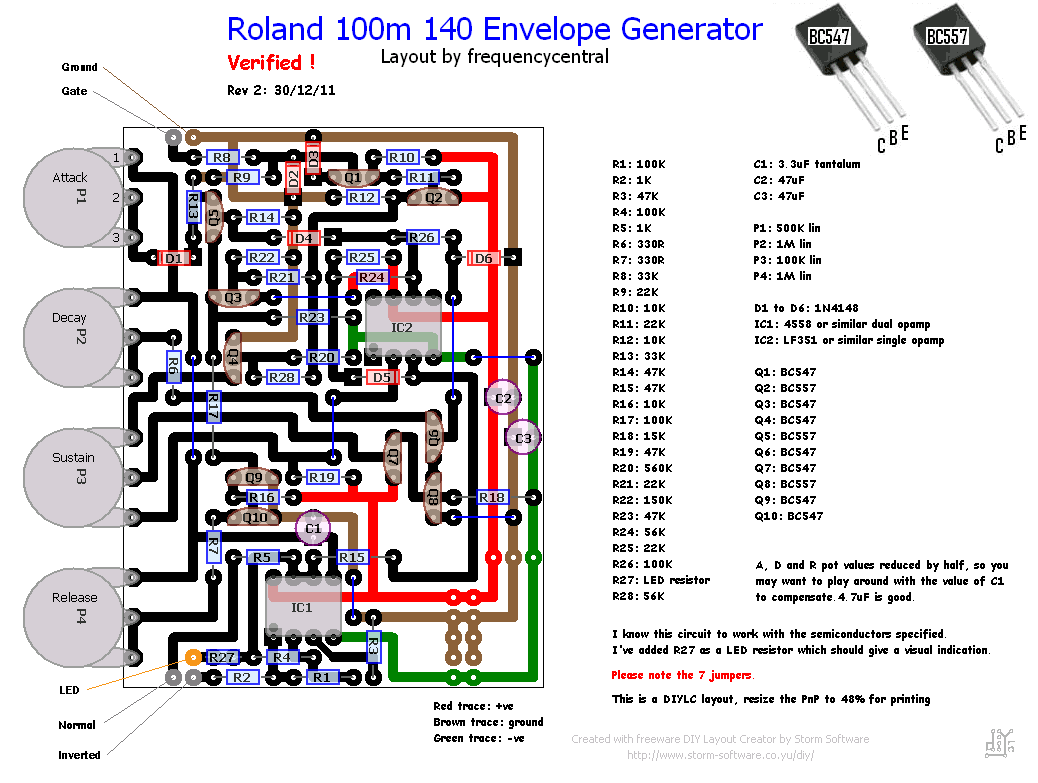

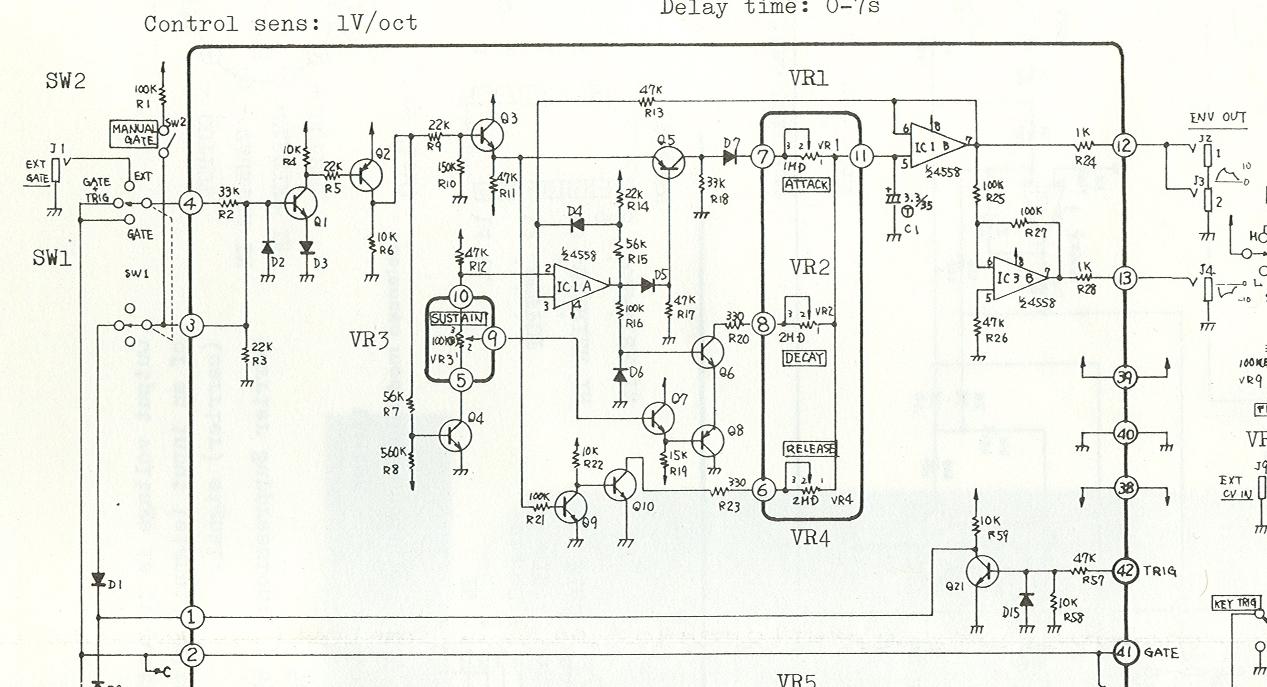

Presented as one of the Snappiest ADSR EG in the World ,Roland 100M 140 Envelope generator , from this thread : http://www.electro-music.com/forum/topic-24627-25.html ,layouts kindly shared by frequencycentral visit his site for more details and PCB's http://www.frequencycentral.co.uk


140 Env PnP.gif
 Description:
 Filesize:  13.6 KB
 Viewed:  63540 Time(s)

140 Env PnP.gif



 Description:
 Filesize:  119.56 KB
 Viewed:  1240 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




140 Env PCB.gif
 Description:
 Filesize:  53.59 KB
 Viewed:  1437 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

140 Env PCB.gif


Back to top
View user's profile Send private message
Display posts from previous:
Post new topic   Reply to topic Moderators: jksuperstar, Scott Stites, Uncle Krunkus
Page 2 of 11 [252 Posts]
View unread posts
View new posts in the last week
Goto page: Previous 1, 2, 3, 4, ..., 9, 10, 11 Next
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
