Korg PS3100 Resonator Schematics and Layout by Matthias Herrmann ,here are the threads discussing this module and various PCB's versions : http://srv3.electro-music.com/forum/topic-49495.html , http://srv3.electro-music.com/forum/topic-24331-125.html ,check Fonitronik's web site for the latest stereo version of this module : http://www.modular.fonik.de/Page46.html , check Fonitronik's subforum for more on this module as well as PCB offers . http://electro-music.com/forum/forum-190.html


 Description:
 Filesize:  683.32 KB
 Viewed:  355 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




resonators PS3000-1.jpg
 Description:
 Filesize:  1.13 MB
 Viewed:  167 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

resonators PS3000-1.jpg


Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Thu Feb 07, 2013 9:57 am    Post subject: Reply with quote  Mark this post and the followings unread

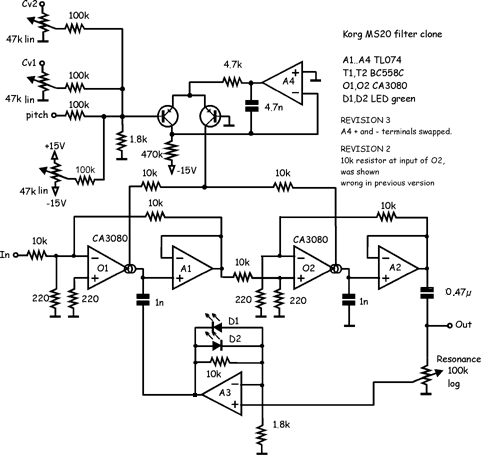

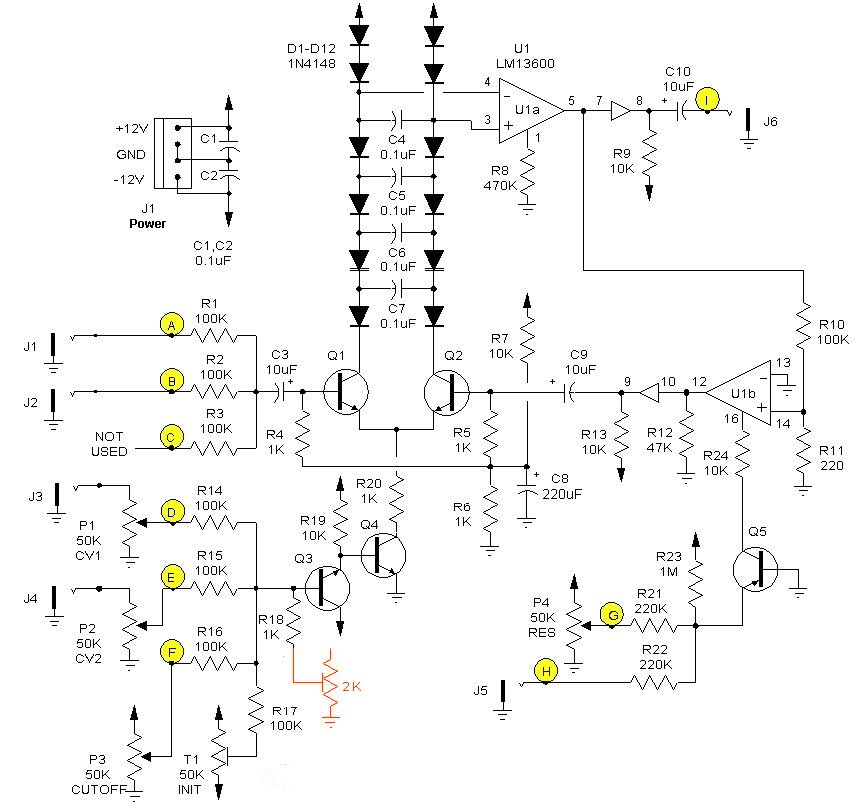

Korg late MS20 filter by René Schmitz ,follow the link http://www.uni-bonn.de/~uzs159/index.html for more circuit ideas by René Schmitz along with nice tutorials on OTA's ,temco and temperature compensation .

this filter has been discussed in the following thread : http://electro-music.com/forum/topic-22235.html


 Description:
 Filesize:  15.82 KB
 Viewed:  10297 Time(s)



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Thu Feb 07, 2013 10:43 am    Post subject: Reply with quote  Mark this post and the followings unread

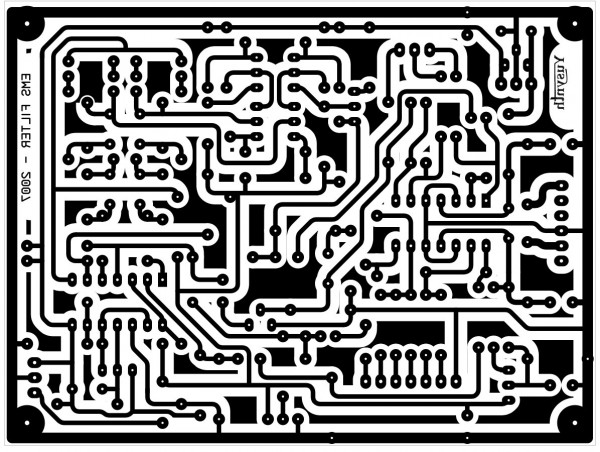

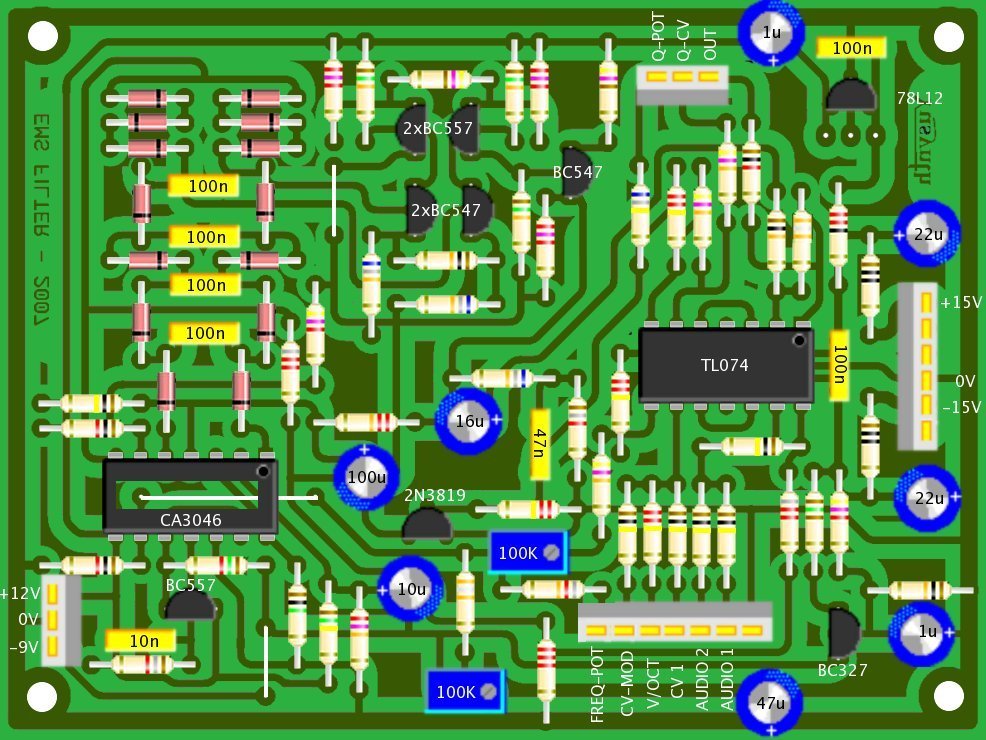

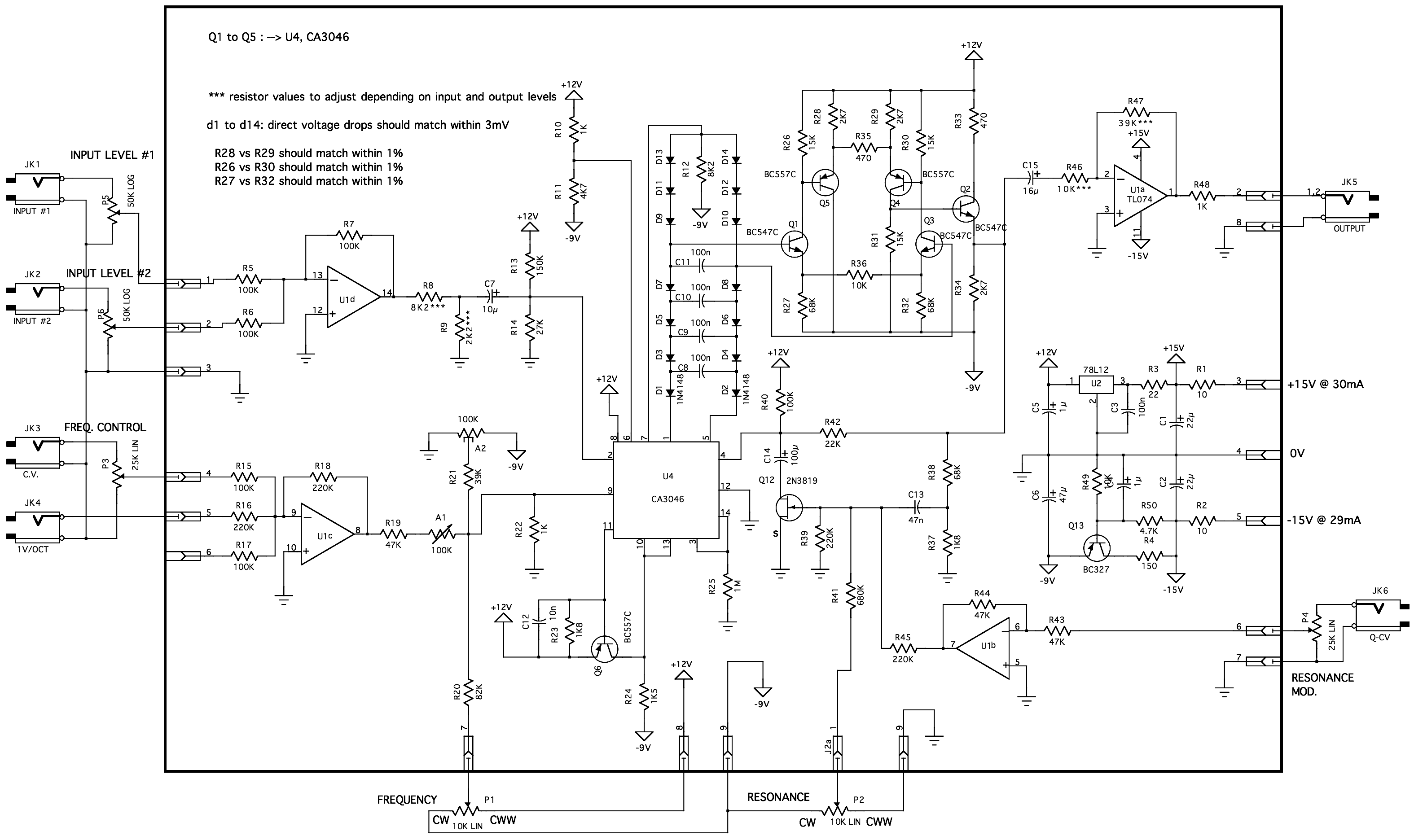

Diode ladder VCF by Yves Usson ,as part of the Yusynth Modular , page dedicated to this filter is here http://yusynth.net/Modular/index_en.html with details on construction ,calibration , wiring and demo. From the notes on the page :


Well, here is another classical and very special filter based on the EMS diode ladder filter!
This filter has a sound of its own and is the signature of the classical Pink Floyd's song "On the run".

My aim here was to design a quite faithful copy of this mythic filter while using components that minimize the burden of selecting a great number of matched transistors. This is why I used transistor arrays (CA3046, CA3096). However, because the CA3096 has become a rare part and is now overpriced, I have also designed a PCB with discrete trannies to replace it. As for all the other filters of my YUSYNTH project, I have added an input and an output buffer to adapt this filter to the input and output levels of my modular system.
I also added an input for voltage control of the resonance : everything was there in the original module but was not made available, probably because of the limited size of the patch pin matrix of the AKS/VCS3...
Because, my power supply standard is +15/-15V, I have included a power regulator IC (78L12) to convert +15V to +12V and a single transitor voltage regulator -15V to -9V (I wanted to use a 79L09 but changed my mind when I realized that this voltage regulator is quite a rare part and is difficult to source).

here presented is a schematic for the discrete version .More Info and troubleshooting ,building experience by other people on the Yusynth subforum : http://electro-music.com/forum/forum-170.html


 Description:
 Filesize:  199.92 KB
 Viewed:  225 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  272.93 KB
 Viewed:  75 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  180.23 KB
 Viewed:  82 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Fri Feb 08, 2013 4:46 am    Post subject: Reply with quote  Mark this post and the followings unread

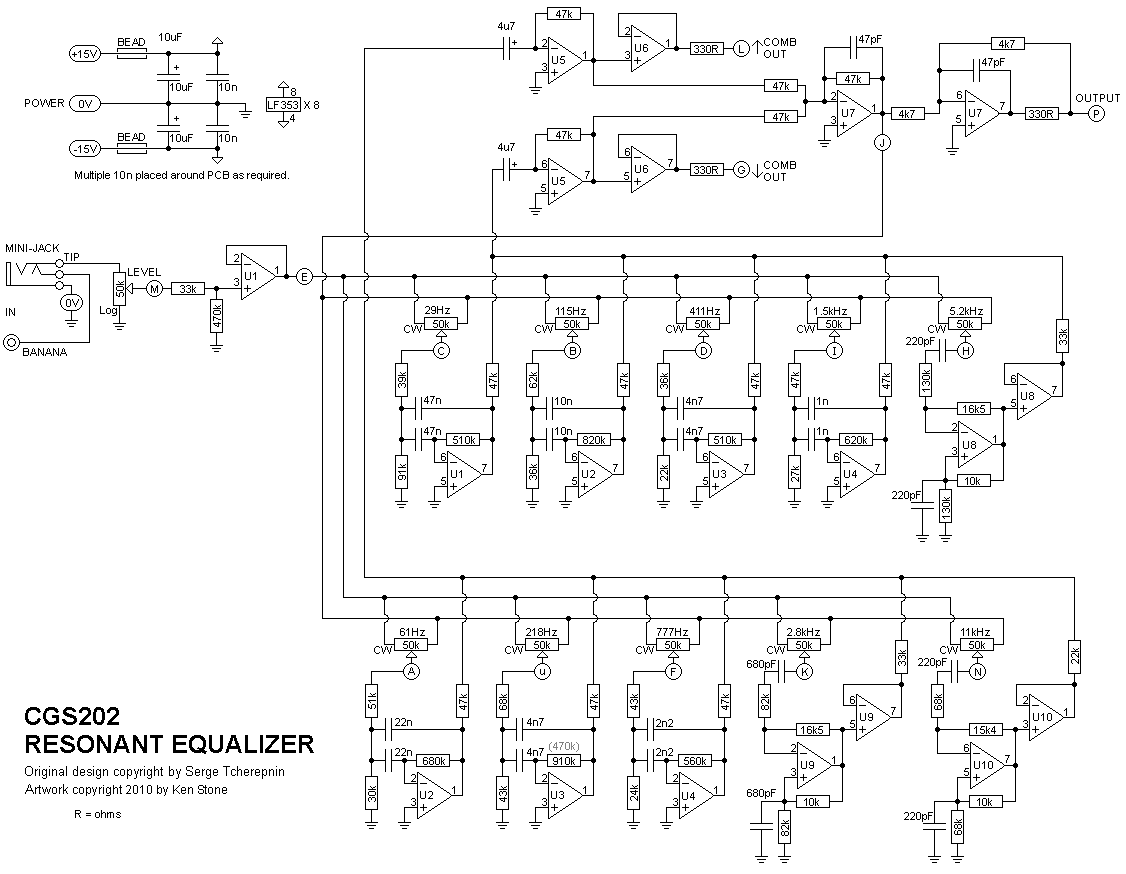

Serge Resonant Equalizer by Serge ,project page for this module at CGS site http://www.cgs.synth.net/modules/cgs202_reseq.html with details on construction ,calibration and pcb offer . Visit http://www.cgs.synth.net/ for more information . From the notes on this Module in the 1982 Serge Catalog :

The RESONANT EQUALIZER (EQ) is a unique ten-band filter designed specifically for electronic sound synthesis and processing. Except for the top and bottom frequency bands, all other bands are spaced at an interval of a major seventh. This non-standard spacing avoids the very common effect of an accentuated resonance in one key, as will be the effect from graphic equalizers with octave or third-octave spacing between bands. Spacing by octaves will reinforce a regular overtone structure for one musical key, thereby producing regularly spaced formants accenting a particular tonality. The Resonant Equalizer's band spacing are much more interesting, producing formant peaks and valleys that are similar to those in acoustic instument sounds.

There are three equalized outputs, two which mix the alternate filter bands, and one which is a mix of all filter bands. The upper (up arrow COMB) lets pass the outputs of frequency bands at 61 Hz, 218 Hz, 777 Hz, 2.8 kHz, and 11 kHz. The lower (down arrow COMB) mixes the other bands (29 Hz, 115 Hz, 411 Hz, 1.5 kHz, 5.2 kHz). This equalizer is different from other equalizers in that the bands can be set to be resonant. When the knobs are in the middle position, the response at the main EQ Output is flat. When the knobs are positioned between the 9 and 3 o'clock position, up to 12 db of boost or cut is set at the band. If the knob is set beyond the 3 o'clock position, the band will become resonant, simulating the natural resonance of acoustic instrument formant structures. Below the 9 o'clock position, increased band rejection is achieved.

visit the CGS Subforum for troubleshooting and other people's experience in building this module http://electro-music.com/forum/forum-165.html


 Description:
 Filesize:  26.2 KB
 Viewed:  167 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
Paradigm X



Joined: Feb 15, 2011
Posts: 286
Location: Null and void

PostPosted: Fri Feb 08, 2013 7:17 am    Post subject: Reply with quote  Mark this post and the followings unread

Nice one vladosh. Plenty here.

Smile
Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Fri Feb 08, 2013 8:40 am    Post subject: Reply with quote  Mark this post and the followings unread

one more Filter Paradigm X Shocked
Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Fri Feb 08, 2013 8:52 am    Post subject: Reply with quote  Mark this post and the followings unread

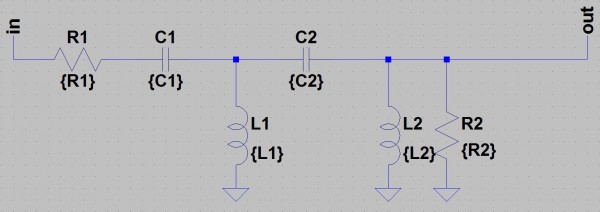

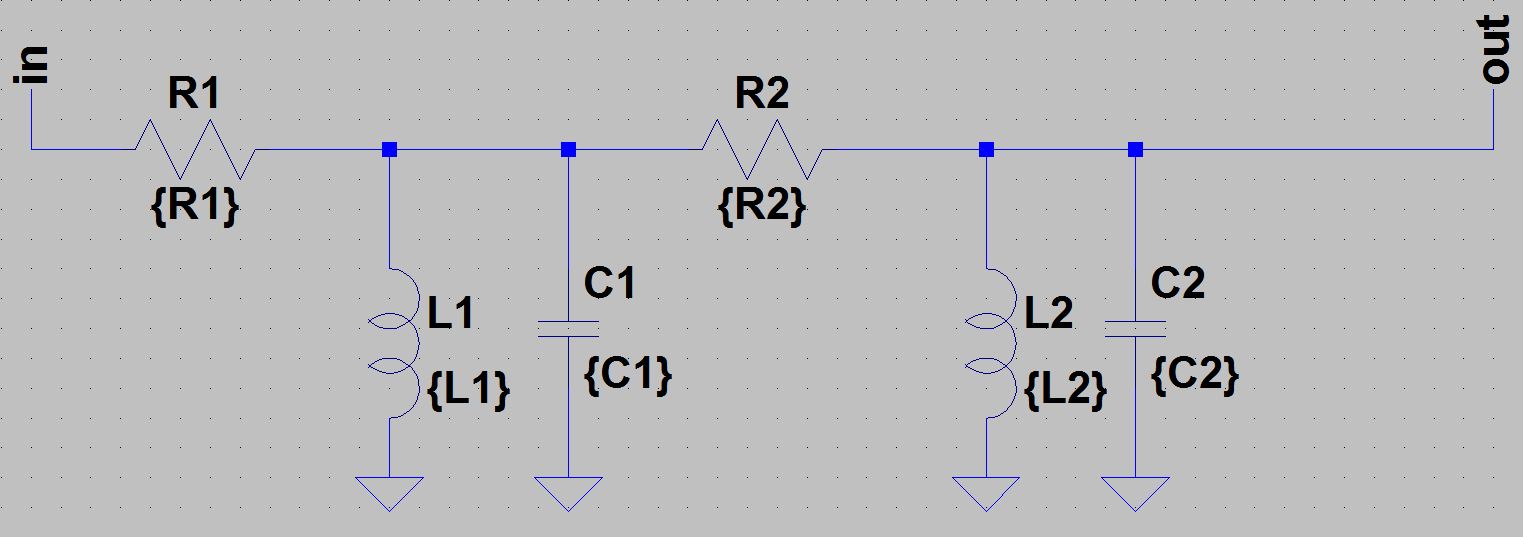

T914 Extended Fixed Filter Bank by Carsten Toensmann ,for full description and schematics as well as demo of this Passive Moog Type Filter Bank visit : http://www.analog-monster.de/mmt914_en.html description taken from the page :


And yes - another Moog filter is cloned, the 914 Extended Fixed Filter Bank. Other synthesizer concepts call them Formant Filter, but anyway - these filters don't have any voltage control but attenuate or emphasize the signal content concerning a certain frequency band by manual control (potentiometer).

The T914 consists like the original 914 of 14 filter bands. There are a low pass filter, 12 band pass filters and a high pass filter. The center frequencies of the band pass filters are:

125 Hz
175 Hz
250 Hz
350 Hz
500 Hz
700 Hz
1000 Hz
1400 Hz
2000 Hz
2800 Hz
4000 Hz
5600 Hz

The behviour of the module is non-linear. If you process a square wave signal and enable all filter bands the output is no square but something complex with peaks and notches on the scope and it sounds much more "vivid" than the input does.


 Description:
 Filesize:  70.54 KB
 Viewed:  68 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  71.05 KB
 Viewed:  60 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  72.17 KB
 Viewed:  66 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  174.34 KB
 Viewed:  74 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  422.87 KB
 Viewed:  98 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Fri Feb 08, 2013 10:11 am    Post subject: Reply with quote  Mark this post and the followings unread

SUPER SIMPLE 12db RESONANT LOWPASS FILTER shared by tokyomatik on this thread http://electro-music.com/forum/topic-51780.html ,along with pcb layout ,from the notes on the thread by tokyomatik :

recently im abusing of this incredible filter designed by a friend of mine
is really interesting for his interaction between resonance and frequency
and the sound has his own character
can run on different voltages from 9v to 12v,
at 12v can really scream!!!
no cv controll but in combination with the sn voice module could fit without problems behind the same panel for example


Super Simple.jpeg
 Description:
 Filesize:  123.09 KB
 Viewed:  111 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Super Simple.jpeg



 Description:
 Filesize:  177.16 KB
 Viewed:  79 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Fri Feb 08, 2013 11:48 am    Post subject: Reply with quote  Mark this post and the followings unread

EFM VCF6c Diode Ladder Filter ,EMS Style VCF built by Guitarfool ,visit his page for Panel artwork for this Filter and modifications http://guitarfool.com/modules/DiodeVCF.html EFM documents archive is at http://www.modular.fonik.de/


 Description:
 Filesize:  104.12 KB
 Viewed:  86 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Fri Feb 08, 2013 12:55 pm    Post subject: Reply with quote  Mark this post and the followings unread

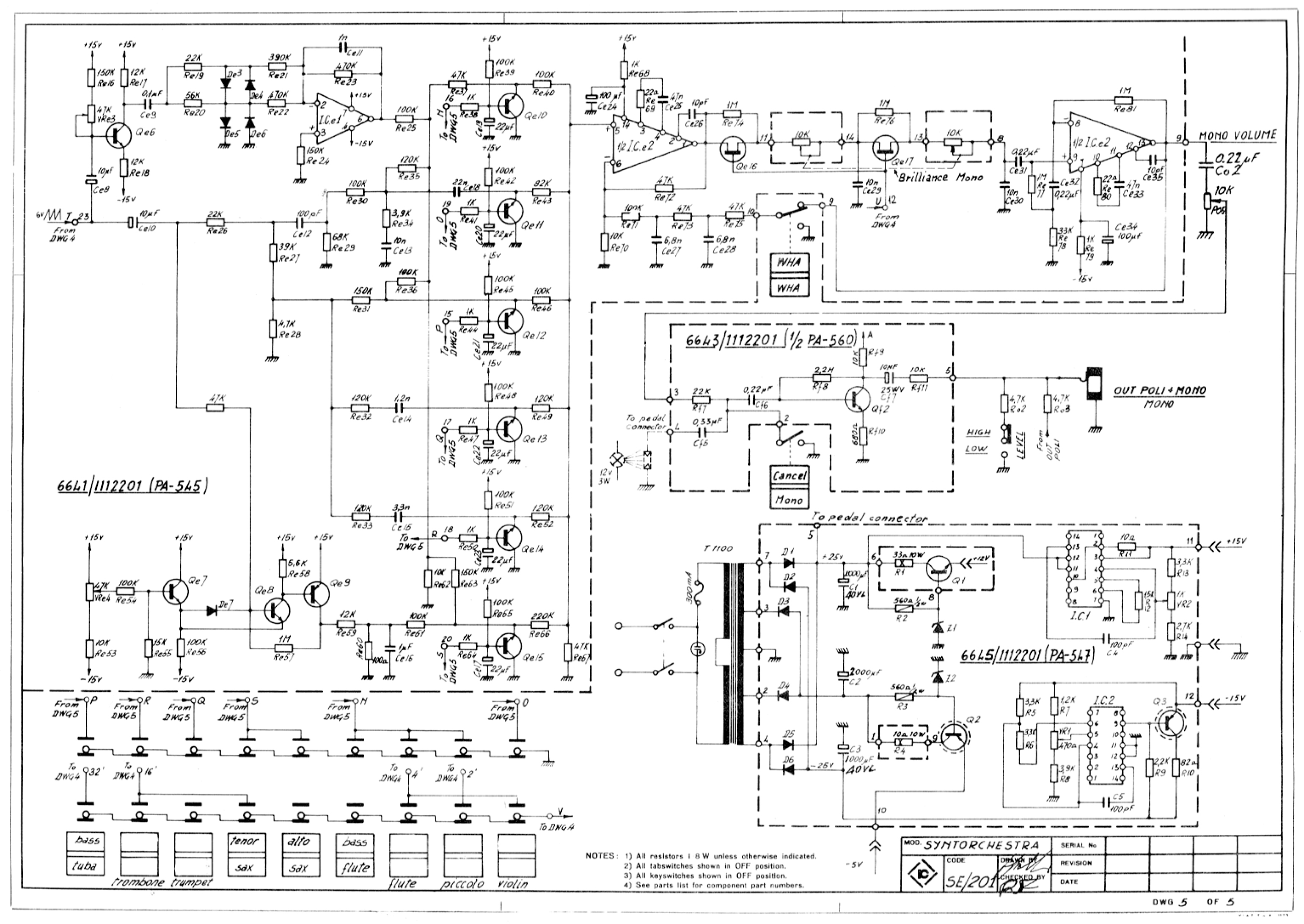

Farfisa Synthorchestra Filter section ,brief analysis of these by Aaron D. Lanterman http://users.ece.gatech.edu/~lanterma/ems11/projectideas_sp11.html

"There seem to be two VCF circuits in the schematics (you'll have to rotate them clockwise by 90 degrees in your PDF viewer for them to make sense), one in the "Poli" section (upper right corner of page 6) and one in the "Mono" section (upper right corner of page Cool. They're quite strange. It looks like they're using JFETs as variable resistors; this is usually easy to do in a predicable way if one side of the "resistor" is grounded, but here they're "floating," which is likely to induce all sorts of odd behavior. The Poli one seems to be an cascade of two RC stages, but without buffering between them, so the poles of the filter will be spread out a bit, and I don't seem to see any feedback. The Mono version seems to have a feedback loop from the output back to the input, but that feedback loop itself has some unbuffered RC stages in it, and there's a swtich that you can use to switch this feedback loop in and out. I'd love for someone to rig this up and hear how it sounds! (This would probably make a good one person project.) "


Farfisa Syntorchestra Schematics-6.jpg
 Description:
 Filesize:  1.19 MB
 Viewed:  172 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Farfisa Syntorchestra Schematics-6.jpg



Farfisa Syntorchestra Schematics-8.jpg
 Description:
 Filesize:  1.62 MB
 Viewed:  157 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Farfisa Syntorchestra Schematics-8.jpg


Back to top
View user's profile Send private message
Paradigm X



Joined: Feb 15, 2011
Posts: 286
Location: Null and void

PostPosted: Fri Feb 08, 2013 1:33 pm    Post subject: Reply with quote  Mark this post and the followings unread

vladosh wrote:
SUPER SIMPLE 12db RESONANT LOWPASS FILTER shared by tokyomatik on this thread http://electro-music.com/forum/topic-51780.html ,along with pcb layout ,from the notes on the thread by tokyomatik :

recently im abusing of this incredible filter designed by a friend of mine
is really interesting for his interaction between resonance and frequency
and the sound has his own character
can run on different voltages from 9v to 12v,
at 12v can really scream!!!
no cv controll but in combination with the sn voice module could fit without problems behind the same panel for example


mate, brilliant, i was after a really simple single sided LPF to put after hex inverters battery acid distortion, this will be perfect.

THanks for all your efforts here. Keeping the forum alive.

cheers
Ben
Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Fri Feb 08, 2013 2:09 pm    Post subject: Reply with quote  Mark this post and the followings unread

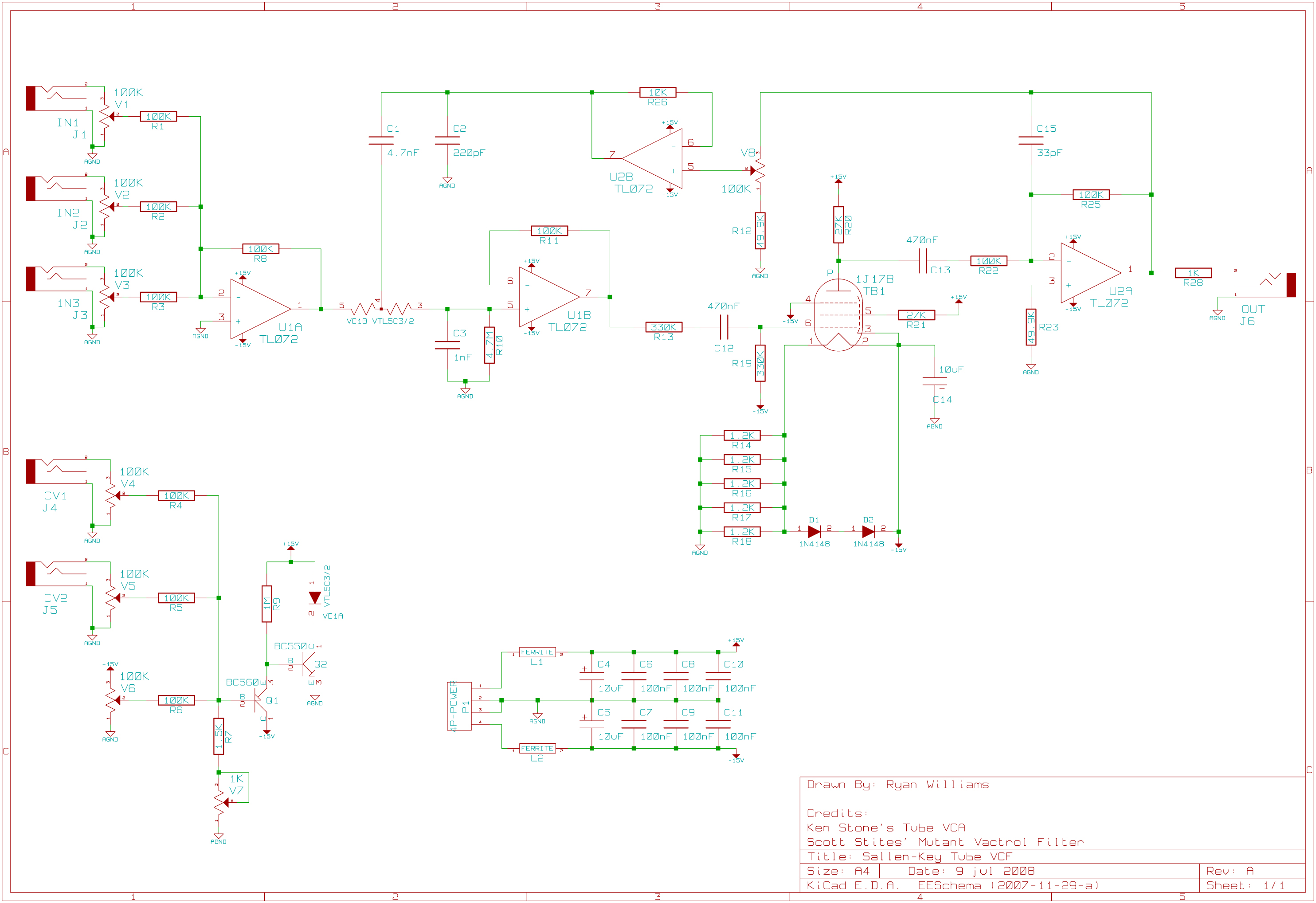

sk-tubeVCF by Ryan Williams ,page dedicated to this VCF is here : http://www.homebuilthardware.com/forums.html/projects/sk-tubevcf/ with notes ,schematics and demo . From the description there :

This is a simple sallen-key VCF using a miniature tube (1J17B) as the main amplifier. There are a few opamps in the signal path, but they are only used with a gain of 1 as inverting and non-inverting buffers. The circuit is based on Ken Stone’s tube VCA which uses the 1j24B. The cutoff frequency is controlled using a dual vactrol.

The core amplifier which is based around the tube is somewhat different than in Ken Stone’s VCA. I have removed the voltage control of the gain, and changed the tube’s biasing. The reason for this is that I noticed the tube going into cutoff mode with large signal inputs. That problem was corrected using an input resistor with greater impedance. The control grid resistor, screen grid, and plate resistors were adjusted so that the distortion is more or less symmetrical. A fixed gain of about 3 is used for the tube amplifier. Resonance is reduced rather than increased as the signal is attenuated in the feedback path. With this setup, the tube starts to clip on signals greater than about +-2V, but the distortion is what I was after. I think it sounds nice with signals at or above +-5V. The maximum signal output is around +-6V.

At high resonance levels, the filter will oscillate but requires some input to get it started. After oscillating starts, the signal can be removed. While oscillating, a large input is required to overtake the resonant frequency. Several different sounds can be achieved by adjusting the input level while at maximum resonance.


 Description:
 Filesize:  964.8 KB
 Viewed:  148 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Fri Feb 08, 2013 2:14 pm    Post subject: Reply with quote  Mark this post and the followings unread

Mean Sucker VCF by Jeroen Baars ,presented in this thread http://www.electro-music.com/forum/topic-23067.html PCB layout by Etaoin


mean sucker vcf.jpg
 Description:
 Filesize:  28.21 KB
 Viewed:  10034 Time(s)

mean sucker vcf.jpg



tubevcf rhy.jpg
 Description:
 Filesize:  68.21 KB
 Viewed:  79 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

tubevcf rhy.jpg



 Description:
 Filesize:  207.56 KB
 Viewed:  65 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Sun Feb 10, 2013 12:27 pm    Post subject: Reply with quote  Mark this post and the followings unread

Filter Bank by Juan Bermudez from his Book on Synthesizer construction : Nueva Genration de instrumentos musicales Electronicos ,individual outputs and various Q setting .


 Description:
 Filesize:  965.85 KB
 Viewed:  140 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Sun Feb 10, 2013 12:57 pm    Post subject: Reply with quote  Mark this post and the followings unread

DJB-004 Module - Mixer / Full Wave Rectifier / & Comparator by Dave Brown , the page dedicated to this Module is here http://modularsynthesis.com/modules/DJB-004/djb004.htm ,from the notes there :

This module was inspired by Richard Brewster's Mixer-Comparator module. I decided I wanted additional functionality and added a Full Wave Rectifier as an alternate output. A jumper strap on the PCB selects either AC or DC coupling for the full wave rectifier. For AC coupling the gain is x2 so the output is a full +/- 5 volts.


 Description:
 Filesize:  323.11 KB
 Viewed:  89 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Sun Feb 10, 2013 1:06 pm    Post subject: Reply with quote  Mark this post and the followings unread

Tube experimenter board by Ken Stone , the page dedicated to this module is here http://www.cgs.synth.net/modules/cgs27_tube.html visit http://www.cgs.synth.net for more details on construction , calibration and pcb offer. From the description given there :

This circuit board was designed to allow for easier assembly of 7 pin tube based synthesizer circuits. Going on the number of requests I have had for a tube module that runs on +/- 15 volts, the first project I present using this board is exactly that. It is a simple VCA that doubles as a wave folder/distortion unit. There are no dangers in connecting this to solid state modules due to the voltages in use, and the fact that this is really a voltage controlled attenuator, and not an amplifier. There is about 50% signal level loss.

visit the cgs subforum http://electro-music.com/forum/forum-165.html


 Description:
 Filesize:  9.32 KB
 Viewed:  9881 Time(s)



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Sun Feb 10, 2013 1:12 pm    Post subject: Reply with quote  Mark this post and the followings unread

Buchla 156 Control Voltage Processor ,the short description at the Buchla historical page :

Serves to mix, compress and invert control voltages. Each channel has two control voltage inputs and an internal voltage source. Particularly useful for obtaining fine pitch control, transposition capability, and range compression of control voltage sources.


 Description:
 Filesize:  244.77 KB
 Viewed:  98 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Mon Feb 11, 2013 10:28 am    Post subject: Reply with quote  Mark this post and the followings unread

Arp 4035 VCF layout by AndyR1960 as shared on this thread : http://www.electro-music.com/forum/post-212483.html follow this link to get the original Arp Schematics for this Module : http://www.arptech.synth.net/pdf/4035.pdf


 Description:
 Filesize:  927.46 KB
 Viewed:  80 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  559.6 KB
 Viewed:  77 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Mon Feb 11, 2013 10:31 am    Post subject: Reply with quote  Mark this post and the followings unread

Arp 40235 Dual VCF Schematics redrawn by J. Verghese


 Description:
 Filesize:  27.55 KB
 Viewed:  106 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  20.79 KB
 Viewed:  105 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Tue Feb 12, 2013 6:29 am    Post subject: Reply with quote  Mark this post and the followings unread

The Voltage Controlled Quadrature Function Generator Project by Thomas Henry ,page dedicated to this module is at Birth of a Synth by Scott Stites http://www.birthofasynth.com/Thomas_Henry/Pages/QFG.html visit for details on construction , calibration procedure and more .From there the brief description :


Through the years, Thomas Henry has designed a lot of synthesizer circuits - you name it, he's designed at least one version of it - VCOs, envelope generators, VCAs, filters, sequencers, flangers, phase shifters, drum voices...pretty much the gamut of things that make our synthesizers tick. All of them have his indelible mark of a carefully considered level of functionality coupled with a high standard for the elegance of the design - in other words, Thomas hates to open cans of beans with dynamite.

All of these circuits are worthy of your synthesizer, so it's hard to find any one or more of those circuits to differentiate by calling it truly "classic" over the others, but if I had to, there are certainly a few that I would choose. One of them would be his Supercontroller circuit; another, in my opinion, would be the relatively new SN-Voice. But, surely included in this group would be his Quadrature Function Generator. What makes it a classic to me is the approach Thomas took, which was, well, ninety degrees out of phase from any other approach to generating quadrature waveforms.

PCB layout by Bugbrand
this module has been discussed on the following thread http://electro-music.com/forum/topic-18716.html


 Description:
 Filesize:  569.69 KB
 Viewed:  76 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  2.07 MB
 Viewed:  118 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  809.5 KB
 Viewed:  93 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  615.81 KB
 Viewed:  85 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Wed Feb 13, 2013 4:47 am    Post subject: Reply with quote  Mark this post and the followings unread

Arp 4075 VCF designed by Timothy C. Gillette ,Alan R. Pearlman ,schematic drawn by J. Verghese (modified by Timothy Smith) ,more on this modifications on the following page http://www.marksmart.net/gearhack/arpomni/FilterMod/FilterMod.html , layout by Mike Novak


 Description:
 Filesize:  488.69 KB
 Viewed:  124 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  960.9 KB
 Viewed:  90 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Wed Feb 13, 2013 2:36 pm    Post subject: Reply with quote  Mark this post and the followings unread

VCA 3 by René Schmitz ,visit http://www.uni-bonn.de/~uzs159/vca.html for more VCA ideas ,in depth look on OTA's ,temperature compensation and more . For this circuit on the page :

My latest VCA is the one in the picture VCA3. This is the VCA that I use inside my so called "Blue Box". It is based on VCA 2, but shows a number of minor improvements (which can be retrofitted to VCA2). I have also shown my external pot connections. These were left out on the VCA2 drawing. I added a trimpot at the inverting input, so that the output offset can be eliminated. This makes it DC accurate. The adjustment is somewhat tricky, since it interacts with the CV rejection pot. You will have to adjust the trimmers alternatingly. Its well worth the effort, with careful adjustments you get it basically thump free. (But beware that your breath might have an impact on the setting, best is to insulate the pair with styrofoam or something.) Also there is the trimmer called "deaf-zone elimination" by which you can shift the point where the gain goes to 0, so that with 0V input (and the manual pot at the lowest setting) the VCA is just closed


 Description:
 Filesize:  51.59 KB
 Viewed:  90 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Wed Feb 13, 2013 2:41 pm    Post subject: Reply with quote  Mark this post and the followings unread

Serge VCA as suggested by Serge Tchernepnin in an old issue of Electronotes . Schematic shared by Jörgen Bergfors ,visit http://hem.bredband.net/bersyn/VCA/vca_shootout.htm Jörgen's DIY VCA shootout for in detailed analysis on various VCA's . On this LM13700 based circuit Jörgen wrote :


It has the resistors on the inputs connected to -15V instead of ground. The theory was that the linearizing diodes would be more effective that way. The output stage is like LM13600 VCA 1. The contol caracteristics are the same as the other LM13600 VCAs. Whatever the theory behind ths circuit was, it seems to be wrong. This circuit performs terrible, compared to the one from the National Semiconductor application notes. The distortion is very high regardless of signal level. It seems the linearizing diodes overcompensate the linearity error in the amplifier. Another problem is that the signal bleedthrough is alarmingly high. Only 59 dB attenuation at 10 kHz is not enough.

make sure you visit http://hem.bredband.net/bersyn/VCA/lm13600%20vca%20Serge.htm for details on the performance of this circuit .


LM13600 VCA serge.png
 Description:
 Filesize:  3.64 KB
 Viewed:  9520 Time(s)

LM13600 VCA serge.png


Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Thu Feb 14, 2013 6:52 am    Post subject: Reply with quote  Mark this post and the followings unread

Dual Voltage Controlled Amplifier #1 by Ray Wilson ,visit the MFOS synth headquarters for more info on this module ,pcb's ,calibration and construction tips http://www.musicfromouterspace.com


 Description:
 Filesize:  5.21 KB
 Viewed:  9467 Time(s)




 Description:
 Filesize:  12.74 KB
 Viewed:  89 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  22.22 KB
 Viewed:  68 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 422
Location: macedonia
Audio files: 6

PostPosted: Thu Feb 14, 2013 8:51 am    Post subject: Reply with quote  Mark this post and the followings unread

VCA/Mixer by Nyle Steiner visit the Synthasystem page for more info on cxonstruction , calibration and pcb offer http://user.xmission.com/~dingebre/Project.html ,from the original Synthasystem manual :


Audio signals are fed into inputs one, two and/or three, and levels of relative mixing are set with the three input pots.

The overall gain can be controlled by adjusting the pot labeled GAIN and or by feeding control voltages into the V.C. input jacks.

For use in conjunction with the envelope generator, use the following steps.

Plug the audio signal (from one of the oscillators) into one of the VCA Mixer inputs and turn up the pot for that channel about half way. Feed the out jack into an audio amplifier, guitar amplifier, or whatever sound system is being used.
Turn up the master GAIN pot until a signal is heard.
Turn the envelope generator output level pot for Env #1 all the way down.
Turn the GAIN pot on the VCA Mixer counterclockwise until the audio signal just barely disappears.
Turn the output level pot on the Env Gen #1 to about 12 o'clock.
Now a signal should be heard in accordance with the setting of Env. Gen. #1 whenever a KBD trigger or other trigger is fed into the trigger jack of the envelope generator.

Envelope generators #2 and #3 can be used to control other modules while #1 is controlling the VCA Mixer. For example, to sweep the V.C. Filter and/or Ocs. Frequency.

On final note: Overdriving the VCA Mixer overrides control voltage rejection. You should keep the control voltage pot at about the 12 o'clock position, generally. Lack of control voltage rejection makes a "popping" sound.

Synthasystem subforum : http://www.electro-music.com/forum/forum-189.html


Synthacon VCA.jpg
 Description:
 Filesize:  814.58 KB
 Viewed:  94 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Synthacon VCA.jpg


Back to top
View user's profile Send private message
Display posts from previous:
Post new topic   Reply to topic Moderators: jksuperstar, Scott Stites, Uncle Krunkus
Page 7 of 11 [251 Posts]
View unread posts
View new posts in the last week
Goto page: Previous 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 Next
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
e-m mkii

Please support our site. If you click through and buy from
our affiliate partners, we earn a small commission.


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
