 Forum index » DIY Hardware and Software » emSynth
emSynth Actual Designs
Post new topic   Reply to topic
Page 1 of 1 [4 Posts]
View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Author Message
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 6221
Location: near Austin, Tx, USA
Audio files: 267

PostPosted: Sat Jun 08, 2013 6:26 pm    Post subject: emSynth Actual Designs
Subject description: New Product Announcements Here
Reply with quote  Mark this post and the followings unread

When I had built the first board (yesterday), it just begged for more. I wanted greater circuit density and dreamed of a processor daughtercard. Then I realized a way to connect two existing Generation 3 boards together in parallel. Thus the double emSynth board is born. I'll get a photo tomorrow if I remember.

Les

_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 6221
Location: near Austin, Tx, USA
Audio files: 267

PostPosted: Wed Jun 19, 2013 1:38 pm    Post subject: Reply with quote  Mark this post and the followings unread

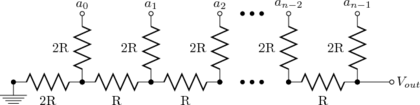

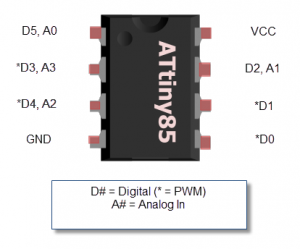

Here are the two illustrations that I used in creating the latest demo, which is on youtube and mp3.

Les


 Description:
 Filesize:  36.85 KB
 Viewed:  12503 Time(s)




 Description:
 Filesize:  10.63 KB
 Viewed:  12504 Time(s)




_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 6221
Location: near Austin, Tx, USA
Audio files: 267

PostPosted: Fri Jun 21, 2013 6:59 am    Post subject: Reply with quote  Mark this post and the followings unread

I have written a song component voice on an emSynth board and hooked it up to an R2R ladder at 5 bits of output. It sounds good but is not sinusoidal, has a sinsoidal envelope though. I think the bits are reversed, will check later.

Les

p.s. sounds good!

_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
elektromeister



Joined: Feb 18, 2013
Posts: 32
Location: Freiburg

PostPosted: Tue Oct 17, 2023 8:47 am    Post subject: Reply with quote  Mark this post and the followings unread

You may adjust the resistors in order to get a perfect sine.
_________________
music is the key
Back to top
View user's profile Send private message
