 Forum index » DIY Hardware and Software » Thomas Henry designs
The Thomas Henry "Clangora"
Post new topic   Reply to topic Moderators: Scott Stites
Page 3 of 4 [95 Posts]
View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Goto page: Previous 1, 2, 3, 4 Next
Author Message
State Machine
Janitor
Janitor


Joined: Apr 17, 2006
Posts: 2774
Location: New York
Audio files: 24

PostPosted: Tue Dec 19, 2006 8:11 am    Post subject: Reply with quote  Mark this post and the followings unread

A chip that may be harder to get is the NE570 compander IC using in the Clangora . It is available at Small Bear:

http://www.smallbearelec.com/Detail.bok?no=235

Mouser carries it but in an SOIC and will require an adapter:

http://www.mouser.com/search/refine.aspx?Ntt=NE570

Here is another good supplier of electronic components and HW:

(Debco Electronics)

http://safe.dhwd.com/cgi-bin/debco/index.html

They also carry the CA3080 and LM13700: (just in case you want to use that instead of the NE570 but some modifications will be needed of course)

http://safe.dhwd.com/cgi-bin/debco/search.html

http://safe.dhwd.com/cgi-bin/debco/search.html

Hope these sources help ...

Bill
Back to top
View user's profile Send private message Send e-mail
Uncle Krunkus
Moderator


Joined: Jul 11, 2005
Posts: 4761
Location: Sydney, Australia
Audio files: 52
G2 patch files: 1

PostPosted: Tue Dec 19, 2006 8:45 am    Post subject: Reply with quote  Mark this post and the followings unread

Hey Bill,
isn't the NE570 a compander?
The 3080 and the LM13700 are TOAs.

_________________
What makes a space ours, is what we put there, and what we do there.
Back to top
View user's profile Send private message Visit poster's website
State Machine
Janitor
Janitor


Joined: Apr 17, 2006
Posts: 2774
Location: New York
Audio files: 24

PostPosted: Tue Dec 19, 2006 10:08 am    Post subject: Reply with quote  Mark this post and the followings unread

Quote:
Hey Bill,
isn't the NE570 a compander?
The 3080 and the LM13700 are TOAs.


Yes, but he is not using it like a compression/expansion unit but in more of a straight VCA role. The basis of companding is the use of voltage controlled amplifiers and the close monitoring of signal levels. There are two independent sections in the NE570. With some modification of the original Clangora circuit, I would imagine that the LM13700 could be made to do the same thing as the NE570 since the OTA is the basis of most VCA's. The LM13700 is more widely available and cheaper and it has a better S/N ratio than a CA3080. Also, the Iabc control current is better isolated on the LM13700 part than on a CA3080 as I have mentioned before in other topics on the forum.

I have not looked back on the article lately in it's entirety but I believe Tom's reasoning was that two VCA sections could be made from one NE570 and that the distortion and noise specification is better using this part. So, you can make two VCA sections with one LM13700 also if you could not get a NE570.

Bill
Back to top
View user's profile Send private message Send e-mail
Uncle Krunkus
Moderator


Joined: Jul 11, 2005
Posts: 4761
Location: Sydney, Australia
Audio files: 52
G2 patch files: 1

PostPosted: Tue Dec 19, 2006 3:00 pm    Post subject: Reply with quote  Mark this post and the followings unread

Thanks for explaining that Bill.
I can see I still have much to learn. Smile
I've learned so much hanging out here, I forget sometimes that my theoretical background is a bit shaky! Embarassed

_________________
What makes a space ours, is what we put there, and what we do there.
Back to top
View user's profile Send private message Visit poster's website
State Machine
Janitor
Janitor


Joined: Apr 17, 2006
Posts: 2774
Location: New York
Audio files: 24

PostPosted: Tue Dec 19, 2006 6:43 pm    Post subject: Reply with quote  Mark this post and the followings unread

Quote:
Thanks for explaining that Bill.
I can see I still have much to learn. Smile
I've learned so much hanging out here, I forget sometimes that my theoretical background is a bit shaky! Embarassed


I am happy to help always and I personally have learned from all of you. I feel like I know you all Very Happy
Back to top
View user's profile Send private message Send e-mail
Photon



Joined: Mar 22, 2005
Posts: 363
Location: Boston
Audio files: 1

PostPosted: Fri Oct 19, 2007 1:31 pm    Post subject: Reply with quote  Mark this post and the followings unread

I'm now building the Clangora module and I prepared this parts placement graphic to aid in assembly. I thought I'd post it here in case anyone needs a copy. Its been a really big help.

Its basically the two images from the original article superimposed over each other with the components clearly outlined. I have a higher res. version if anyone needs.

I'll be posting more clangora updates as I make progress. stay tuned...


peter


PCB layout.jpg
 Description:
 Filesize:  248.57 KB
 Viewed:  354 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

PCB layout.jpg


Back to top
View user's profile Send private message Visit poster's website AIM Address
goodrevdoc



Joined: Sep 11, 2006
Posts: 288
Location: Philadelphia, PA
Audio files: 1

PostPosted: Fri Oct 19, 2007 3:29 pm    Post subject: Reply with quote  Mark this post and the followings unread

does anyone have a clean looking, 1:1 copy of the PCB art? I've got the one from here, but its not sized so well. I'm in the process right now of re-doing one, but if one already exists why not just use that...
-justin
Back to top
View user's profile Send private message
State Machine
Janitor
Janitor


Joined: Apr 17, 2006
Posts: 2774
Location: New York
Audio files: 24

PostPosted: Fri Oct 19, 2007 3:38 pm    Post subject: Reply with quote  Mark this post and the followings unread

Quote:
Its basically the two images from the original article superimposed over each other with the components clearly outlined. I have a higher res. version if anyone needs.

I'll be posting more clangora updates as I make progress. stay tuned...


Nicely done. I love this circuit. It really can make some "way out there" sounds !! Here is a picture of my breadboard. No PCB ... Shocked

Bill


 Description:
 Filesize:  556.74 KB
 Viewed:  232 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message Send e-mail
Photon



Joined: Mar 22, 2005
Posts: 363
Location: Boston
Audio files: 1

PostPosted: Fri Oct 19, 2007 4:11 pm    Post subject: Reply with quote  Mark this post and the followings unread

goodrevdoc wrote:
does anyone have a clean looking, 1:1 copy of the PCB art? I've got the one from here, but its not sized so well. I'm in the process right now of re-doing one, but if one already exists why not just use that...
-justin


hey Justin

Reduce it to 64% on a photocopier and you'll be all set. I had to figure this out by trial and error. I'm weird the guy at the copier holding a 16 pin IC socket to each copy and muttering to himself.

P.
Back to top
View user's profile Send private message Visit poster's website AIM Address
Photon



Joined: Mar 22, 2005
Posts: 363
Location: Boston
Audio files: 1

PostPosted: Fri Oct 19, 2007 4:17 pm    Post subject: Reply with quote  Mark this post and the followings unread

Bill
*very nice job*. Those little socketed modules are very cool. I've seen those before in various prototyped things at work but never worked that way myself.

I'm psyched to get this done. I etched the panel earlier today on my lunch break. I've got the PCB mostly populated so I'll post a photo this weekend.

Peter
Back to top
View user's profile Send private message Visit poster's website AIM Address
State Machine
Janitor
Janitor


Joined: Apr 17, 2006
Posts: 2774
Location: New York
Audio files: 24

PostPosted: Fri Oct 19, 2007 5:27 pm    Post subject: Reply with quote  Mark this post and the followings unread

Quote:
I'm psyched to get this done. I etched the panel earlier today on my lunch break. I've got the PCB mostly populated so I'll post a photo this weekend.


Yes, I am really interested to see the result Cool

Thanks for sharing the project. Very Happy
Bill
Back to top
View user's profile Send private message Send e-mail
Etaoin



Joined: Jun 30, 2005
Posts: 761
Location: Utrecht, NL

PostPosted: Fri Oct 19, 2007 11:25 pm    Post subject: Reply with quote  Mark this post and the followings unread

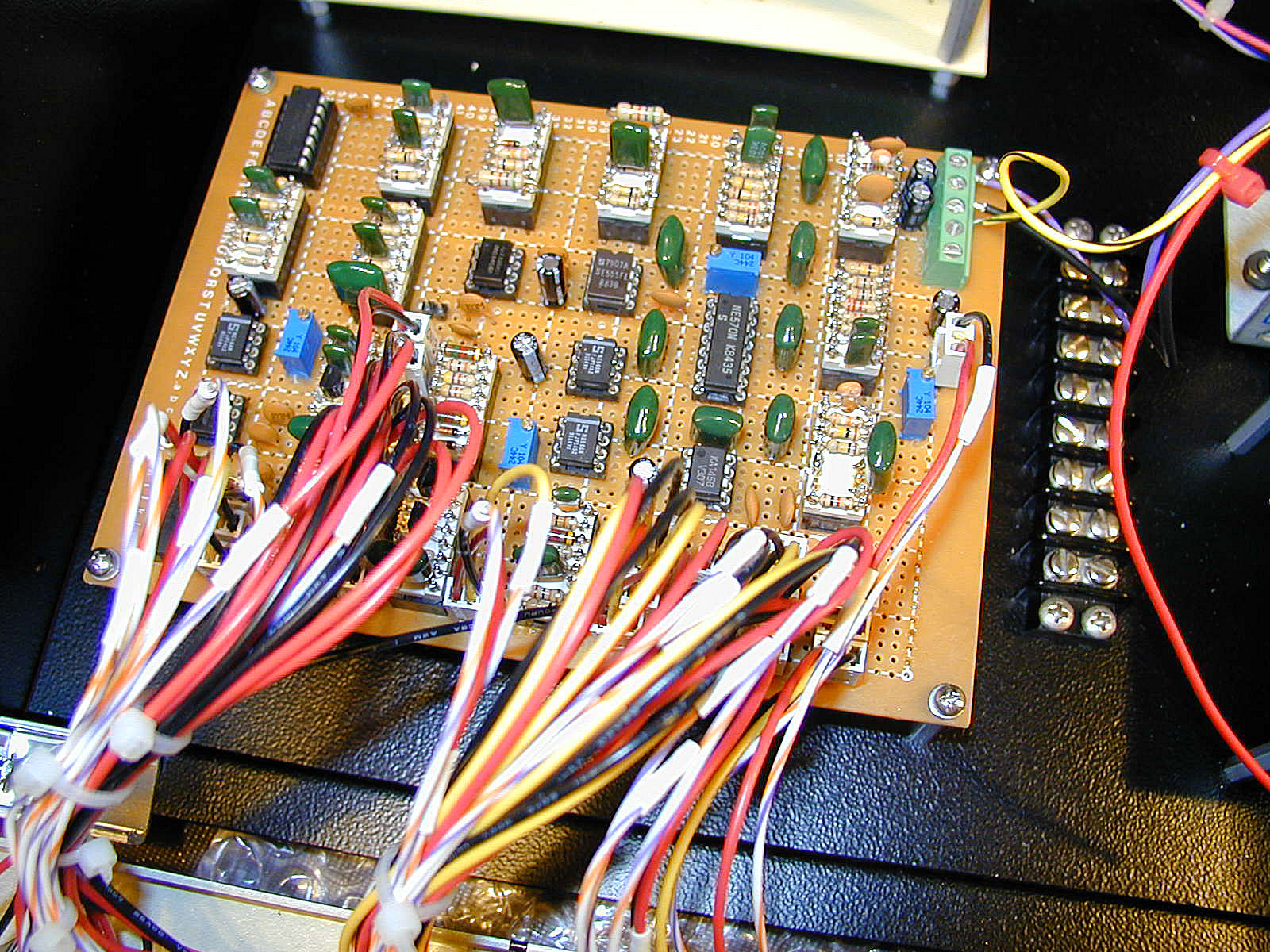

Funny how I seem to have completely missed this thread while I have been working on PCB's in this thread: http://electro-music.com/forum/topic-19835.html.

I etched the boards straight from the GIF I had (after figuring out the right scaling). Didn't run into any problems:


 Description:
 Filesize:  131.35 KB
 Viewed:  222 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
http://www.casia.org/modular/

Last edited by Etaoin on Fri Oct 19, 2007 11:29 pm; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website MSN Messenger
Etaoin



Joined: Jun 30, 2005
Posts: 761
Location: Utrecht, NL

PostPosted: Fri Oct 19, 2007 11:27 pm    Post subject: Reply with quote  Mark this post and the followings unread

No sound samples from mine though. I already sold it on (including, sadly, three of my four LM566's...)
_________________
http://www.casia.org/modular/
Back to top
View user's profile Send private message Visit poster's website MSN Messenger
Photon



Joined: Mar 22, 2005
Posts: 363
Location: Boston
Audio files: 1

PostPosted: Sat Oct 20, 2007 4:18 pm    Post subject: Reply with quote  Mark this post and the followings unread

nice job, Etaoin.
I'm surprised you sold it. Were you disappointed with it?

Mine won't be finished as soon as I had predicted. I somehow forgot to order one of the parts. Somehow I always forget something Crying or Very sad . Must be pathological...
Back to top
View user's profile Send private message Visit poster's website AIM Address
goodrevdoc



Joined: Sep 11, 2006
Posts: 288
Location: Philadelphia, PA
Audio files: 1

PostPosted: Sat Oct 20, 2007 10:11 pm    Post subject: Reply with quote  Mark this post and the followings unread

Quote:
I somehow forgot to order one of the parts. Somehow I always forget something. Must be pathological...


If I always ordered all of the parts I probably would have been out of DIY years ago. Its that project lapse and stock of parts that keeps me building! Also thanks for the scaling advice. I tried that originally with not much success but will give it another go before re-laying out another board.
-justin
Back to top
View user's profile Send private message
Photon



Joined: Mar 22, 2005
Posts: 363
Location: Boston
Audio files: 1

PostPosted: Sun Oct 21, 2007 5:44 am    Post subject: Reply with quote  Mark this post and the followings unread

Something is either back-ordered, I forgot to order it, they neglected to send it, its the wrong part, or the capacitors are HUGE! Shocked

If you continue to have trouble, I have the pcb image at the right size. I may even have it on press n peel. Let me check tomorrow and if I have it I could mail them to you. I'll let you know.

Pete
Back to top
View user's profile Send private message Visit poster's website AIM Address
Photon



Joined: Mar 22, 2005
Posts: 363
Location: Boston
Audio files: 1

PostPosted: Sun Oct 21, 2007 8:43 am    Post subject: Reply with quote  Mark this post and the followings unread

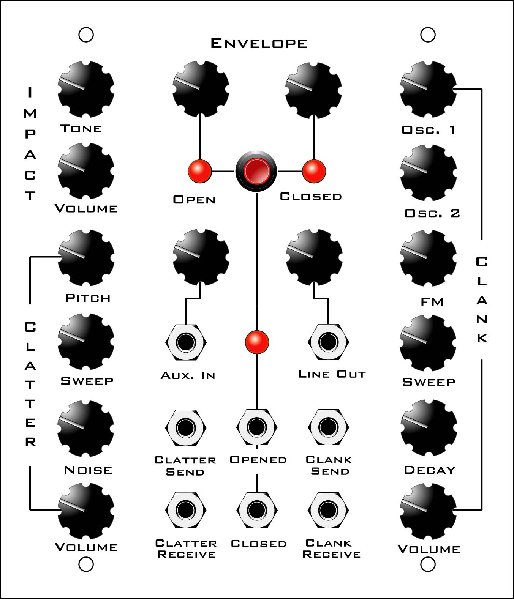

Here's my Frac panel design. I'll post the actual panel soon.

Peter


 Description:
 Filesize:  131.88 KB
 Viewed:  226 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




Last edited by Photon on Sun Oct 21, 2007 5:45 pm; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website AIM Address
Etaoin



Joined: Jun 30, 2005
Posts: 761
Location: Utrecht, NL

PostPosted: Sun Oct 21, 2007 11:03 am    Post subject: Reply with quote  Mark this post and the followings unread

Photon wrote:
nice job, Etaoin.
I'm surprised you sold it. Were you disappointed with it?


I never finished it. Needed the money for something else.

_________________
http://www.casia.org/modular/
Back to top
View user's profile Send private message Visit poster's website MSN Messenger
State Machine
Janitor
Janitor


Joined: Apr 17, 2006
Posts: 2774
Location: New York
Audio files: 24

PostPosted: Sun Oct 21, 2007 12:06 pm    Post subject: Reply with quote  Mark this post and the followings unread

Quote:
Here's my Frac panel design. I'll post the actual panel soon.


I really like your FRAC layout. Very well done Exclamation

Bill
Back to top
View user's profile Send private message Send e-mail
mosc
Site Admin


Joined: Jan 31, 2003
Posts: 17835
Location: Allentown, PA
Audio files: 138
G2 patch files: 60

PostPosted: Sun Oct 21, 2007 2:56 pm    Post subject: Reply with quote  Mark this post and the followings unread

Yes, I like it too...
_________________
--Howard
my music and other stuff
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address
Scott Stites
Janitor
Janitor


Joined: Dec 23, 2005
Posts: 4127
Location: Mount Hope, KS USA
Audio files: 96

PostPosted: Sun Oct 21, 2007 4:35 pm    Post subject: Reply with quote  Mark this post and the followings unread

Perhaps a little OT, but save a spot next to your Clangora. Thomas wasn't the least bit unoccupied this summer...... Wink
_________________
My Site
Back to top
View user's profile Send private message
Photon



Joined: Mar 22, 2005
Posts: 363
Location: Boston
Audio files: 1

PostPosted: Sun Oct 21, 2007 5:57 pm    Post subject: Reply with quote  Mark this post and the followings unread

Thanks everyone.

The panel is etched and I'll be drilling holes and trimming it to size tomorrow. I'll try to put a photo up of the actual panel soon.


Scott Stites wrote:
Perhaps a little OT, but save a spot next to your Clangora. Thomas wasn't the least bit unoccupied this summer...... Wink


Shocked I'm almost out of real estate in my cabinet.
Back to top
View user's profile Send private message Visit poster's website AIM Address
Thomas Henry



Joined: Mar 25, 2007
Posts: 298
Location: Southern Minnesota
Audio files: 2

PostPosted: Sun Oct 21, 2007 8:44 pm    Post subject: Reply with quote  Mark this post and the followings unread

Scott Stites wrote:
Perhaps a little OT, but save a spot next to your Clangora. Thomas wasn't the least bit unoccupied this summer...... Wink


Enough of the winks. Let's start a new thread and uncork this puppy for the EM crowd.

To get the ball rolling, its name is: the Mega Percussive Synthesizer.

Modesty prevents me from mentioning it is the most versatile percussion synth ever conceived. Oops, I just did. We better let Scott take this over on another thread.

And now back to your regularly scheduled Clangora...

Thomas Henry

P.S.: no hard-to-find parts!
Back to top
View user's profile Send private message
23isgood



Joined: Nov 18, 2006
Posts: 236
Location: San Francisco, CA bay area
Audio files: 13

PostPosted: Sun Oct 21, 2007 10:22 pm    Post subject: Reply with quote  Mark this post and the followings unread

Oh boy. You're killing me Thomas. Keep em coming.

pete

_________________
Check out my music
Back to top
View user's profile Send private message Visit poster's website
bugbrand



Joined: Nov 27, 2005
Posts: 845
Location: Bristol, UK
Audio files: 1
G2 patch files: 1

PostPosted: Mon Oct 22, 2007 3:53 am    Post subject: Reply with quote  Mark this post and the followings unread

Freakin' hell! Thomas & Scott = whirlwinds!
You know you're drowning us all, right?!
(though I suspect people don't mind!)

_________________
http://www.bugbrand.co.uk
http://www.bugbrand.blogspot.com
Back to top
View user's profile Send private message Visit poster's website
Display posts from previous:
Post new topic   Reply to topic Moderators: Scott Stites
Page 3 of 4 [95 Posts]
View unread posts
View new posts in the last week
Goto page: Previous 1, 2, 3, 4 Next
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software » Thomas Henry designs
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
e-m mkii

Please support our site. If you click through and buy from
our affiliate partners, we earn a small commission.


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
