Mr clacks Dual Soundlab and Soundlab Mod PCB's

Clack · Last edited by Clack on Fri Nov 23, 2007 2:55 am; edited 3 times in total

Hey , Im almost finished my dual soundlab and thought I'd post some custom PCB's I made from Ray's mod circuits.

drum trigger

Tested and it works ( on 12-12v . It says TL074 but i'm using an LF444 ( No lf444 in eagle library , im sure both will work )

Soundlab - trigger.gif

Description:

Filesize:

28.11 KB

Viewed:

170 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

Soundlab - Drum Trigger.pdf

Description:

Download (listen)

Filename:

Soundlab - Drum Trigger.pdf

Filesize:

62.13 KB

Downloaded:

180 Time(s)

Drum trigger.zip

Description:

Eagle BRD file

Download (listen)

Filename:

Drum trigger.zip

Filesize:

3.99 KB

Downloaded:

202 Time(s)

v-un-v · Posted: Tue Nov 20, 2007 4:30 pm Post subject:

Hey nice!

Have you sent this to Ray? I'm sure he would dig this Very Happy

Clack · Posted: Wed Nov 21, 2007 3:09 am Post subject:

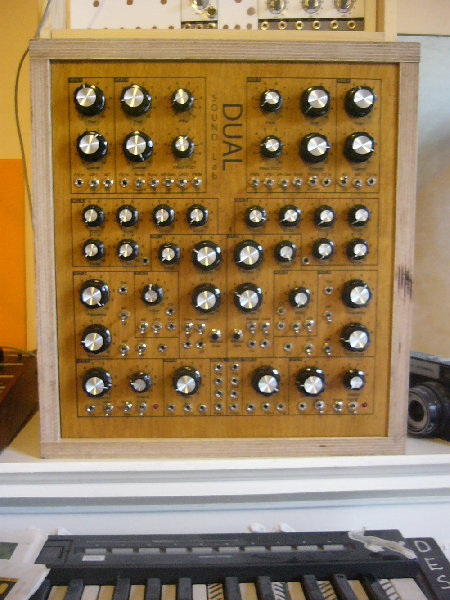

Thought i'd show off my work. Its a dual soundlab. Its semi-modular and I screen printed the front onto wood then varnished it. I will show more pics when I get better light in my room ( my camera cant cope with the dull light! ) Case needs finishing and I havn't completely done the insides yet. One SL is on the right one is on the left and each SL has a mixer that has all the available VCO's and an external input

When its running i'll post a video mmm


Description:

Filesize:

452.12 KB

Viewed:

195 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

Lemmy · Posted: Thu Nov 22, 2007 2:23 pm Post subject:

wow, looks great!

Pehr · Posted: Thu Nov 22, 2007 2:28 pm Post subject:

Really nice! Very Happy

I love the symmetry Laughing

gubbeper · Joined: Oct 10, 2005 Posts: 50 Location: Sweden

Looks really nice! Very Happy

Uncle Krunkus · Posted: Mon Nov 26, 2007 1:19 am Post subject:

Yes, beautiful work! Very Happy

Lemmy · Posted: Mon Nov 26, 2007 4:04 am Post subject:

Mr. Clack, any more info on screen printing would be useful. Do you need specialist equipment to do that? (I'm thinking Andy Warhol prints here - same kind of process?) Is it expensive if you get someone else to do if for you? And can you screenprint onto aluminium?
Thanks!

asafnetzer · Joined: Jun 16, 2007 Posts: 112 Location: Israel

Lemmy,
Screen printing can be done on almost any material and it's as you thought, andy warhol kind of process.
Screen printing at home require some equipment, you can search it out on the web but mostly you will need a bit of free space for it.
I have done my fare share of screen printing, both home made and by some companies for a run of shirts I have made in the past, if you are making a one run print it might be expensive doing it as most of the time making one or 20 cost the same.
I did a run of prints on my 3 WSG at home as you can see on my flickr account, WSG Photos and I used a nice product that you can check at the following link that save you the trouble of making your own print and using chemicals at home - EzScreenPrint
