 Forum index » DIY Hardware and Software » Klee sequencer
Post Your KLEE Panels Designs Here
Post new topic   Reply to topic Moderators: Scott Stites, Uncle Krunkus, v-un-v
Page 16 of 16 [399 Posts]
View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Goto page: Previous 1, 2, 3, ..., 14, 15, 16
Author Message
mig27



Joined: Mar 09, 2011
Posts: 21
Location: Berlin

PostPosted: Wed Jun 29, 2011 7:00 am    Post subject: Reply with quote  Mark this post and the followings unread

I was actually talking knob lever length, not taper length (or did I miss your irony?)
Anyhow, in the mean time I figured that 19mm should be the way to go.
Back to top
View user's profile Send private message
State Machine
Janitor
Janitor


Joined: Apr 17, 2006
Posts: 2809
Location: New York
Audio files: 24

PostPosted: Sat Jul 02, 2011 5:40 pm    Post subject: Reply with quote  Mark this post and the followings unread

Quote:
was actually talking knob lever length, not taper length (or did I miss your irony?)
Anyhow, in the mean time I figured that 19mm should be the way to go.


It was just me being a goofball. lol ..... Laughing Seriously, sounds like a good choice. Wink

Bill
Back to top
View user's profile Send private message Send e-mail
citric acid



Joined: Jun 11, 2011
Posts: 45
Location: germany

PostPosted: Wed Oct 05, 2011 5:32 am    Post subject: Reply with quote  Mark this post and the followings unread

fonik wrote:
i still have a 2nd set of klee2 PCBs in the drawer and i toy with the idea of building myself a eurorack module from it despite my backlog)! currently i shrunk it to 60HP using pushbuttons with built in LEDs (as seen on my LPG with gate controlled mode). i would replace the manual range selection switch by a voltage controlled switch.

what do you think? ideas?

Posted Image, might have been reduced in size. Click Image to view fullscreen.


cool idea... nice and small not so big . im still looking for a smal one.
do you share this files ? if not i understand ...but if you like it will be fine .

br

_________________
http://soundcloud.com/citric-acid-303
Back to top
View user's profile Send private message Visit poster's website
brother303



Joined: Nov 02, 2010
Posts: 139
Location: ruhr-area/germany

PostPosted: Thu Oct 06, 2011 2:35 am    Post subject: Reply with quote  Mark this post and the followings unread

Hi Cit,

citric acid wrote:


cool idea... nice and small not so big . im still looking for a smal one.
do you share this files ? if not i understand ...but if you like it will be fine .

br


Yes,nice panel,isn`t it?

But you have to build a midi-interface and the voltage controlled range-switch by yourself since there are no out-of-the-box solutions available...

Wink

_________________
Best regards
Greg
Back to top
View user's profile Send private message
el-bee



Joined: Oct 21, 2011
Posts: 2
Location: Finland

PostPosted: Fri Oct 21, 2011 4:54 am    Post subject: Reply with quote  Mark this post and the followings unread

Here's what I'm planning..:

Posted Image, might have been reduced in size. Click Image to view fullscreen.

At the moment, my plan is to make a rack unit with detachable rack ears to allow desktop use too.

If you feel like reading more about my Klee build as it happens, check what this has to offer Smile
Back to top
View user's profile Send private message Visit poster's website
Captain Biscuits



Joined: Jun 11, 2010
Posts: 116
Location: Northampton, UK

PostPosted: Tue Nov 15, 2011 2:58 pm    Post subject: Another Day; Another Panel Reply with quote  Mark this post and the followings unread

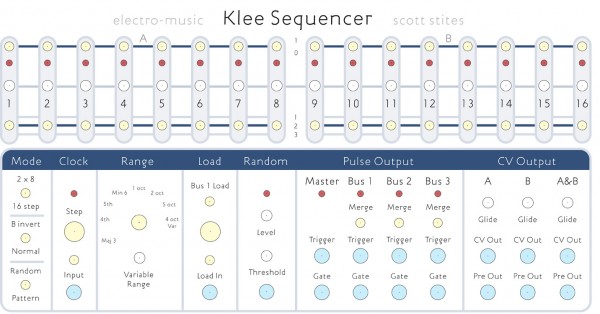

I've been gradually knocking this into shape for a little while now, on and off, so have reached the point that I don't think I'm capable of noticing even the most glaring errors!

Any advice from those who have been there gratefully received.

Many thanks

Ian


Panel 8 Klee 3.jpg
 Description:
 Filesize:  190.94 KB
 Viewed:  8535 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Panel 8 Klee 3.jpg


Back to top
View user's profile Send private message
EdisonRex
Site Admin


Joined: Mar 07, 2007
Posts: 4579
Location: London, UK
Audio files: 172

PostPosted: Tue Nov 15, 2011 3:31 pm    Post subject: Reply with quote  Mark this post and the followings unread

From a human factors point of view, the two buttons manual load and manual step need to be somewhere you can get at them, as they are by FAR the most used panel controls. Locate them together and out of the way of other switches, connectors and indicators. This is probably the most important piece of the panel layout.

I got my connectors away from my switches and knobs by locating them off to one side. It helps keep cable congestion away from those all important pushbuttons. While well compartmentalised for function, you may find that there are other ways to group that help keep track of steps. You probably will not use all of the merge, invert, etc switches as much as the pattern switches and the gate bus switches, and you'll hate them being in the way, so watch for that.

Oh and also the clock enable gets used a lot when you're programming. I don't think it has to be right next to your pushbuttons but it'll want to be somewhere you can feel for it.

_________________
Garret: It's so retro.
EGM: What does retro mean to you?
Parker: Like, old and outdated.


Home,My Studio,and another view
Back to top
View user's profile Send private message Visit poster's website
Captain Biscuits



Joined: Jun 11, 2010
Posts: 116
Location: Northampton, UK

PostPosted: Tue Nov 15, 2011 3:58 pm    Post subject: Reply with quote  Mark this post and the followings unread

Many thanks for the speedy response!

I'll bear all of that in mind. I've kept the whole pattern, gate bus set up on the top half so it's separate and hopefully clear, but I might re-arrange the bottom half a bit.

I've tried to avoid some obvious labeling so the switch above the clock input is clock enable and the push switch above that is the clock step momentary switch. The same with the Load section so the load enable switch is directly above the Load in jack and the manual load is above that. I like my logical set up (all nicked from other people's designs it must be said Smile ) but I can see what you mean about the advantages of not having a dirty great jack plug in the way right under my momentary switches.

It gives me something to ponder and, at the end of the day function may have to rule over form so I'll look at re-jigging it here & there.

Your input is much appreciated, I'm really keen to make some progress and have this up and running, it looks like such fun to play with!

Cheers

Ian
Back to top
View user's profile Send private message
EdisonRex
Site Admin


Joined: Mar 07, 2007
Posts: 4579
Location: London, UK
Audio files: 172

PostPosted: Tue Nov 15, 2011 6:03 pm    Post subject: Reply with quote  Mark this post and the followings unread

A pleasure. I'm not saying my panel was perfect, but there were some major design decisions that worked and some I would do much differently after using the thing fairly constantly over a 2 year period. Grouping the connectors out of the way on a big panel like that is practical. Getting the glide. random and range select out of the way (although range select is another one you're likely to use a lot in practice) has worked for me.
_________________
Garret: It's so retro.
EGM: What does retro mean to you?
Parker: Like, old and outdated.


Home,My Studio,and another view
Back to top
View user's profile Send private message Visit poster's website
Paradigm X



Joined: Feb 15, 2011
Posts: 363
Location: Null and void
Audio files: 2

PostPosted: Fri Apr 20, 2012 8:59 am    Post subject: Reply with quote  Mark this post and the followings unread

fonik wrote:
grĂ¼ner klee (germ.) = green clover

Posted Image, might have been reduced in size. Click Image to view fullscreen.


Holy Moly ! Shocked Shocked Shocked Shocked

Two things.

That looks amazing !!! I have been scanning some for inspiration but jeez that looks amazing, loving the green.

MIDI Shocked Shocked Shocked

How is this implemented, is it the Kendall thing you did? : edit found your thread, its the papareil one. Smile That said, the Dave Kendall/Fonitronik one would be an amazing compiment to this beast!

wow!

Thats very impressive.

Off to your site to look for .fpd files Very Happy
Back to top
View user's profile Send private message
fonik



Joined: Jun 07, 2006
Posts: 3950
Location: Germany
Audio files: 23

PostPosted: Mon May 21, 2012 12:07 am    Post subject: Reply with quote  Mark this post and the followings unread

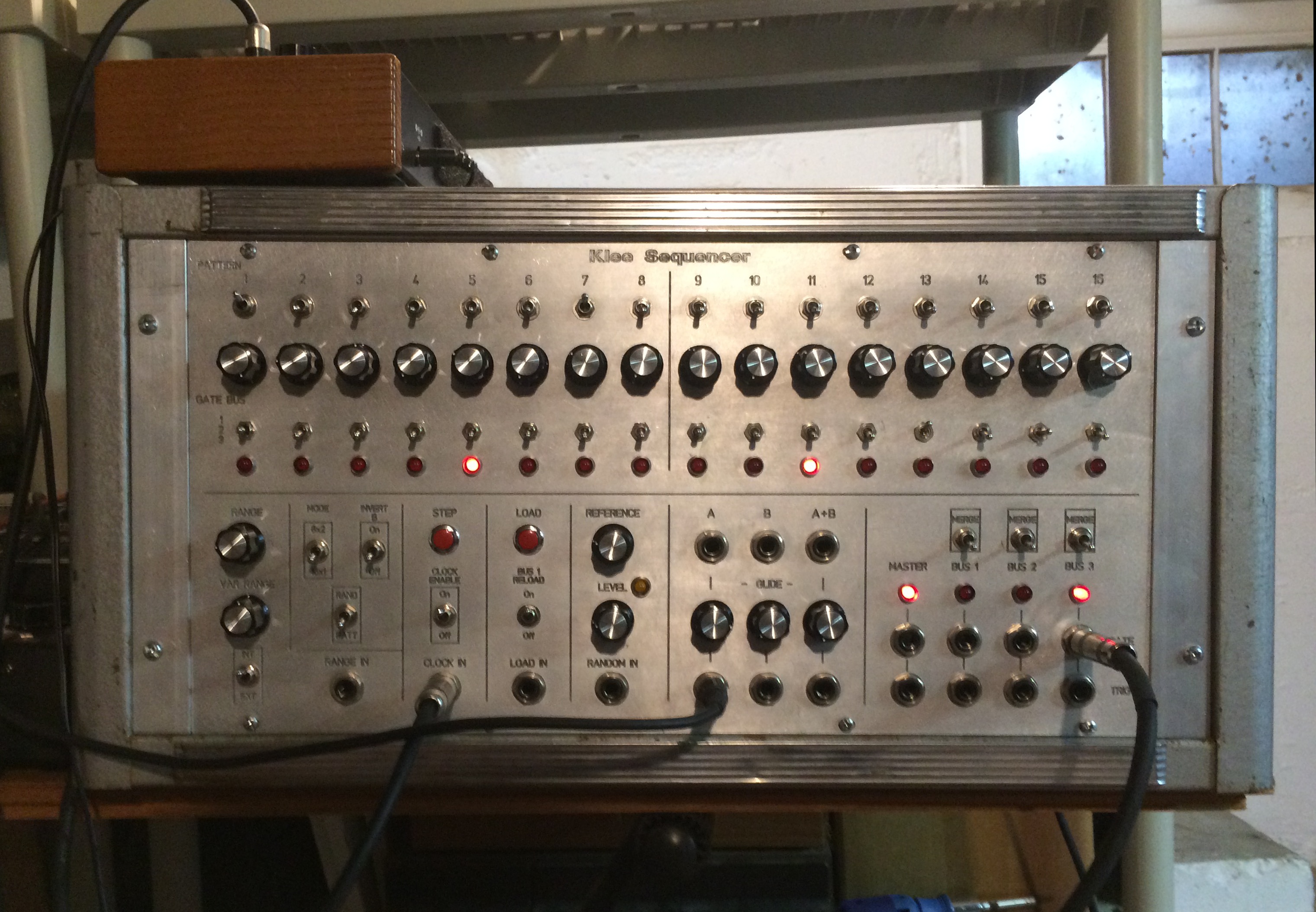

this is how it looks in real (chnged the knob, though). the MIDI is a small pic based converter from marc bareille (papareil).
the whole sequencer is sold(!), however, i am working on a small eurorack module version for this awesome squencer...

Posted Image, might have been reduced in size. Click Image to view fullscreen.

_________________
Posted Image, might have been reduced in size. Click Image to view fullscreen.
cheers,
matthias
____________
Big Boss at fonitronik
Tech Buddy at Random*Source
Back to top
View user's profile Send private message Send e-mail Visit poster's website
Paradigm X



Joined: Feb 15, 2011
Posts: 363
Location: Null and void
Audio files: 2

PostPosted: Mon May 21, 2012 3:07 am    Post subject: Reply with quote  Mark this post and the followings unread

salut

Amazing. That does look really nice, and that green is a really nice colour. Everything I've seen of yours is really nice.

Im still deciding between sliders and a circular layout. Both have their pros and cons.

How did you find those 45(?)/60mm sliders? Are they long enough in practise? I had a novation controller and found the 45mm sliders a bit fiddly, although they were terrible cheap plastic ones anyway. Id love 100mm sliders...

Ive got one of your VC Clock PCBs now thanks to a kind person on here with the PWM so im going to incorporate that. Midi in i think ill leave external, for the DK/Fonik M2C, but it would be nice live. MIDI out would be an awesome addition but probably a bit complex for me.

Thanks for showing off the pictures, Ben

Very Happy
Back to top
View user's profile Send private message
octavecat



Joined: Nov 02, 2005
Posts: 49
Location: sf, usa
G2 patch files: 1

PostPosted: Thu Jan 03, 2013 10:06 am    Post subject: Reply with quote  Mark this post and the followings unread

Did anyone successfully make eurorack panels? I see some line art here, but no confirmation of successful builds...
Back to top
View user's profile Send private message Visit poster's website
lucid



Joined: Dec 03, 2012
Posts: 19
Location: Slovakia, EU

PostPosted: Wed Apr 10, 2013 11:22 am    Post subject: Reply with quote  Mark this post and the followings unread

Hi, finally dreams come true my new MU baby is alive

decision made 11/2012
PCBs arrived 01/2013
panels arrived 03/2013
first switch on 3 days ago

lucid


 Description:
MU KLEE
 Filesize:  364.22 KB
 Viewed:  8272 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
roglok



Joined: Aug 28, 2010
Posts: 202
Location: uptown

PostPosted: Wed Apr 10, 2013 3:16 pm    Post subject: Reply with quote  Mark this post and the followings unread

lucid wrote:
Hi, finally dreams come true my new MU baby is alive

decision made 11/2012
PCBs arrived 01/2013
panels arrived 03/2013
first switch on 3 days ago

lucid


looks great! i like the square layout. congratulations.
Back to top
View user's profile Send private message
jksuperstar



Joined: Aug 20, 2004
Posts: 2503
Location: Denver
Audio files: 1
G2 patch files: 18

PostPosted: Wed Apr 10, 2013 3:41 pm    Post subject: Reply with quote  Mark this post and the followings unread

lucid wrote:
Hi, finally dreams come true my new MU baby is alive

decision made 11/2012
PCBs arrived 01/2013
panels arrived 03/2013
first switch on 3 days ago

lucid


Do you mind if I ask if the panel files are available? I like how compact your panel is for frac! Do you have any photos of the back? I'm curious how you mated the panel and pcbs. Thanks for any info, you've done a great job in my eyes.
Back to top
View user's profile Send private message Visit poster's website
lucid



Joined: Dec 03, 2012
Posts: 19
Location: Slovakia, EU

PostPosted: Thu Apr 11, 2013 9:42 am    Post subject: Reply with quote  Mark this post and the followings unread

jksuperstar wrote:

Do you mind if I ask if the panel files are available? I like how compact your panel is for frac! Do you have any photos of the back? I'm curious how you mated the panel and pcbs. Thanks for any info, you've done a great job in my eyes.

pmed with some more files

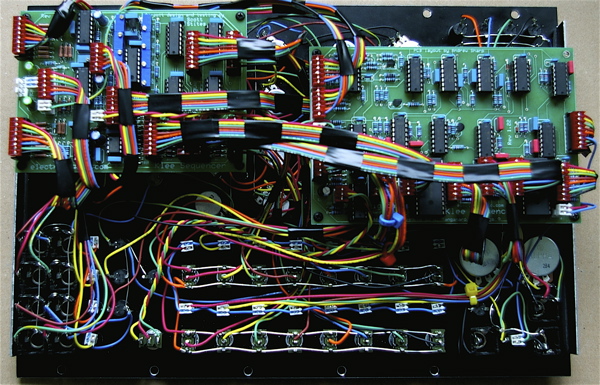

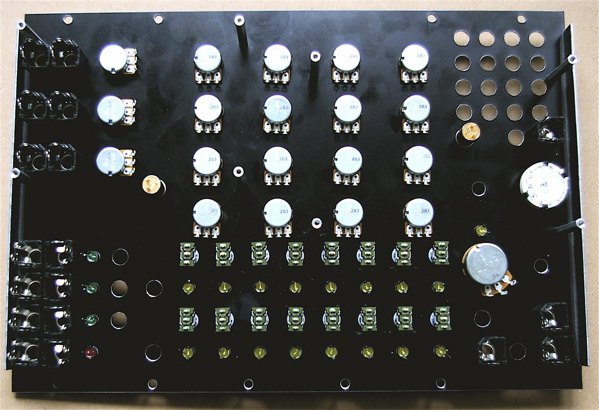

backside here


 Description:
back without wires
 Filesize:  134.11 KB
 Viewed:  54045 Time(s)




 Description:
back- wired
 Filesize:  202.1 KB
 Viewed:  54046 Time(s)



Back to top
View user's profile Send private message
jksuperstar



Joined: Aug 20, 2004
Posts: 2503
Location: Denver
Audio files: 1
G2 patch files: 18

PostPosted: Thu Apr 11, 2013 8:37 pm    Post subject: Reply with quote  Mark this post and the followings unread

Ah, I see...not frac Embarassed Those are 1/4" jacks (I thought they were 1/8", so the size in my head was 1/4 actual) Rolling Eyes

Thanks a lot for posting, lucid. This looks great!
Back to top
View user's profile Send private message Visit poster's website
eXisteNz



Joined: Jun 08, 2010
Posts: 48
Location: Italy

PostPosted: Wed Apr 09, 2014 1:01 pm    Post subject: Here what i'm doing Reply with quote  Mark this post and the followings unread

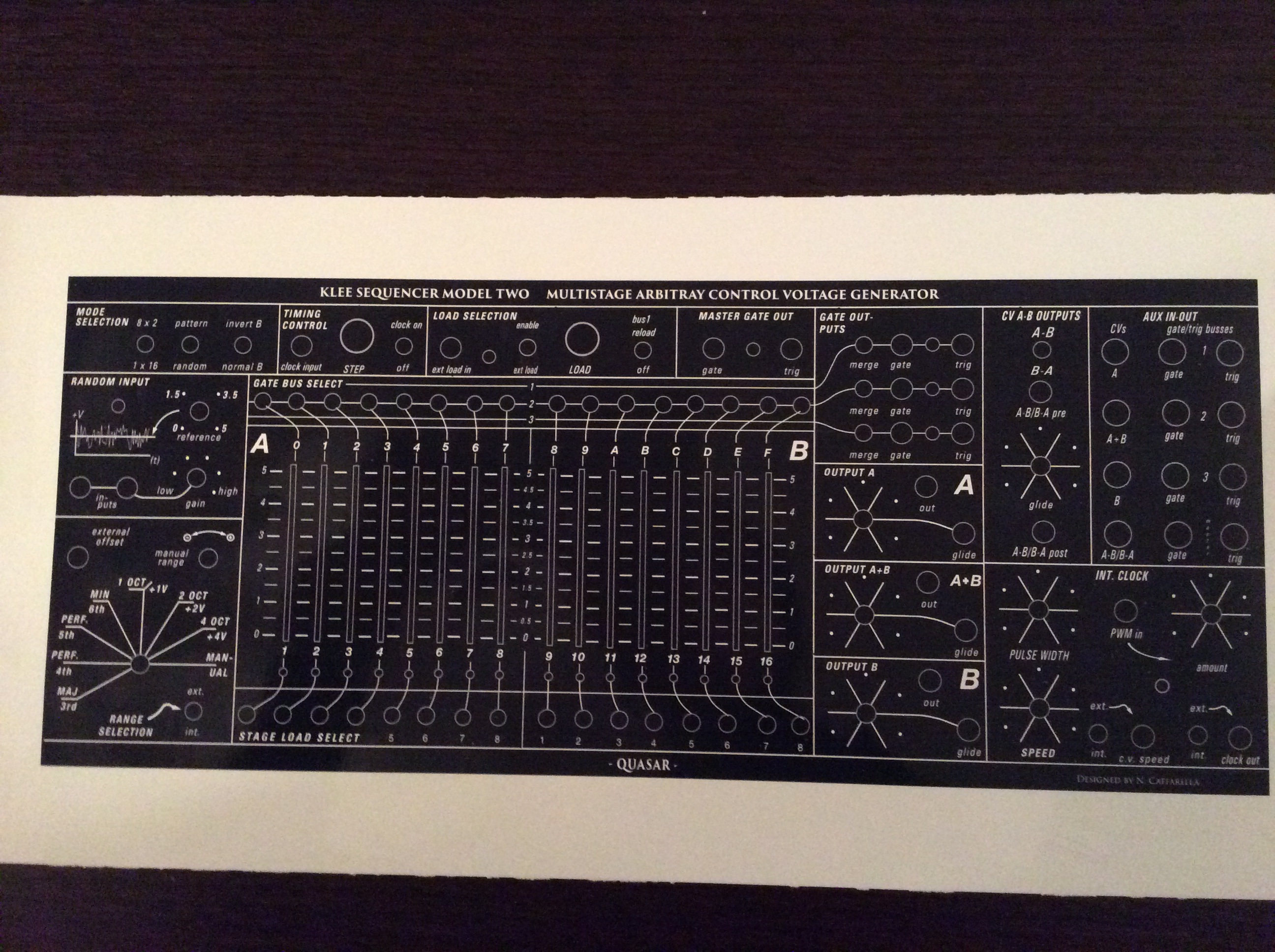

I've slightly modified THC superb design here, adding some space and layout for pimp mods!


 Description:
 Filesize:  1.4 MB
 Viewed:  8195 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
HansRL



Joined: Nov 17, 2012
Posts: 15
Location: Norway

PostPosted: Wed Apr 09, 2014 1:41 pm    Post subject: Reply with quote  Mark this post and the followings unread

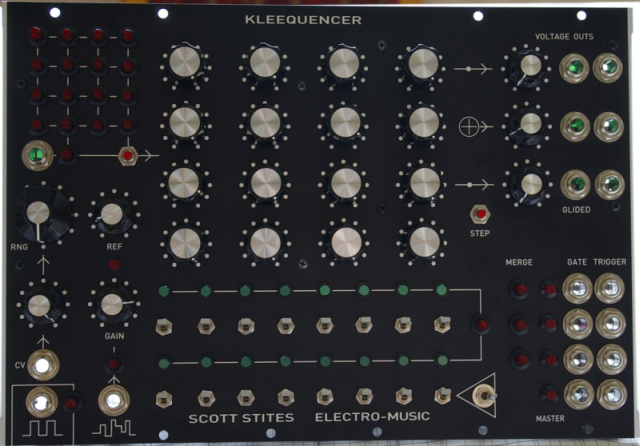

This is what I ended up sending to photo print on aluminium. Received my "picture" today. It is not pure 3mm alu as I had hoped for. But a plastic laminate between two thin layer of aluminium. Very light but still quite stiff. The grey back color is very even and the hair line for the drill marks are all there so this looks like a quality print job. Sadly they only would take JPG so no guaranty the scale would hold up. Luckily that's not a problem on this build.

Panel size is a full 84HP 3U. Should be easy to drill, but not sure if I can use a circle saw to cut the sheet. I have some concern the heat might be a problem for the plastic.

Posted Image, might have been reduced in size. Click Image to view fullscreen.
Back to top
View user's profile Send private message
Benjamin AM



Joined: Nov 04, 2010
Posts: 83
Location: Boise

PostPosted: Sun Nov 02, 2014 10:02 am    Post subject: Reply with quote  Mark this post and the followings unread

5u format engraved aluminium panel, 8 spaces fit into custom rail and ears and a 19" rack. Based on sduck's design.


 Description:
 Filesize:  1.09 MB
 Viewed:  8128 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
sduck



Joined: Dec 16, 2007
Posts: 459
Location: Nashville
Audio files: 5

PostPosted: Sun Nov 02, 2014 3:40 pm    Post subject: Reply with quote  Mark this post and the followings unread

Very nice! Very Happy
Back to top
View user's profile Send private message
PHOBoS



Joined: Jan 14, 2010
Posts: 5581
Location: Moon Base
Audio files: 705

PostPosted: Sun Nov 02, 2014 4:59 pm    Post subject: Reply with quote  Mark this post and the followings unread

looks great! thumleft
_________________
"My perf, it's full of holes!"
http://phobos.000space.com/
SoundCloud BandCamp MixCloud Stickney Synthyards Captain Collider Twitch YouTube
Back to top
View user's profile Send private message Visit poster's website AIM Address Yahoo Messenger MSN Messenger
State Machine
Janitor
Janitor


Joined: Apr 17, 2006
Posts: 2809
Location: New York
Audio files: 24

PostPosted: Sun Dec 21, 2014 2:23 pm    Post subject: Reply with quote  Mark this post and the followings unread

Anything that looks like lab equipment is great in my book !!! LOL, nice work.

Bill
Back to top
View user's profile Send private message Send e-mail
Display posts from previous:
Post new topic   Reply to topic Moderators: Scott Stites, Uncle Krunkus, v-un-v
Page 16 of 16 [399 Posts]
View unread posts
View new posts in the last week
Goto page: Previous 1, 2, 3, ..., 14, 15, 16
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software » Klee sequencer
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
