PostPosted: Wed Aug 13, 2008 2:40 am    Post subject: Show me your panels for CGS modules! Reply with quote  Mark this post and the followings unread

Hi people

I was wondering if people would mind sharing their drawings/photos of panel designs for various CGS modules?

The reason I'm asking, is because whenever I look Ken's circuits, I always become confused as to the actual number of controls and input/outputs on some of the more exotic stuff (like infinite melody, diatonic converter and many more).

I find it difficult to see what is mandatory and what could be left out, since there are often so many options (a good thing).

How about a little show and tell?

C

_________________
Some Rubber Stamp Sound Effects - and other sound effects
Back to top
View user's profile Send private message Visit poster's website
sneakthief



Joined: Jul 24, 2006
Posts: 569
Location: Berlin

PostPosted: Wed Aug 13, 2008 10:07 am    Post subject: Reply with quote  Mark this post and the followings unread

here are some CGS modules using my ghetto Dymo-labelled panels:

Posted Image, might have been reduced in size. Click Image to view fullscreen.

Posted Image, might have been reduced in size. Click Image to view fullscreen.

Posted Image, might have been reduced in size. Click Image to view fullscreen.

_________________
Sneak-Thief - raw electrofunk
Back to top
View user's profile Send private message Visit poster's website
Coriolis



Joined: Apr 11, 2005
Posts: 616
Location: Stilling, Denmark

PostPosted: Wed Aug 13, 2008 12:37 pm    Post subject: Reply with quote  Mark this post and the followings unread

Wow, that's great! Exactly what I hoped for... Cool

Keep 'em coming people...

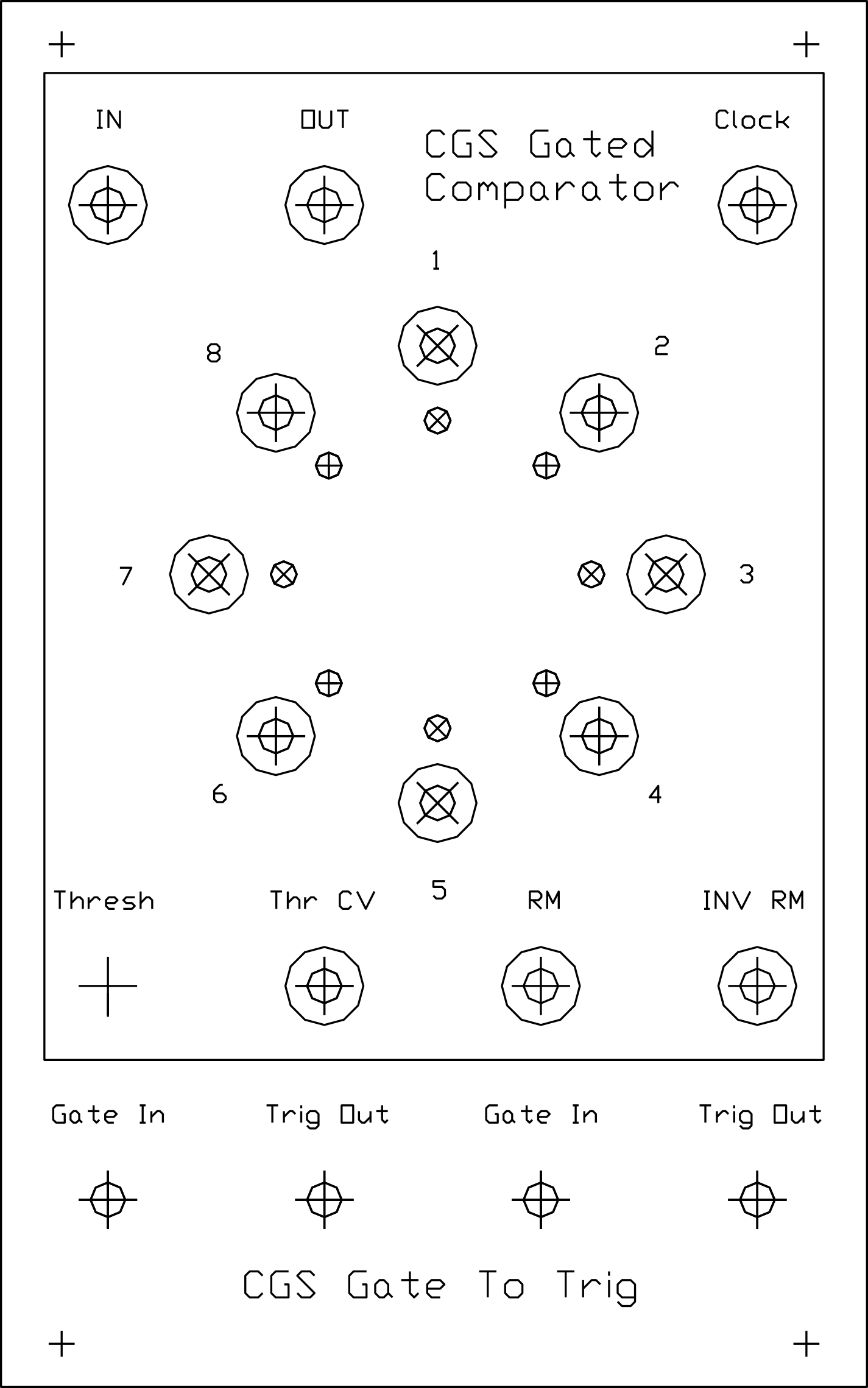

Here's my take on the Gated Comparator.
The panel format is my own (100 x 160mm) and it's for banana jacks.
There is also a dual CGS gate-to-trig at the bottom of the panel.

Oh, and it's done in autocad.

C


 Description:
 Filesize:  146.78 KB
 Viewed:  295 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
Some Rubber Stamp Sound Effects - and other sound effects
Back to top
View user's profile Send private message Visit poster's website
a.b.o.z.



Joined: Feb 07, 2007
Posts: 351
Location: Zagreb, Croatia
Audio files: 7
G2 patch files: 4

PostPosted: Wed Aug 13, 2008 1:42 pm    Post subject: Reply with quote  Mark this post and the followings unread

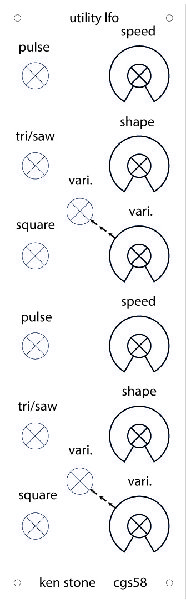

Here's mine for soon to be finished utility lfo.


 Description:
 Filesize:  724.37 KB
 Viewed:  352 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
fonik



Joined: Jun 07, 2006
Posts: 3950
Location: Germany
Audio files: 23

PostPosted: Fri Aug 15, 2008 10:56 am    Post subject: Reply with quote  Mark this post and the followings unread

just taka a look at my site. several CGS modules (fpd files for download)...
_________________
Posted Image, might have been reduced in size. Click Image to view fullscreen.
cheers,
matthias
____________
Big Boss at fonitronik
Tech Buddy at Random*Source
Back to top
View user's profile Send private message Send e-mail Visit poster's website
Coriolis



Joined: Apr 11, 2005
Posts: 616
Location: Stilling, Denmark

PostPosted: Sat Aug 16, 2008 8:26 am    Post subject: Reply with quote  Mark this post and the followings unread

Ah, of course Matthias - didn't think of that. ...

C

_________________
Some Rubber Stamp Sound Effects - and other sound effects
Back to top
