Gate Control Expansion Board for LPG 292 (Thomas White PCB)
Post new topic   Reply to topic Moderators: fonik
Page 4 of 8 [190 Posts]
View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Goto page: Previous 1, 2, 3, 4, 5, 6, 7, 8 Next
Author Message
The Bad Producer



Joined: Mar 08, 2009
Posts: 253
Location: The Manhole

PostPosted: Sun Nov 01, 2009 11:53 am    Post subject: Reply with quote  Mark this post and the followings unread

Hi Fonik,

Got my boards - thank you!

I built one up today and added it to a LPG board... I noticed a couple of changes needed in your docs whilst doing so:

1) the CD4053 is still listed as a CA4053 Wink

2) the power wiring diagram is slightly wrong. If using the MTA100 from the LPG board to extract power, the black connection should move along one hole to the left (next to the -Ve connector) So if reading from the left, looking at the docs, it should be:

NC, blue, black, NC, NC, red.

(If you get what I mean!)

The board works really well, and adds great functionality to the LPG - I can't imagine using it without one now!

Charlie

_________________
http://loudestwarning.tumblr.com/
http://soundcloud.com/thebadproducer
Back to top
View user's profile Send private message Visit poster's website
fonik



Joined: Jun 07, 2006
Posts: 3721
Location: Germany
Audio files: 23

PostPosted: Sun Nov 01, 2009 2:41 pm    Post subject: Reply with quote  Mark this post and the followings unread

thanks for the pointer, charlie. i did the documentation on the quick, my fault. i will correct it ASAP and notify it in this thread..

i would be curious to see a picture of your built. possible?

_________________
Posted Image, might have been reduced in size. Click Image to view fullscreen.
cheers,
matthias
____________
fonitronik at
FlickR (pix) / SoundCloud (sounds) / YouTube (vids) / Vimeo (vids) / facebook (news)
Back to top
View user's profile Send private message Send e-mail Visit poster's website
The Bad Producer



Joined: Mar 08, 2009
Posts: 253
Location: The Manhole

PostPosted: Sun Nov 01, 2009 3:01 pm    Post subject: Reply with quote  Mark this post and the followings unread

HA HA its a mess really - just a prototype to get an idea of the panel I'll do eventually... I'm making 8, so I wanted to get it right before doing a whole load of panels...

I added a 1/4" audio input so I can interface easily with my samplers...

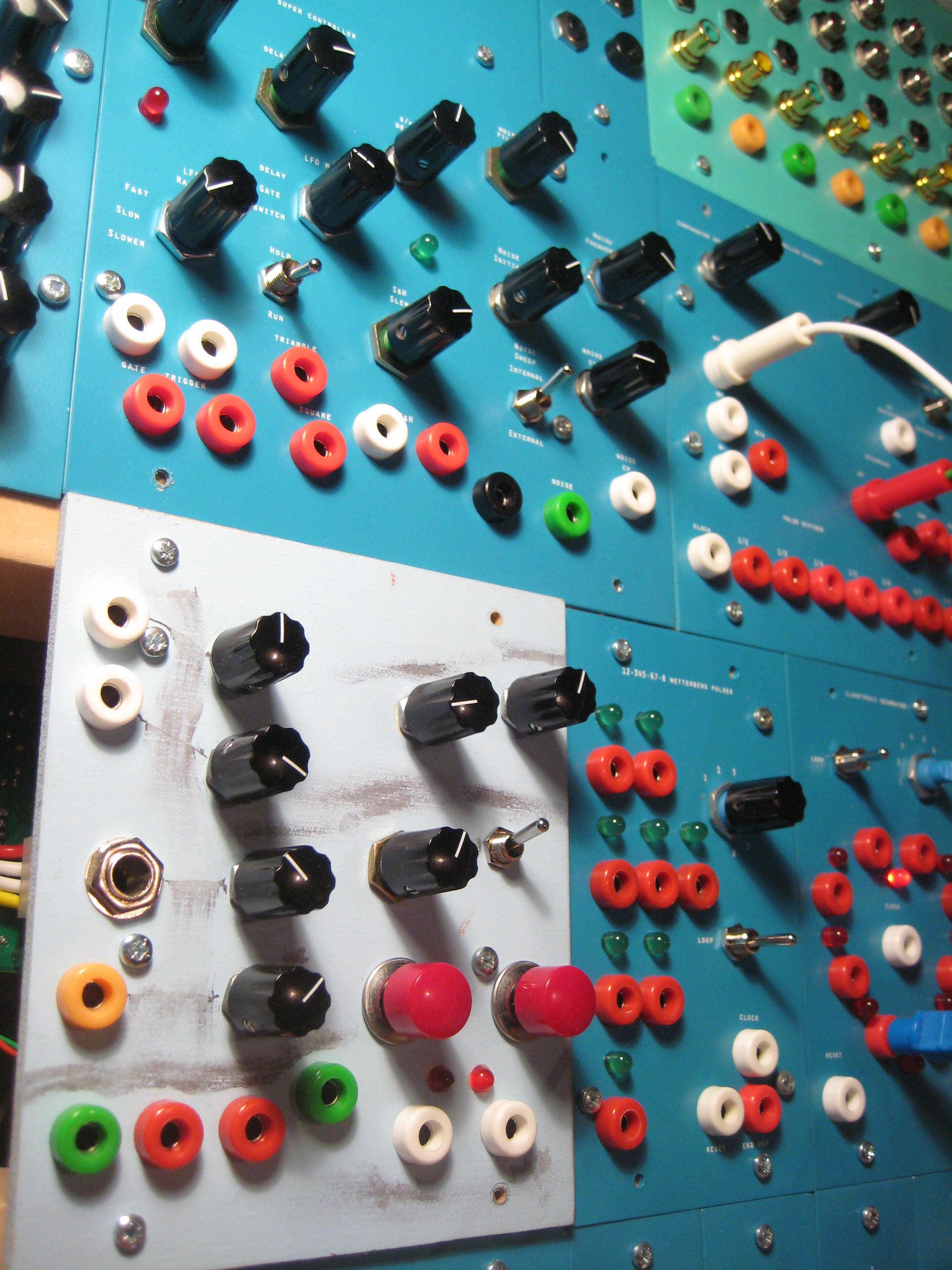

I also added a pic of it in the rack, just above it is a Fonitronik TH SuperController, another great module!

Charlie


 Description:
LPG + Gate Control 1
 Filesize:  510.89 KB
 Viewed:  135 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
LPG + SuperController
 Filesize:  694.27 KB
 Viewed:  150 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
http://loudestwarning.tumblr.com/
http://soundcloud.com/thebadproducer
Back to top
View user's profile Send private message Visit poster's website
The Bad Producer



Joined: Mar 08, 2009
Posts: 253
Location: The Manhole

PostPosted: Sun Nov 01, 2009 3:10 pm    Post subject: Reply with quote  Mark this post and the followings unread

ps. not sure about those massive buttons... Don't laugh Laughing
_________________
http://loudestwarning.tumblr.com/
http://soundcloud.com/thebadproducer
Back to top
View user's profile Send private message Visit poster's website
fonik



Joined: Jun 07, 2006
Posts: 3721
Location: Germany
Audio files: 23

PostPosted: Mon Nov 02, 2009 2:27 am    Post subject: Reply with quote  Mark this post and the followings unread

charlie, i admire your great work on the real panels: the color scheme, the proportions. it has a very special look. worthy.

and again thank you for the pointer:
updated Building Documentation:
LPG292c Expansion

EDIT: rev2/2-nov-09 - change in wiring diagram page 2 (MTA-100 connector)

_________________
Posted Image, might have been reduced in size. Click Image to view fullscreen.
cheers,
matthias
____________
fonitronik at
FlickR (pix) / SoundCloud (sounds) / YouTube (vids) / Vimeo (vids) / facebook (news)
Back to top
View user's profile Send private message Send e-mail Visit poster's website
Krelnarb



Joined: Dec 04, 2007
Posts: 23
Location: Richmond, CA

PostPosted: Mon Nov 09, 2009 12:49 pm    Post subject: Reply with quote  Mark this post and the followings unread

Quote:
HA HA its a mess really - just a prototype to get an idea of the panel I'll do eventually...


I think using chocolate for the panel graphic is a great idea!!

Fonik, I got the expansion boards. Beautiful, as always. Thank you so much!

cheers,
Back to top
View user's profile Send private message
fonik



Joined: Jun 07, 2006
Posts: 3721
Location: Germany
Audio files: 23

PostPosted: Tue Nov 10, 2009 12:44 am    Post subject: Reply with quote  Mark this post and the followings unread

thank you for the great pics. it is great to see that people build such nice things.

BTW today i sent out a few messages to the people i have not heard back from, their boards are still waiting in my drawer.
so check your PMs/emails. there are some people on a waiting list, they wouod be happy to get your boards, i guess...

_________________
Posted Image, might have been reduced in size. Click Image to view fullscreen.
cheers,
matthias
____________
fonitronik at
FlickR (pix) / SoundCloud (sounds) / YouTube (vids) / Vimeo (vids) / facebook (news)
Back to top
View user's profile Send private message Send e-mail Visit poster's website
tommi



Joined: Dec 05, 2007
Posts: 247
Location: Italy
Audio files: 3

PostPosted: Tue Nov 10, 2009 6:23 am    Post subject: Reply with quote  Mark this post and the followings unread

Maybe it's too late, but if you got some spare I am in for one PCB.
Thanks!

_________________
http://soundcloud.com/mister-vommi
http://tideofsound.net
Back to top
View user's profile Send private message
fonik



Joined: Jun 07, 2006
Posts: 3721
Location: Germany
Audio files: 23

PostPosted: Tue Nov 10, 2009 6:33 am    Post subject: Reply with quote  Mark this post and the followings unread

i put you on a waiting list, tommi. maybe some people withdraw from their advance order...
_________________
Posted Image, might have been reduced in size. Click Image to view fullscreen.
cheers,
matthias
____________
fonitronik at
FlickR (pix) / SoundCloud (sounds) / YouTube (vids) / Vimeo (vids) / facebook (news)
Back to top
View user's profile Send private message Send e-mail Visit poster's website
tommi



Joined: Dec 05, 2007
Posts: 247
Location: Italy
Audio files: 3

PostPosted: Tue Nov 10, 2009 6:38 am    Post subject: Reply with quote  Mark this post and the followings unread

Thanks Fonik!
I am crossing my fingers...

_________________
http://soundcloud.com/mister-vommi
http://tideofsound.net
Back to top
View user's profile Send private message
gwaidan



Joined: Mar 07, 2009
Posts: 53
Location: Sydney, Australia

PostPosted: Tue Nov 10, 2009 8:45 pm    Post subject: Reply with quote  Mark this post and the followings unread

Boards arrived yesterday in Sydney, thanks! I did a double take when I saw Fonitronik boards in regulation green for a change!!! Smile
Back to top
View user's profile Send private message
fonik



Joined: Jun 07, 2006
Posts: 3721
Location: Germany
Audio files: 23

PostPosted: Wed Nov 11, 2009 9:02 am    Post subject: Reply with quote  Mark this post and the followings unread

gwaidan wrote:
Boards arrived yesterday in Sydney, thanks! I did a double take when I saw Fonitronik boards in regulation green for a change!!! Smile

Laughing
i thought this way it would match better with thomas' board. exception. promised!

_________________
Posted Image, might have been reduced in size. Click Image to view fullscreen.
cheers,
matthias
____________
fonitronik at
FlickR (pix) / SoundCloud (sounds) / YouTube (vids) / Vimeo (vids) / facebook (news)
Back to top
View user's profile Send private message Send e-mail Visit poster's website
The Bad Producer



Joined: Mar 08, 2009
Posts: 253
Location: The Manhole

PostPosted: Tue Nov 17, 2009 9:38 am    Post subject: Reply with quote  Mark this post and the followings unread

Posted Image, might have been reduced in size. Click Image to view fullscreen.

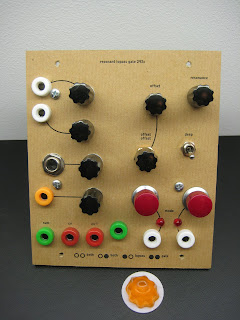

I finally decided to finish with the turquoise panels, as I have two racks now, and I can't help going for a new look!

So here is one (of eight) of my new modules, with Fonik's gate board added.

Looks cool (to me), though I think it would look better with cream Davies knobs, and maybe cream banana sockets.... Mmmmmmmmmm...

Charlie

_________________
http://loudestwarning.tumblr.com/
http://soundcloud.com/thebadproducer
Back to top
View user's profile Send private message Visit poster's website
tommi



Joined: Dec 05, 2007
Posts: 247
Location: Italy
Audio files: 3

PostPosted: Wed Nov 18, 2009 6:28 am    Post subject: Reply with quote  Mark this post and the followings unread

Hey Fonik,

Sorry for pushing but do you have news about any extra PCBs ?
I 've already received the parts for those circuits but banzaieffects made a mistake and sent me 3pdt on-on switches instead of on-off-on. So I decided to build my two LPGs both with your expansion boards.
If they 're over I think I 'll build on stripboards...
thanks,
tommi

_________________
http://soundcloud.com/mister-vommi
http://tideofsound.net
Back to top
View user's profile Send private message
fonik



Joined: Jun 07, 2006
Posts: 3721
Location: Germany
Audio files: 23

PostPosted: Wed Nov 18, 2009 6:38 am    Post subject: Reply with quote  Mark this post and the followings unread

i will re-order some additional boards soon to fullfill the needs. they should be available in 2-3 weeks, i think.

tommi wrote:
Hey Fonik,

Sorry for pushing but do you have news about any extra PCBs ?
I 've already received the parts for those circuits but banzaieffects made a mistake and sent me 3pdt on-on switches instead of on-off-on. So I decided to build my two LPGs both with your expansion boards.
If they 're over I think I 'll build on stripboards...
thanks,
tommi

_________________
Posted Image, might have been reduced in size. Click Image to view fullscreen.
cheers,
matthias
____________
fonitronik at
FlickR (pix) / SoundCloud (sounds) / YouTube (vids) / Vimeo (vids) / facebook (news)
Back to top
View user's profile Send private message Send e-mail Visit poster's website
tommi



Joined: Dec 05, 2007
Posts: 247
Location: Italy
Audio files: 3

PostPosted: Wed Nov 18, 2009 6:41 am    Post subject: Reply with quote  Mark this post and the followings unread

That's cool! So, please, count me in for two. Very Happy
_________________
http://soundcloud.com/mister-vommi
http://tideofsound.net
Back to top
View user's profile Send private message
scriptstyle



Joined: Jan 22, 2008
Posts: 250
Location: nj

PostPosted: Thu Nov 19, 2009 12:29 am    Post subject: Reply with quote  Mark this post and the followings unread

i also need two!? i missed out on the first run Crying or Very sad
Back to top
View user's profile Send private message
Electric not magic



Joined: Sep 25, 2009
Posts: 5
Location: Australia

PostPosted: Thu Nov 19, 2009 2:35 am    Post subject: Reply with quote  Mark this post and the followings unread

I'd love to commit to four boards if they become re-available.
Back to top
View user's profile Send private message
arnoid



Joined: Aug 23, 2009
Posts: 55
Location: Belgium

PostPosted: Thu Nov 19, 2009 4:30 am    Post subject: Reply with quote  Mark this post and the followings unread

I also would like to have 2 expansion pcb's if possible ?
Can you put me on the waitinglist ?
Back to top
View user's profile Send private message
fonik



Joined: Jun 07, 2006
Posts: 3721
Location: Germany
Audio files: 23

PostPosted: Thu Nov 19, 2009 5:26 am    Post subject: Reply with quote  Mark this post and the followings unread

got you.
_________________
Posted Image, might have been reduced in size. Click Image to view fullscreen.
cheers,
matthias
____________
fonitronik at
FlickR (pix) / SoundCloud (sounds) / YouTube (vids) / Vimeo (vids) / facebook (news)
Back to top
View user's profile Send private message Send e-mail Visit poster's website
Funky40



Joined: Sep 24, 2005
Posts: 875
Location: Swiss
Audio files: 1
G2 patch files: 5

PostPosted: Thu Nov 19, 2009 8:14 am    Post subject: Reply with quote  Mark this post and the followings unread

I got my Boards,
thanks Mister fonik.

thinking about switching and my needs it easily could be that i will take some more on a next run, but hope it's not to soon.
for now my backlog is again frightening as i did nothing the last 2-3 months but got quite some Boards in this Week.
found my solderstation btw...........now to find the motivation to solder Laughing
Back to top
View user's profile Send private message
Funky40



Joined: Sep 24, 2005
Posts: 875
Location: Swiss
Audio files: 1
G2 patch files: 5

PostPosted: Thu Nov 19, 2009 8:20 am    Post subject: Reply with quote  Mark this post and the followings unread

OT:

that quantiser from Scott looks cool, doesn't it ?
4of those in a row, each with 12 little pushbuttons with LEDs..........similar to what docvague have brought up back then,
mmmmhhhhh, mjam, mjam

there is nothing more needed in the DIY world and also on the euromarket i'd say Wink
must be two or four. so one can be patched to transpose the otherone.
*hint* *hint* *dream*
Back to top
View user's profile Send private message
diablojoy



Joined: Sep 07, 2008
Posts: 790
Location: melbourne australia
Audio files: 11

PostPosted: Fri Nov 20, 2009 1:41 am    Post subject: Reply with quote  Mark this post and the followings unread

had a bit of a rethink and found another use for these, well several really
so instead of 6 would like to increase up to 10 if possible ?
cheers
Back to top
View user's profile Send private message
fonik



Joined: Jun 07, 2006
Posts: 3721
Location: Germany
Audio files: 23

PostPosted: Fri Nov 20, 2009 1:52 am    Post subject: Reply with quote  Mark this post and the followings unread

diablojoy wrote:
had a bit of a rethink and found another use for these, well several really
so instead of 6 would like to increase up to 10 if possible ?
cheers

still no problem. boards will be ordered on monday 1200UTC.

_________________
Posted Image, might have been reduced in size. Click Image to view fullscreen.
cheers,
matthias
____________
fonitronik at
FlickR (pix) / SoundCloud (sounds) / YouTube (vids) / Vimeo (vids) / facebook (news)
Back to top
View user's profile Send private message Send e-mail Visit poster's website
diablojoy



Joined: Sep 07, 2008
Posts: 790
Location: melbourne australia
Audio files: 11

PostPosted: Sat Nov 21, 2009 12:21 am    Post subject: Reply with quote  Mark this post and the followings unread

Quote:
still no problem. boards will be ordered on monday


nice Smile and thanks again
Back to top
View user's profile Send private message
Display posts from previous:
Post new topic   Reply to topic Moderators: fonik
Page 4 of 8 [190 Posts]
View unread posts
View new posts in the last week
Goto page: Previous 1, 2, 3, 4, 5, 6, 7, 8 Next
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software » fonik's place
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
emSynth

Please support our site. If you click through and buy from
our affiliate partners, we earn a small commission.


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
