PostPosted: Mon Nov 09, 2009 4:52 pm    Post subject: Reply with quote  Mark this post and the followings unread

Oh, Matthe, I'm unfamiliar with the 4051 chip, can you explain it for me? Maybe I can do something with it...

Les

_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 5978
Location: San Antonio, Tx, USA
Audio files: 258

PostPosted: Mon Nov 09, 2009 5:47 pm    Post subject: Reply with quote  Mark this post and the followings unread

OK, the low-down on shipping is this: It's $8, a bit high in my opinion but my friend Daisy who I'm evangelizing into doing kitting for me with this as a practice starter, says you gotta consider gas and time and yada yada yada...

Yoda? May the farce be with you! So anyways, please calculate $2.50 per board plus $8 shipping. you can pm me your address and the paypal email identity is lester.hall@comcast.net. We plan to do a mailing later this week.

May all your Lunettas sing sweet...

Les

_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
DGTom



Joined: Dec 08, 2008
Posts: 210
Location: Adelaide
Audio files: 3
G2 patch files: 1

PostPosted: Mon Nov 09, 2009 6:54 pm    Post subject: Reply with quote  Mark this post and the followings unread

Very Happy great news! Is the $8 worldwide?

I'll PM you in a sec. Les. I'm in for 10 as well. I'd really like to 'posh' up many of my lunetta ccts. I've learnt so much in the past few months I'm looking at some of my early modules & shaking my head at the poor quality construction Embarassed
Back to top
View user's profile Send private message
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 5978
Location: San Antonio, Tx, USA
Audio files: 258

PostPosted: Mon Nov 09, 2009 6:59 pm    Post subject: Reply with quote  Mark this post and the followings unread

DGTom wrote:
Very Happy great news! Is the $8 worldwide?

I'll PM you in a sec. Les. I'm in for 10 as well. I'd really like to 'posh' up many of my lunetta ccts. I've learnt so much in the past few months I'm looking at some of my early modules & shaking my head at the poor quality construction Embarassed


I'm not sure, DGTom, but I think so. wmonk mentioned that Bill shipped him some parts and they were marked $5, so that's $8 including gas and time as far as I'm concerned. If you live in nowhereland, lol, then it might be more but let's use $8 as a catch-all. Heaven forbid I would ask you for additional paypal payment if it gets expensive for some reason. Later man!

Les

_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
electri-fire



Joined: Jul 26, 2006
Posts: 535
Location: breda nl
Audio files: 4
G2 patch files: 4

PostPosted: Tue Nov 10, 2009 11:19 am    Post subject: Reply with quote  Mark this post and the followings unread

Inventor wrote:
I'm unfamiliar with the 4051 chip, can you explain it for me? Maybe I can do something with it...


It has one input and eight outputs. It can also be used in reverse, that is, send one of eight inputs to an output.

Three inputs (ABC) determine wich of the eight connections is made.

The 4052 is similar, but has 2x4 in/outs.

Droffset used a 4052 in a circuitbent instrument:
http://electro-music.com/forum/viewtopic.php?highlight=4051&t=36490

Here's a thread: http://electro-music.com/forum/viewtopic.php?highlight=4051&t=23972

RF (Bruce) has one in his Lunetta: http://electro-music.com/forum/topic-30479.html

There are some schematics that use it: http://milkcrate.com.au/_other/sea-moss/

Ah, I just did a rearch on the forum and there are loads of hits.
Back to top
View user's profile Send private message
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 5978
Location: San Antonio, Tx, USA
Audio files: 258

PostPosted: Wed Nov 11, 2009 12:58 pm    Post subject: Reply with quote  Mark this post and the followings unread

OK Matthe, I get the CD4051 chip now, an 8:1 mux/demux. This could be a very powerful chip for Lunettas because it routes analog as well as digital signals. I'll order a few of them for playing around with.

Les

_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 5978
Location: San Antonio, Tx, USA
Audio files: 258

PostPosted: Thu Nov 12, 2009 11:34 am    Post subject: Reply with quote  Mark this post and the followings unread

Oh man, this is so funny. I drove my friend Daisy to the post office to mail our the circuit boards and we did get them mailed out, but the whole thing was like some comedy show called "The Two Stooges go to the Post Office"! Hahahaha, between the parking fiasco and the one-way streets and Daisy's comedic stream-of-consciousness chatter it was chaos. We also didn't understand the postal rates, what package to use, how to pack them, and well, suffice to say it was pure lunacy at it's finest!

The good news is we got all three orders mailed (10 circuit boards each). The bad news is that the postage was more than I thought it would be. Maybe there is a cheaper way to do international shipments, but a priority mail envelope is $8 more than I thought it would be. But no worries, I'll just absorb the cost and use the correct figure in the future. For the time being, unless I can figure out a cheaper way to send internationally, shipping will be $16 outside the US and $9 inside the US. But I think most of those who wanted boards have them now, or will when the package gets there.

In other good news, I used the paypal funds that paid for the boards to buy parts for building eChucK sculptures. Hopefully those parts will arrive by next Thursday. There are two people who want to buy eChucK sculptures from me, so I ordered enough parts to do three Chiphenges of different flavors and two Tie Fighters (adjustable ring oscillators) plus one speaker module for demonstration / testing purposes. I hope it all works out, but it will be fun regardless!

Phew, that was enough stress for one day in my book, but it sure was fun stress. I Hope you got a laugh out of my little post office adventure, and I hope you enjoy the boards!

Les

_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
RF



Joined: Mar 23, 2007
Posts: 1493
Location: Northern Minnesota, USA
Audio files: 28

PostPosted: Thu Nov 12, 2009 2:17 pm    Post subject: Reply with quote  Mark this post and the followings unread

Thanks for the update, Les.
These should be a lot of fun. I have not decided exactly how the boards will be used but expect it will morph into something interesting eventually.

Tanks for doing this - and thanks to Daisy, too.

bruce

_________________
www.sdiy.org/rfeng

"I want to make these sounds that go wooo-wooo-ah-woo-woo.”
(Herb Deutsch to Bob Moog ~1963)
Back to top
View user's profile Send private message
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 5978
Location: San Antonio, Tx, USA
Audio files: 258

PostPosted: Tue Nov 17, 2009 5:14 pm    Post subject: Reply with quote  Mark this post and the followings unread

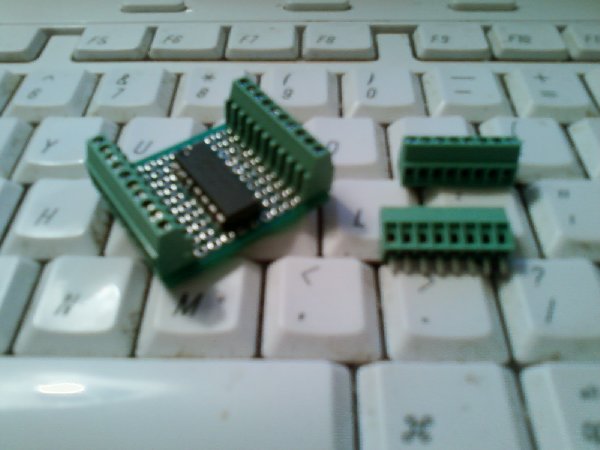

Hey, guess what? UPS delivered the Digikey package two days early! So I decided to create a test board just to send it to Howard so he knows what I'm talking about. The photo below shows the soldered board on a keyboard as background, and also shows two 8-pin screw terminals of a different style.

The good news is that everything fits in the holes, yay! Even the screw terminals fit. The bad news is that the holes are kind of large for the chip leads. That's OK, but what I did by mistake is feed in too much solder and the solder built up on the chip leads in an ugly way. So I just used some solder wick to remove the excess and then didn't' feed too much solder in on the rest of the pins.

So there is room for improvement here. On the next batch of these little dealies I will make the outer columns of holes the same size they are now, or perhaps a hair smaller, and make the interior holes a good bit smaller. I might make the board one row taller too, not sure about that.

Anyway, success! The parts fit in the board and solder up just fine. Please let me know if you have any other suggestions regarding these boards, thanks.

Les


 Description:
Blurry, but you get the idea - an eChucK Lunetta board with screw terminals and a 14 pin chip
 Filesize:  248.42 KB
 Viewed:  116 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
DGTom



Joined: Dec 08, 2008
Posts: 210
Location: Adelaide
Audio files: 3
G2 patch files: 1

PostPosted: Tue Nov 17, 2009 5:21 pm    Post subject: Reply with quote  Mark this post and the followings unread

very cool mutant bug evolving there Very Happy can't wait to get my boards, thanks very much for great work Les.
Back to top
View user's profile Send private message
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 5978
Location: San Antonio, Tx, USA
Audio files: 258

PostPosted: Tue Nov 17, 2009 5:36 pm    Post subject: Reply with quote  Mark this post and the followings unread

I'm mailing your boards out tomorrow, Thomas. Enjoy!

Les

_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 5978
Location: San Antonio, Tx, USA
Audio files: 258

PostPosted: Wed Nov 25, 2009 12:25 am    Post subject: Reply with quote  Mark this post and the followings unread

I started playing around with the eChucK Lunetta boards now that Karplus Strong is ready for 1st run boards. The first module I made is called "Speaker". Speaker isn't too smart, he just plays whatever audio you send to him on his speaker. He does have a volume control though.

In front of speaker is a partially assembled Tie Fighter, a five-stage ring oscillator made with thumbwheel pots.

In the background is my Karplus Strong prototype.

Les


 Description:
Speaker and Tie Fighter in front of Karplus Strong
 Filesize:  275.68 KB
 Viewed:  114 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
DGTom



Joined: Dec 08, 2008
Posts: 210
Location: Adelaide
Audio files: 3
G2 patch files: 1

PostPosted: Thu Nov 26, 2009 2:16 am    Post subject: Reply with quote  Mark this post and the followings unread

I wish I could find those 9V holders locally Sad

My boards arrived today Les! Look great! Tomorrow I'll have a fiddle with a few, they may end up being the base of the NAND Osc. Data Resonator I'm building for a friend Very Happy
Back to top
View user's profile Send private message
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 5978
Location: San Antonio, Tx, USA
Audio files: 258

PostPosted: Thu Nov 26, 2009 4:24 am    Post subject: Reply with quote  Mark this post and the followings unread

Cool Thomas, I hope your friend will enjoy the gift. Mathe told me that I sent him an extra 10 boards, so now he has 20! OOOPS! Oh well, no skin off my back. May as well share the wealth eh?

Les

_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
electri-fire



Joined: Jul 26, 2006
Posts: 535
Location: breda nl
Audio files: 4
G2 patch files: 4

PostPosted: Fri Nov 27, 2009 6:00 am    Post subject: eChuck Lunetta Board latest version Reply with quote  Mark this post and the followings unread

The eChuck Lunetta Boards Les has ordered differ somewhat from the version 2 he posted.
The boards are really cute, and pristenely made. It is hard to see the traces, as they almost have the same color as the board.
I editted it to how the boards are now, I think it might come in handy to document any schematics on it I/we might develope on it (until I learn to use Eagle that is).


 Description:
 Filesize:  51.33 KB
 Viewed:  4233 Time(s)



Back to top
View user's profile Send private message
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 5978
Location: San Antonio, Tx, USA
Audio files: 258

PostPosted: Sun Nov 29, 2009 8:06 am    Post subject: Reply with quote  Mark this post and the followings unread

I finally constructed my first Lunetta! It is Tie Fighter, a 5-stage ring oscillator (not ring modulator). It doesn't sound all that special, it's just an oscillator, but it was an experiment in using the little eChucK Lunetta boards for something. I might make these little projects into a beginner's Lunetta kit...

Les


 Description:
Speaker and Tie Fighter hanging out by the keyboards
 Filesize:  289.34 KB
 Viewed:  109 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
wmonk



Joined: Sep 15, 2008
Posts: 489
Location: Enschede, the Netherlands
Audio files: 13

PostPosted: Sun Nov 29, 2009 10:19 am    Post subject: Reply with quote  Mark this post and the followings unread

What is a picture without sound? Laughing
Cool Inventor! Keep 'em coming! Can you explain why you called this the Tie fighter?
Back to top
View user's profile Send private message
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 5978
Location: San Antonio, Tx, USA
Audio files: 258

PostPosted: Sun Nov 29, 2009 10:24 am    Post subject: Reply with quote  Mark this post and the followings unread

wmonk wrote:
What is a picture without sound? Laughing
Cool Inventor! Keep 'em coming! Can you explain why you called this the Tie fighter?


I'll have to make a rcording. Tie Fighter is called Tie Fighter because he looks like a Star Wars Evil Empire spacecraft a little bit. What may be difficult to see in the photo is that Tie Fighter has a central horizontal board and two left and right vertical boards, just like in the Star Wars movies.

Les

_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 5978
Location: San Antonio, Tx, USA
Audio files: 258

PostPosted: Sun Nov 29, 2009 10:37 am    Post subject: Reply with quote  Mark this post and the followings unread

OK, wmonk, here is an audio demonstration file.

Les


TieFighterDemo.mp3
 Description:
Tie Fighter Audio Demo

Download
 Filename:  TieFighterDemo.mp3
 Filesize:  3.26 MB
 Downloaded:  313 Time(s)


_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
droffset



Joined: Feb 02, 2009
Posts: 489
Location: London and Oxford
Audio files: 2

PostPosted: Wed Dec 09, 2009 5:29 pm    Post subject: Reply with quote  Mark this post and the followings unread

Heya Les,
I've been a little out of touch for a while but if you do another run of boards and stuff send me a PM and I'll be in on it.

_________________
==================
Check out the FREE Intro to Lunettas Document
https://docs.google.com/Doc?docid=0AZIwOP-PR9sSZDlidzgzbV8wY3RjenJqanY&hl=en

Edit: Spelling mistakes.
Back to top
View user's profile Send private message Visit poster's website
Display posts from previous:
Post new topic   Reply to topic Moderators: mosc
Page 2 of 2 [45 Posts]
View unread posts
View new posts in the last week
Goto page: Previous 1, 2
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software » Lunettas - circuits inspired by Stanley Lunetta
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
e-m mkii

Please support our site. If you click through and buy from
our affiliate partners, we earn a small commission.


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
