Paco · Posted: Wed Jun 16, 2010 3:30 pm Post subject:

Hello!

First of all, congratulations to all the well done jobs posted here. I feel soooo small compared to you, synth builders...

This is the first time I decided to post in this forum. However, I have spent the last year learning the basics of synth electronics here. I think I have read at least twice all the topics (I almost consider Uncle Krunkus as a part of my family...), and before starting a bigger modular I built up this kind of rustic mini-modular.

It is an entirely hand made synth, component by component with a self design. 8 steps serial or double 4 steps parallel sequencer, 2 vco's, mixer, vcf, ad eg + vca and lfo + white noise. It runs on 12v but it also can be operated from a single 9v battery.

Posted Image, might have been reduced in size. Click Image to view fullscreen.

Posted Image, might have been reduced in size. Click Image to view fullscreen.

Greetings from Spain
Paco

blue hell · Posted: Wed Jun 16, 2010 3:47 pm Post subject:

Paco, looks like a cool box to me!

Got some sound samples for us?

State Machine · Posted: Wed Jun 16, 2010 3:59 pm Post subject:

tjookum · Posted: Thu Jun 17, 2010 11:48 am Post subject:

Looks nice and tight paco! I like that you can choose between 2x4 or just 8 steps, and batterypower is always a good way to go.

Paco · Posted: Thu Jun 17, 2010 3:29 pm Post subject:

Thanks for your comments and welcome messages, I really appreciate them...

Some sound samples, this is the dry sound taken from the VCA out.

1.mp3

Description:

A noise and bass sequence

Download (listen)

Filename:

1.mp3

Filesize:

1.33 MB

Downloaded:

558 Time(s)

2.mp3

Description:

A higher tone with FM

Download (listen)

Filename:

2.mp3

Filesize:

832.75 KB

Downloaded:

512 Time(s)

State Machine · Posted: Thu Jun 17, 2010 6:46 pm Post subject:

adambee7 · Joined: Apr 04, 2009 Posts: 420 Location: united kingdom

That's a great sound Paco. Nice filter and bass seq. Great build. Very Happy

RF · Posted: Fri Jun 18, 2010 4:04 am Post subject:

Sweet build, Paco! Thanks for sharing the pic and sounds.
What designs did you use for the filters/VCO's? Can you share some specifics on the modules?

Thanks -
bruce

Paco · Posted: Fri Jun 18, 2010 9:40 am Post subject:

Thanks again. Very Happy

These modules are based on very simple designs.

The sequencer is a 4017 driving 4016 analog switches. But there is current in the bus outputs instead of voltage (the pots work as variable resistors). I did this because at the beginning it was planned to feed two 555 oscillators. So...
The first module is not a real VCO. It is a 555 osc + 4017 as a frequency divider, so I get pulse and square waves.
Then I discover the 40106 VCO in this forum and the second module (a real VCO) was born. It has a CV in and a current in to be fed by the seq.
The VCF is basically the same as the WP20 filter.
The EG is a monostable 555. This is the only one I have designed completely from scratch. It has attack, release, and gate length controls. The VCA is a basic LM3080.
And finally a simple 4069 tri LFO with a voltage divider. The noise comes from a typical "cutting collector" circuit.

And that is it...I began with the APC, but I didnt find it very musical. The thing was growing up and up and now I am writing here (I still dont believe it)

Paco

tjookum · Posted: Fri Jun 18, 2010 11:43 am Post subject:

Thanks for the great info on the modular. Very simple equals very good in my book, very nice design. So I guess your using single supply and mostly cmos chips in your design? might want to take a look over in the lunetta forum: http://electro-music.com/forum/forum-160.html

Skellz · Joined: Dec 31, 2008 Posts: 18 Location: Ireland

From left to right.

MFOS VCO, Oakley Diode Ladder, MFOS ADSR, Oakley EFG

I have a few things left to finish.
MFOS sample and hold
MFOS dual VCA (I plugged the power in the wrong way Embarassed

)
Midi Box Midi to CV
MS20 Filter
CGS Burst gen

Big thanks to electro-music. This forum has been a huge help.

scaled down.JPG

Description:

Left to right. MFOS VCO, Oakley Diode Ladder, MFOS ADSR, Oakley EFG

Filesize:

1.17 MB

Viewed:

218 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

Paco · Posted: Fri Jun 18, 2010 5:01 pm Post subject:

skellz, good job! I hope I will be able to do something like this soon.

clee · Joined: Dec 08, 2009 Posts: 42 Location: Chicago

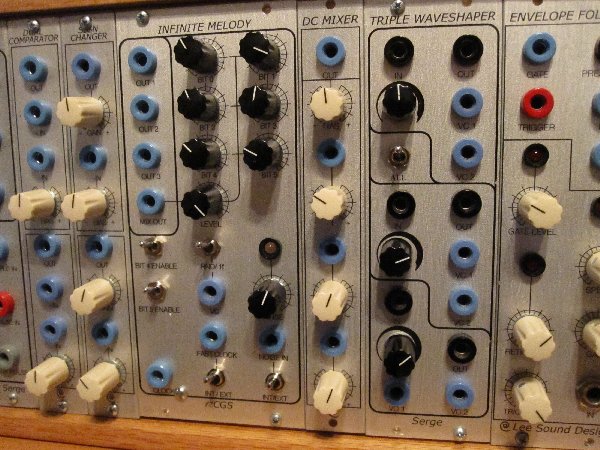

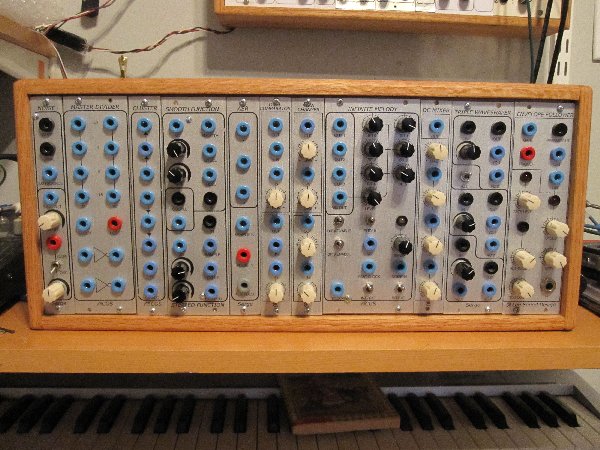

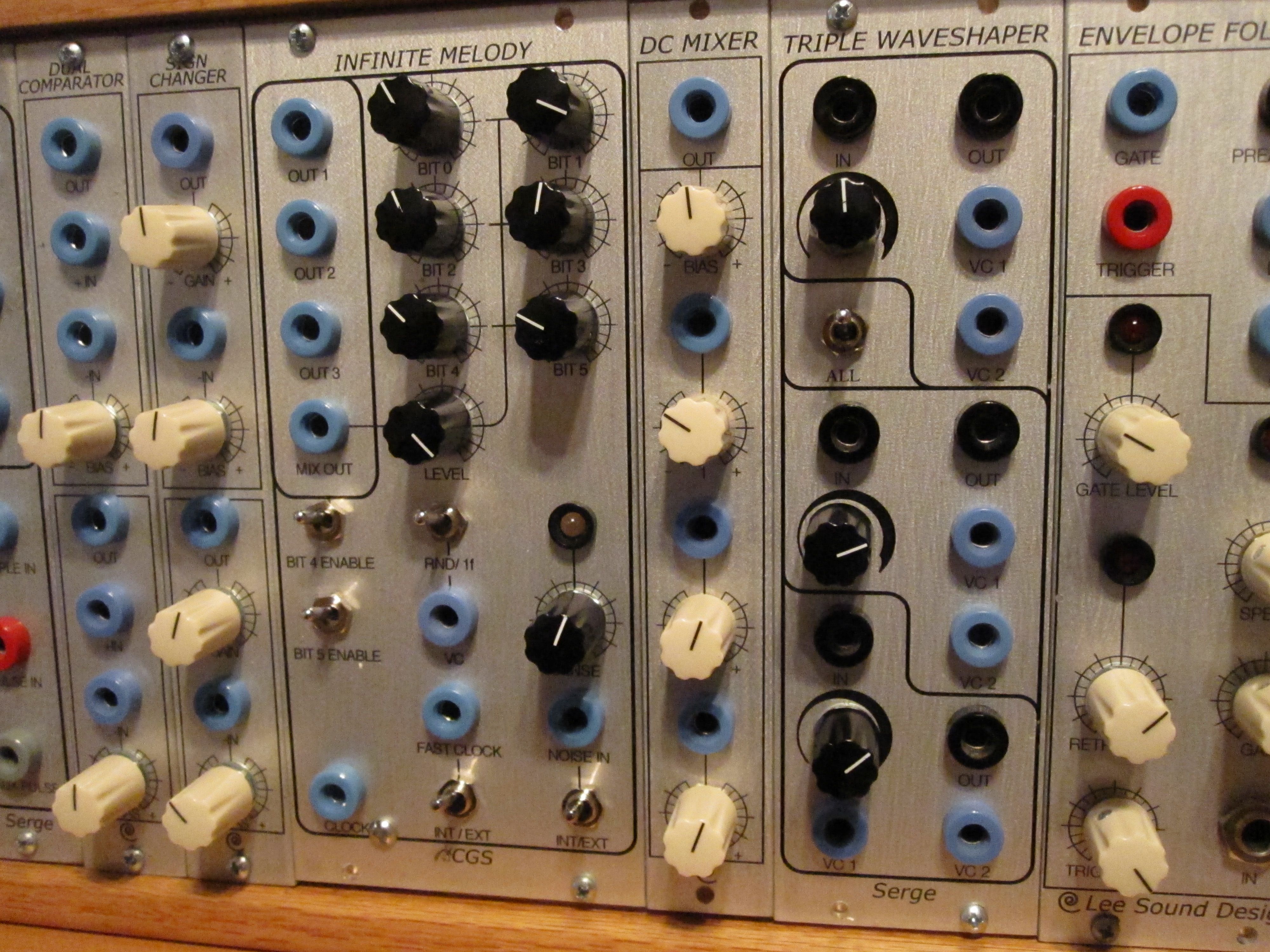

My mostly finished rebuild the first panel of my Serge and DIY modules. The screws will be covered by a wood strip when I get out the router. 2 more panels to go...

Craig


Description:

Filesize:

1.67 MB

Viewed:

213 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Filesize:

1.66 MB

Viewed:

264 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

zthee · Joined: Feb 20, 2008 Posts: 414 Location: Stockholm

Wavemultiplier Awesome build! Looks very nice!

clee · Joined: Dec 08, 2009 Posts: 42 Location: Chicago

Hey, thanks z

adambee7 · Joined: Apr 04, 2009 Posts: 420 Location: united kingdom

Nice restoration job did you do the printing on the panels yourself. Is that another serge i see in the background. Very Happy

clee · Joined: Dec 08, 2009 Posts: 42 Location: Chicago

I used Lazertran for the printing. Yes, that's another Serge/DIY panel in the background. I have 2 more I need to fix.

j.dilisio · Joined: May 19, 2009 Posts: 200 Location: baltimore

Skells, I'm curious as to how you built the Oakley diode ladder. Did you use an older pcb or do the layout yourself?

kkissinger · Posted: Fri Jun 25, 2010 11:22 am Post subject:

Just dropping in. Lots of great pics and projects.

Oh... I do enjoy looking! Smile

Skellz · Joined: Dec 31, 2008 Posts: 18 Location: Ireland

State Machine · Posted: Mon Jul 05, 2010 10:18 am Post subject:

Here is one of two Klee 2 sequencers I am building. I am attached a couple of views.

I built another when the Klee was first developed. This will make three so I get plenty practice building these.

I am also adding a MOD panel consisting of the following:

(1) Tap Tempo Clock Source
(1) Multi Waveform LFO
(1) 2 Range Digital Displays
(1) Multis with Attenuators
(1) MIDI CLK to CLOCK GEN with 1/8N, 1/16N, and 1/32N 5V pulsed outputs
(1) SYNC MANUAL LOAD

Two of these modifications can be seen in the Klee Sequencer Sub Forum.

http://electro-music.com/forum/topic-42830.html

http://electro-music.com/forum/topic-41646.html

Enjoy !
Bill


Description:

Filesize:

1.64 MB

Viewed:

212 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Filesize:

2.41 MB

Viewed:

204 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Filesize:

1.68 MB

Viewed:

182 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

adambee7 · Joined: Apr 04, 2009 Posts: 420 Location: united kingdom

Thats good looming man. fantastic job. Going to do a you tube vid showing off the mods?? Very Happy

State Machine · Posted: Mon Jul 05, 2010 10:56 am Post subject:

adamon · Posted: Tue Jul 06, 2010 4:22 pm Post subject:

Just finished up my new modules for this summer: two control sequencers, a new oscillator/lfo, and a utility panel for my breadbox enclosure. They are all mostly original designs, so I thought I'd explain each just a bit (sorry if it gets long):

The first sequencer is a circular control sequencer with internal or external clocking, direction switch, and a "voltage controlled" direction input jack (high= clockwise, low = counterclockwise). Each step has amount control, a switch for on/skip/reset, and external control input. It has two outputs, each with their own amount control.

The oscillator/lfo is a triple ramp/pulse generator based off of synthmongers vco. It operates in both high and low (lfo) frequencies. There are sync inputs, external control inputs, waveform selection switches, audio outputs, and control (lfo) outputs with amount knobs. There's only one chip in this thing, and I'm driving the hell out of it, so it definitely has some bleed-through problems, but each individual generator can be turned off, so that helps (the bleed-through can make for some interesting stuff though).

The second sequencer is a home grown grid sequencer. Back when I first heard about makenoise's rene sequencer, I though, "hey, I know how to do that," and so I spent a few months working on it and ended up with my take on it. There are two clock inputs (x and y), two direction switches (x righ/left and y up/down), and two external direction control jacks (x high/low for right/left and y high/low for up/down). A microcontroller combines the clock inputs to determine the current position and sends it to the grid through a decoder. The grid is 4x4, and there is a single output (with amount control) for each row and each column (rows 1,2,3,4, and columns 1,2,3,4). Each step has a level control and a switch for on/skip.

As I'm quickly running out of real-estate, I've had to start using my breadbox enclosure more, so I put a simple power input/three channel mixer in the remaining space and added a power distributer as well.

Sorry for the shitty pictures (I need a new camera...). I'm hoping to have some video up soon to help explain these things a little better. As always, many thanks go out to everyone here for all the help, and all the other stuff in here looks amazing!

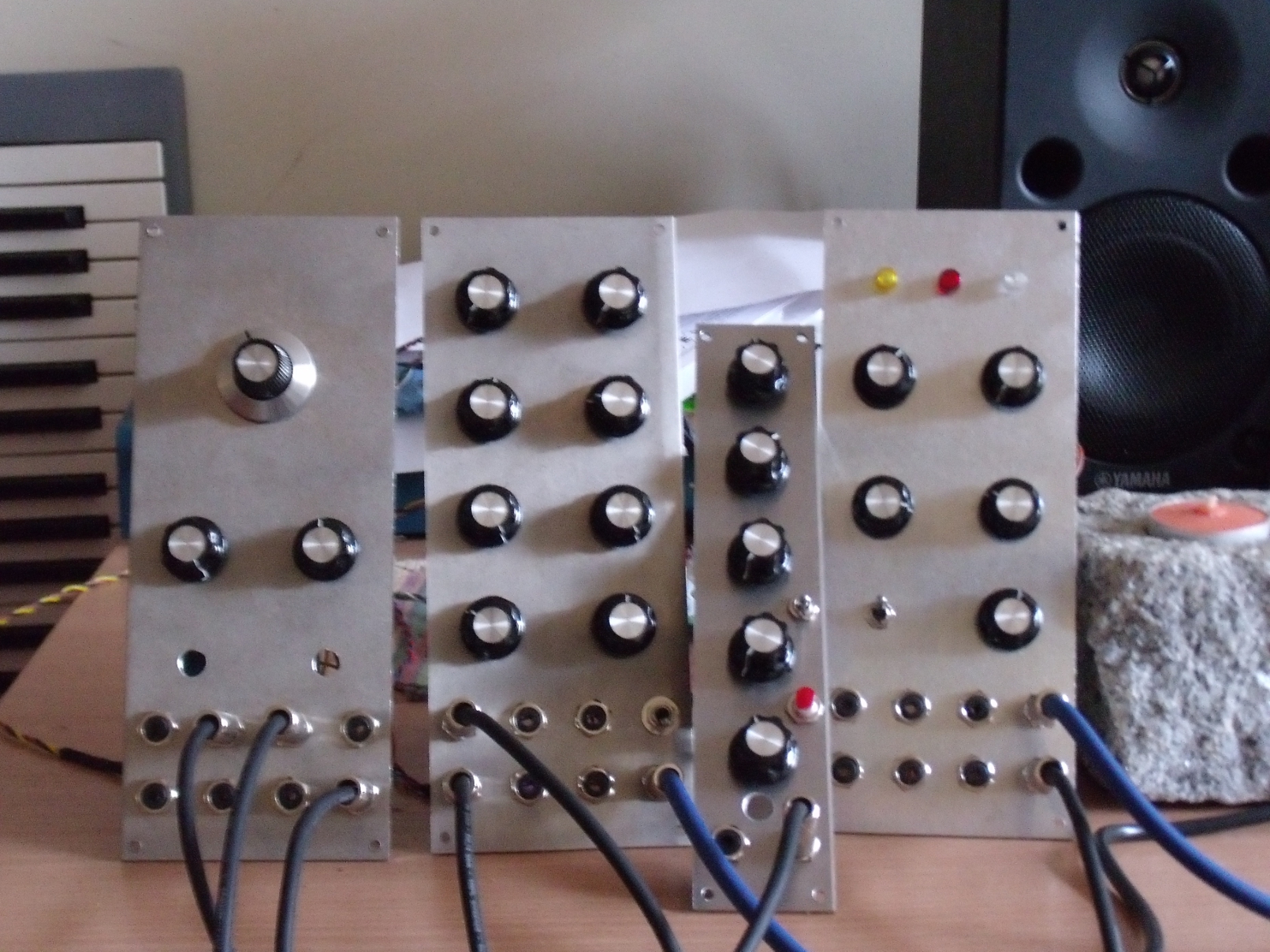

Description:

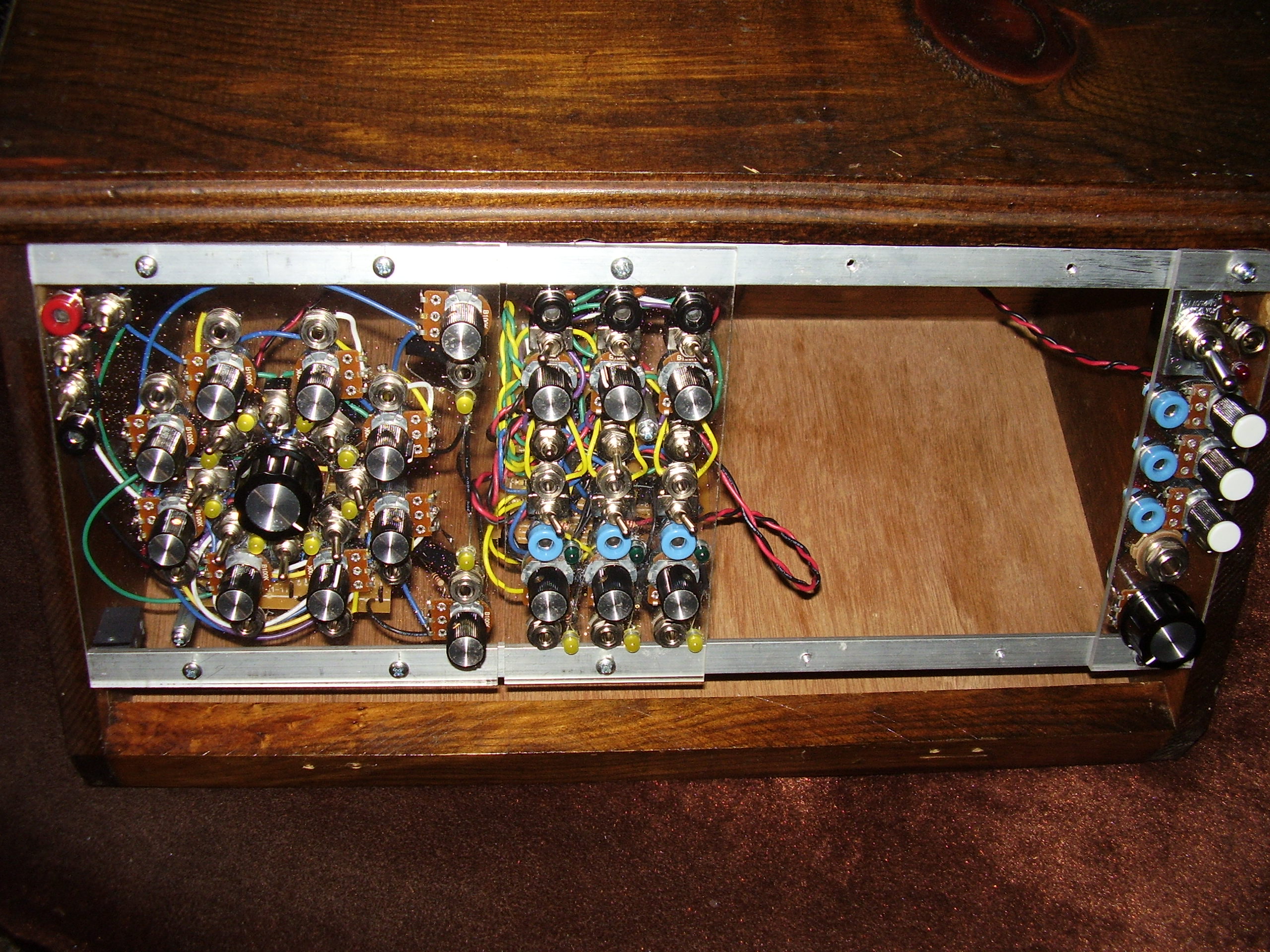

From left to right: circle sequencer, ramp/pulse generator, and power/mixer utility.

Filesize:

1.03 MB

Viewed:

207 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

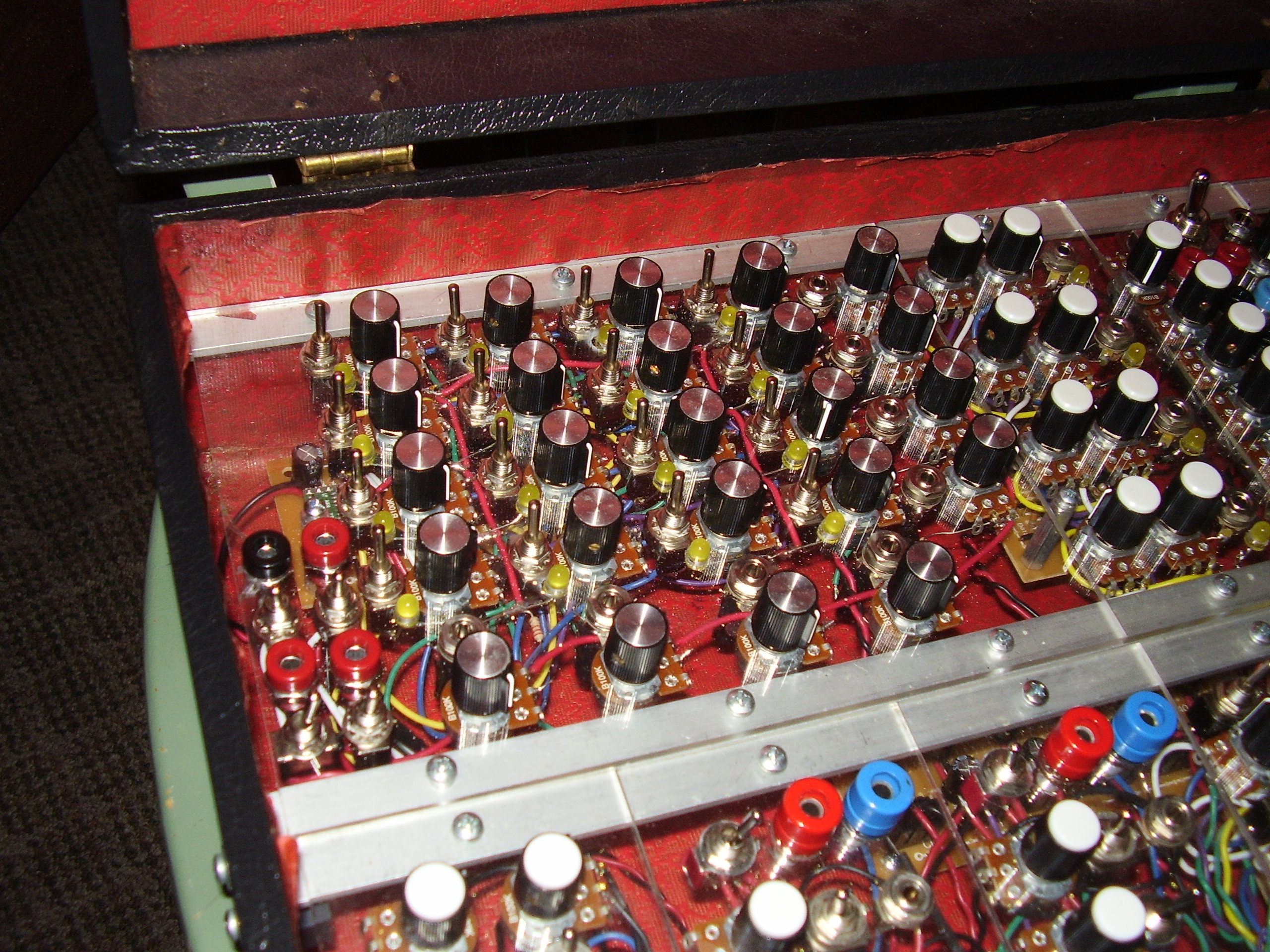

Description:

Grid sequencer

Filesize:

1.04 MB

Viewed:

205 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.
