Sonic



Joined: Dec 02, 2010
Posts: 84
Location: Toronto

PostPosted: Mon Apr 16, 2012 7:58 pm    Post subject: Reply with quote  Mark this post and the followings unread

Paul,

Does it make life easier to mount the board parallel to the panel like that rather than use some kind of L-bracket? What kind of hardware do you use to do it? Those stand-offs look like rawl-plugs!

As for the beautifully printed panel design, I won't even ask. There's obviously some kind of witchcraft or voodoo involved.

Richard
Back to top
View user's profile Send private message
EdisonRex
Site Admin


Joined: Mar 07, 2007
Posts: 4529
Location: London, UK
Audio files: 169

PostPosted: Tue Apr 17, 2012 5:36 am    Post subject: Reply with quote  Mark this post and the followings unread

Richard,

I've tried all sorts of mounts on my builds. I've tried L-brackets both screwed on, collared around a pot and soldered. I've tried pot-mounted, and parallel mounted. This is the second parallel mounted board mount I've done, and it just seemed easier to mount given how much stuff was on the panel. Those are just wood dowels I used for the spacers this time (didn't have any nylon of that quantity), I stiffened the ends of the dowels with cyanoacrylate before drilling them so they'd not split so bad.

The panel graphics are photographic inkjet paper, which was sealed with polyurethane and adhered to the drilled steel panel. There is a tendency for these to peel their edges over time if you're not careful. I'm getting better with that though. I always print a mockup and use that for the panel drilling, then do the photographic quality one later. Usually a couple spray coats of polyurethane to get a nice shine, matt finish actually works better than glossy.

For a board the size of the SN-Voice I think the mount was appropriate. Also the board is surrounded by connectors. Hard to mount perpendicular unless you built a plate to mount it onto.

_________________
Garret: It's so retro.
EGM: What does retro mean to you?
Parker: Like, old and outdated.


Home,My Studio,and another view
Back to top
View user's profile Send private message Visit poster's website
loydb



Joined: Feb 04, 2010
Posts: 369
Location: Providence, RI

PostPosted: Tue Apr 17, 2012 6:58 am    Post subject: Reply with quote  Mark this post and the followings unread

The case portion of the project is finished! See sig for full project.

Posted Image, might have been reduced in size. Click Image to view fullscreen.
Posted Image, might have been reduced in size. Click Image to view fullscreen.
Posted Image, might have been reduced in size. Click Image to view fullscreen.

_________________
MFOS Ultimate Expand-o-tron Build Log: http://www.electro-music.com/forum/post-308797.html#308797
MFOS Mini-Controller Build Log [FINISHED!]: http://www.electro-music.com/forum/topic-42968.html
Back to top
View user's profile Send private message
inlifeindeath



Joined: Apr 02, 2010
Posts: 315
Location: Albuquerque, NM

PostPosted: Thu Apr 19, 2012 11:31 am    Post subject: Reply with quote  Mark this post and the followings unread

While not a finished module yet, I had to post an initial video of the circuit.
It's my first Arduino project and is a CV Quantizer
Get this Mosc, it worked first try done on perfboard AND it was translated from a Japanese blog! http://gtbts.tumblr.com/post/7353518380/section2-quantizer

I am also just about finished with the ENS-76 VCO option 3, but i'm working with Bernie to figure out why the envelope isn't working. Has anyone built the option 3 before?

_________________
http://www.youtube.com/user/borisandfef
Back to top
View user's profile Send private message Visit poster's website
mosc
Site Admin


Joined: Jan 31, 2003
Posts: 17620
Location: Allentown, PA
Audio files: 125
G2 patch files: 60

PostPosted: Thu Apr 19, 2012 12:09 pm    Post subject: Reply with quote  Mark this post and the followings unread

inlifeindeath wrote:

Get this Mosc, it worked first try done on perfboard AND it was translated from a Japanese blog!


Very cool. It's a must have module on a voltage controlled modular. The fact that it worked when first turned on is a quantum mechanical effect, best ignored in normal existence. If it happens again, then you are in another universe than I. Very Happy

_________________
--Howard
my music and other stuff
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address
fonik



Joined: Jun 07, 2006
Posts: 3760
Location: Germany
Audio files: 23

PostPosted: Thu Apr 19, 2012 3:09 pm    Post subject: Reply with quote  Mark this post and the followings unread

finished this custom build for someone else today (as you can see i moved from 1206 to 0805 resistors now):


_________________
Posted Image, might have been reduced in size. Click Image to view fullscreen.
cheers,
matthias
____________
fonitronik at
FlickR (pix) / SoundCloud (sounds) / YouTube (vids) / Vimeo (vids) / facebook (news)
Back to top
View user's profile Send private message Send e-mail Visit poster's website
diablojoy



Joined: Sep 07, 2008
Posts: 796
Location: melbourne australia
Audio files: 11

PostPosted: Thu Apr 19, 2012 9:06 pm    Post subject: Reply with quote  Mark this post and the followings unread

beautiful cabinet loydb have enjoyed very much watching the progress on this. keep up the good work. Smile
_________________
In an infinite universe one might very well
ask where the hell am I
oh yeah thats right the land of OZ
as good an answer as any
Back to top
View user's profile Send private message
EdisonRex
Site Admin


Joined: Mar 07, 2007
Posts: 4529
Location: London, UK
Audio files: 169

PostPosted: Sat Apr 21, 2012 4:55 pm    Post subject: Reply with quote  Mark this post and the followings unread

Rebuilt my Frac case today. It turned out to be a major undertaking. Basically all it was originally was two pieces of plywood holding the racks together. I added a top and bottom, swapped the racks around and installed a multiple in the edge of one, repopulated the modules into it with the aid of a thread tap tool (some of those holes were shot), recabled everything, balancing the power supplies (I hope) and then put a piece of plexiglas on the back to keep the dust out.


 Description:
Pretty top, black trim, racks are almost unbent.
 Filesize:  1.74 MB
 Viewed:  58 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
Repopulated frac racks. Much more structurally sound.
 Filesize:  1.91 MB
 Viewed:  77 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
Plexiglas to keep the dust out. I'll cover the power supplies eventually.
 Filesize:  2.37 MB
 Viewed:  63 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
Garret: It's so retro.
EGM: What does retro mean to you?
Parker: Like, old and outdated.


Home,My Studio,and another view
Back to top
View user's profile Send private message Visit poster's website
Blue Hell
Site Admin


Joined: Apr 03, 2004
Posts: 20703
Location: The Netherlands, Enschede
Audio files: 156
G2 patch files: 318

PostPosted: Sat Apr 21, 2012 5:05 pm    Post subject: Reply with quote  Mark this post and the followings unread

good job Paul, looks .. inviting Smile
_________________
Jan
Back to top
View user's profile Send private message Visit poster's website
RingMad



Joined: Jan 15, 2011
Posts: 239
Location: Montreal, Canada
Audio files: 2

PostPosted: Sun Apr 22, 2012 7:33 am    Post subject: Reply with quote  Mark this post and the followings unread

I feel a little shy posting in this thread after seeing so many beautiful, professional-looking panels and stuff. Perhaps I'm out of place here because my builds are less polished, and are standalone sound boxes instead of racks and panels and modules. I dunno, they have a certain style that is me, I guess...

More details about the boxes here: electronic sound boxes.


 Description:
The Triowaverator - triple sine/triangle wave drone box.
 Filesize:  283.28 KB
 Viewed:  59 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:

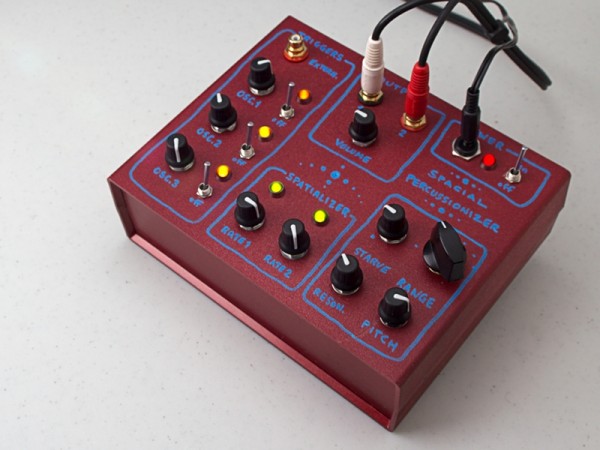

The Spacial Percussionizer - CMOS "percussion"-like noises with 4 "position" spatializer, based on circuits by Inventor.
 Filesize:  275.87 KB
 Viewed:  60 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message Visit poster's website
loydb



Joined: Feb 04, 2010
Posts: 369
Location: Providence, RI

PostPosted: Sun Apr 22, 2012 8:42 am    Post subject: Reply with quote  Mark this post and the followings unread

Diablo: Thanks!

RingMad - I really like those. I think ghetto DIY stompboxes are beautiful!

_________________
MFOS Ultimate Expand-o-tron Build Log: http://www.electro-music.com/forum/post-308797.html#308797
MFOS Mini-Controller Build Log [FINISHED!]: http://www.electro-music.com/forum/topic-42968.html
Back to top
View user's profile Send private message
frijitz



Joined: May 04, 2007
Posts: 1712
Location: NM USA
Audio files: 54

PostPosted: Sun Apr 22, 2012 10:29 am    Post subject: Reply with quote  Mark this post and the followings unread

RingMad wrote:
I feel a little shy posting in this thread after seeing so many beautiful, professional-looking panels and stuff. Perhaps I'm out of place here because my builds are less polished, and are standalone sound boxes ...

Looks fine to me. I have lots of standalone boxes that look just about like that. Build up a big supply of them, then you can hook up just the ones you need at any one time.

Ian
Back to top
View user's profile Send private message
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 5978
Location: San Antonio, Tx, USA
Audio files: 258

PostPosted: Sun Apr 22, 2012 3:48 pm    Post subject: Reply with quote  Mark this post and the followings unread

You're one up on me, RingMad. I'm just learning to use cases at all!

Les

_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
elmegil



Joined: Mar 20, 2012
Posts: 1524
Location: Chicago
Audio files: 14

PostPosted: Mon Apr 23, 2012 5:45 am    Post subject: Building Tools... Reply with quote  Mark this post and the followings unread

I'm just getting started, so I'm building tools before I do more "actual" building...This one is Ian Fritz's transistor matching circuits, combined with a big honking switch Smile ... using a pair of 9V batteries to make the box simple.


 Description:
 Filesize:  112.21 KB
 Viewed:  59 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  131.44 KB
 Viewed:  68 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
fonik



Joined: Jun 07, 2006
Posts: 3760
Location: Germany
Audio files: 23

PostPosted: Mon Apr 23, 2012 5:53 am    Post subject: Reply with quote  Mark this post and the followings unread

simple is beatiful!
(reminds me of 70ies gear: heavy gauge wires flying around)

_________________
Posted Image, might have been reduced in size. Click Image to view fullscreen.
cheers,
matthias
____________
fonitronik at
FlickR (pix) / SoundCloud (sounds) / YouTube (vids) / Vimeo (vids) / facebook (news)
Back to top
View user's profile Send private message Send e-mail Visit poster's website
elmegil



Joined: Mar 20, 2012
Posts: 1524
Location: Chicago
Audio files: 14

PostPosted: Mon Apr 23, 2012 6:08 am    Post subject: Reply with quote  Mark this post and the followings unread

Ha! Smile I think my pictures distort the view, that's only 22gauge...

Thank you for the kind words Smile
Back to top
View user's profile Send private message
emdot_ambient



Joined: Nov 22, 2009
Posts: 669
Location: Frederick, MD

PostPosted: Mon Apr 23, 2012 7:14 am    Post subject: Re: Building Tools... Reply with quote  Mark this post and the followings unread

elmegil wrote:
This one is Ian Fritz's transistor matching circuits...

thumb up Gotta build me one of those! Printed out the symple schematics but haven't put it together yet.

_________________
Looking for a certain ratio since 1978
Back to top
View user's profile Send private message Visit poster's website
RingMad



Joined: Jan 15, 2011
Posts: 239
Location: Montreal, Canada
Audio files: 2

PostPosted: Tue Apr 24, 2012 3:31 pm    Post subject: Reply with quote  Mark this post and the followings unread

Thanks to those who liked my boxes. I don't have any new ones coming soon, so I will try to make some progress on my Lunetta CMOS suitcase-synth thing. Unless I get distracted by someone's cool circuit, like I was for the last 3 boxes!
Back to top
View user's profile Send private message Visit poster's website
elmegil



Joined: Mar 20, 2012
Posts: 1524
Location: Chicago
Audio files: 14

PostPosted: Tue Apr 24, 2012 9:44 pm    Post subject: MFOS Precision Oscillator Calibrator Reply with quote  Mark this post and the followings unread

Modded fairly heavily... added a manual reset switch and a clock LED, changed a cap in the rate circuit so I could go slower, used a different counter...added a pin header output in addition to the 1/4" jack. Using a +/- 15V supply and a different zener (didn't have any 9.1's handy).

On the breadboard it adjusted perfectly, but soldered up on protoboard for some reason I can't get the second op amp position to null all the way to zero. With one amp it went to 4.8mV and swapping them it went to 2.2mV. But both of them nulled to zero in the first position.

Learned a lot about case drilling/mounting pin headers doing this. I need to get a bunch more 1/4" #4 bolts Smile


 Description:
 Filesize:  123.76 KB
 Viewed:  60 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  73.92 KB
 Viewed:  57 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  66.86 KB
 Viewed:  61 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  67.44 KB
 Viewed:  54 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
Lysol



Joined: Mar 06, 2012
Posts: 8
Location: PA

PostPosted: Thu Apr 26, 2012 5:50 pm    Post subject: Reply with quote  Mark this post and the followings unread

RingMad wrote:
I feel a little shy posting in this thread after seeing so many beautiful, professional-looking panels and stuff. Perhaps I'm out of place here because my builds are less polished, and are standalone sound boxes instead of racks and panels and modules. I dunno, they have a certain style that is me, I guess...

More details about the boxes here: electronic sound boxes.


dude no need to be shy! i think they look and sound great! i actually spent some time the other day on yours and draal's soundclouds. real neat stuff.
Back to top
View user's profile Send private message
crashlander42



Joined: Oct 21, 2006
Posts: 292
Location: Orlando, FL (US)

PostPosted: Sat Apr 28, 2012 9:55 am    Post subject: Reply with quote  Mark this post and the followings unread

I've actually had a productive couple of months, so far -

- Made Panels for my SN Voice and Super Controller and fixed the numerous problems they had.
- 2 TH VCA- 1's and 2 Yusynth VCA's
- 2 4 input mixers
- MFOS Wave Freaker
- x0xbox!! I've wanted one of these forever. Can't wait to start the modding.
- 4046 VCO


 Description:
MFOS Wave Freaker
 Filesize:  2.83 MB
 Viewed:  59 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
SN Super Controller is finally fully working and has a panel
 Filesize:  1.35 MB
 Viewed:  61 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
SNVoice Finally works right and has a panel.
 Filesize:  1.27 MB
 Viewed:  61 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
Dual 4 input mixer (based on the Yusynth schematic)
 Filesize:  1.8 MB
 Viewed:  53 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
2 TH VCA-1's and 2 Yusynth VCA's
 Filesize:  3.52 MB
 Viewed:  61 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
When they plug me in the lights go down in Hong Kong.

http://www.myspace.com/isaciongun
http://www.youtube.com/user/Crashlander42
My DIY stuff Flickr
Back to top
View user's profile Send private message
crashlander42



Joined: Oct 21, 2006
Posts: 292
Location: Orlando, FL (US)

PostPosted: Sat Apr 28, 2012 9:59 am    Post subject: Reply with quote  Mark this post and the followings unread

It's actually starting to look like a modular. Starting to get that second cabinet filled.


 Description:
x0xb0x!
 Filesize:  3.01 MB
 Viewed:  65 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
Modular 2012
 Filesize:  3.09 MB
 Viewed:  65 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  1.45 MB
 Viewed:  68 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
When they plug me in the lights go down in Hong Kong.

http://www.myspace.com/isaciongun
http://www.youtube.com/user/Crashlander42
My DIY stuff Flickr
Back to top
View user's profile Send private message
EdisonRex
Site Admin


Joined: Mar 07, 2007
Posts: 4529
Location: London, UK
Audio files: 169

PostPosted: Sat Apr 28, 2012 11:27 am    Post subject: Reply with quote  Mark this post and the followings unread

crashlander42 - Nice panels! I was wondering how to fit the SN-stuff into smaller formats. Nicely done. Great graphics too. Smile

and ringmad - those boxes look great. You shouldn't be shy!

_________________
Garret: It's so retro.
EGM: What does retro mean to you?
Parker: Like, old and outdated.


Home,My Studio,and another view
Back to top
View user's profile Send private message Visit poster's website
mosc
Site Admin


Joined: Jan 31, 2003
Posts: 17620
Location: Allentown, PA
Audio files: 125
G2 patch files: 60

PostPosted: Mon Apr 30, 2012 10:41 am    Post subject: Reply with quote  Mark this post and the followings unread

wow! such great stuff. Looks fantastic.

props wave props

_________________
--Howard
my music and other stuff
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address
ericcoleridge



Joined: Jan 16, 2007
Posts: 885
Location: NYC

PostPosted: Tue May 01, 2012 9:30 am    Post subject: Reply with quote  Mark this post and the followings unread

Do you have a link to the Quantizer infor? It looks like it has a lot channels?

inlifeindeath wrote:
While not a finished module yet, I had to post an initial video of the circuit.
It's my first Arduino project and is a CV Quantizer
Get this Mosc, it worked first try done on perfboard AND it was translated from a Japanese blog! http://gtbts.tumblr.com/post/7353518380/section2-quantizer

I am also just about finished with the ENS-76 VCO option 3, but i'm working with Bernie to figure out why the envelope isn't working. Has anyone built the option 3 before?
Back to top
View user's profile Send private message
Display posts from previous:
Post new topic   Reply to topic Moderators: jksuperstar, Scott Stites, Uncle Krunkus
Page 5 of 16 [383 Posts]
View unread posts
View new posts in the last week
Goto page: Previous 1, 2, 3, 4, 5, 6, 7, ..., 14, 15, 16 Next
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
e-m mkii

Please support our site. If you click through and buy from
our affiliate partners, we earn a small commission.


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
