PostPosted: Mon Apr 20, 2015 5:12 am    Post subject: wireLes Breadboards
Subject description: breadboards without the wires, 3D printed in any shape
Reply with quote  Mark this post and the followings unread

This morning I was imagining what I could do chip-wise for my electro-music friends and I came up with an interesting idea - wireLes breadboards! These are breadboards 3D printed with no wires. So how do they work?

The holes that the chip's legs go into are intentionally designed to have enough room for a chip lead AND a wire! this is very low cost because it eliminates connecting mechanisms altogether. It is also solderable if you are careful enough not to melt the plastic (or even if you do a little bit).

Aha! you say - but what about multiple wires on a single pin? I'm thinking of a post or additional hole system for that, give me a little time, I just thunk this up a minute ago! In the mean time check out the images and let me know what you think!

Les

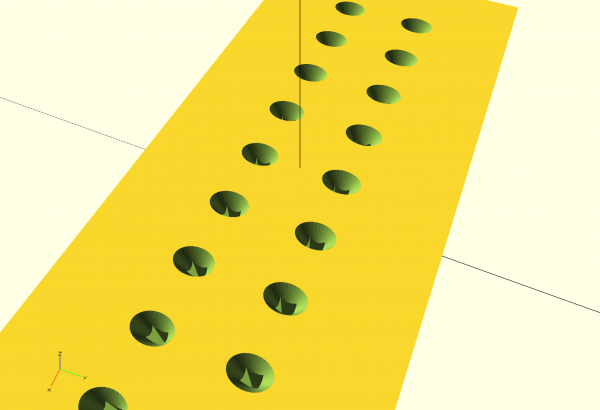

wireLes breadboard top.png
 Description:
top view of wireLes breadboard
 Filesize:  57.54 KB
 Viewed:  263 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

wireLes breadboard top.png



wireLes breadboard inside.png
 Description:
inside view of wireLes breadboard
 Filesize:  42.85 KB
 Viewed:  230 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

wireLes breadboard inside.png


Back to top
View user's profile Send private message
CreatorLes



Joined: Oct 05, 2014
Posts: 84
Location: San Antonio TX USA

PostPosted: Mon Apr 20, 2015 6:49 am    Post subject: Reply with quote  Mark this post and the followings unread

Here is an example chip with two wires inserted - nice!

Les


wireLes chip with wires.JPG
 Description:
example chip with wires
 Filesize:  1.44 MB
 Viewed:  239 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

wireLes chip with wires.JPG


Back to top
View user's profile Send private message
mosc
Site Admin


Joined: Jan 31, 2003
Posts: 17907
Location: Allentown, PA
Audio files: 148
G2 patch files: 60

PostPosted: Mon Apr 20, 2015 10:40 am    Post subject: Reply with quote  Mark this post and the followings unread

I'm wondering, is it possible to print metal with these printers?
_________________
--Howard
my music and other stuff
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address
CreatorLes



Joined: Oct 05, 2014
Posts: 84
Location: San Antonio TX USA

PostPosted: Mon Apr 20, 2015 11:19 am    Post subject: Reply with quote  Mark this post and the followings unread

I have two ways to print conductors, but they are very limited. Metal can be printed as a powder that is a small portion of the printing filament. You can then use sandpaper and other abrasives on the printed object to expose the metal and treat it somehow.

I bought some "Tinnit" which is a tinning solution that you buy as two powders. You mix the two powders in warm water and drop a circuit board into it and it "tins" the surface of the copper for you. Well, it tins 10 microns in size so I did a calculation once and reasoned that if I were to get some filament with copper in it, print s circuit board, sand it, then use the Tinnit, it might make a conductor. The result would be fragile so you could solder it to make it more sturdy. That's one possibility that I have-not tried.

Another is to print with carbon fiber PLA. Just like you can get filament with metal powder in it, you can get filament with Carbon fiber chopped up and put into the filament. SOME brands of carbon fiber filament are conductive with a conductivity around 1200 Ohms per centimeter squared. This is a huge conductivity so think 100's ok K and Megs with this stuff. It is probably suitable for CMOS and therefore Lunettas, so I'd like to experiment with it.

Just let me know if you have any ideas along these lines, I'll be happy to print test structures and whatnot for you free of charge (well, plus shipping if you want them mailed to you).

Les
