Cfish



Joined: Feb 24, 2016
Posts: 451
Location: Indiana

PostPosted: Thu Dec 01, 2016 3:23 pm    Post subject: Reply with quote  Mark this post and the followings unread

prgdeltablues wrote:
My tip:


I've got into the habit of measuring the resistance between V+, ground and V- before I install any ICs, and checking the result against the schematic.





Just caught a dead short on a factory strip board today, that I failed to spot on a thorough pre build inspection. Lost a pretty new power supply over not doing this a couple of years ago. Is a good habit.

I also power the board with ICs out and do a final voltage check, saved powering pin 7 on a TL072 more than once with this step. And if that piece of steel wool is there, it shows up with the magic smoke in the ICs where it belongs.
Back to top
View user's profile Send private message
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 6171
Location: San Antonio, Tx, USA
Audio files: 267

PostPosted: Thu Dec 01, 2016 3:34 pm    Post subject: Reply with quote  Mark this post and the followings unread

Here is my "Neat Freak Technique" video, me at 2x speed sounding like a very informative chipmunk:

https://youtu.be/wLqEPZiYrj0

Les

_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
Cfish



Joined: Feb 24, 2016
Posts: 451
Location: Indiana

PostPosted: Sun Dec 04, 2016 7:23 pm    Post subject: Reply with quote  Mark this post and the followings unread

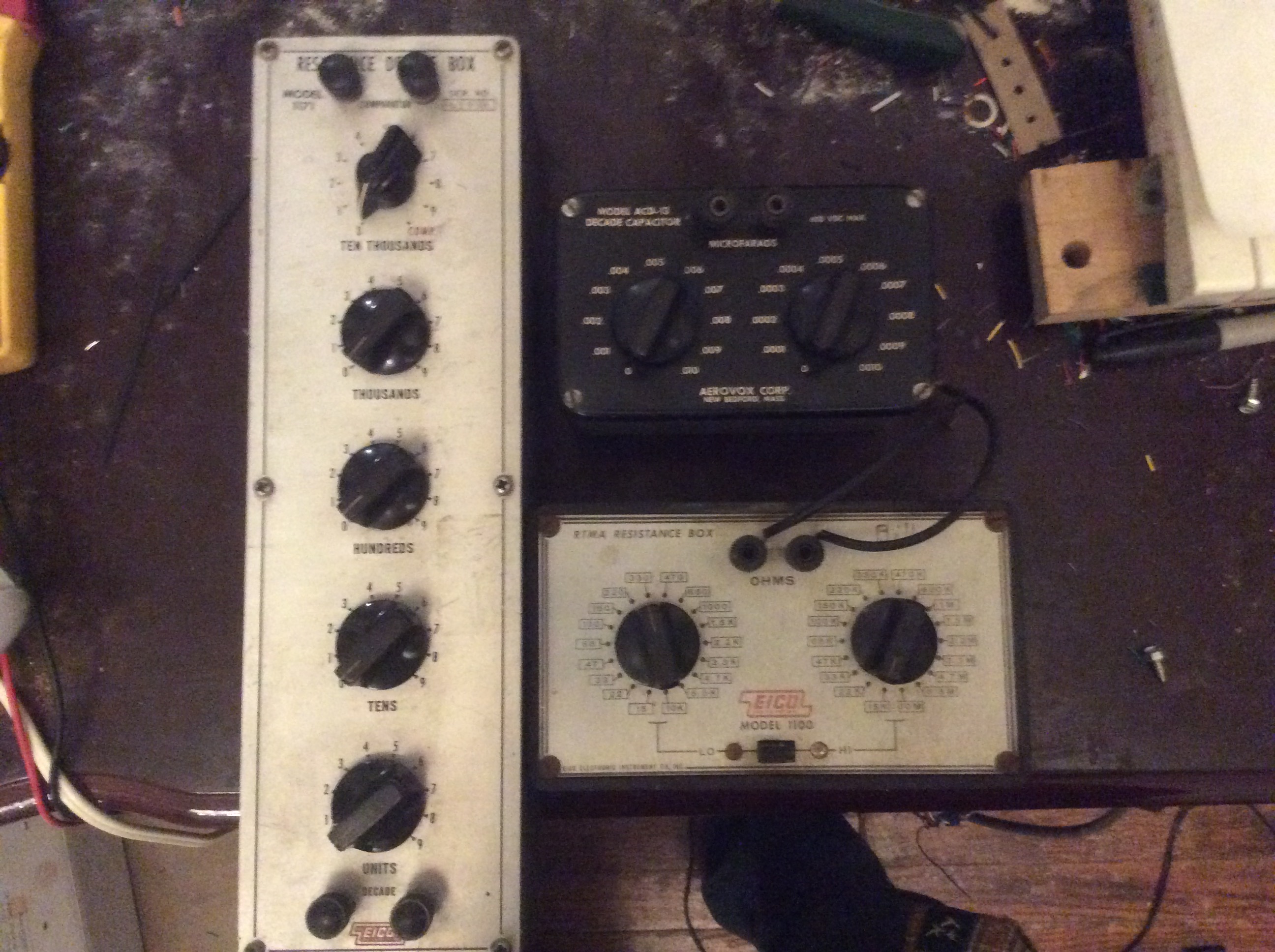

When I'm building a fixed filter for a cigar box organ.

Deciding exact resistor values for a voltage divider.

Setting exact gain on an opamp, to offset level lost in an affect.

I find having a couple of decade resistor boxes and a decade capicitor box to be big time savers.

I know they are pretty old school. But these cheap old yard sale buys get a lot of use in my projects.


 Description:
 Filesize:  953.51 KB
 Viewed:  168 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
g.gabba



Joined: Nov 29, 2008
Posts: 349
Location: berlin
Audio files: 19

PostPosted: Wed Dec 28, 2016 11:57 am    Post subject: Reply with quote  Mark this post and the followings unread

Love this Thread!

Thanks PHOBoS for reminding me on sprint layout!
After all this years i have the feeling the software is doing what I want, not the other way round Smile

cheers
bb
Back to top
View user's profile Send private message
alanwilder81



Joined: Sep 03, 2016
Posts: 325
Location: italy

PostPosted: Wed Dec 28, 2016 4:41 pm    Post subject: Reply with quote  Mark this post and the followings unread

hello chaps,

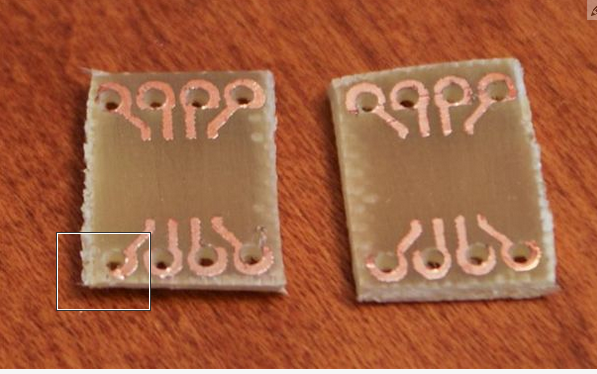

i bought some CA 3046 's in SOIC format.Very, very small. The SOIC to DIP adapters cost a fortune,so i've been thinking of making my own mini pcb's to solder the micro chips onto, just like is depicted in picture.
has any of you done that ,or ,come up with different or better ideas ?
cheers all Smile


 Description:
 Filesize:  516.72 KB
 Viewed:  8488 Time(s)



Back to top
View user's profile Send private message
Grumble



Joined: Nov 23, 2015
Posts: 721
Location: Netherlands
Audio files: 21

PostPosted: Wed Dec 28, 2016 4:49 pm    Post subject: Reply with quote  Mark this post and the followings unread

yes, for 1$25 you buy 20 pcs double sided HERE and the transport is free.

Ok, its not full diy.... :roll

But it works great Very Happy


 Description:
 Filesize:  1.38 MB
 Viewed:  137 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message Visit poster's website
alanwilder81



Joined: Sep 03, 2016
Posts: 325
Location: italy

PostPosted: Wed Dec 28, 2016 5:19 pm    Post subject: Reply with quote  Mark this post and the followings unread

thanks Grumble ! Smile

holy crap ! that's sooo cheap compared to the rip offs i've seen around the net. Up to 8 euros each in some cases Shocked Shocked
will make sure i buy some of them, it looks like Holland is the place to go for good bargains Rolling Eyes Rolling Eyes
Back to top
View user's profile Send private message
Grumble



Joined: Nov 23, 2015
Posts: 721
Location: Netherlands
Audio files: 21

PostPosted: Thu Dec 29, 2016 1:05 am    Post subject: Reply with quote  Mark this post and the followings unread

alanwilder81 wrote:
it looks like Holland is the place to go for good bargains Rolling Eyes Rolling Eyes

China Rolling Eyes Laughing
Back to top
View user's profile Send private message Visit poster's website
AlanP



Joined: Mar 11, 2014
Posts: 490
Location: New Zealand
Audio files: 30

PostPosted: Thu Dec 29, 2016 1:40 am    Post subject: Reply with quote  Mark this post and the followings unread

Couple tools that are not obviously useful --

Tweezers. Very useful for fine manipulation, easier in the hand than needle nose pliers (it's not like we're working with 240VAC gauge wire, usually.) The cheapo kind normally used for eyebrows is what I have, works a treat.

Stainless steel dental pick. Solder does not stick to this material. Use either desoldering braid or a solder sucker to remove as much molten solder as you can from a plated through hole on a PCB, and if there's a remaining bit you cannot get rid of, heat the solder up, poke the dental pick through, and let the solder cool while holding the pick through the hole, as deep as possible. If you buy the same (cheap) resistors and caps I do, you'll find that there is enough room to jam the replacement part through. It's also useful for shoving parts of component leg out of a plated through hole. Small Bear carry these, in their Tools section. It's more a niche-ly-useful tool.

8mm and 10mm ring wrenches. The 10mm fits Alpha pots (9mm and 16mm pots both), and the 8mm fits 3.5mm jacks of all kinds (except knurled and those weird ring slot ones), and also toggle switches.

Spare aluminium enclosure, or other heavy metal paperweight. This is a very non-obvious usage.
Take your enclosure. Stick a big blob of blu tack on. (You did get a packet of this after I recommended it in the first page, right?)
Take your surface mount PCB. Jam it onto the blu tack, HARD. The board is now stable to solder onto, and you can turn it around for better angles (can't do that with a vice, easily!)

Stanley knife (not a boxcutter, of the snap-off blade type, but a proper Stanley knife.) Partly to open up boxes, but also partly for when you're debugging boards that you stuffed up good and proper at the PCB design stage, and need to cut traces, but don't want to ruin the edge on your current Exacto blade.
Back to top
View user's profile Send private message
alanwilder81



Joined: Sep 03, 2016
Posts: 325
Location: italy

PostPosted: Thu Dec 29, 2016 3:26 am    Post subject: Reply with quote  Mark this post and the followings unread

hey Ed,

i thought the shop was Dutch,as i took a look at its website and i recognized some dutch words. Damn china Cool Cool
anyway its a to go place for cheap products to buy in bulk Rolling Eyes Rolling Eyes

how do you go about soldering those tiny smd chips by the way ? Smile Smile
Back to top
View user's profile Send private message
alanwilder81



Joined: Sep 03, 2016
Posts: 325
Location: italy

PostPosted: Thu Dec 29, 2016 3:38 am    Post subject: Reply with quote  Mark this post and the followings unread

thanks alanp ! Smile
very useful tips ! this thread is getting very interesting.
i expect more and more people to come here and share their knowledge as well as making the most of what is being documented.

How i would have coped with synth DIY without internet is beyond me.

Besides the obvious,say all of the golden schematics we find at a click, what's really unvaluable is the almost real time advices, answers and tips from expert chaps that willingly enlighten poorly trained boys like me.

let's guys keep this fantastic work up Cool Cool
Back to top
View user's profile Send private message
Grumble



Joined: Nov 23, 2015
Posts: 721
Location: Netherlands
Audio files: 21

PostPosted: Thu Dec 29, 2016 5:38 am    Post subject: Reply with quote  Mark this post and the followings unread

alanwilder81 wrote:


how do you go about soldering those tiny smd chips by the way ? Smile Smile

My daytime job is at a biomedical enginering division at a university and they had some surplus microscopes, which happens to be a stereo microscope with a large focal distance that proved to be a great help when soldering components this small.
Especialy the age I find myself in Cool
Back to top
View user's profile Send private message Visit poster's website
alanwilder81



Joined: Sep 03, 2016
Posts: 325
Location: italy

PostPosted: Thu Dec 29, 2016 8:40 am    Post subject: Reply with quote  Mark this post and the followings unread

Ed you are so lucky Smile
Back to top
View user's profile Send private message
alanwilder81



Joined: Sep 03, 2016
Posts: 325
Location: italy

PostPosted: Thu Dec 29, 2016 8:43 am    Post subject: Reply with quote  Mark this post and the followings unread

i will have to get by with some magnifying lens Smile
Back to top
View user's profile Send private message
Cfish



Joined: Feb 24, 2016
Posts: 451
Location: Indiana

PostPosted: Thu Dec 29, 2016 5:19 pm    Post subject: Reply with quote  Mark this post and the followings unread

I had seen this tip a long time ago on YouTube, and have only recently tried my hand at etching circuit boards and realized how useful the tip really is.

You can use a sharpie to touch up imperfections in a toner transfer before you etch the board.

In the last board I etched I didn't get a good transfer and was impressed how well it worked.

Last edited by Cfish on Thu Dec 29, 2016 5:46 pm; edited 1 time in total
Back to top
View user's profile Send private message
alanwilder81



Joined: Sep 03, 2016
Posts: 325
Location: italy

PostPosted: Thu Dec 29, 2016 5:43 pm    Post subject: Reply with quote  Mark this post and the followings unread

to Chris,
which you tube tips are you referring to? The small smd to DIP adapter?
Back to top
View user's profile Send private message
Grumble



Joined: Nov 23, 2015
Posts: 721
Location: Netherlands
Audio files: 21

PostPosted: Sat Jan 07, 2017 5:01 am    Post subject: Reply with quote  Mark this post and the followings unread

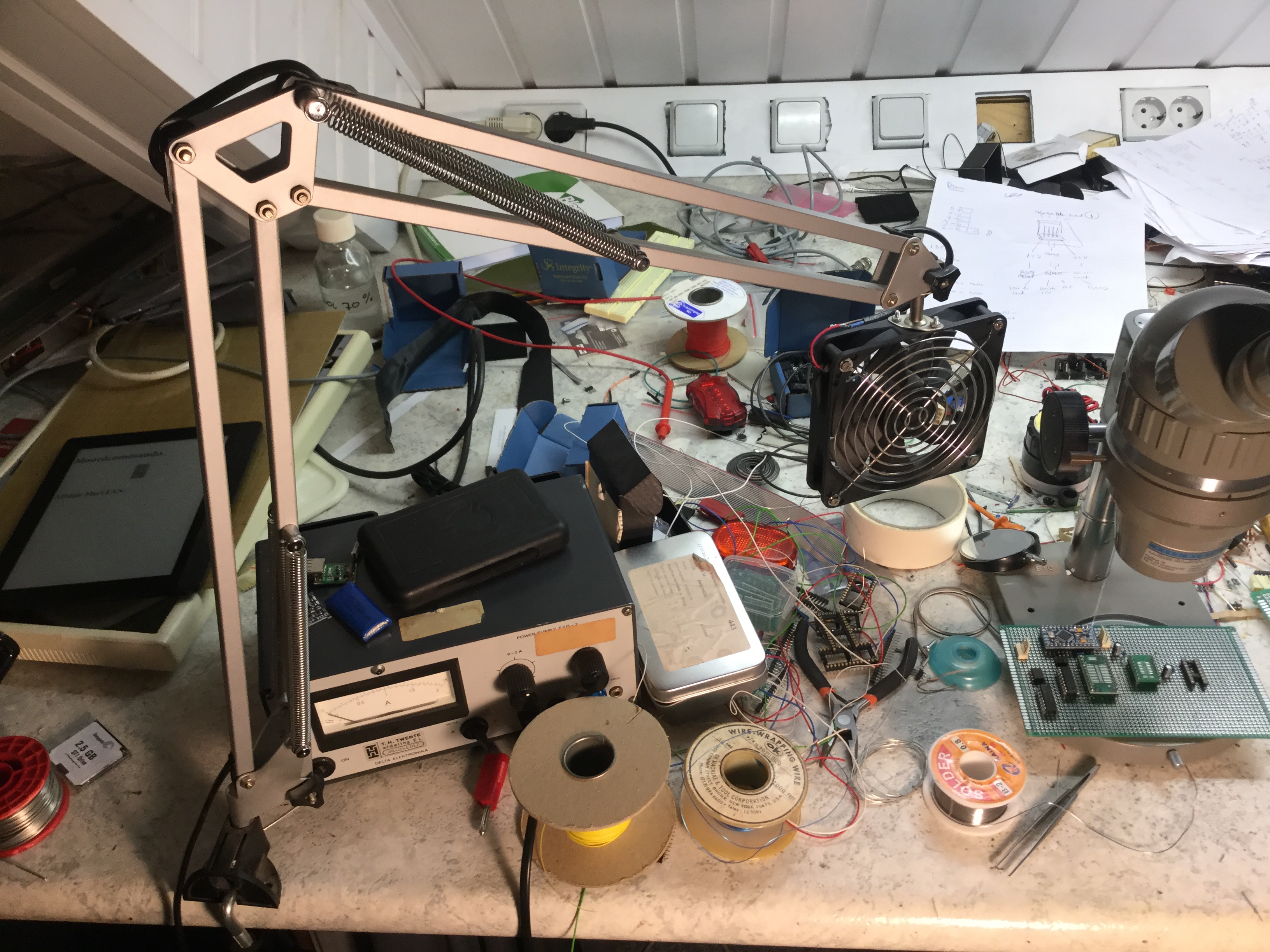

Ever noticed when soldering that the smoke always gets in your eyes, mouth, lungs?
That is because your body is warm, so the air around your body heats up and starts to move up.
I have a sort of solution for it: I just fixed an old pc fan to an old desk lamp and powered it with about 7 volts, and that is just about enough to suck the air (smoke) away from my work and disperce it.
One improvement could be to add a carbon filter, but this works for me.


 Description:
 Filesize:  2.3 MB
 Viewed:  144 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message Visit poster's website
PHOBoS



Joined: Jan 14, 2010
Posts: 3948
Location: Moon Base
Audio files: 584

PostPosted: Sat Jan 07, 2017 7:13 am    Post subject: Reply with quote  Mark this post and the followings unread

GMTA ? Laughing

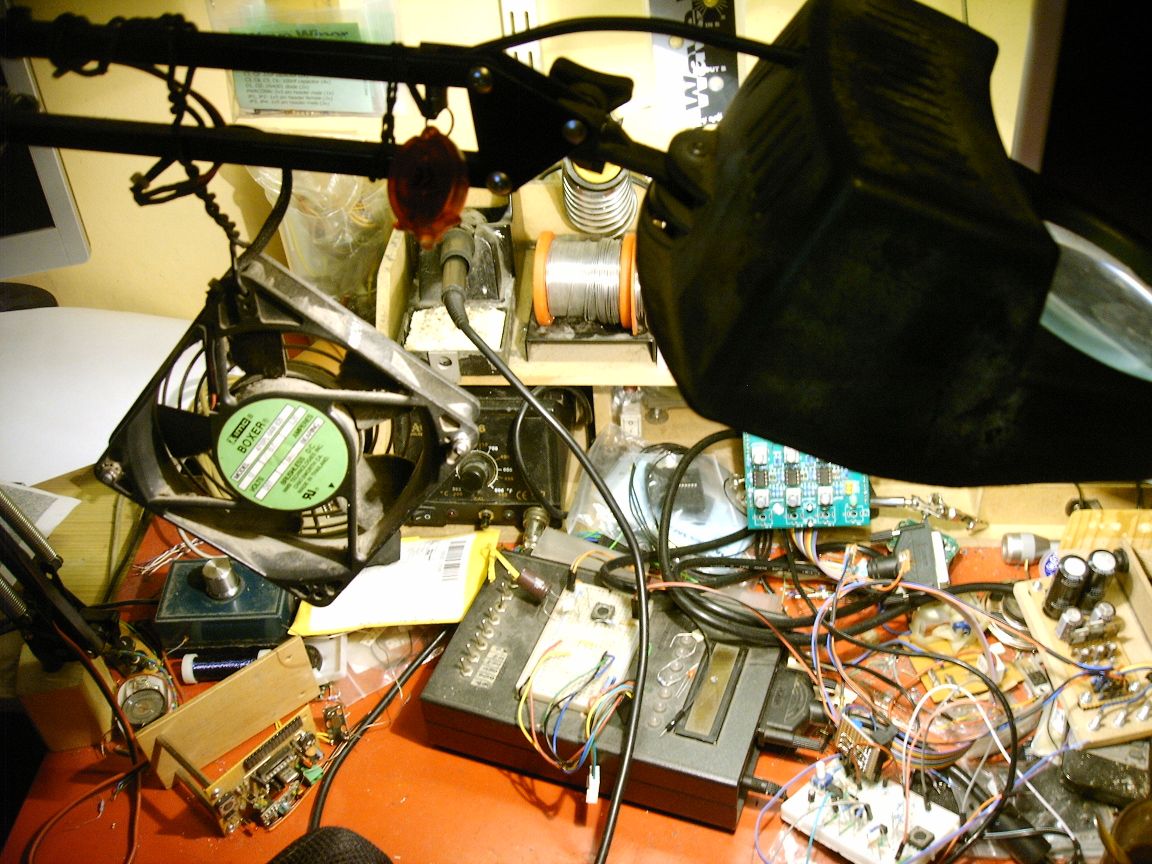

 Description:
 Filesize:  192.75 KB
 Viewed:  148 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
"My perf, it's full of holes!"
http://phobos.000space.com/
SoundCloud BandCamp Stickney Synthyards Captain Collider
Back to top
View user's profile Send private message Visit poster's website AIM Address Yahoo Messenger MSN Messenger
Grumble



Joined: Nov 23, 2015
Posts: 721
Location: Netherlands
Audio files: 21

PostPosted: Sat Jan 07, 2017 8:04 am    Post subject: Reply with quote  Mark this post and the followings unread

Wonder how many diy-ers have a bike backlight at their workbench cyclops
Back to top
View user's profile Send private message Visit poster's website
Grumble



Joined: Nov 23, 2015
Posts: 721
Location: Netherlands
Audio files: 21

PostPosted: Sat Jan 07, 2017 8:06 am    Post subject: Reply with quote  Mark this post and the followings unread

PHOBoS wrote:
GMTA ? Laughing

GMWA Rolling Eyes
Back to top
View user's profile Send private message Visit poster's website
Cfish



Joined: Feb 24, 2016
Posts: 451
Location: Indiana

PostPosted: Sat Jan 07, 2017 11:14 am    Post subject: Reply with quote  Mark this post and the followings unread

Ok guys, the last 2 posted pictures prompted me to open a work bench pictures thread, just for fun.

Grumble and PhoBos, you have again inspired me Very Happy
Back to top
View user's profile Send private message
alanwilder81



Joined: Sep 03, 2016
Posts: 325
Location: italy

PostPosted: Sat Jan 07, 2017 1:32 pm    Post subject: Reply with quote  Mark this post and the followings unread

it looks like this thread has turned into a work bench pics contest. Who's winning what? Smile
Back to top
View user's profile Send private message
alanwilder81



Joined: Sep 03, 2016
Posts: 325
Location: italy

PostPosted: Sat Jan 21, 2017 3:35 pm    Post subject: Reply with quote  Mark this post and the followings unread

hello chaps

what ìs your favorite solder iron wattage ? 15 W or 30 W for PCB components soldering?
i am a beginner ,so i would feel better and on a safe side by using a 15 W iron. any thoughts? Smile
Back to top
View user's profile Send private message
Blue Hell
Site Admin


Joined: Apr 03, 2004
Posts: 22503
Location: The Netherlands, Enschede
Audio files: 219
G2 patch files: 319

PostPosted: Sat Jan 21, 2017 3:47 pm    Post subject: Reply with quote  Mark this post and the followings unread

It is best to have a temperature regulated soldering iron.

When that is not an option I'd go for 30 or 45 Watt or so.

15 Watt would only be useful for really small work.

A common mistake for people starting on soldering is to use not enough power or a temperature set too low.

This may seem like a contradiction, as it seems safer to work on a low temperature. But ... on low temperatures it takes longer to make a good solder connection and this will do more damage than soldering quickly with a properly set temperature.

_________________
Jan
Back to top
View user's profile Send private message Visit poster's website
wackelpeter



Joined: May 05, 2013
Posts: 418
Location: germany
Audio files: 10

PostPosted: Sat Jan 21, 2017 4:51 pm    Post subject: Reply with quote  Mark this post and the followings unread

second what Jan wrote above...

I'm using only a small and really cheap no Name soldering Station, but i can regulate the temperature. Cost me only 20 Euro or so... Nothing fancy and they only last 2-4 years but they'll do the Job for me...

_________________
https://soundcloud.com/bastian-j
Back to top
View user's profile Send private message
Display posts from previous:
Post new topic   Reply to topic Moderators: jksuperstar, Scott Stites, Uncle Krunkus
Page 2 of 4 [87 Posts]
View unread posts
View new posts in the last week
Goto page: Previous 1, 2, 3, 4 Next
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
e-m mkii

Please support our site. If you click through and buy from
our affiliate partners, we earn a small commission.


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
