292 lopass clone schematic
Post new topic   Reply to topic
Page 1 of 1 [2 Posts]		 View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Author Message
fredw



Joined: Jul 08, 2007
Posts: 10
Location: Berkeley, CA
PostPosted: Mon Mar 05, 2018 8:23 am    Post subject: 292 lopass clone schematic
Subject description: Looking for 292 lopass gate schematic		 Reply with quote  Mark this post and the followings unread
I purchased a 292 lopass clone circuit board from Analog Haven / electricmusicstore, got the board with a link to construction notes, board layout, and front panel layout, but I don't have a schematic. There are lots of 292 lopass gate clones and schematics floating around, but I'm looking for the one specific to this board. It says "292 REV 3.0".

Picture at https://imgur.com/a/bMiTV

Build files at https://electricmusicstore.com/blogs/build/14810493-quad-lopass-gate-model-292c

Thanks, Fred.
Back to top
View user's profile Send private message
LFLab



Joined: Dec 17, 2009
Posts: 492
Location: Rosmalen, Netherlands
PostPosted: Tue Mar 06, 2018 1:24 am    Post subject: Reply with quote  Mark this post and the followings unread

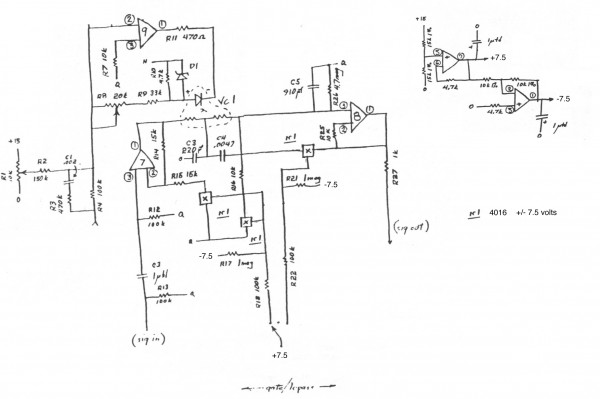

Roman does not share schematics, it seems, weird since they are all Buchla clones, but there you go.

I've attached the schematic from: http://www.simple-answer.com/DIY.html (found using wayback machine)

 Description:
 Filesize:  339.34 KB
 Viewed:  377 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.
