emiz



Joined: May 16, 2018
Posts: 20
Location: germany
Audio files: 1

PostPosted: Sat Dec 15, 2018 7:02 pm    Post subject: Sequential Switch On Stripboard Reply with quote  Mark this post and the followings unread

Its a easy and fun to use build.

Based on Doepfer A-151.

The primary input / output is alternately connected to y0 y1 y2 and y3 for each trigger pulse at the step input


 Description:

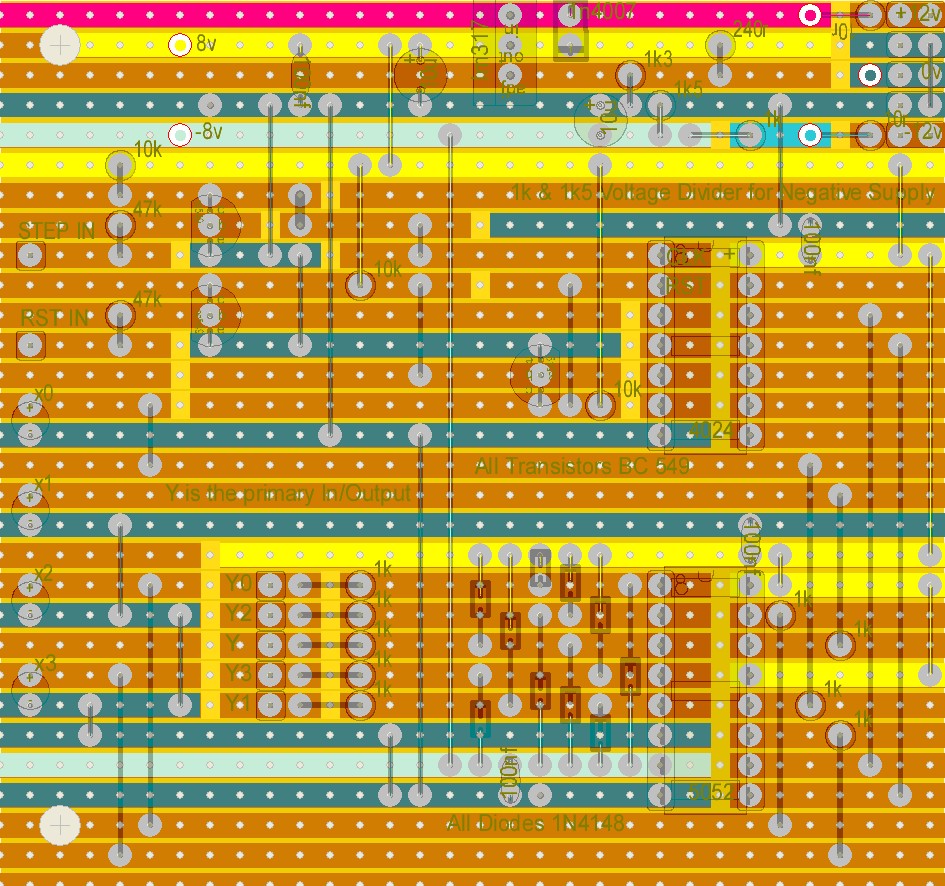

Original Schematic
 Filesize:  16.17 KB
 Viewed:  4935 Time(s)




Sequential Switch Back.jpg
 Description:

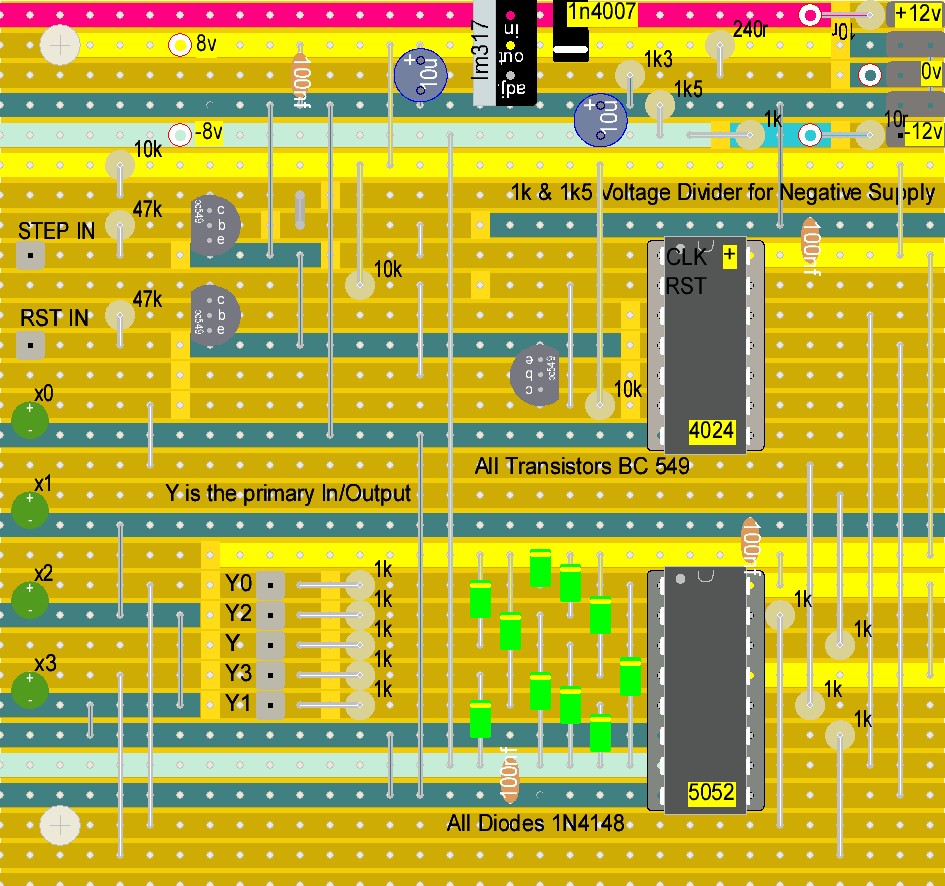

back
 Filesize:  324.05 KB
 Viewed:  330 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Sequential Switch Back.jpg



Sequential Switch Front.jpg
 Description:
front
 Filesize:  273.58 KB
 Viewed:  337 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Sequential Switch Front.jpg


Back to top
View user's profile Send private message
Peppy



Joined: Feb 10, 2021
Posts: 30
Location: heide

PostPosted: Fri Dec 15, 2023 7:02 am    Post subject:
Subject description: Danke
Reply with quote  Mark this post and the followings unread

Thanks!!!
