4x4 VCA Matrix on 5x stripboard
Post new topic   Reply to topic
Page 1 of 1 [5 Posts]
View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Author Message
artilect99



Joined: Oct 01, 2018
Posts: 36
Location: USA

PostPosted: Wed May 29, 2019 11:42 am    Post subject: 4x4 VCA Matrix on 5x stripboard Reply with quote  Mark this post and the followings unread

Feeling adventurous? Prove your stripboard manhood by building a 4x4 VCA matrix based on Nonlinear Circuits' Cluster module. 5 board stack! Shocked

Let me know if you find any errors in this layout.

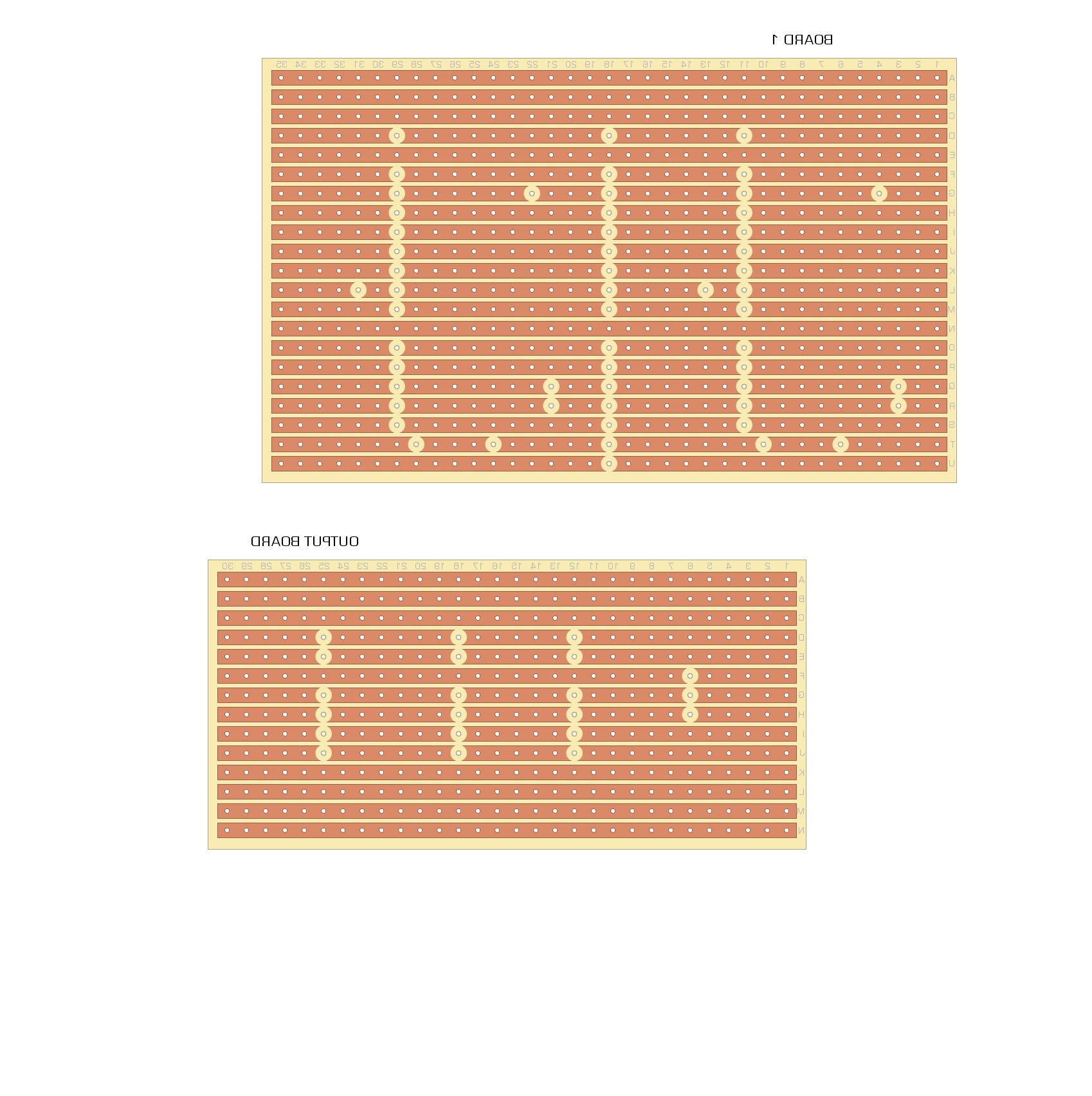

NLC Cluster THT v1 CUTS.jpg
 Description:
 Filesize:  455.57 KB
 Viewed:  164 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

NLC Cluster THT v1 CUTS.jpg

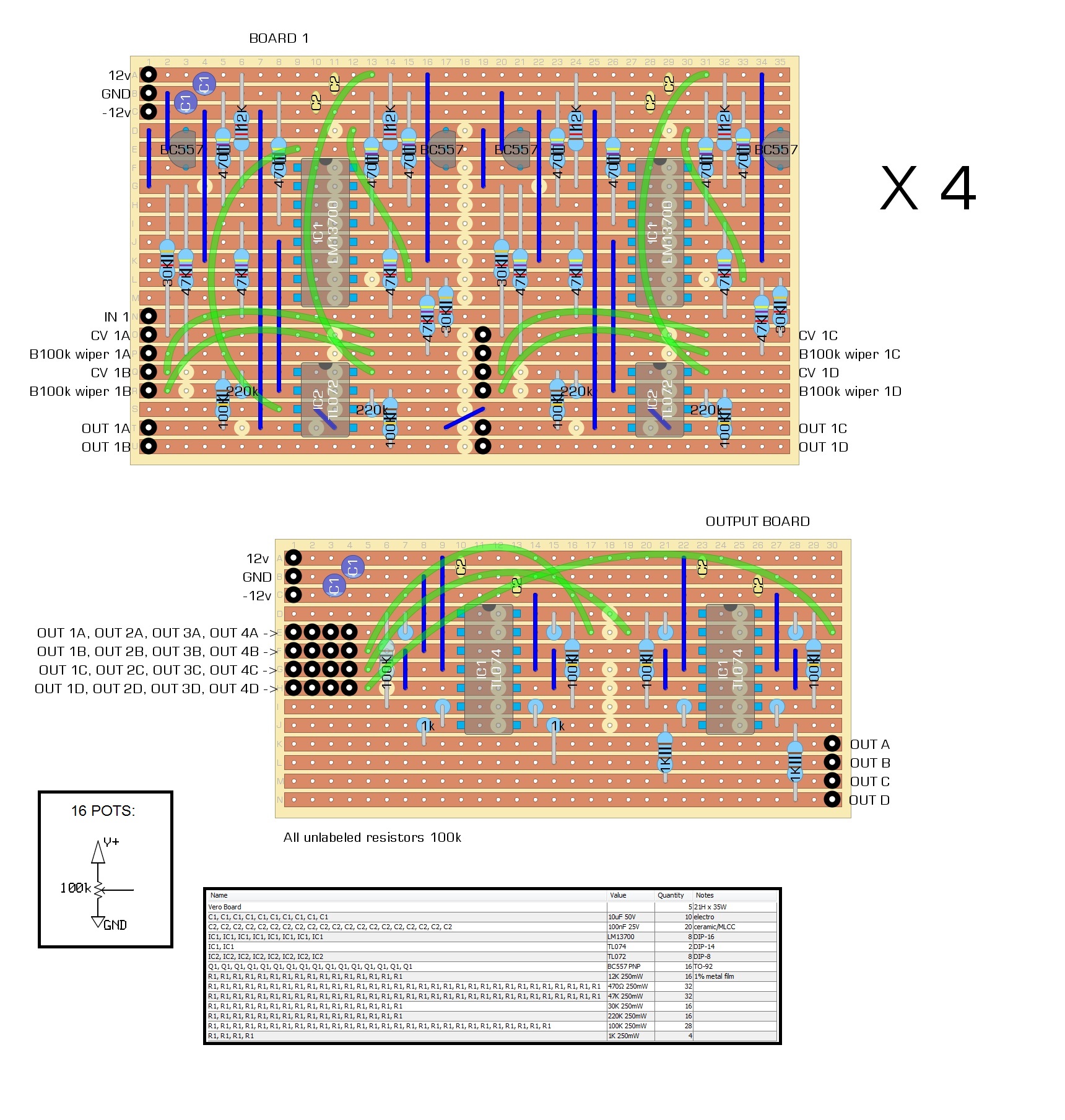

NLC Cluster THT v1.jpg
 Description:
 Filesize:  746.58 KB
 Viewed:  252 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

NLC Cluster THT v1.jpg


Back to top
View user's profile Send private message
J-chot



Joined: Jan 20, 2014
Posts: 42
Location: Decatur AL

PostPosted: Sat Oct 26, 2019 7:30 pm    Post subject: Reply with quote  Mark this post and the followings unread

uhhhh...... gotta demo video? is it worth it?


also.. 16 pots is potent amount of potentiometability.
Back to top
View user's profile Send private message Send e-mail
J-chot



Joined: Jan 20, 2014
Posts: 42
Location: Decatur AL

PostPosted: Sat Oct 26, 2019 7:31 pm    Post subject: Reply with quote  Mark this post and the followings unread

also, some schematics would be nice...can't check for errors without schematics
Back to top
View user's profile Send private message Send e-mail
artilect99



Joined: Oct 01, 2018
Posts: 36
Location: USA

PostPosted: Thu Oct 31, 2019 8:45 am    Post subject: Reply with quote  Mark this post and the followings unread

Is it worth it? Probably not. It's a lot of work and takes up a lot of space. But then again there is a lot you can do with a VCA matrix. I'd say just buy the NLC board, its going to be a lot easier. I just did this one for shits and giggles.


Original schematics and BOM[/url]
Back to top
View user's profile Send private message
gabbagabi



Joined: Nov 29, 2008
Posts: 592
Location: Berlin by n8
Audio files: 23

PostPosted: Thu Oct 31, 2019 10:02 am    Post subject: Reply with quote  Mark this post and the followings unread

+1 love for potentiometability Laughing
