 Forum index » DIY Hardware and Software » MusicFromOuterSpace.com designs by Ray Wilson
S19 Power Switch Wiring Question...
Post new topic   Reply to topic Moderators: dnny, Uncle Krunkus, v-un-v
Page 1 of 1 [3 Posts]
View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Author Message
cosmosuave



Joined: Sep 23, 2005
Posts: 6
Location: Toronto

PostPosted: Wed Sep 28, 2005 2:19 pm    Post subject: S19 Power Switch Wiring Question... Reply with quote  Mark this post and the followings unread

All right i got my SL together last night and manged to get some good sound s out of it althought there is still a bit of tinkering ahead of me...

I am confused about the connections on S19 (power switch) from the look of the wiring diagram it looks like all 6 pins are wired with 2 of them bridged together... Could someone clarify what connections go where? The way I have it wired it is always on regardless of switch position...

Also is the SL suppose to generat audio on it's own or does it require a CV and Gate to generate audio? I hooked up a Roland MC4 sequencer to the gate and OSC1 cv input and not much happened...

Anyway appreciate some input on the switch wiring....
Back to top
View user's profile Send private message Send e-mail Visit poster's website
dnny



Joined: Mar 12, 2005
Posts: 519
Location: Helsinki, Finland
Audio files: 8

PostPosted: Wed Sep 28, 2005 5:45 pm    Post subject: Reply with quote  Mark this post and the followings unread

Quote:
I am confused about the connections on S19 (power switch) from the look of the wiring diagram it looks like all 6 pins are wired with 2 of them bridged together... Could someone clarify what connections go where? The way I have it wired it is always on regardless of switch position...



Hi and welcome cosmosuave

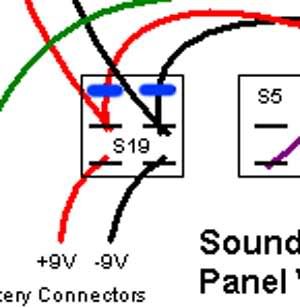

just ignore the upper pins (marked blue). use only four pins of six
Posted Image, might have been reduced in size. Click Image to view fullscreen.
and you will figure out how it is.


hope tihs helps

daniel

_________________
Association of experimental electronics
www.koelse.org
flickr: cable porn group
