2008 show and tell.
Post new topic   Reply to topic Moderators: jksuperstar, Scott Stites, Uncle Krunkus
Page 1 of 5 [107 Posts]
View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Goto page: 1, 2, 3, 4, 5 Next
Author Message
neandrewthal



Joined: May 11, 2007
Posts: 672
Location: Canada

PostPosted: Sat Dec 13, 2008 9:14 pm    Post subject:  2008 show and tell.
Subject description: Let's see what you've done this year!
Reply with quote  Mark this post and the followings unread

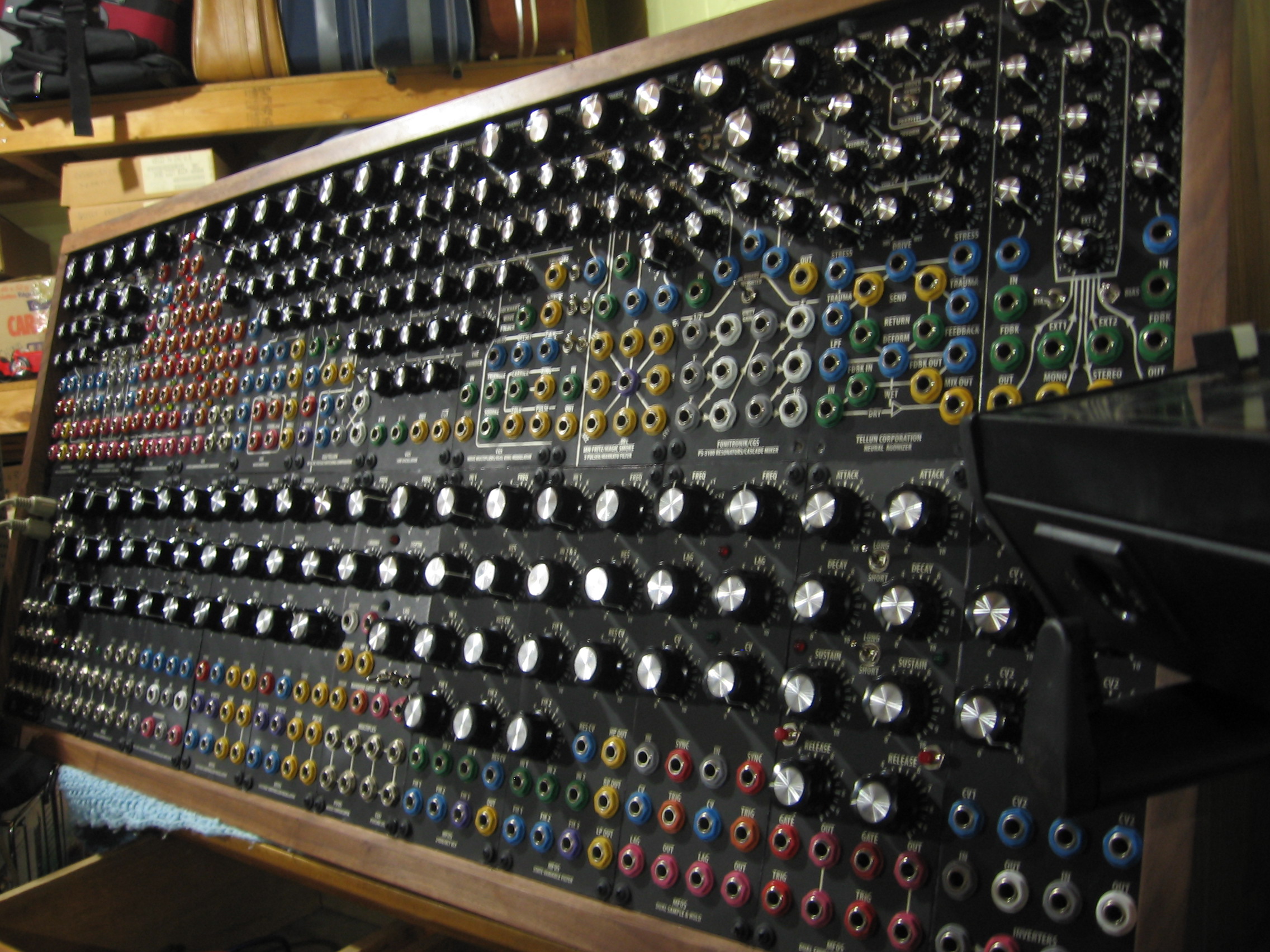

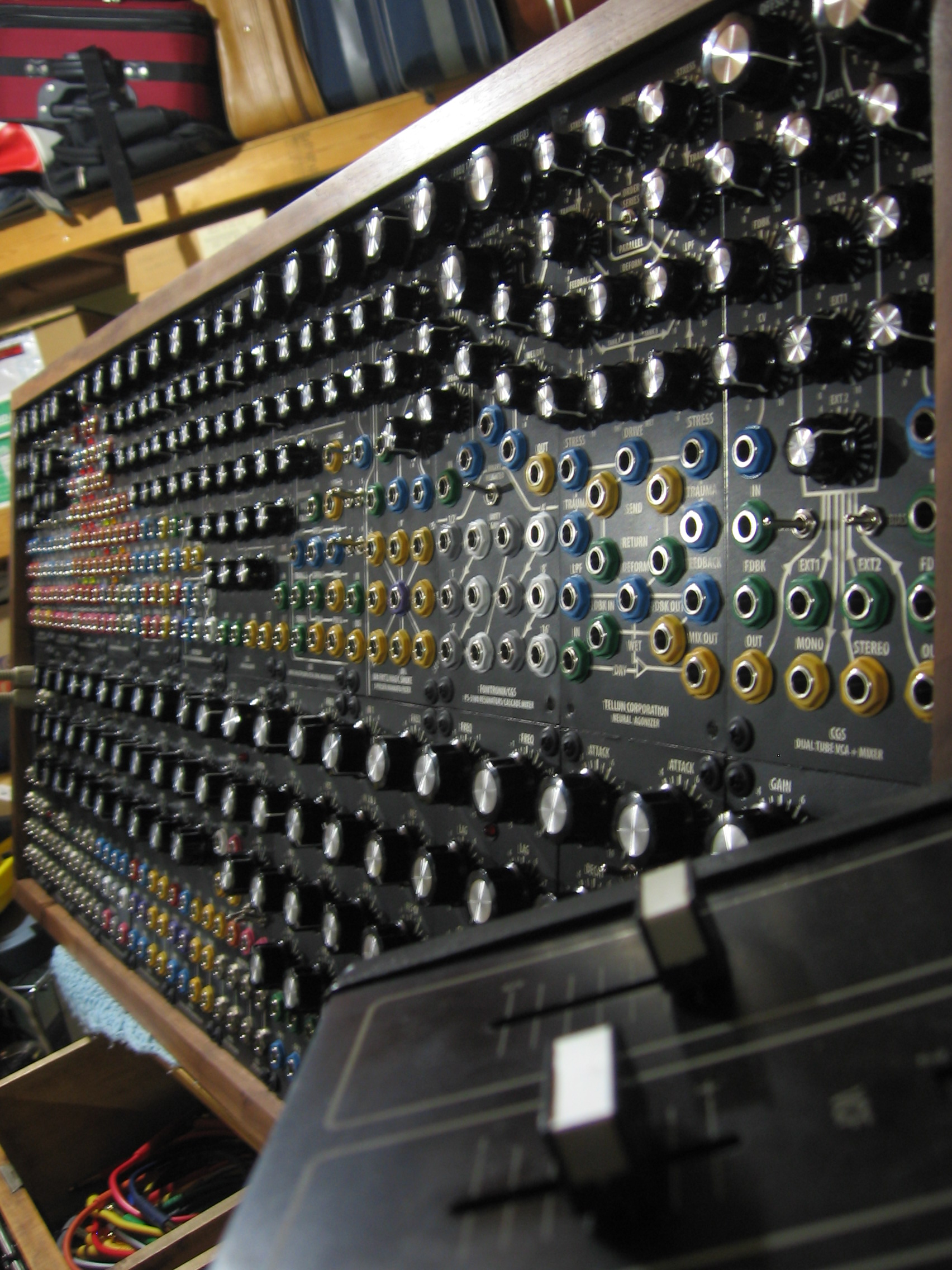

Here's what I did this year. Ok, I kinda cheated. I started last November, but due to delays I had the first module up and running in January.

Great big thanks to everyone who asked/answered questions and those who made these awesome projects available!

Module list: (left to right)

Bottom row:

PAIA midi2cv (never use it, think I'm gonna chuck it to make room for the appendage Cool ), MFOS VCLFO x2, MFOS dual VCA, MFOS VCO x2, MFOS noise cornucopia, CGS Psycho LFO, MFOS 24 db lowpass, MFOS multimode filter, Dual MFOS sample&hold, Dual MFOS ADSR, MFOS dual VCA.

Top row:

Wiard Wogglebug #3(with disturb mod)/Dual Buchla VC portamento, Dual Buchla 281/CGS analog logic, CGS Digital noise/pulse dividers/boolean logic/XOR XNOR/Analog shift register, CGS Gated comparator/burst generator, CGS VCO, Bridechamber BiNtIc/Tellun switching comparator, CGS suboscillator, Bridechamber wave multipliers/real ring modulator, Ian fritz 5 pulse waveshaper/Mankato filter, Fonik PS-3100 resonators/CGS cascade mixer, Tellun neural agonizer, dual CGS Tube VCA/Mixer.





P.S. In case anyone is wondering about the colored jacks, they are just the regular switchcraft type spraypainted

Red = Logic input
Orange = Logic output

Blue = CV attenuator input
Purple = Unattenuated(V/oct) control input
Pink = CV Output

Green = Audio input
Yellow = Audio output

Grey = Universal processing input
White = Universal output.


P.P.S. You can see a video of my latest patch here. There are also several others showing the synth in various stages of construction.


 Description:
 Filesize:  1.2 MB
 Viewed:  399 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  925.42 KB
 Viewed:  370 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  907.72 KB
 Viewed:  412 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  1018.68 KB
 Viewed:  417 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
" I went through quite a few trannies til I found one I liked" - Wild Zebra

Last edited by neandrewthal on Sat Dec 20, 2008 9:42 pm; edited 1 time in total
Back to top
View user's profile Send private message
oscilloclast



Joined: Sep 29, 2005
Posts: 49
Location: VA

PostPosted: Sat Dec 13, 2008 10:06 pm    Post subject: Reply with quote  Mark this post and the followings unread

Beautiful work! I just built the wogglebug #3 and I love it. What is the "disturb mod" that you mention?
Back to top
View user's profile Send private message Visit poster's website
Phillip Jeffries



Joined: Aug 23, 2008
Posts: 15
Location: Black Lodge

PostPosted: Sun Dec 14, 2008 2:51 am    Post subject: Reply with quote  Mark this post and the followings unread

_9069 is such a great image
Back to top
View user's profile Send private message
bugbrand



Joined: Nov 27, 2005
Posts: 846
Location: Bristol, UK
Audio files: 1
G2 patch files: 1

PostPosted: Sun Dec 14, 2008 7:46 am    Post subject: Reply with quote  Mark this post and the followings unread

Awesome - yes - colours! -- amazing!
_________________
http://www.bugbrand.co.uk
http://www.bugbrand.blogspot.com
Back to top
View user's profile Send private message Visit poster's website
blue hell
Site Admin


Joined: Apr 03, 2004
Posts: 24079
Location: The Netherlands, Enschede
Audio files: 278
G2 patch files: 320

PostPosted: Sun Dec 14, 2008 7:53 am    Post subject: Re: My 2008 show and tell.
Subject description: I hope to see a lot more of these threads by the years end.
Reply with quote  Mark this post and the followings unread

neandrewthal wrote:
Here's what I did this year.


Wow, lots of work, and it looks amazing! Hope it sounds just as good as it looks.

_________________
Jan
also .. could someone please turn down the thermostat a bit.
Posted Image, might have been reduced in size. Click Image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website
Scott Stites
Janitor
Janitor


Joined: Dec 23, 2005
Posts: 4127
Location: Mount Hope, KS USA
Audio files: 96

PostPosted: Sun Dec 14, 2008 11:24 am    Post subject: Reply with quote  Mark this post and the followings unread

Beautiful work, indeed!
_________________
My Site
Back to top
View user's profile Send private message
Funky40



Joined: Sep 24, 2005
Posts: 875
Location: Swiss
Audio files: 1
G2 patch files: 5

PostPosted: Sun Dec 14, 2008 3:51 pm    Post subject: Reply with quote  Mark this post and the followings unread

i just can double previous posts !
congratulations !

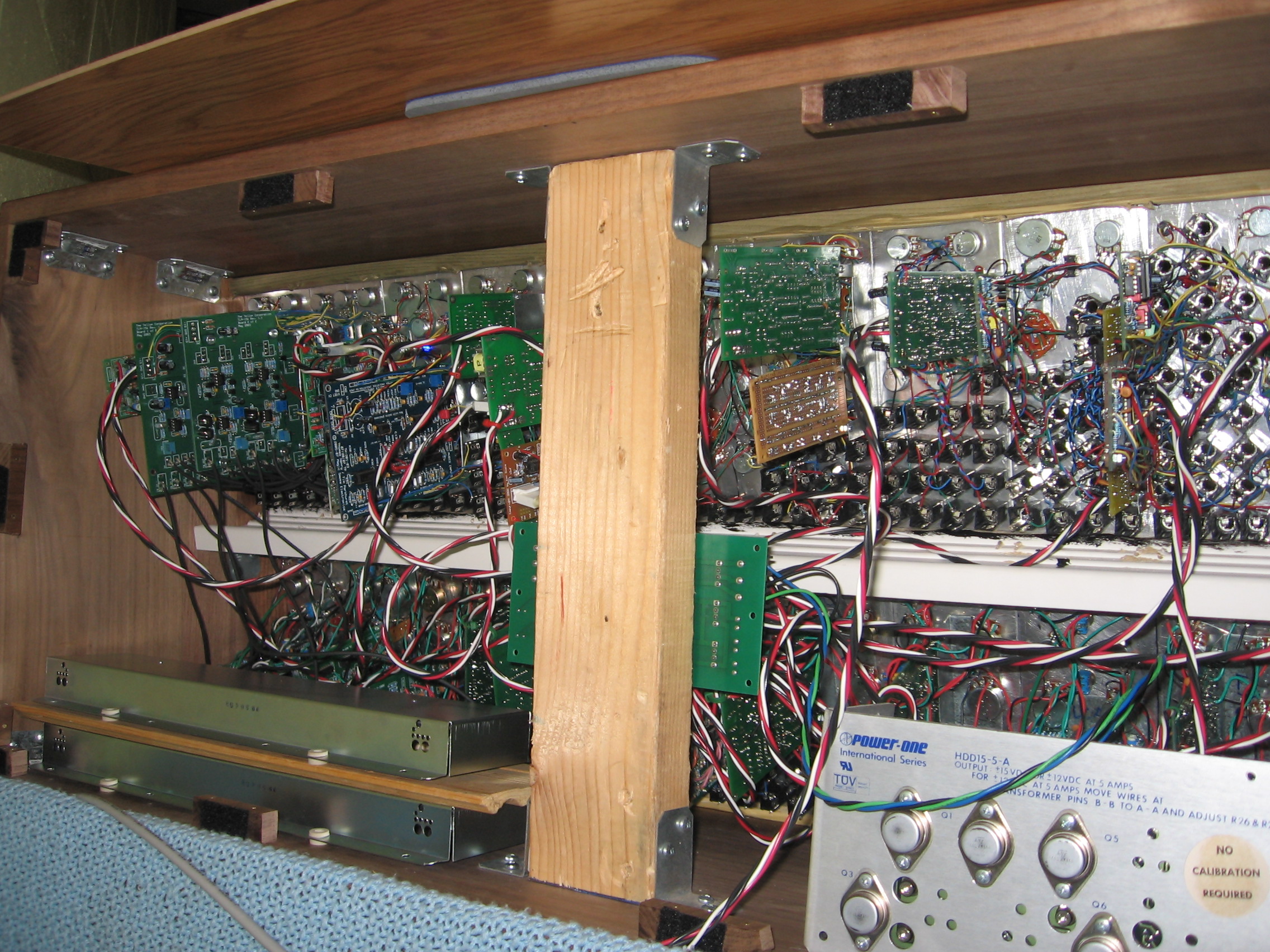

and nice to see it from the back too
Back to top
View user's profile Send private message
neandrewthal



Joined: May 11, 2007
Posts: 672
Location: Canada

PostPosted: Sun Dec 14, 2008 9:14 pm    Post subject: Reply with quote  Mark this post and the followings unread

Cheers for the comments guys. I had a blast building it. Now can we just put the new projects on hold while I clear out the backlog?(twice as much as what it in my synth now) Laughing

About the woggle disturb mod, everything you need to know about it is contained in this post by stegoman.

_________________
" I went through quite a few trannies til I found one I liked" - Wild Zebra
Back to top
View user's profile Send private message
zthee



Joined: Feb 20, 2008
Posts: 414
Location: Stockholm

PostPosted: Mon Dec 15, 2008 2:29 am    Post subject: Reply with quote  Mark this post and the followings unread

That is a 100% awsome machine!
Back to top
View user's profile Send private message
kara



Joined: Sep 07, 2007
Posts: 111
Location: france
Audio files: 1
G2 patch files: 5

PostPosted: Mon Dec 15, 2008 2:54 am    Post subject: Reply with quote  Mark this post and the followings unread

Great machine !
Sounds great too !

k

_________________
Free samples, Vsti's and Artist hosting at www.kara-moon.com

Music forum at www.kara-moon.com/forum
Back to top
View user's profile Send private message Visit poster's website
creatorlars



Joined: Nov 26, 2007
Posts: 524
Location: Denton, TX
Audio files: 4

PostPosted: Mon Dec 15, 2008 9:25 am    Post subject: Reply with quote  Mark this post and the followings unread

Wow, this machine has turned out incredibly stunning!! GREAT work! The colored nuts/washers look incredible, and I love the overall shapes created by the knob arrangements across the modules as you've arranged them. Smile

Were all the panels done by frontpanel express?
Back to top
View user's profile Send private message Visit poster's website AIM Address
Sound



Joined: Jun 06, 2006
Posts: 842

Audio files: 1

PostPosted: Mon Dec 15, 2008 9:37 am    Post subject: Reply with quote  Mark this post and the followings unread

BRAVO! BRAVO! BRAVO! very nice!

neandrewthal, could you post any picture with detailed front panel( front view) ?
Back to top
View user's profile Send private message
neandrewthal



Joined: May 11, 2007
Posts: 672
Location: Canada

PostPosted: Mon Dec 15, 2008 12:11 pm    Post subject: Reply with quote  Mark this post and the followings unread

Thanks again guys Very Happy

creatorlars wrote:


Were all the panels done by frontpanel express?


Nope, just blank panels from the local metal shop and ID mark photosensitive aluminum on top. Cost a total of $10 per 2U panel. I reckon that saved me $1500-$2000 vs. Schaeffer Surprised

Sound wrote:

neandrewthal, could you post any picture with detailed front panel( front view) ?

I'll see what I can dig up.

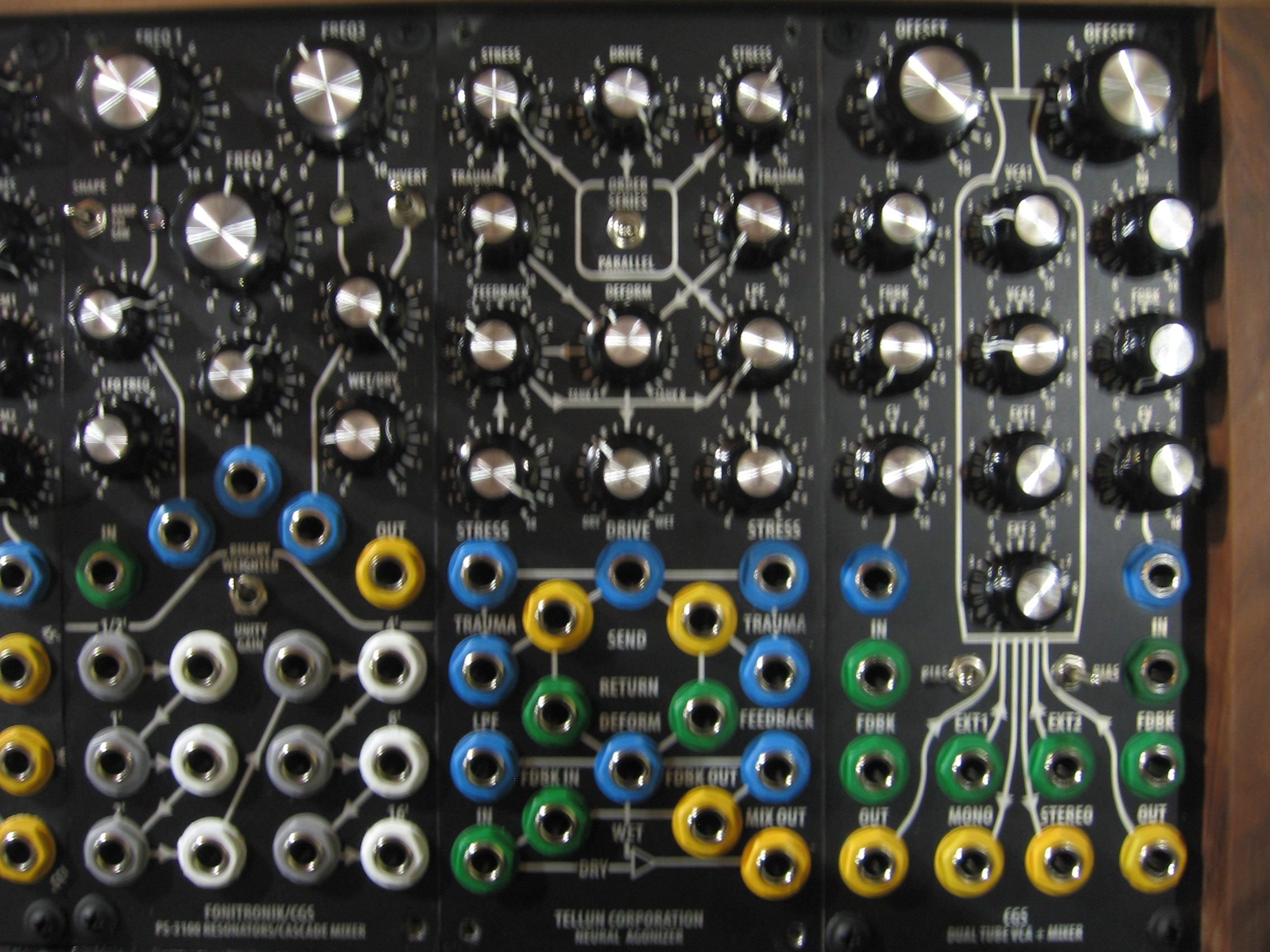

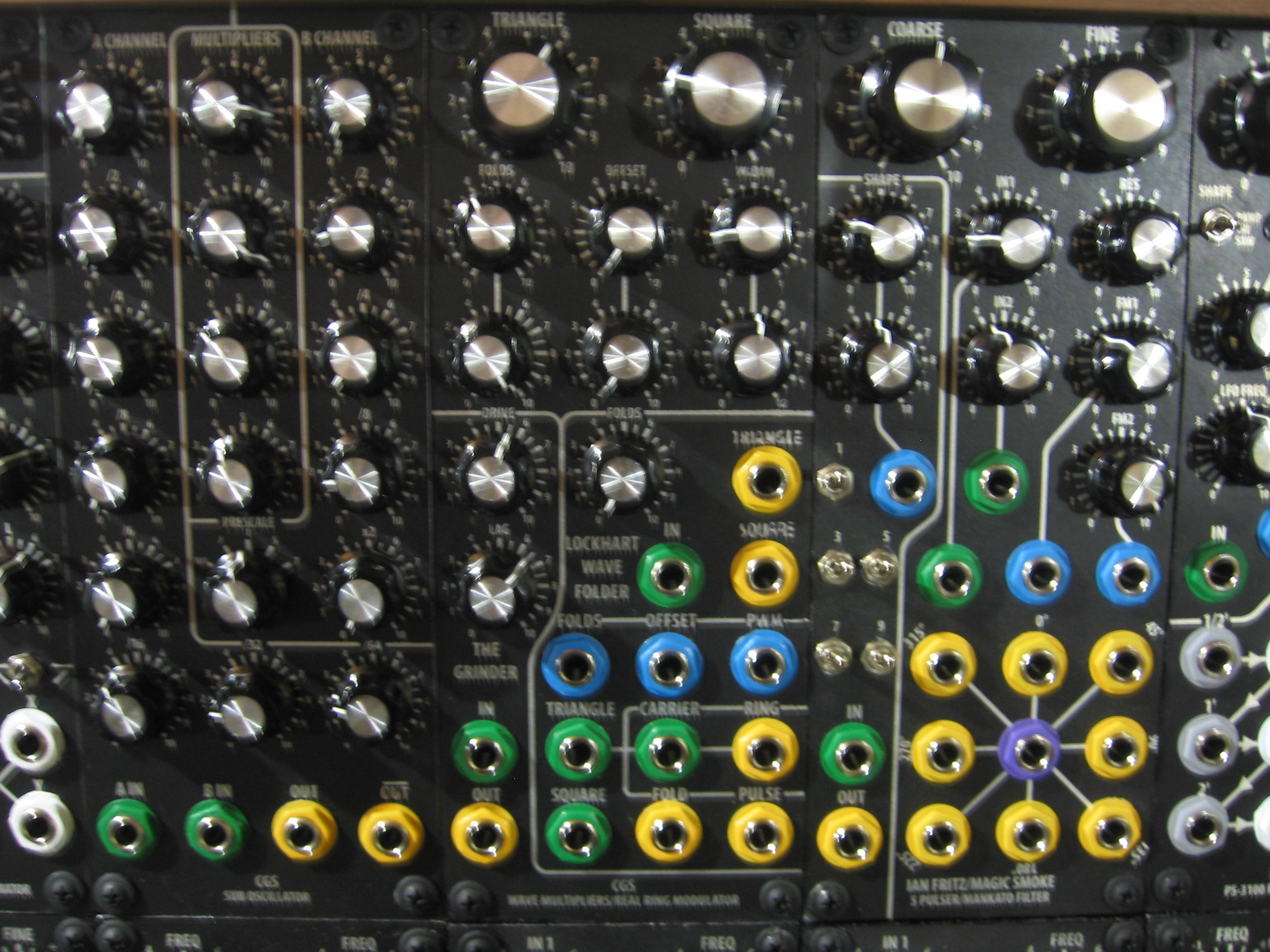

They are still kinda blurry, but it's the best I can do with my inferior equipment/skills Smile


 Description:
 Filesize:  895.96 KB
 Viewed:  341 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  926.63 KB
 Viewed:  321 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  914.1 KB
 Viewed:  307 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  894.76 KB
 Viewed:  316 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
" I went through quite a few trannies til I found one I liked" - Wild Zebra
Back to top
View user's profile Send private message
Tasmanian Alkaloid



Joined: Jun 29, 2008
Posts: 116
Location: Isle De Mort

PostPosted: Mon Dec 15, 2008 3:59 pm    Post subject: Reply with quote  Mark this post and the followings unread

These are some of the nicest panel designs/ graphics i've seen. I really like how for some, you've combined 2 modules. Well done!
Back to top
View user's profile Send private message
Sound



Joined: Jun 06, 2006
Posts: 842

Audio files: 1

PostPosted: Mon Dec 15, 2008 5:11 pm    Post subject: Reply with quote  Mark this post and the followings unread

Yes, they are very beautiful and it is a great job.

Congratulations!
Back to top
View user's profile Send private message
toppobrillo



Joined: Dec 10, 2005
Posts: 766
Location: oakland, ca
G2 patch files: 1

PostPosted: Mon Dec 15, 2008 7:46 pm    Post subject: Reply with quote  Mark this post and the followings unread

nice work man! you should ask for a tripod for christmas Wink
Back to top
View user's profile Send private message Visit poster's website
urbanscallywag



Joined: Nov 30, 2007
Posts: 317
Location: sometimes

PostPosted: Mon Dec 15, 2008 10:52 pm    Post subject: Reply with quote  Mark this post and the followings unread

Where is the order page, your modules look awesome. Wink
Back to top
View user's profile Send private message
neandrewthal



Joined: May 11, 2007
Posts: 672
Location: Canada

PostPosted: Mon Dec 15, 2008 11:17 pm    Post subject: Reply with quote  Mark this post and the followings unread

topp wrote:
nice work man! you should ask for a tripod for christmas Wink



Haha, very true.


urbanscallywag wrote:
Where is the order page, your modules look awesome. Wink


If only I could quit my job and do this all day

_________________
" I went through quite a few trannies til I found one I liked" - Wild Zebra
Back to top
View user's profile Send private message
sduck



Joined: Dec 16, 2007
Posts: 459
Location: Nashville
Audio files: 5

PostPosted: Tue Dec 16, 2008 10:07 am    Post subject: Reply with quote  Mark this post and the followings unread

That is just totally awesome. Now I want colored jacks....

Forum etiquette question - for a similar type show and tell post of my stuff - do I start a new thread, or add on to this one? My stuff isn't nearly as cool looking...
Back to top
View user's profile Send private message
neandrewthal



Joined: May 11, 2007
Posts: 672
Location: Canada

PostPosted: Tue Dec 16, 2008 11:34 am    Post subject: Reply with quote  Mark this post and the followings unread

sduck wrote:
Forum etiquette question - for a similar type show and tell post of my stuff - do I start a new thread, or add on to this one? My stuff isn't nearly as cool looking...


Doesn't matter to me, as long as the gear porn keeps getting posted party!

_________________
" I went through quite a few trannies til I found one I liked" - Wild Zebra
Back to top
View user's profile Send private message
sduck



Joined: Dec 16, 2007
Posts: 459
Location: Nashville
Audio files: 5

PostPosted: Tue Dec 16, 2008 2:42 pm    Post subject: Reply with quote  Mark this post and the followings unread

Ok, here's mine. Here's a pic of the whole rig - actually large chunks of it are from earlier than this year, but the top cabinet was built this summer, and it's been a busy year for me, so I thought it'd be easier to post the whole thing.

What I built this year - in the top cabinet (all Synthtech MOTM), one of the 300 vco's, one of the 800 eg's, all the eg's got Tellun DB-800 boards added and the led's added, and the 830 mixer on the far right (Paul finally sent me the kits he owed me for 2+ years)

Middle row - the klee sequencer, the Mankato filter, and the MFOS sequencer.

Bottom row - MFOS sonic multiplier, wogglebug, CGS/Bridechamber analog computer, and the Thomas White/Buchla Resonant Lowpass Gate.


 Description:
 Filesize:  3.08 MB
 Viewed:  590 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
urbanscallywag



Joined: Nov 30, 2007
Posts: 317
Location: sometimes

PostPosted: Tue Dec 16, 2008 9:09 pm    Post subject: Reply with quote  Mark this post and the followings unread

More great work. I like the colorful panels like the LPG.

I seem to have a thing for colorful accents on modulars (Buchla, Serge, you two gentlemen).

Hopefully I'll have something beautiful to share someday.
Back to top
View user's profile Send private message
neandrewthal



Joined: May 11, 2007
Posts: 672
Location: Canada

PostPosted: Tue Dec 16, 2008 11:49 pm    Post subject: Reply with quote  Mark this post and the followings unread

Good stuff! Color = Win.

I see you were wise enough to leave some space on the edges of your cabinets. I had to spend several days filing down all my panels and it's still a tight fit.

How are you liking the Klee/MFOS seq tagteam? Those ones are both coming to the top of my backlog soon Cool

_________________
" I went through quite a few trannies til I found one I liked" - Wild Zebra
Back to top
View user's profile Send private message
Tasmanian Alkaloid



Joined: Jun 29, 2008
Posts: 116
Location: Isle De Mort

PostPosted: Wed Dec 17, 2008 12:12 am    Post subject: Reply with quote  Mark this post and the followings unread

It's a great idea to have things like the Weird Sound Generator in a modular format. I'm going to do the same thing with a shortwave radio (best noise source ever!).
Back to top
View user's profile Send private message
sduck



Joined: Dec 16, 2007
Posts: 459
Location: Nashville
Audio files: 5

PostPosted: Wed Dec 17, 2008 7:23 am    Post subject: Reply with quote  Mark this post and the followings unread

I actually hardly ever use the MFOS sequencer since I built the klee - the klee is a much deeper instrument, and the MFOS just seems like a toy next to it. However, I'm sure I'll find uses for it, and in the meantime it sure looks nice.

Ditto with the WSG and the wogglebug - the wsg makes some nice noises, if you wiggle the knobs a lot, but I haven't found a use for it in the context of larger patches. Yet. One thing I'm very guilty of currently is spending more time building that playing with the things, which will change eventually.

I've (currently) got enough backlog to fill one more 1u cabinet, and then I think I'm going to have to cut myself off and actually play the thing. A little. One step at a time....

Oh, and Neandrewthal, - the bottom cabinet is currently in it's second incarnation - the first time I built it I mismeasured and it ended up being 23 1/2u wide. Maddening to me as I had a ton of these nice 6u rack rails. I found it easier to rebuild the thing than to try and live with a badly built cabinet. It's a sickness, no?
Back to top
View user's profile Send private message
Display posts from previous:
Post new topic   Reply to topic Moderators: jksuperstar, Scott Stites, Uncle Krunkus
Page 1 of 5 [107 Posts]
View unread posts
View new posts in the last week
Goto page: 1, 2, 3, 4, 5 Next
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
