20 days into 2009 already and the builds continue. Post your stuff!

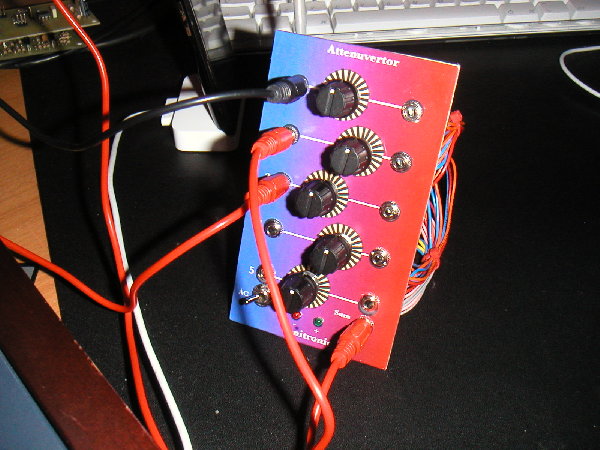

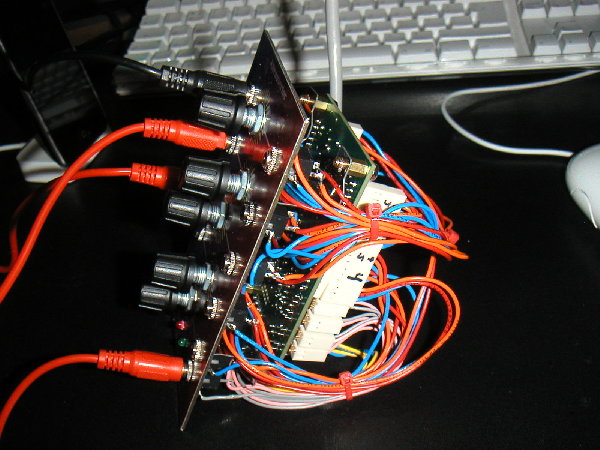

Here's last weekend's effort (mostly Saturday with some debugging on Sunday). I had a cold solder joint on of all things the power pin on U2. Silly me.

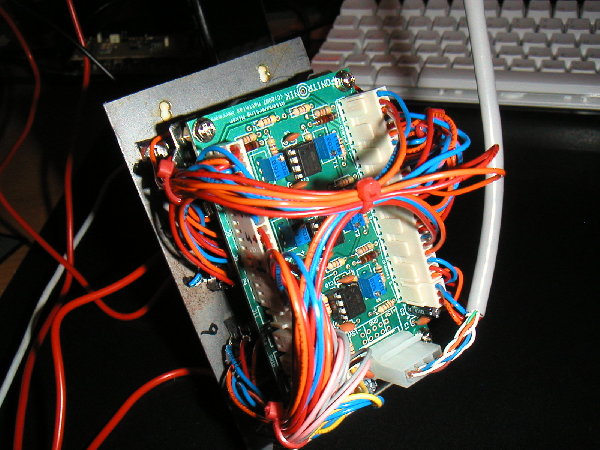

The connectors on that board are dense, so I ended up using 12-pin connectors, with some 3 pin ones on the end.


Description:

Filesize:

411.04 KB

Viewed:

377 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Filesize:

395.41 KB

Viewed:

358 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Filesize:

384.22 KB

Viewed:

396 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

fonik

fonik · Posted: Tue Jan 20, 2009 3:41 pm Post subject:

BTW edison. did you add the 100k resistor to GND right after the capacitor for AC coupling? i can't tell from the picture. it is necessary to install this resistor to make the AC coupling work (check out the lates documentation at my site: http://www.modular.fonik.de/pdf/f-mixer-rev2.pdf).

EdisonRex · Posted: Tue Jan 20, 2009 5:50 pm Post subject:

It is underneath the board, jumping from the underside of the terminal to R28's connection. Wink

It was easier for me to have it there.

Lovely PS3100 too, BTW. I hadn't seen those pics.

numbernone · Joined: Aug 16, 2006 Posts: 477 Location: new york city

Getting back in gear after a slow moving (building wise) year.

Aiming for one panel a weekend for the next several weeks. 2 done so far.

First one: 8 Thomas Henry VCAs for the 21st century, with each group of four also having a mix output. 2 CGS stomp box adapters. 4 generic attenuated banana to 1/4" outputs.

Second: Another Buchla 291 filter, all the same bugs as the first, which I aim to eradicate now that I am slightly smarter than a year and a half ago.Still awesome filter! MFOS mulitmode VCF, I love these. Another 4 VCAs, this time strait up IN/CV/OUT. Mankato w/ LEDs and 8 outs, glad to have a second one, super modulation workhorse.

And a snap of the guts of the filter panel before finishing up.

Next couple weeks will see a bunch of ADSRs (21st century again), and pairs of QFGs and PS3100 resonators, and a bunch more mixers. Then a pair of that killer PIC sequencer. Then a bunch of gigs. The year is off to a great start.

Oh yeah, I am anxiously awaiting a big bag of the Davies clone knobs.


Description:

Filesize:

66.94 KB

Viewed:

386 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Filesize:

76.11 KB

Viewed:

361 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Filesize:

100.34 KB

Viewed:

370 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

RF · Posted: Tue Jan 20, 2009 9:20 pm Post subject:

Beautiful stuff - all of you!

bruce

Tim Servo · Posted: Thu Jan 22, 2009 10:53 pm Post subject: 2009 Build Pics

Well, this has taken me some of 2008 and all of 2009 so far... It's my new secret gizmo, but that's about it for 2009. I'm really going to have to get some other stuff built Wink

Tim (working at Gizmonic Labs) Servo


Description:

Pardon the "Batman" camera angles...

Filesize:

141.44 KB

Viewed:

462 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

ErichBreakfast · Joined: Nov 30, 2008 Posts: 20 Location: Massachusetts

This is my first DIY synth after the Paia Fatman I built in 2008.
The top unit is a Paia 9700 VCO with a busted oscillator A. I think the Lm13700 might be bad, but I tried 4 different ones with no change yet. The second panel is an MFOS 24db/oct VCF and the MFOS Log/Lin VCA and the bottom panel is 3 MFOS super simple ramp/saw LFO's. I don't have a picture yet of the sample and hold, white/pink noise generator panel yet, but it looks like more of the same, but with holes drilled for some CV distributor's when I get more jacks and TL084's. My semester break is over though so I think my building may have to die down a little. Happy synthesizing!

Erich


Description:

Filesize:

121.97 KB

Viewed:

346 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Filesize:

120.36 KB

Viewed:

350 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Action shot.

Filesize:

119.71 KB

Viewed:

332 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

Rykhaard · Joined: Sep 02, 2007 Posts: 1290 Location: Canada

Very cool to see someone else's work early in their building history. It reminds me of mine back in '92 / '93. 5U rack panels filled with stuff. Black paint and white lettering for everything. I've photos of them around somewhere. Will have to search.

ErichBreakfast · Joined: Nov 30, 2008 Posts: 20 Location: Massachusetts

I really wanted to make my panels very colorful but since I did all this in January and it's been snowing and/or below freezing here in MA I figured the Krylon probably wouldn't be too happy.

slacker · Posted: Fri Jan 23, 2009 3:13 pm Post subject:

I can't compete with the great looking stuff from everyone else but here's a couple of recently completed lunetta "modules".

CD40106 based oscillator on the right and a CD4047 based oscillator/pulse generator/audio mangler thing on the left.


Description:

Filesize:

130.23 KB

Viewed:

316 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

guitarfool · Posted: Fri Jan 23, 2009 7:54 pm Post subject:

BananaPlug · Posted: Fri Jan 23, 2009 9:33 pm Post subject:

neandrewthal · Joined: May 11, 2007 Posts: 672 Location: Canada

guitarfool · Posted: Sat Jan 24, 2009 10:12 am Post subject:

philpeery · Joined: Nov 08, 2006 Posts: 137 Location: new jersey, usa

Really nice work everyone! Numberone, you are beating me to the punch with the ASF21C vca's and adsr's! I just finished a single sided PCB layout for the envelope generator, based loosely on TH's design from the old MAP web site the fits my modular a bit better - I put in an MTA156 power connector, ferrite beads, pot and jack pads for all connects (I hate flying wires!), and added a inverted output as an option. I'm making up PCB's this weekend. Then I will work on the vca layout. I'll be sure to post some pic's as I make progress.

There's always catch up work to do....!

Regards,
Phil

iceowl · Posted: Sun Jan 25, 2009 1:44 pm Post subject:

The synthesizer birthing process is underway. Gestation will take some time. My first modules finished. Don't have cabinet built yet.

Complete (save for knobs):

2 - SN Voice
o Panel + bracket + most Components: Bridechamber
o Boards : sMs
o Everything else (mouser/digikey, etc.)

1 - MOTM 101 Noise/SH
o Panel / bracket / key components: MOTM
o Everything else (Mouser/Digikey/Ccomm for Rg174)

Still under construction:

1 - TH percussion synth
o Board : EM
o Parts (Mouser/Digikey/etc)
o Panel / bracket- still need

1 - MFOS Soundlab Plus + Sample & Hold
o Boards + components : MFOS + Mouser/digikey/etc.
o Panel / bracket : still need

1 - MOTM VCO 300 (unable to make it squeak despite great help from Paul) Awaiting replacement parts

Parts sitting in box:

1 - TH Mankato VCF
o Board : Magic Smoke
o Components : Mouser/Digikey
o Panel / bracket : Bridechamber

Stuff ordered and not yet here

VCA (MOTM) / AD (Fritz) / PS (MOTM) / other things...

Stuff Scrounged cheaply from Surplus Store

1 - Power One HDCC-150W-A +/1 15V and +5v -
Stranded hookup wire: All sorts
Numerous ICs / Caps / Etc.

I am still not sure where I will locate this synth when I have enough modules to actually make my first serious sounds. May have to buy a new home to accommodate it, but in this market, that will be tough. Also, the spouse may complain.

Once I figure out how to do pix, I will post here.

Cheers,
Joe

mono-poly · Posted: Wed Jan 28, 2009 8:44 am Post subject:

This is the first DIY stuff for 2009


Description:

Filesize:

27.41 KB

Viewed:

20802 Time(s)

yusynth · Joined: Nov 24, 2005 Posts: 1314 Location: France

My first designs of the year : two keyboard matrix scanners using PIC16F88 and which provide V/Oct CV (over five octaves) and GATE. The analogue modulation boards (pitch wheel, modulation wheel, delayed vibrato...) are currently under design. The left board is for FATAR (8x8 matrix) keybeds, the right board is for CASIO, EVOLUTION (11x9 matrix) keybeds.
These are intended to be used in the yusynth CV/GATE keyboard controller.

Posted Image, might have been reduced in size. Click Image to view fullscreen.

Posted Image, might have been reduced in size. Click Image to view fullscreen.

sduck · Posted: Fri Jan 30, 2009 9:58 pm Post subject:

Here's the first thing I've finished this year. Took a bit longer than it might have because I worked up 3 of these pcb's at the same time and also 2 other ones (bananalogue VCS's) all at the same time.

fonik · Posted: Sat Jan 31, 2009 7:58 am Post subject:

very nice and neat build. i like your color coding. it makes your modules so very special and unique. great.

Sebo · Joined: Apr 27, 2007 Posts: 564 Location: Argentina

Hi:
Here are some modules I finished this month. I started them in 2008.
Some knobs are missing, and I have to finish the wiring in the MIDIbox CV.
All others are working, including the PSU (a Formant PSU built from
the Bergfotron PCB layout).
The modules are:

1 x MIDIbox CV
3 x Yusynth VCO
4 x Yusynth VCA
1 x Yusynth MiniMoog VCF

I will post more pics in the Yusynth subforum.

Modules 1.JPG

Description:

My forthcomming Modular.

Filesize:

344.61 KB

Viewed:

423 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

philpeery · Joined: Nov 08, 2006 Posts: 137 Location: new jersey, usa

Hi Sebo,

AWESOME job! You gotta tell us how you do your front panels!

Phil

blue hell · Posted: Sun Feb 01, 2009 3:42 pm Post subject:

Yup those panels look good!

Sebo · Joined: Apr 27, 2007 Posts: 564 Location: Argentina

Thanks!!!
The panels are 1.5mm aluminium covered with autoadhesive vinyl.
I had the vinyl printed at a graphic shop, and is covered with a satin
(kind of textured) transparent vinyl layer to protect the printing.
I just drilled the aluminium and then pasted the vinyl.
Is really cheap.
Here where I live (Buenos Aires, Argentina) laser engraving will cost me
about 35 dollars per panel, silk screening will cost me about 15 dollars per
panel, this method cost me about less than 1 dollar per panel.

PD: BlueHell you have really nice music at your Myspace!!!
