PostPosted: Wed Jun 22, 2016 12:33 pm    Post subject: Yusynth, Thomas Henry and other stripboard modules
Subject description: Yusynth VCA / ADSR / Steiner, Thomas Henry 555...
Reply with quote  Mark this post and the followings unread

Hi Everyone !

I have made some stripboard adaptions of Yusynth modules (VCA/ADSR/Steiner Filter) and the Thomas Henry 555 VCO. As a big fan of stripboard, (many thanks to Minus for the 808 clone), I thought some of you might be interested.

That's my first stripboard designs so they are not optimized. But they are all tested and work fine. The Thomas Henry 555 is huge, it doesn't worth the effort now PCBs are back in stock. (BOM and Schematics : http://electro-music.com/forum/topic-54623.html)

Check the yusynth page, some components might be adjusted.
http://www.yusynth.net/Modular/index_en.html

I hope some of you will enjoy ! I think I will regularly add new stripboard versions.


Yusynth ADSR.png
 Description:
 Filesize:  281.69 KB
 Viewed:  1836 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Yusynth ADSR.png



Yusynth Simple VCA.png
 Description:
 Filesize:  214.42 KB
 Viewed:  1319 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Yusynth Simple VCA.png



Yusynth Steiner filter.png
 Description:
 Filesize:  256.78 KB
 Viewed:  1360 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Yusynth Steiner filter.png



Noise Gen.png
 Description:
Noise Generator based on Hexinverter's 808 Toms
 Filesize:  96.59 KB
 Viewed:  868 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Noise Gen.png



 Description:
 Filesize:  385.03 KB
 Viewed:  183 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




Last edited by lysergist on Wed May 09, 2018 2:52 am; edited 6 times in total
Back to top
View user's profile Send private message
bamboombaps



Joined: Oct 23, 2015
Posts: 60
Location: Glasgow

PostPosted: Mon Jul 04, 2016 6:55 pm    Post subject:   Reply with quote  Mark this post and the followings unread

nice one mate!
Back to top
View user's profile Send private message
Ayab



Joined: Oct 27, 2015
Posts: 109
Location: London, UK

PostPosted: Tue Dec 06, 2016 6:15 am    Post subject: Reply with quote  Mark this post and the followings unread

Great! Many thanks for your work on these am going to start simple with building the noise!

All the best
Back to top
View user's profile Send private message
lysergist



Joined: Jan 14, 2016
Posts: 31
Location: France
Audio files: 2

PostPosted: Sat Feb 18, 2017 5:55 am    Post subject: Reply with quote  Mark this post and the followings unread

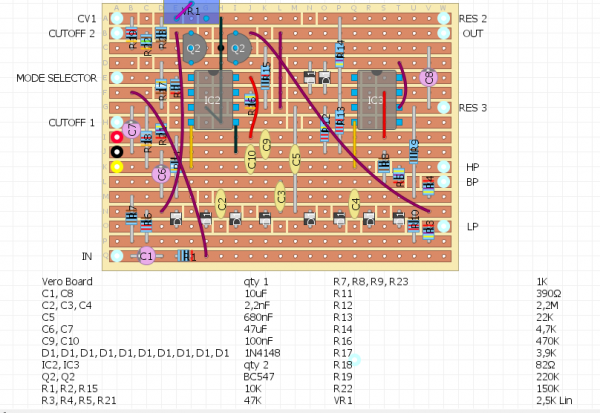

Roland System 100 LFO*2 + Yusynth's steiner V1


Steiner V1.png
 Description:
 Filesize:  184.08 KB
 Viewed:  8560 Time(s)

Steiner V1.png



SYSTEM 100 DUALLFO.png
 Description:
 Filesize:  59.31 KB
 Viewed:  8560 Time(s)

SYSTEM 100 DUALLFO.png


Back to top
View user's profile Send private message
lysergist



Joined: Jan 14, 2016
Posts: 31
Location: France
Audio files: 2

PostPosted: Sat May 20, 2017 3:37 pm    Post subject: Reply with quote  Mark this post and the followings unread

Barton Musical Circuits Wave Animator, makes ultrasaw/chorus like sounds


Barton's Wave Animator.png
 Description:
 Filesize:  368.94 KB
 Viewed:  695 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Barton's Wave Animator.png


Back to top
View user's profile Send private message
MapacheRaper



Joined: Feb 15, 2018
Posts: 100
Location: Spain

PostPosted: Mon Jun 18, 2018 5:14 pm    Post subject: Reply with quote  Mark this post and the followings unread

This thread is pure gold. Thanks for sharing. Tempted in all them.
