creatorlars · Posted: Tue May 19, 2009 3:34 pm Post subject:

Cool, thanks. Smile

I'm in need of a source for them for use as combined Gain/Bias controls on some video modules I'm working on.

ericcoleridge · Joined: Jan 16, 2007 Posts: 889 Location: NYC

our e · Joined: May 28, 2009 Posts: 4 Location: tamwoth england

heres a shot of my baby.based, as you can see its work in progress, I've just last night added a MFOS single bus controller so the kbd now works for the first time
Very Happy

synth 1.jpg

Description:

Filesize:

2.04 MB

Viewed:

277 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

Funky40 · Posted: Fri May 29, 2009 9:41 am Post subject:

WOW, great builds all over here, thanks for sharing !

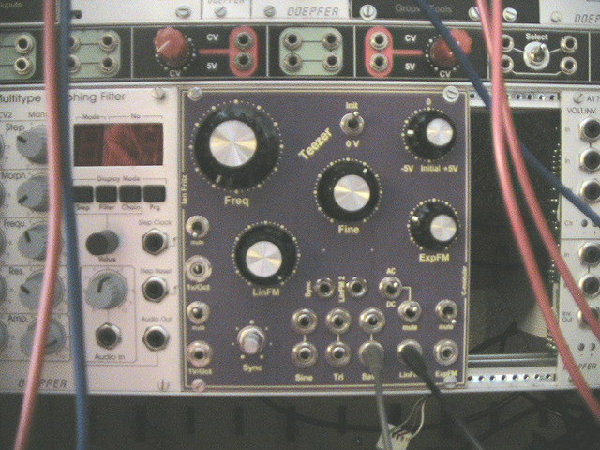

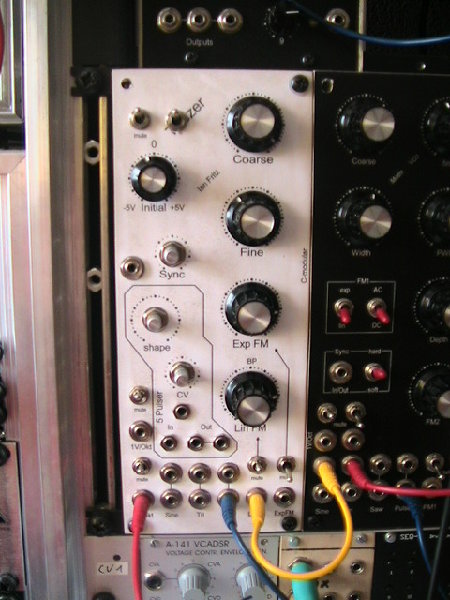

here are my two Teezers:


Description:

Teezer with provisoric Motm format panel + 5 Pulser ( which is sadly not running for now )

Filesize:

112.72 KB

Viewed:

261 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Teezer in Euroformat . the colour was thought to be close to black. It looked black on my Screen.................but i like purple too ;)

Filesize:

111.8 KB

Viewed:

258 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

TekniK · Joined: Aug 10, 2008 Posts: 1059

that strip in the middle looks great Funky40

Funky40 · Posted: Sat May 30, 2009 11:08 am Post subject:

Tasmanian Alkaloid · Joined: Jun 29, 2008 Posts: 116 Location: Isle De Mort

Your euro Teezer looks great Funky40! How do you make the panels & graphics on your modules?

Funky40 · Posted: Sun May 31, 2009 2:58 am Post subject:

thanks Taz

The Graphics are made with abacom Front Designer.
I print this out to Paper. Now i take fotopaper.
Then i epoxy it to 2.5mm multiply Wood with 5min epoxy.
then cut the panel out with a hacksaw, then spray laqueur it with clear coat ,
then drilling the Holes.
do the same sometimes with aluminum blindpanels if the size of the module fits.

my panels cost about 5$ if i count the printer too Laughing

good decision to go for the cheap, because very much of my panels i would do now different.
gonna go one day for something better.

as i drill in my little kitchen, i prefer to work with wood.
Better wood in the food then aluminum Laughing

( i indeed found once a sharp piece of aluminum in my sugo/sauce/ don't know the name in english )

sduck · Posted: Sun May 31, 2009 7:52 pm Post subject:

Ok, here's what I just finished.

Tasmanian Alkaloid · Joined: Jun 29, 2008 Posts: 116 Location: Isle De Mort

jenamu6 · Joined: May 20, 2009 Posts: 15 Location: Rotterdam

Very nice.......I got inspired to finish off my modules.

It's always the frontplates that I'm weary about.........but I kinda like that ghetto style.

One wogglebog and cmos sequencer comming up.

creatorlars · Posted: Mon Jun 01, 2009 12:22 am Post subject:

Gorgeous panel, sduck!! Where did those leds/bezels come from? They look awesome!

Pehr · Posted: Mon Jun 01, 2009 2:16 am Post subject:

This picture is actually from last year, but I've just got my 281 pair working! (in the middle). Now of to complete the envylopes:

Posted Image, might have been reduced in size. Click Image to view fullscreen.

Posted Image, might have been reduced in size. Click Image to view fullscreen.

TekniK · Joined: Aug 10, 2008 Posts: 1059

sduck · Posted: Mon Jun 01, 2009 7:54 am Post subject:

Thanks, Creatorlars and TekniK! The LED's are from digikey -

LED's
67-1157-ND (yellow - digikey)
67-1156-ND green
67-1155-ND red

They are a one piece unit - you can just pop them into a 5/16th in hole. There's also 2 bi-color ones on this design - I don't have the part number handy for those, but they're available from mouser also. FWIW these are the same led's that Synthtech MOTM uses.

our e · Joined: May 28, 2009 Posts: 4 Location: tamwoth england

Wow you guys make some really professional looking modules !
they make my veroboard and hot glue attempts look a bit heath robinson javascript:emoticon(' Sad

')

synthmonger · Posted: Tue Jun 02, 2009 1:33 am Post subject:

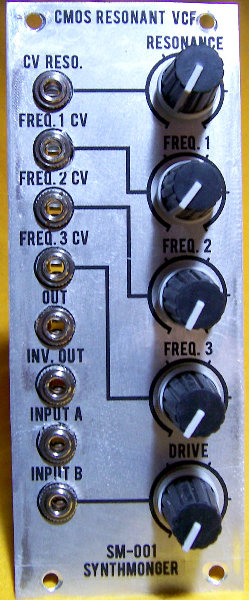

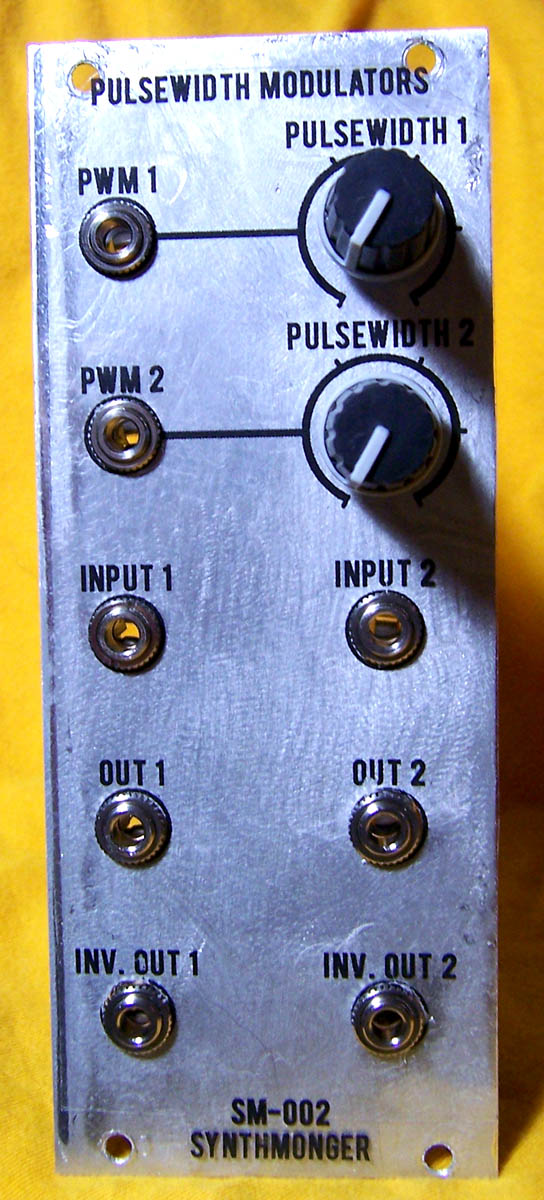

bobo panels for now...


Description:

Filesize:

139.27 KB

Viewed:

228 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Filesize:

156.46 KB

Viewed:

237 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

creatorlars · Posted: Tue Jun 02, 2009 7:09 am Post subject:

I actually really like those, Synthmonger... the unfinished look of the metal really makes it!

jean-louise · Posted: Tue Jun 02, 2009 11:26 am Post subject:

ghost letters Shocked

jean-louise · Posted: Tue Jun 02, 2009 11:28 am Post subject:

ooops image is too big ???!§?" Embarassed

blue hell · Posted: Tue Jun 02, 2009 12:22 pm Post subject:

ericcoleridge · Joined: Jan 16, 2007 Posts: 889 Location: NYC

Synthmonger, nice work. Is the ´pulse width modulator´circuit published on line somewhere? I´ve been looking for a simple dedicated circuit like this to add to various trigger and gate outputs for vc length. Would be great to have as a little add-on PCB.

slacker · Posted: Tue Jun 02, 2009 1:02 pm Post subject:

I think it's this circuit from the Lunetta forum http://www.electro-music.com/forum/topic-33911.html

synthmonger · Posted: Tue Jun 02, 2009 2:01 pm Post subject:

RKHobbs · Joined: Jun 10, 2008 Posts: 19 Location: Maryland

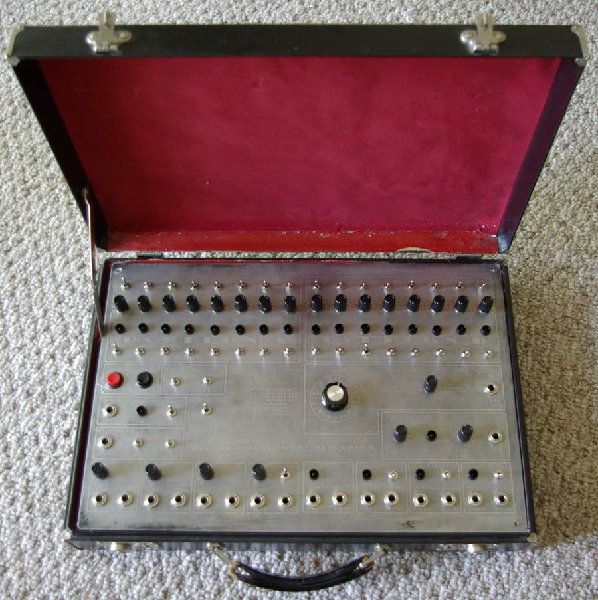

Finally found/made time to finish my Klee sequencer.


Description:

Klee in 'rescued' attache case.

Filesize:

168.99 KB

Viewed:

273 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

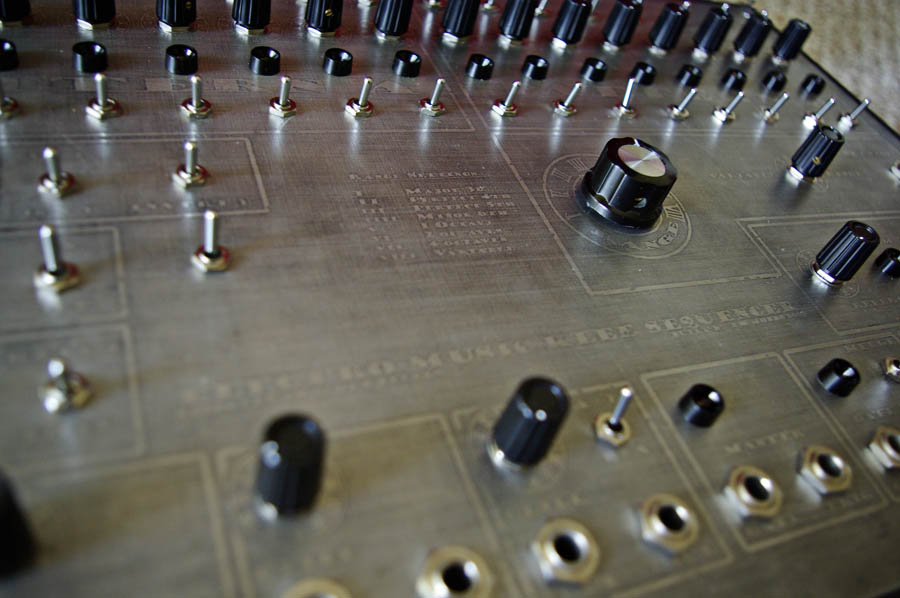

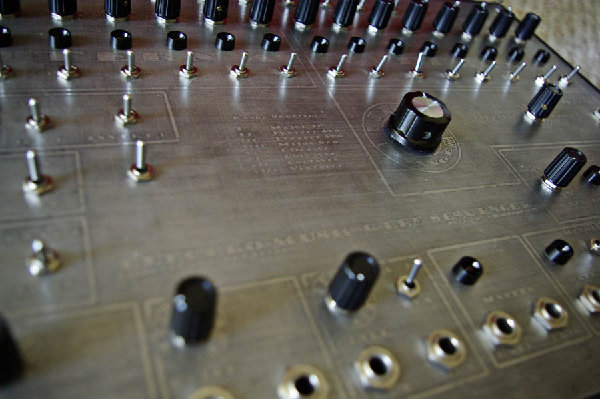

Description:

Klee attache panel

Filesize:

98.69 KB

Viewed:

251 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.
