VCF up and filtering

[delayed]

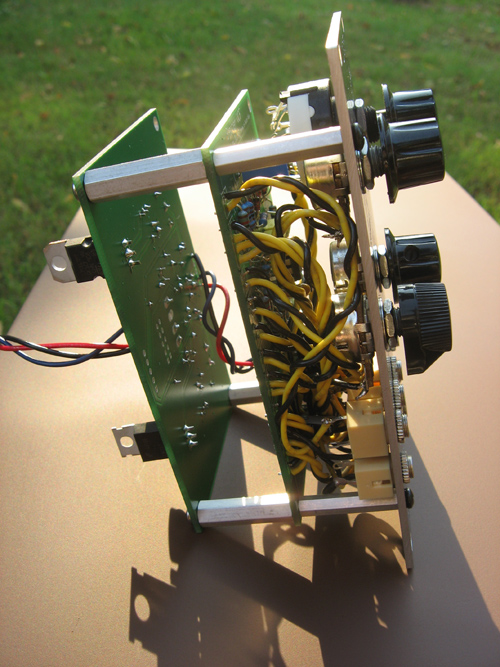

Here are some images of the VCF. A simple and easy build with great sounding results. Worked without any debugging. Stuff, wire, add power, and filter!

---

Description:
Filesize:	131.14 KB
Viewed:	787 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[delayed]

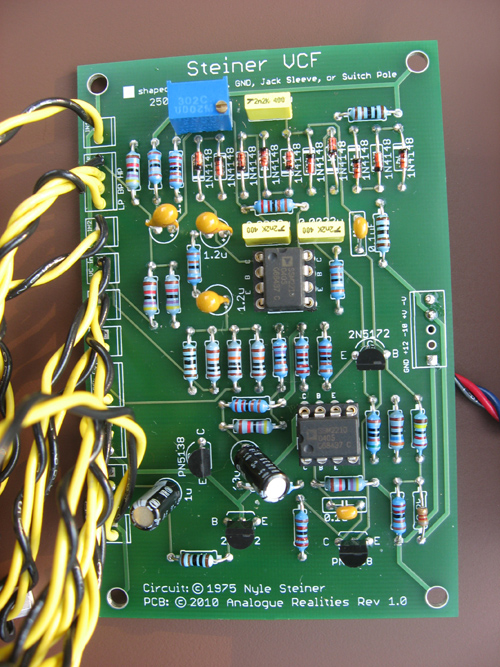

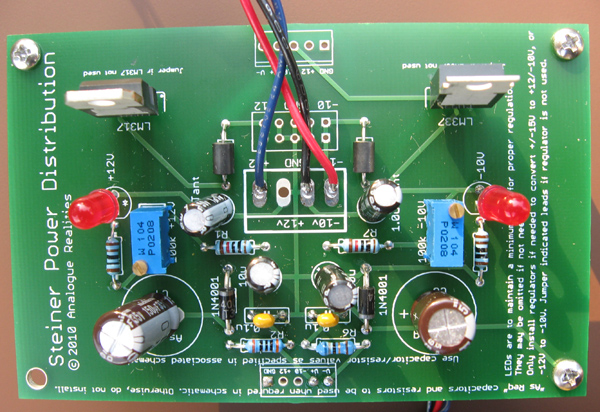

filter stuffed and power board

---

Description:
Filesize:	192.5 KB
Viewed:	10665 Time(s)

---

---

Description:
Filesize:	254.01 KB
Viewed:	677 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Description:
Filesize:	195.65 KB
Viewed:	685 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[gwaidan]

Nice!

[kjackman]

Wow, you've been quite busy!

I've got a month or two before I can start diving into this project. I have most of the tools I need, but I'm still short an oscilloscope and a few other odds and ends. And then I'll need to start stocking up on pots, trimpots, knobs, and all the rest. But pretty soon I'll be placing an order for a few of those PCBs (VCO, Filter, VCA, and Triple EG to start).

I decided to shoot for two power supplies, rather than having to deal with the headaches of converting 15v modules for 12v or vice versa. I was going to start the DIY system with MFOS modules, but I'd like to try these instead.
