Author Message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Sun Jan 27, 2013 5:39 am    Post subject:  Schematics Vault Reply with quote  Mark this post and the followings unread

Thought if this is a good idea ,but if it's not guess it's gonna be just berried somewhere in the forum , so many schematics are scattered all over the forum so i figured it'd be nice if there is a thread like this , this is the only rule : each post is a schematic in some picture format , a layout if there is one ,info on the project , confirmation if you've built it already or anyone else . This can be worth only if everyone contributes with a schematic and layout so ..to put all together . Maybe on second thought hunting for a circuit in a threads older then few years may be fun . Here are few layouts and Schematics for Start .
Cheers
Vlad



Note on Copyright : electro-music.com always respected the great amount of work, effort and time invested by individuals in making a better synthesizer ,better designs . One can be only grateful that folks who spent their lifetimes in electronics are willing to share their knowledge and findings with the public . This thread will only try to serve as a wider reference to synthesizer schematics for better understanding or for inspiration for the next module .You can PM me if you don't want your work here .

Last edited by vladosh on Sat Feb 02, 2013 12:28 pm; edited 4 times in total
Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Sun Jan 27, 2013 5:46 am    Post subject: Reply with quote  Mark this post and the followings unread

This filter is a clone of the famous vintage russian analog synthetiser named .Inside this synth there is an incredible and very original filter invented by Vladimir Kuzmin. Please visit his web site at http://www.muztech.com . It is a Lowpass ( LP) and Bandpass (BP) voltage controled filter with a special design and sound . A Vodka filter...The clone contains only cheap common parts, and it is very simple to build... No calibration trimmers or accurate tempco stages required, it is not the spirit of this beast from the far East ...

Unlike most of Voltage controled analog filters who use a combination of a fixed capacitor with a variable resistor element ( OTA, opto,etc..) the filter core here is just a pair of programmable low power operational amplifiers ( PLPOA?). At first sight, it look like a classic SVF but with a difference: there is no capacitors ! CV modulations are applied on the current setting pin (Iset) to reduce or increase the GainBandwith of the aop who act as a variable time constant RC element. It is a 12dB filter. Sound as well. A bit wild at extreme Q, remind a little bit the Korg MS20 on this point . Frequency modulation on CV inputs work well with this filter!

Schematics

The vintage schematic has been sligthly adapted to modern modular synthesizer standarts

Added output amplifier-buffer stages for both outputs with a gain of 11, because the audio level on outputs is rather low .
The vintage filter was powered with +/-12.5V. The clone can also work under +/-15V .
CVs calibrated because programmable aop have a range for the Iset pin were they work fine.
Added a reversible cutoff frequency CV attenuator (option)
A fixed attenuator ( 100k ajustable pot ) added to the audio input jack to avoid overload



This the thread on the Forum ,the layout is built and confirmed Sebo : http://www.electro-music.com/forum/topic-47831.html


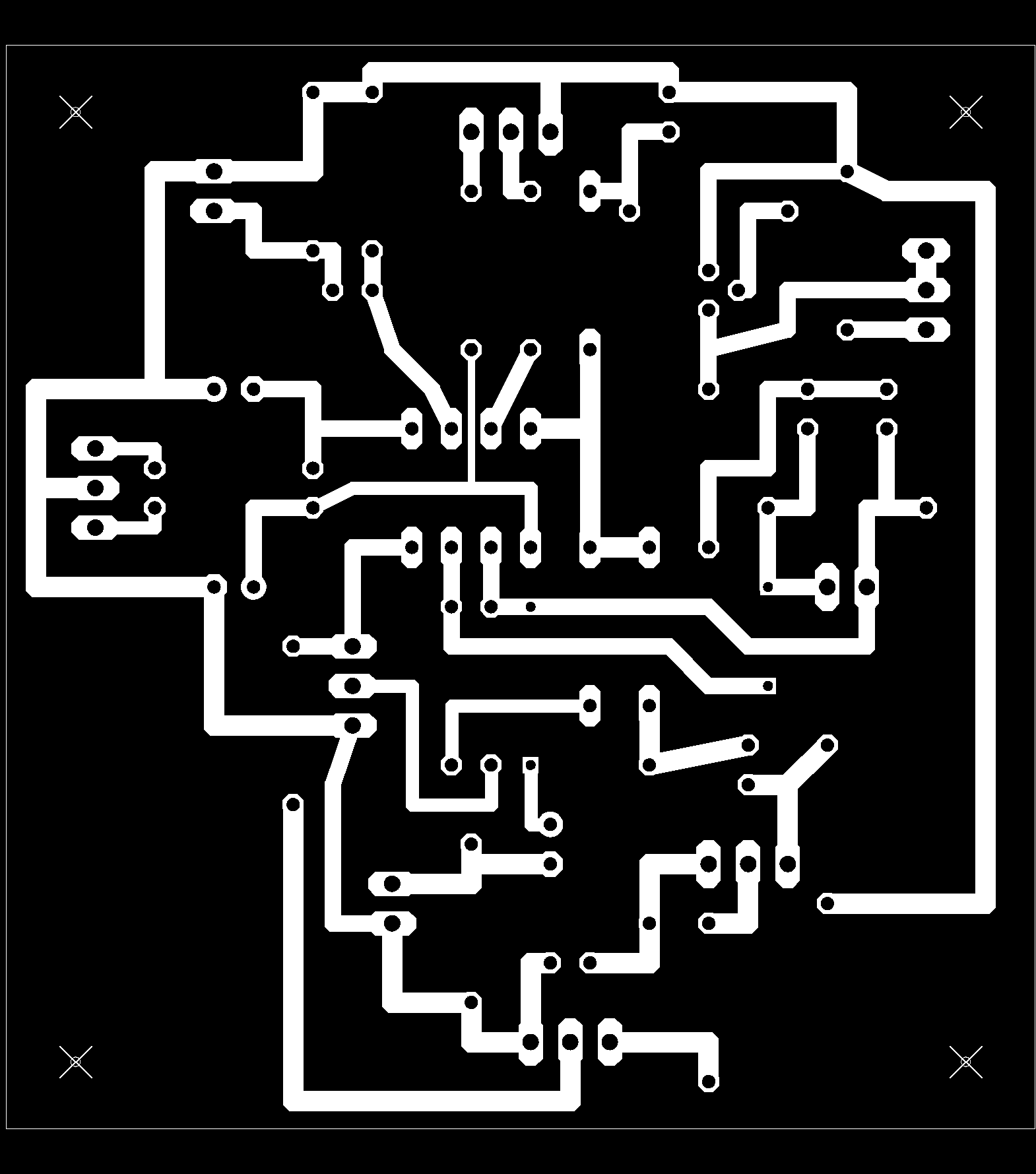

 Description:
 Filesize:  102.93 KB
 Viewed:  1394 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




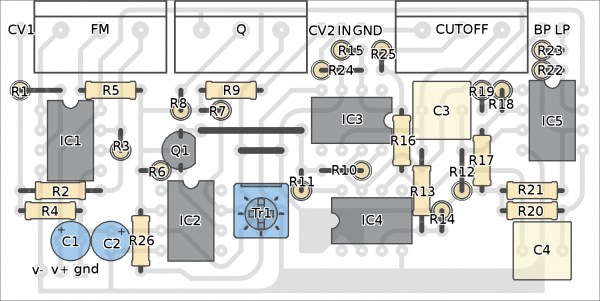

 Description:
 Filesize:  48.4 KB
 Viewed:  1433 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  271.5 KB
 Viewed:  2849 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Sun Jan 27, 2013 5:49 am    Post subject: Reply with quote  Mark this post and the followings unread

Waveform multiplier By Jurgen Haible ,inspired by Serge design ,and in this adapted Schematic a part of the Envelope generator circuit by Bergfotron , this is the page : http://hem.bredband.net/bersyn/EG/brapper.html


 Description:
 Filesize:  438.89 KB
 Viewed:  1687 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Sun Jan 27, 2013 5:55 am    Post subject: Reply with quote  Mark this post and the followings unread

Jurgen Haible design of Noize Gate as part of the transient gate project ,the whole page is here : http://www.jhaible.de/transient/jh_tran_gate.html inspired by SPL and Drawmer


Haible - Noize Gate.jpg
 Description:
 Filesize:  1.07 MB
 Viewed:  1676 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Haible - Noize Gate.jpg


Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Sun Jan 27, 2013 6:04 am    Post subject: Reply with quote  Mark this post and the followings unread

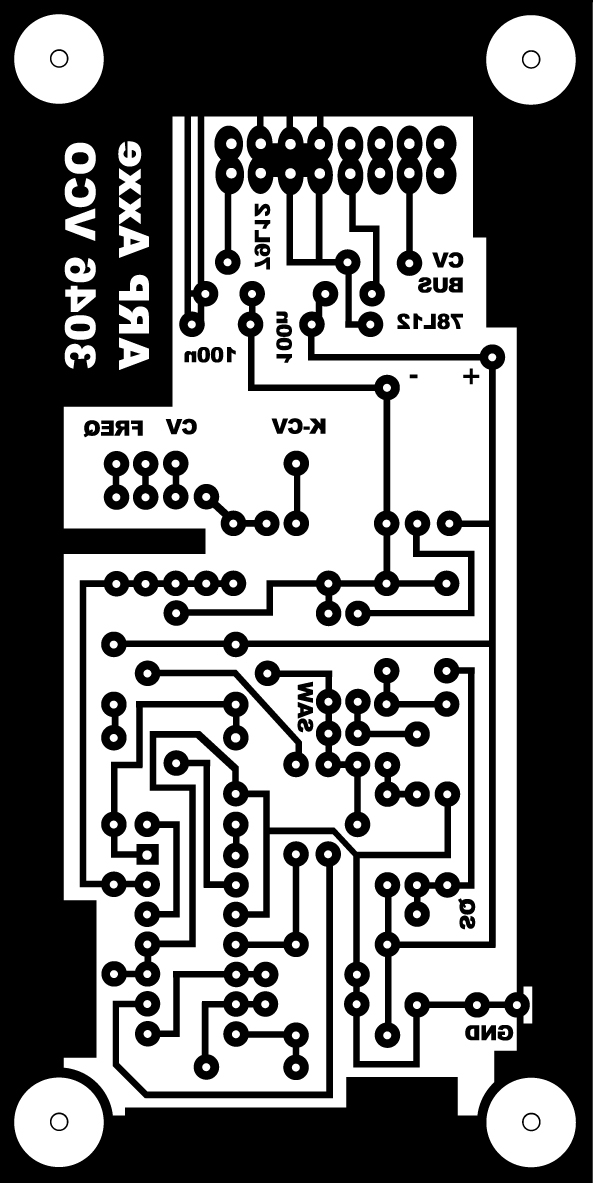

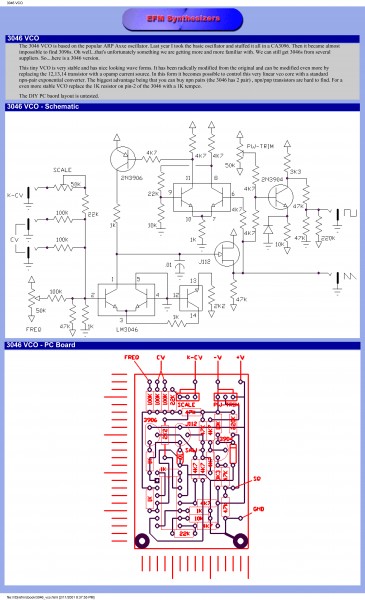

Arp Axxe VCO , Clone by EFM ,the layout and design is built and confirmed working on the following thread : http://www.electro-music.com/forum/topic-47625.html


 Description:
 Filesize:  2.89 MB
 Viewed:  2268 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  199.42 KB
 Viewed:  1324 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Sun Jan 27, 2013 6:21 am    Post subject: Reply with quote  Mark this post and the followings unread

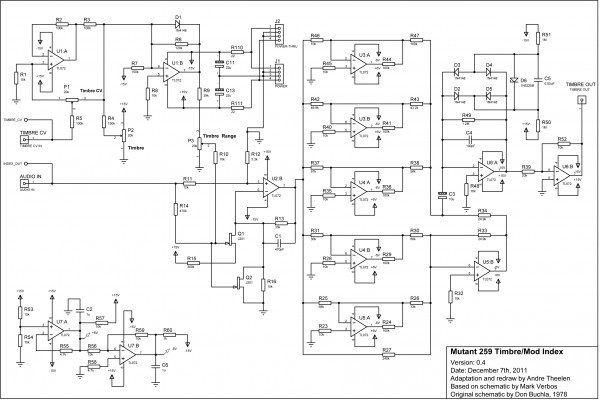

Buchla 259 Timbre Section ,redrawn and adapted by Andre Theelen ,here is the web page : http://www.ecalpemos.nl/2011/06/01/mutant-buchla-259-timbre-section/ with nice scope shots


 Description:
 Filesize:  747.27 KB
 Viewed:  2275 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Sun Jan 27, 2013 6:28 am    Post subject: Reply with quote  Mark this post and the followings unread

Diode Waveshaper by Jim Patchell from his page : Complex CV Processor

Similar to the simple processor, except, you can set two break points where you want the gain of the module to change. In this way, you can shape an incoming signal if many ways. This module was primarily intended to be used with the filters to create phonemes. link: http://www.oldcrows.net/~patchell/synthmodulesII/index.html


Patchell - Diode Shaper.jpg
 Description:
 Filesize:  490.55 KB
 Viewed:  1588 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Patchell - Diode Shaper.jpg


Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Sun Jan 27, 2013 7:22 am    Post subject: Reply with quote  Mark this post and the followings unread

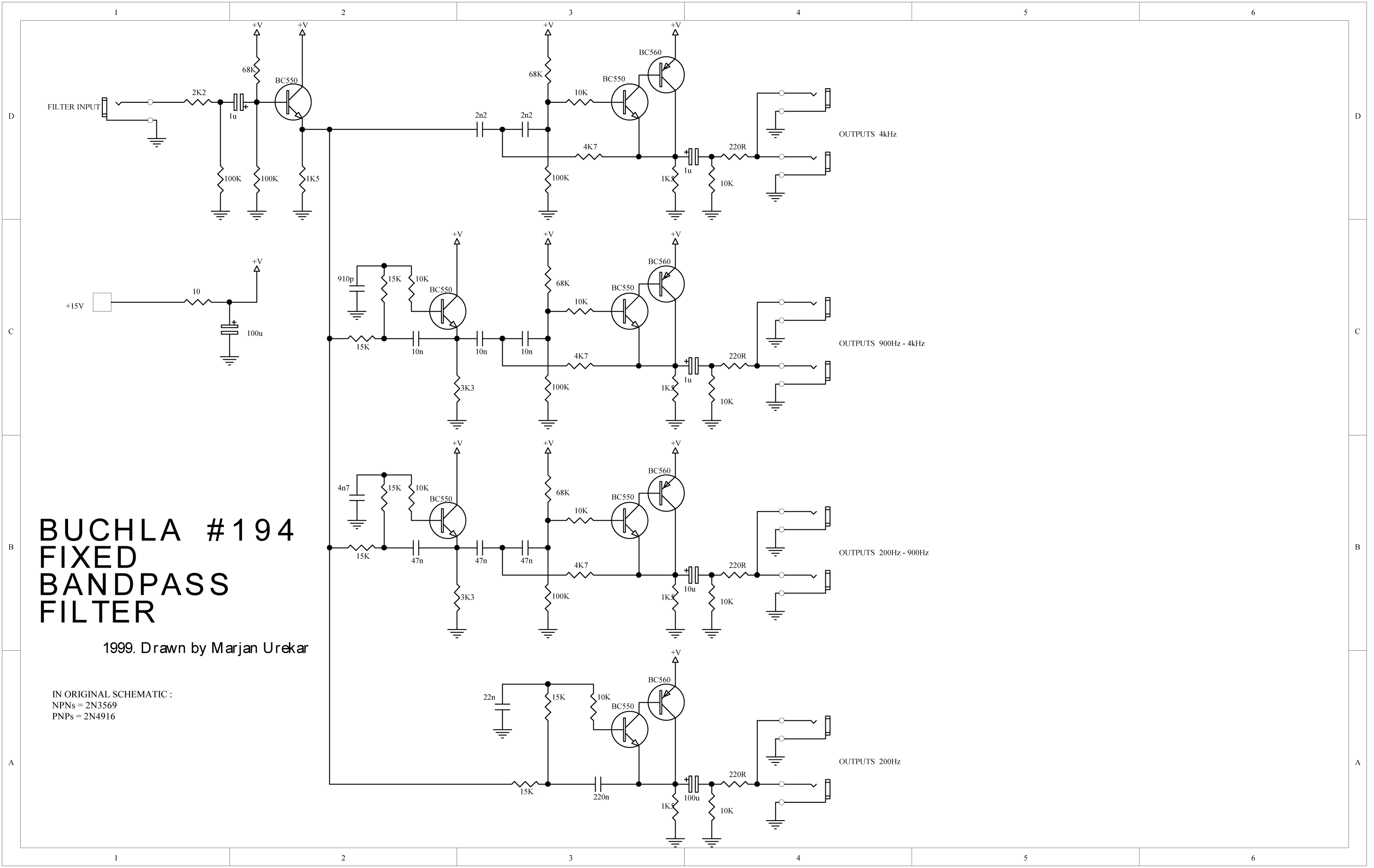

Buchla 194 Fixed Filter ,redrawn by Marjan Urekar , stripboard layout by Nardu from this thread : http://www.electro-music.com/forum/post-377289.html#377289


 Description:
 Filesize:  370 KB
 Viewed:  1792 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  207.86 KB
 Viewed:  1306 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Sun Jan 27, 2013 8:48 am    Post subject: Reply with quote  Mark this post and the followings unread

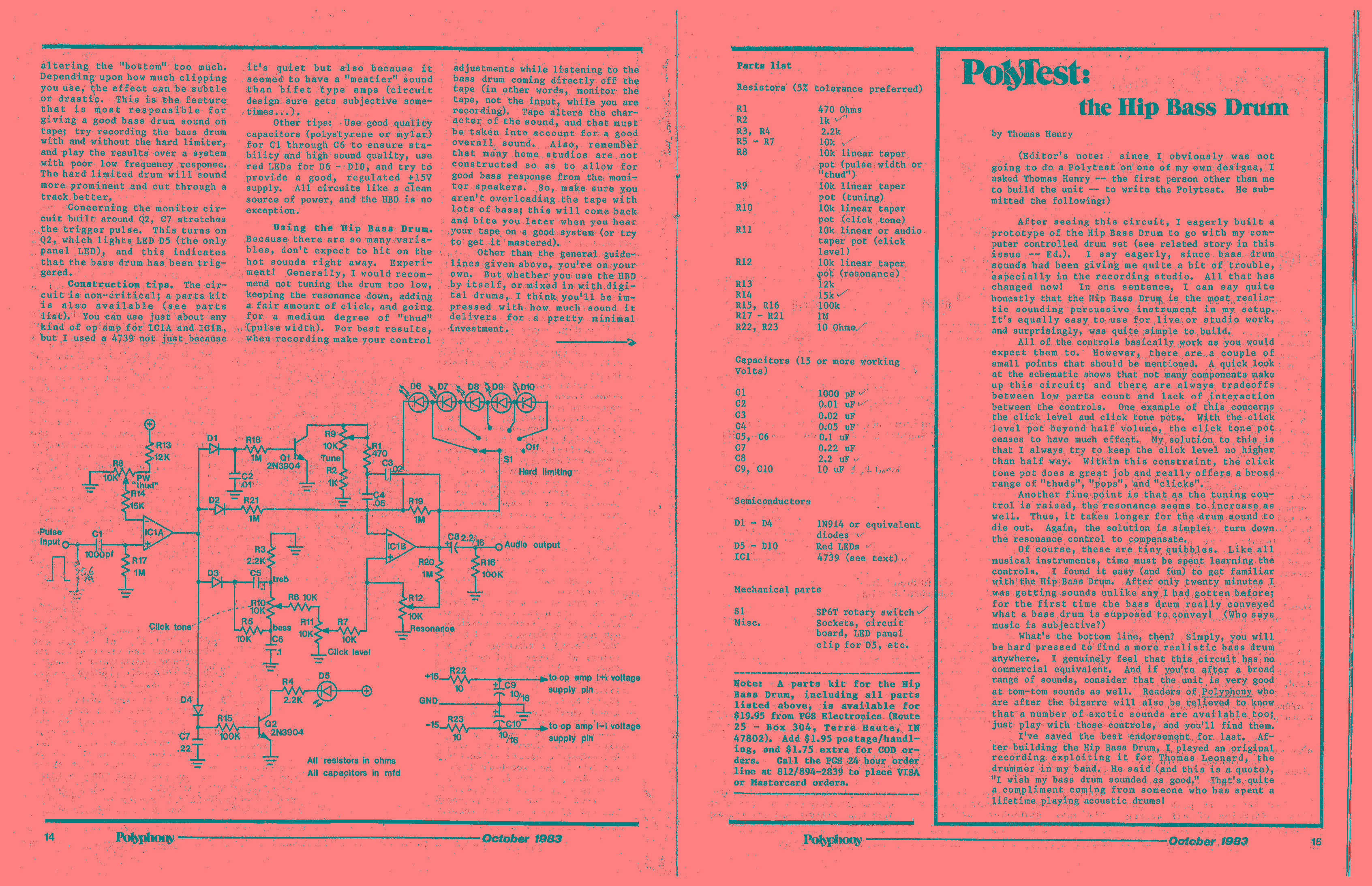

Hip Bass drum by Craig Anderton


 Description:
 Filesize:  604.93 KB
 Viewed:  1458 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  1.21 MB
 Viewed:  1990 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:

Download
 Filename:  hip_bass_drum_pcb_205.bmp
 Filesize:  347.52 KB
 Downloaded:  1270 Time(s)


 Description:

Download
 Filename:  hip_bass_drum_layout_200.bmp
 Filesize:  86.97 KB
 Downloaded:  1272 Time(s)

Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Sun Jan 27, 2013 8:53 am    Post subject: Reply with quote  Mark this post and the followings unread

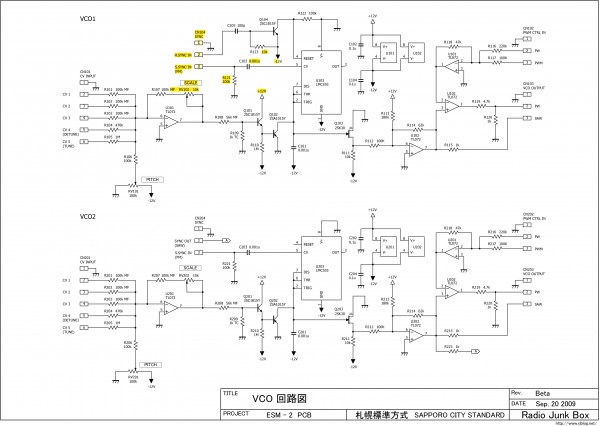

Japanese ESM VCO ,visit RJBlog for more info on the ESM synthesizer : http://www.rjblog.net/archives/2009/e000325.php


 Description:
 Filesize:  728.87 KB
 Viewed:  2074 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




Last edited by vladosh on Wed Jan 30, 2013 11:38 am; edited 1 time in total
Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Sun Jan 27, 2013 9:06 am    Post subject: Reply with quote  Mark this post and the followings unread

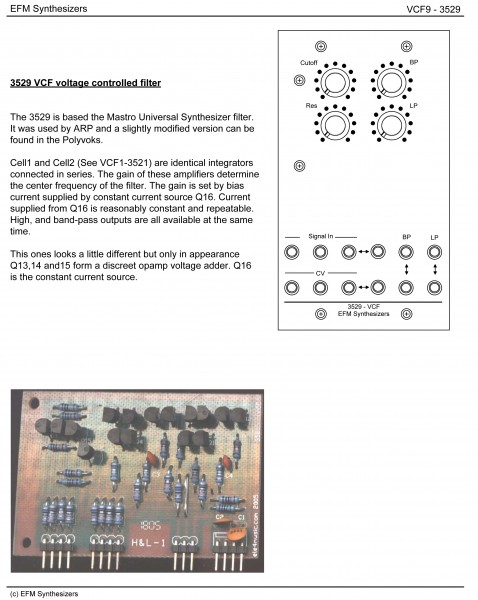

Maestro Universal Filter clone by EFM


 Description:
 Filesize:  1.32 MB
 Viewed:  1298 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  592.19 KB
 Viewed:  1731 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Sun Jan 27, 2013 9:32 am    Post subject: Reply with quote  Mark this post and the followings unread

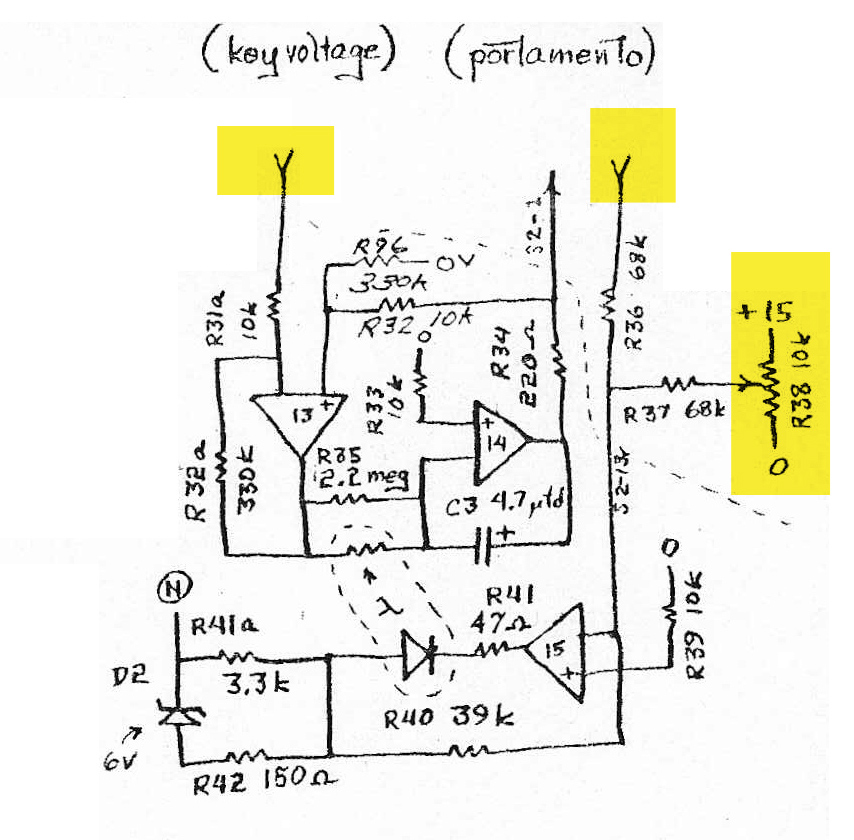

Harry Bissell's Morphlag circuit


 Description:
 Filesize:  10.84 KB
 Viewed:  2073 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Sun Jan 27, 2013 9:36 am    Post subject: Reply with quote  Mark this post and the followings unread

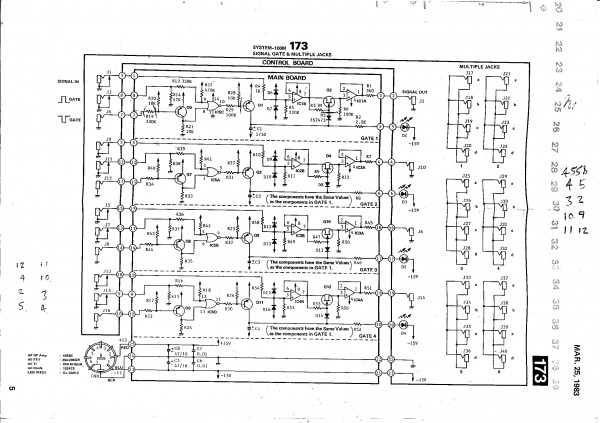

Roland 100M Signal Gate


 Description:
 Filesize:  1.23 MB
 Viewed:  1700 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Mon Jan 28, 2013 5:12 am    Post subject: Reply with quote  Mark this post and the followings unread

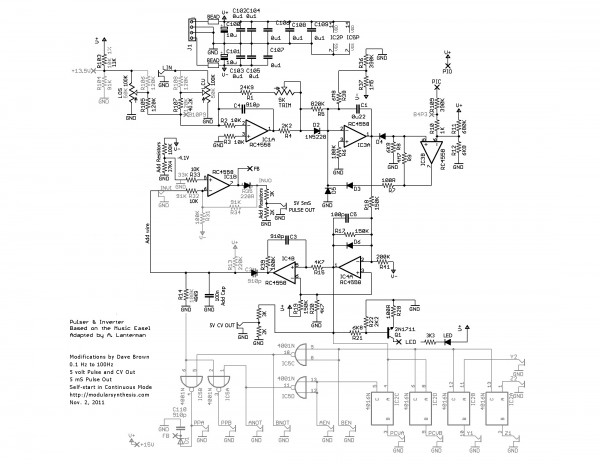

Buchla Pulser schematic from the MusicEasel , redrawn by A. Lanterman and Modified by Dave Brown , more info : http://modularsynthesis.com/lanterman/puls-cross-timbre/pls-crs-tmb.htm


DJB Pulser Rev1 Modifications - updated no error.jpg
 Description:
 Filesize:  574.96 KB
 Viewed:  1552 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

DJB Pulser Rev1 Modifications - updated no error.jpg


Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Mon Jan 28, 2013 5:38 am    Post subject: Reply with quote  Mark this post and the followings unread

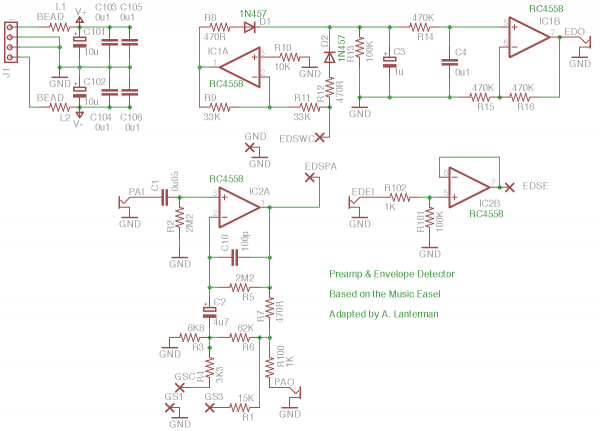

Buchla MusicEasel Envelope Follower .Original circuit by Don Buchla (used with his kind permission); adapted by Aaron Lanterman http://users.ece.gatech.edu/~lanterma/buchla/boards/mea_pead/mea_pead_rev1.html ,second circuit is envelope follower by Harry Bissell page is here: http://www.edn.com/design/analog/4344656/Envelope-follower-combines-fast-response-low-ripple


 Description:
 Filesize:  27.16 KB
 Viewed:  1472 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  347.18 KB
 Viewed:  1610 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Mon Jan 28, 2013 10:29 am    Post subject: Reply with quote  Mark this post and the followings unread

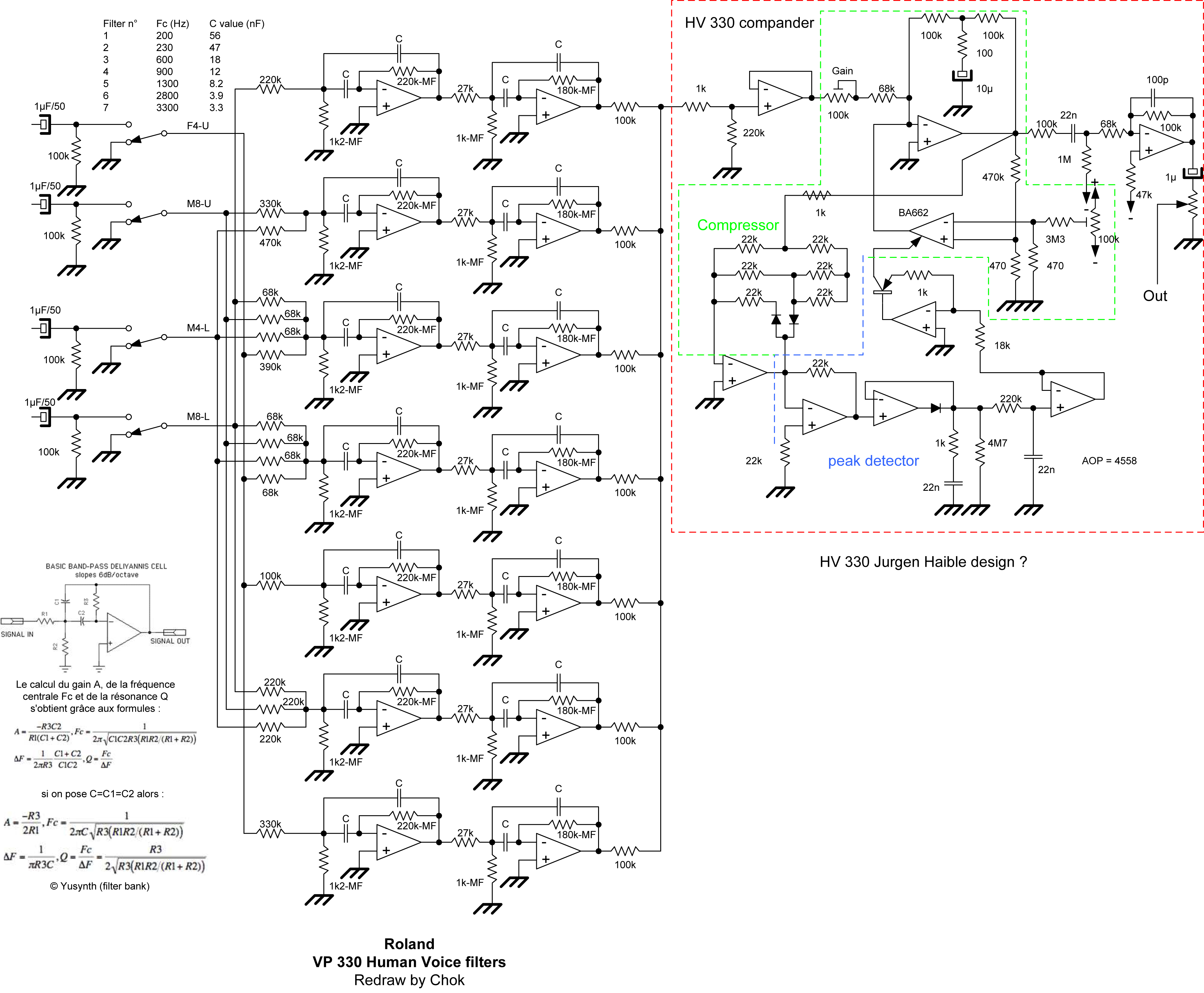

The Vocal Filter section of the Roland VP330 ,redrawn and built by Chok ,more on this topic : http://www.electro-music.com/forum/topic-53405.html ,more info on cloning this filter on this page : http://s127.beta.photobucket.com/user/the_garranimal/library/VP-330%20Human%20Voice%20Filter%20Clone


 Description:
 Filesize:  1.46 MB
 Viewed:  1599 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Mon Jan 28, 2013 10:47 am    Post subject: Reply with quote  Mark this post and the followings unread

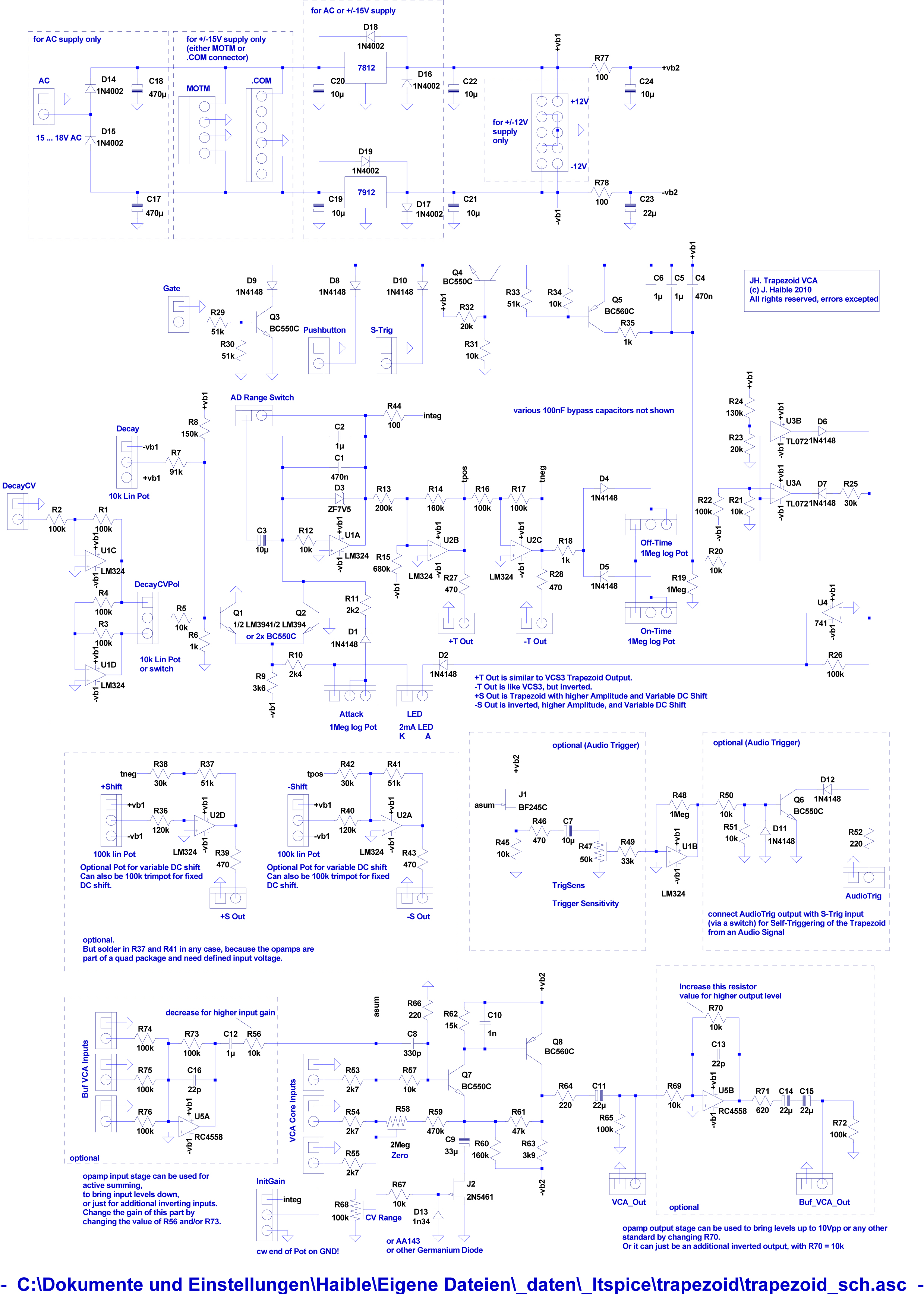

Jurgen Haible Trapezoid VCA ,the whole page is here : http://www.jhaible.de/trapezoid/trapezoid.html description from there :
Emulating the EMS VCS3 and Synthi A Trapezoid Generator without copying the actual circuit
Unique FET-based VCA included
Parameters not independend of each other - quirky and inspiring like the original
Positive and negative Polarity with variable DC shift
Self-Cycle Mode smoothly activated towards the end of Off-Time knob range
Standard Voltage Trigger and Switch Trigger inputs
3 Power options:
+/-15V with MOTM and Synthesizers.com connectors
+/-12V with "Euro standard" 10-pin connector
15V AC Wallwart - ideal for making a standalone box
Voltage controlled Decay with positive or negative amount
A variety of extra functions that you can implement, or omit.


 Description:
 Filesize:  2.09 MB
 Viewed:  1522 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Tue Jan 29, 2013 2:03 am    Post subject: Reply with quote  Mark this post and the followings unread

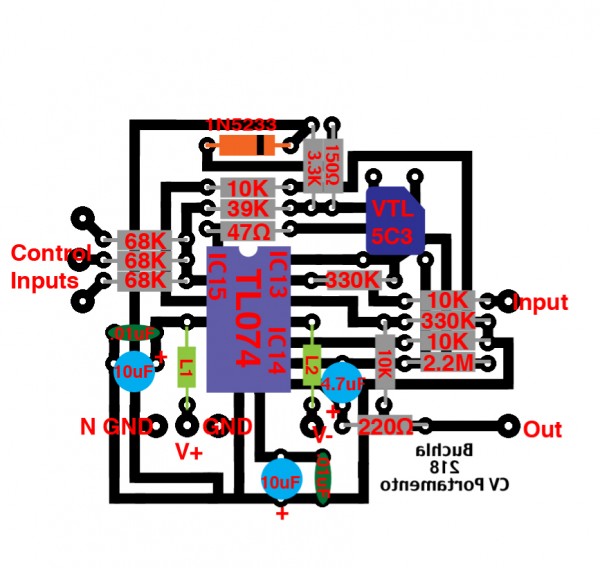

Buchla 218 Slew from this topic : http://www.electro-music.com/forum/topic-19064.html layout provided by vtl5c3


 Description:
 Filesize:  258.49 KB
 Viewed:  1167 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  276.41 KB
 Viewed:  1113 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  174.78 KB
 Viewed:  1288 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Tue Jan 29, 2013 2:17 am    Post subject: Reply with quote  Mark this post and the followings unread

Old Serge VCO using LM3900 and part of the wavemulitplier circuit ,redrawn by Osamu Hoshuyama


 Description:
 Filesize:  23.26 KB
 Viewed:  1910 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Tue Jan 29, 2013 2:23 am    Post subject: Reply with quote  Mark this post and the followings unread

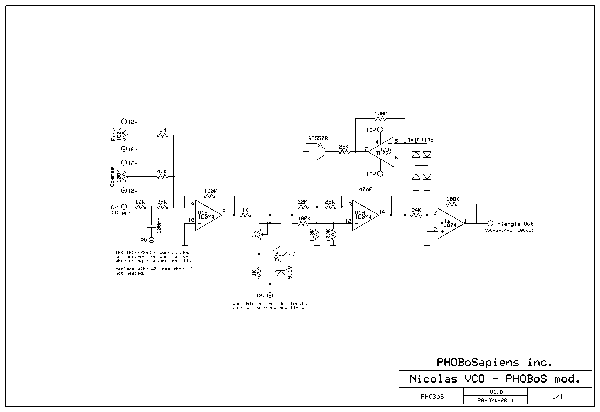

Nicolas' Super simple V/Hz VCO modified by Phobos ,from this topic : http://electro-music.com/forum/post-363816.html
I had build Nicolas' Super simple V/Hz VCO succesfully before and since it's a pretty simple circuit (for a VCO) I decided
to use it for this synth aswell. The first change I made was to get the amplitude up to +/-5Vpp I tried a couple
of things and I think the 4 diodes are actually a leftover from those experiments. But the easiest thing to do was
just to add an extra output amp. The highest frequency is allready limited by the circuit itself so with the resistor
values I choose it doesn't matter if the CV get's above +5V, the frequency just doesn't get higher.
On the low end however the thing starts acting a bit weird and then stops, so; zenerdiode limiter to the rescue.
As you can see this time I used the variable zener diode circuit I found which makes it much easier to set the
correct limit.
and then there is the resistor capacitor network on the input. Allthough my LFO's didn't seem to have any spikes
according to my scope (I added some caps to surpress those), the squarewaves did seem to cause some peaks on the output
of the VCO. so I experimented a bit which some different cap/resistor placements untill they were gone.
the frequency range might seem a bit limited but remember it was originally designed for a dronebox.
I also designed a sinewaveshaper with some diodes and a vactrol VCA but didn't have enough panel space. So it will
probably end up in a seperate case.


Nicolas VCO (PHOBoS mod).GIF
 Description:
 Filesize:  51.75 KB
 Viewed:  2016 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Nicolas VCO (PHOBoS mod).GIF


Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Tue Jan 29, 2013 2:59 am    Post subject: Reply with quote  Mark this post and the followings unread

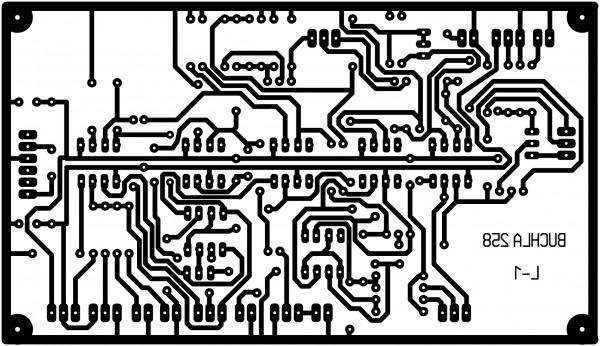

Buchla 258 VCO ,layout original by Mark Verbos ,modified Layout by L1 ,the topic is here : http://srv3.electro-music.com/forum/topic-16502-125.html


BUCHLA_1_258_169 Layout s.jpg
 Description:
 Filesize:  852.47 KB
 Viewed:  1529 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

BUCHLA_1_258_169 Layout s.jpg



BUCHLA_1_258_169 Layout.jpg
 Description:
 Filesize:  492.29 KB
 Viewed:  1269 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

BUCHLA_1_258_169 Layout.jpg



Buchla 258 J3RK annotated schematic.jpg
 Description:
 Filesize:  471.15 KB
 Viewed:  2572 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Buchla 258 J3RK annotated schematic.jpg


Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Tue Jan 29, 2013 9:17 am    Post subject: Reply with quote  Mark this post and the followings unread

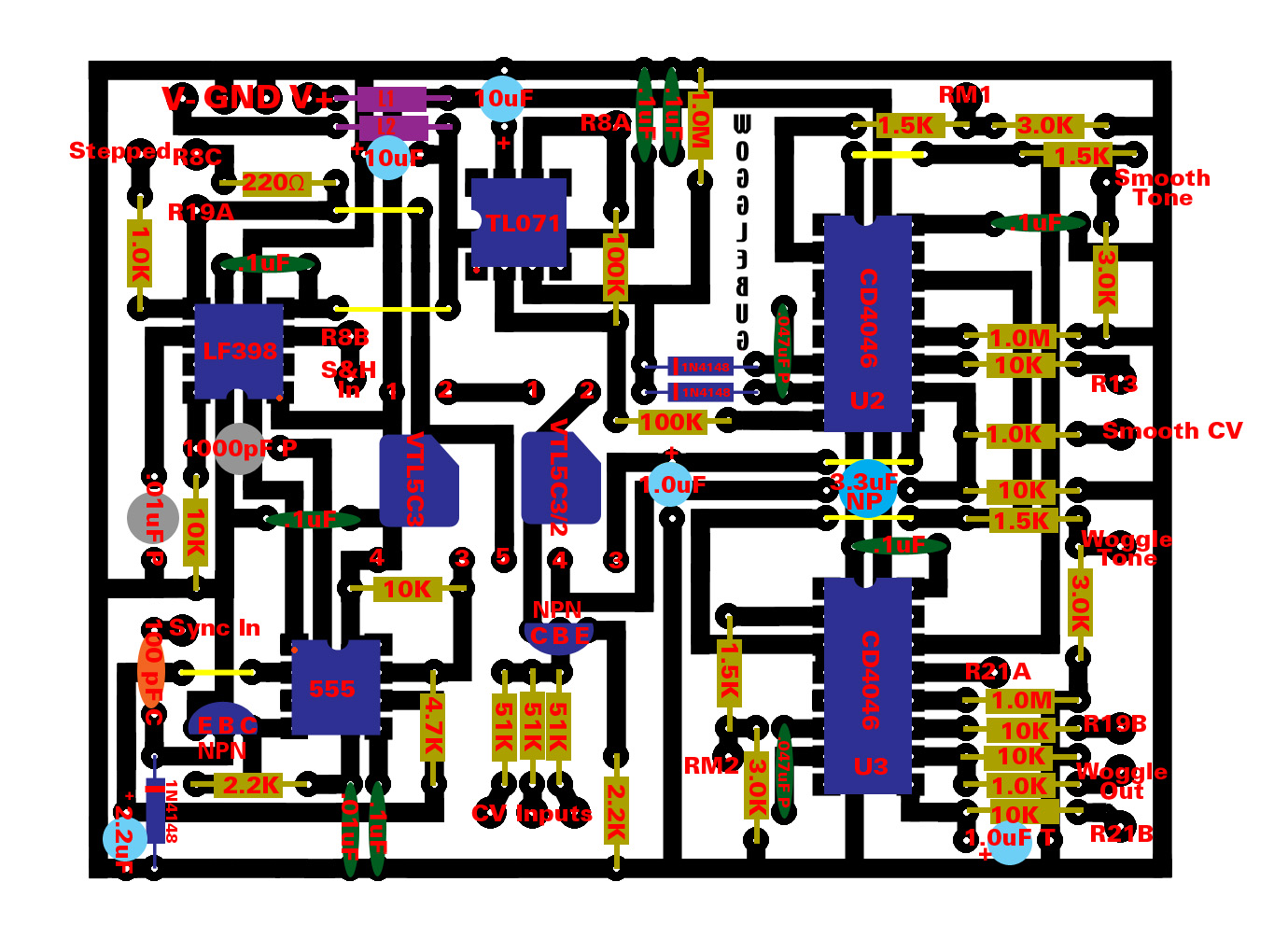

Grant Richter's Wogglebug ,layout by vtl5c3 ,the whole topic is here : http://electro-music.com/forum/topic-14064-25.html


 Description:
 Filesize:  911.4 KB
 Viewed:  1633 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  470.66 KB
 Viewed:  1173 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  229.03 KB
 Viewed:  1208 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Tue Jan 29, 2013 10:13 am    Post subject: Reply with quote  Mark this post and the followings unread

BUCHLAesque - Voltage Processor by Fonitronik and originally based on a Chris MacDonald design modified by Peter Grenader .From Fonik's site : This module incorporates two buchlaidian types of voltage and audio processing.

The CD processor is designed to give Buchlidian type processing for control voltages. Two channels, both with manual +/-processing, offset & glide controls. This circuit was originally based on a Chris MacDonald design modified by Peter Grenader. Besides some minor changes i incorporated a lag pot, a trimmer for calibration of a center taped pot (+/-processing) and there's a resistor missing in the original schematic to bring the LEDs to live.
BTW wiring the offset pot between the supply rails gives you the possibility of negative offset, too... link : http://www.modular.fonik.de/Page15.html


dual voltage processor-1.jpg
 Description:
 Filesize:  725.61 KB
 Viewed:  1304 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

dual voltage processor-1.jpg



dual voltage processor-2.jpg
 Description:
 Filesize:  309.27 KB
 Viewed:  1578 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

dual voltage processor-2.jpg



dual voltage processor-3.jpg
 Description:
 Filesize:  320.37 KB
 Viewed:  1213 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

dual voltage processor-3.jpg



dual voltage processor-4.jpg
 Description:
 Filesize:  150.49 KB
 Viewed:  1128 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

dual voltage processor-4.jpg


Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Tue Jan 29, 2013 11:59 am    Post subject: Reply with quote  Mark this post and the followings unread

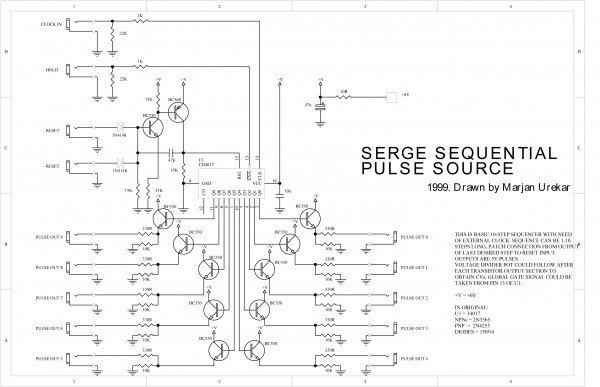

Serge Sequential pulse redrawn by Marjan Urekar ,website : http://urekarm.tripod.com/synth/download.html


 Description:
 Filesize:  590.33 KB
 Viewed:  1676 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 659
Location: macedonia
Audio files: 46

PostPosted: Tue Jan 29, 2013 12:33 pm    Post subject: Reply with quote  Mark this post and the followings unread

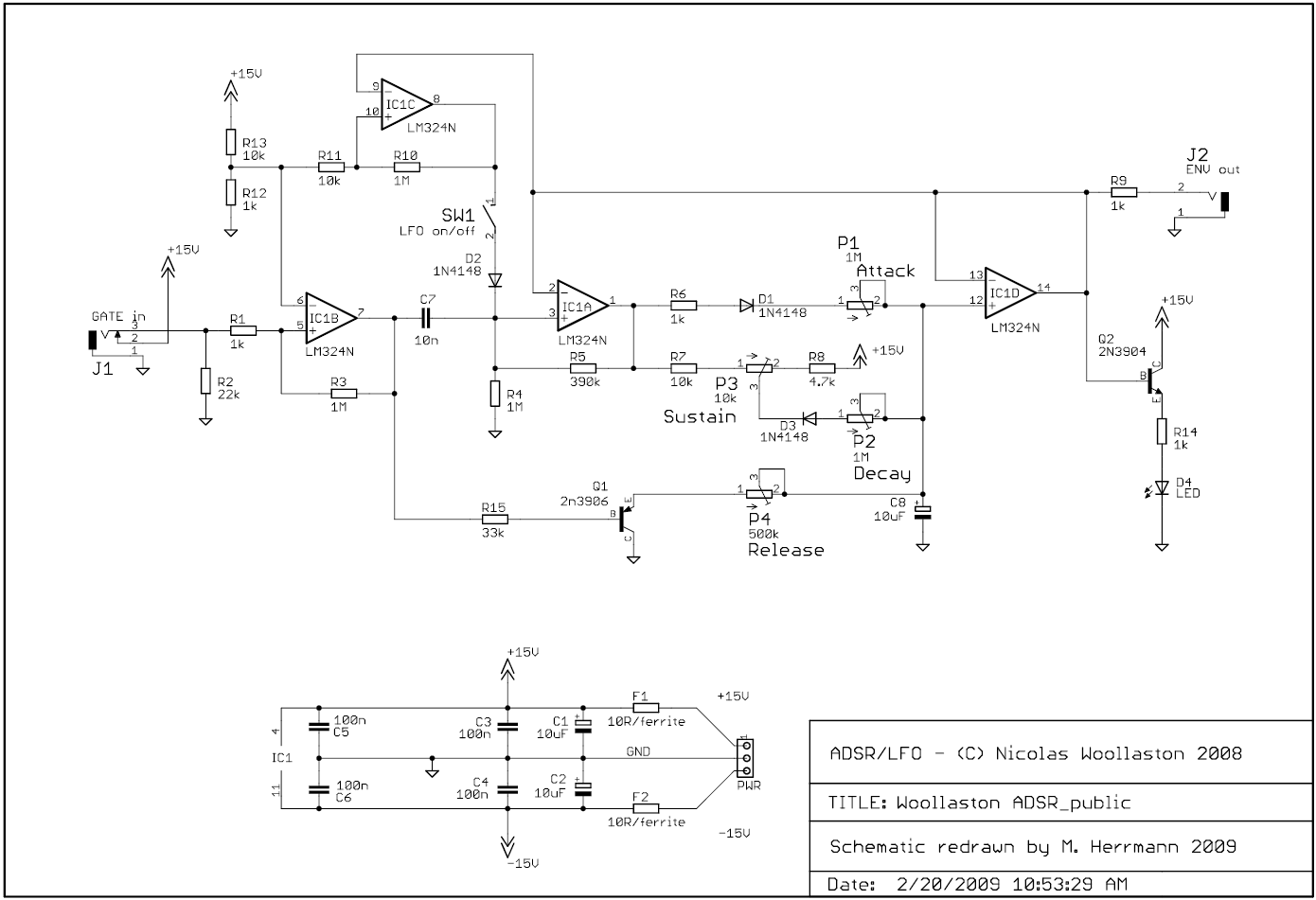

ADSR design by Nicolas Woollaston redrawn by M. Herrmann , more on this thread : http://electro-music.com/forum/topic-31473.html


 Description:
 Filesize:  51.32 KB
 Viewed:  1805 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
Display posts from previous:
Post new topic   Reply to topic Moderators: jksuperstar, Scott Stites, Uncle Krunkus
Page 1 of 11 [252 Posts]
View unread posts
View new posts in the last week
Goto page: 1, 2, 3, ..., 9, 10, 11 Next
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
