BugCrusher Schematics
Post new topic   Reply to topic Moderators: jksuperstar, Scott Stites, Uncle Krunkus
Page 1 of 1 [6 Posts]		 View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Author Message
bugbrand



Joined: Nov 27, 2005
Posts: 846
Location: Bristol, UK
Audio files: 1
G2 patch files: 1
PostPosted: Wed Sep 20, 2006 11:16 am    Post subject: BugCrusher Schematics Reply with quote  Mark this post and the followings unread
Ok - just to have these up as files on the forum..
(if I've done it right..?..)

 Description:

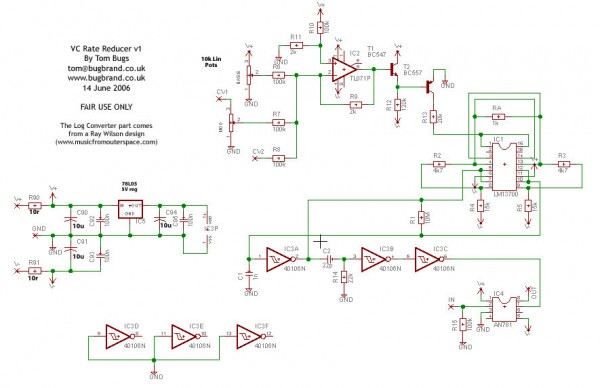

Schematic for voltage controlled BugCrusher circuit (Sample-rate reducer effect) using the AD781 Sample & Hold amp.
 Filesize:  106.71 KB
 Viewed:  1653 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

 Description:
Schematic for non-voltage-controlled BugCrusher circuit (Sample-rate reducer effect) using the AD781 Sample&Hold amp.
 Filesize:  73.36 KB
 Viewed:  997 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.


_________________
http://www.bugbrand.co.uk
http://www.bugbrand.blogspot.com
Back to top
View user's profile Send private message Visit poster's website
StephenGiles



Joined: Apr 17, 2006
Posts: 507
Location: England
PostPosted: Wed Sep 20, 2006 12:01 pm    Post subject: Reply with quote  Mark this post and the followings unread
What does it do?
Back to top
View user's profile Send private message
blue hell
Site Admin


Joined: Apr 03, 2004
Posts: 24673
Location: The Netherlands, Enschede
Audio files: 330
G2 patch files: 320
PostPosted: Wed Sep 20, 2006 12:31 pm    Post subject: Reply with quote  Mark this post and the followings unread
For more info see : http://electro-music.com/forum/topic-11369.html
_________________
Jan
also .. could someone please turn down the thermostat a bit.
Posted Image, might have been reduced in size. Click Image to view fullscreen.
9 3 4 .. erm .. not 13 then? .. hmm, ah eight! .. yeah yeah as in 8647 .. 47 is an 88 .. pwew .. numbles!
Back to top
View user's profile Send private message Visit poster's website
v-un-v
Janitor
Janitor


Joined: May 16, 2005
Posts: 8932
Location: Birmingham, England, UK
Audio files: 11
G2 patch files: 1
PostPosted: Wed Sep 20, 2006 12:39 pm    Post subject: Reply with quote  Mark this post and the followings unread
Argghhh!!

TOM!

I didn't mean here, I meant on the other thread (thanks Jan Smile )

Nevermind- it was all part of a great plan to make this one sticky too- but its kinda backfired Laughing Laughing Laughing

I'll sort it...but not right now...or perhaps yes??

I've been up since 6am and I'm now knackered Sad
_________________
ACHTUNG!
ALLES TURISTEN UND NONTEKNISCHEN LOOKENPEEPERS!
DAS KOMPUTERMASCHINE IST NICHT FÜR DER GEFINGERPOKEN UND MITTENGRABEN! ODERWISE IST EASY TO SCHNAPPEN DER SPRINGENWERK, BLOWENFUSEN UND POPPENCORKEN MIT SPITZENSPARKSEN.
IST NICHT FÜR GEWERKEN BEI DUMMKOPFEN. DER RUBBERNECKEN SIGHTSEEREN KEEPEN DAS COTTONPICKEN HÄNDER IN DAS POCKETS MUSS.
ZO RELAXEN UND WATSCHEN DER BLINKENLICHTEN.
Back to top
View user's profile Send private message Send e-mail
blue hell
Site Admin


Joined: Apr 03, 2004
Posts: 24673
Location: The Netherlands, Enschede
Audio files: 330
G2 patch files: 320
PostPosted: Wed Sep 20, 2006 12:43 pm    Post subject: Reply with quote  Mark this post and the followings unread
Very Happy
_________________
Jan
also .. could someone please turn down the thermostat a bit.
Posted Image, might have been reduced in size. Click Image to view fullscreen.
9 3 4 .. erm .. not 13 then? .. hmm, ah eight! .. yeah yeah as in 8647 .. 47 is an 88 .. pwew .. numbles!
Back to top
View user's profile Send private message Visit poster's website
v-un-v
Janitor
Janitor


Joined: May 16, 2005
Posts: 8932
Location: Birmingham, England, UK
Audio files: 11
G2 patch files: 1
PostPosted: Wed Sep 20, 2006 12:49 pm    Post subject: Reply with quote  Mark this post and the followings unread
StephenGiles wrote:
What does it do?


It is designed to remotely remove your teeth fillings by way of finding their resonant frequency, thus making them levitate from there sockets!!

(just kidding Very Happy )

- listen to the mp3's on the mirror thread

Maybe I'll make both threads sticky?

OTOH, perhaps not Shocked Laughing
_________________
ACHTUNG!
ALLES TURISTEN UND NONTEKNISCHEN LOOKENPEEPERS!
DAS KOMPUTERMASCHINE IST NICHT FÜR DER GEFINGERPOKEN UND MITTENGRABEN! ODERWISE IST EASY TO SCHNAPPEN DER SPRINGENWERK, BLOWENFUSEN UND POPPENCORKEN MIT SPITZENSPARKSEN.
IST NICHT FÜR GEWERKEN BEI DUMMKOPFEN. DER RUBBERNECKEN SIGHTSEEREN KEEPEN DAS COTTONPICKEN HÄNDER IN DAS POCKETS MUSS.
ZO RELAXEN UND WATSCHEN DER BLINKENLICHTEN.
Back to top
View user's profile Send private message Send e-mail
