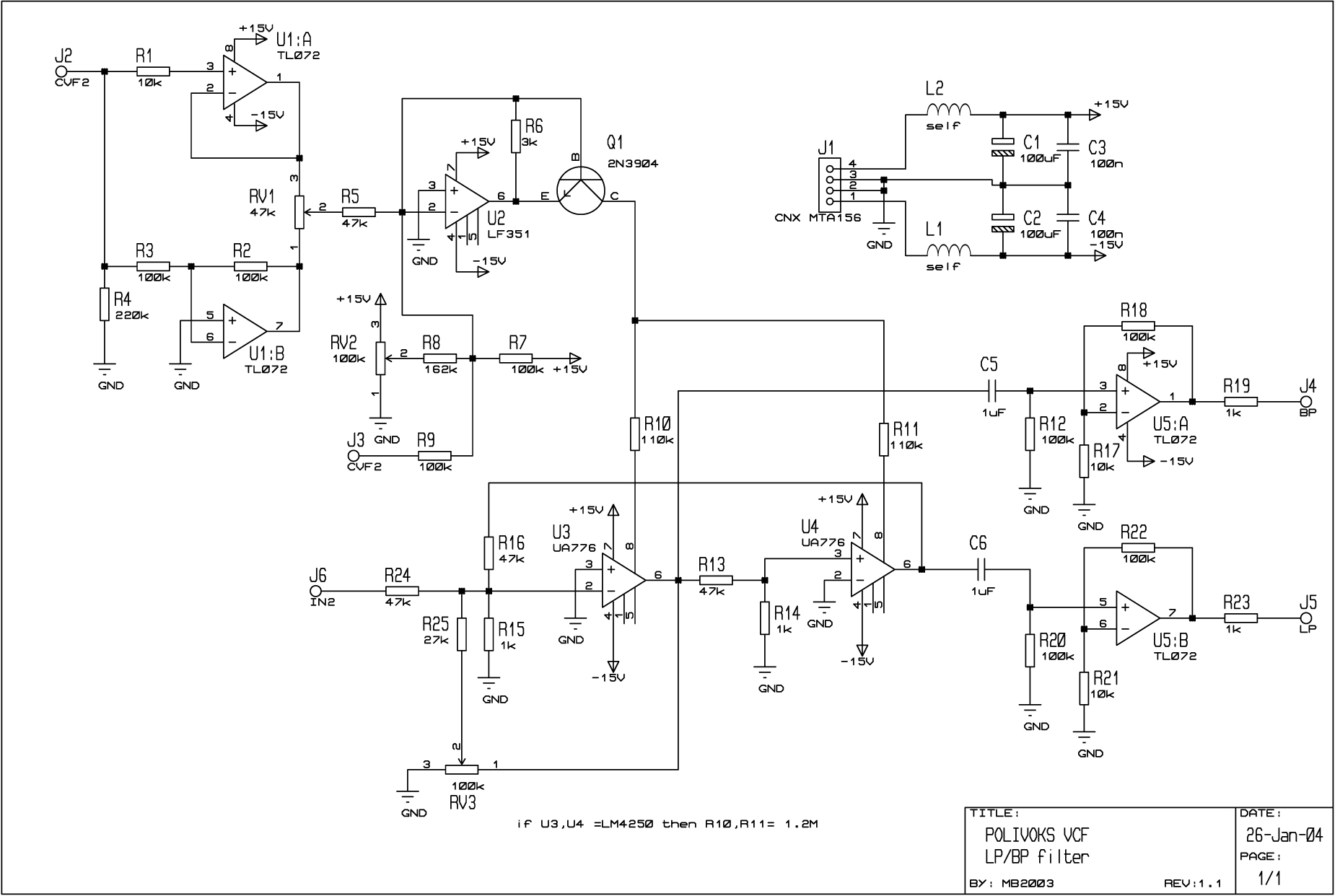

This filter is a clone of the famous vintage russian analog synthetiser named .Inside this synth there is an incredible and very original filter invented by Vladimir Kuzmin. Please visit his web site at http://www.muztech.com . It is a Lowpass ( LP) and Bandpass (BP) voltage controled filter with a special design and sound . A Vodka filter...The clone contains only cheap common parts, and it is very simple to build... No calibration trimmers or accurate tempco stages required, it is not the spirit of this beast from the far East ...

Unlike most of Voltage controled analog filters who use a combination of a fixed capacitor with a variable resistor element ( OTA, opto,etc..) the filter core here is just a pair of programmable low power operational amplifiers ( PLPOA?). At first sight, it look like a classic SVF but with a difference: there is no capacitors ! CV modulations are applied on the current setting pin (Iset) to reduce or increase the GainBandwith of the aop who act as a variable time constant RC element. It is a 12dB filter. Sound as well. A bit wild at extreme Q, remind a little bit the Korg MS20 on this point . Frequency modulation on CV inputs work well with this filter!

Schematics

The vintage schematic has been sligthly adapted to modern modular synthesizer standarts

Added output amplifier-buffer stages for both outputs with a gain of 11, because the audio level on outputs is rather low .
The vintage filter was powered with +/-12.5V. The clone can also work under +/-15V .
CVs calibrated because programmable aop have a range for the Iset pin were they work fine.
Added a reversible cutoff frequency CV attenuator (option)
A fixed attenuator ( 100k ajustable pot ) added to the audio input jack to avoid overload

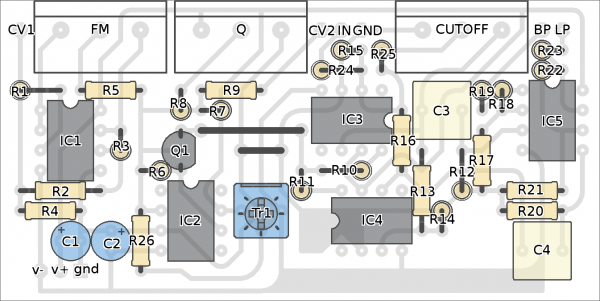

This the thread on the Forum ,the layout is built and confirmed Sebo : http://www.electro-music.com/forum/topic-47831.html

---

Description:
Filesize:	102.93 KB
Viewed:	1325 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Description:
Filesize:	48.4 KB
Viewed:	1360 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Description:
Filesize:	271.5 KB
Viewed:	2684 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

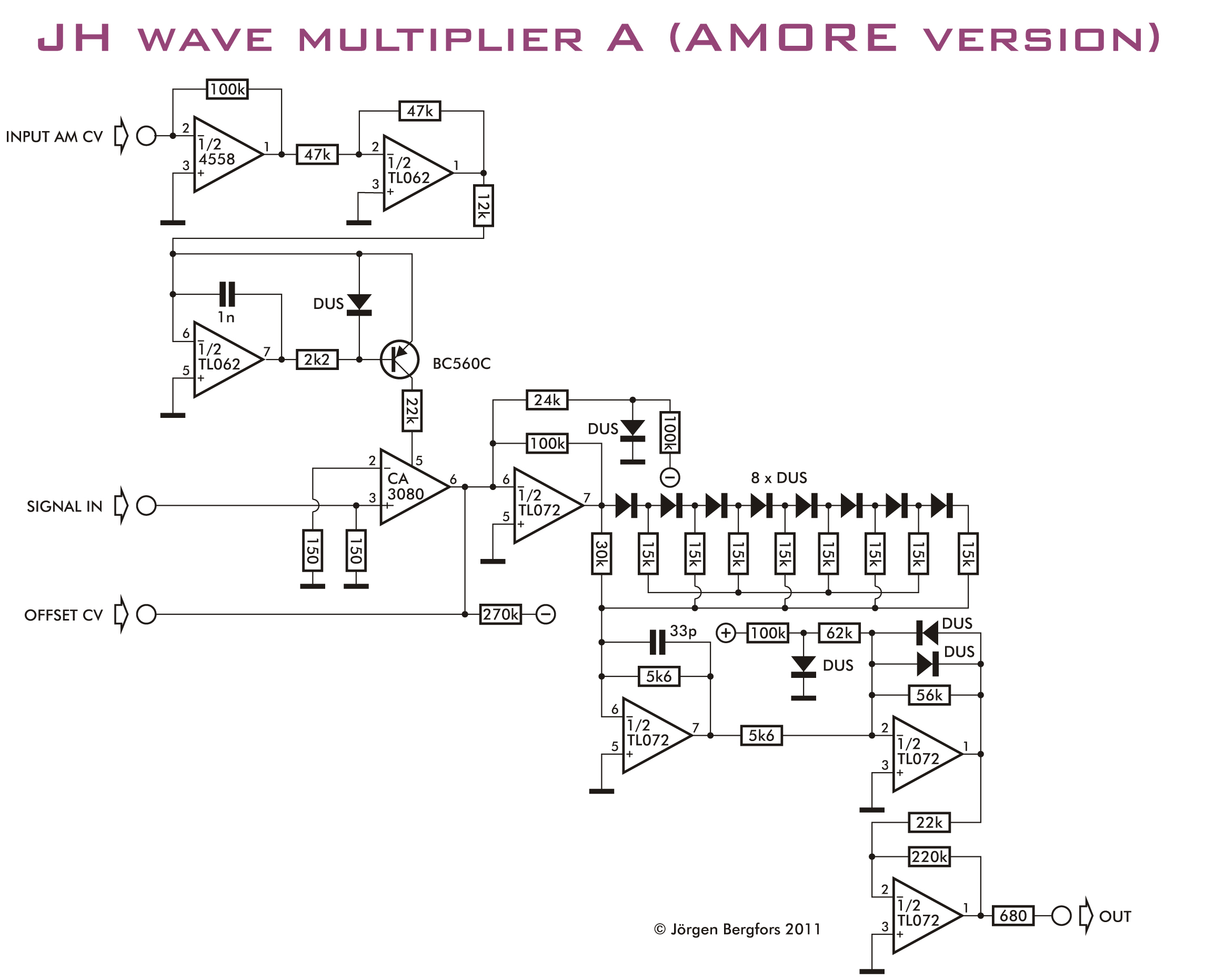

Waveform multiplier By Jurgen Haible ,inspired by Serge design ,and in this adapted Schematic a part of the Envelope generator circuit by Bergfotron , this is the page : http://hem.bredband.net/bersyn/EG/brapper.html

---

Description:
Filesize:	438.89 KB
Viewed:	1584 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

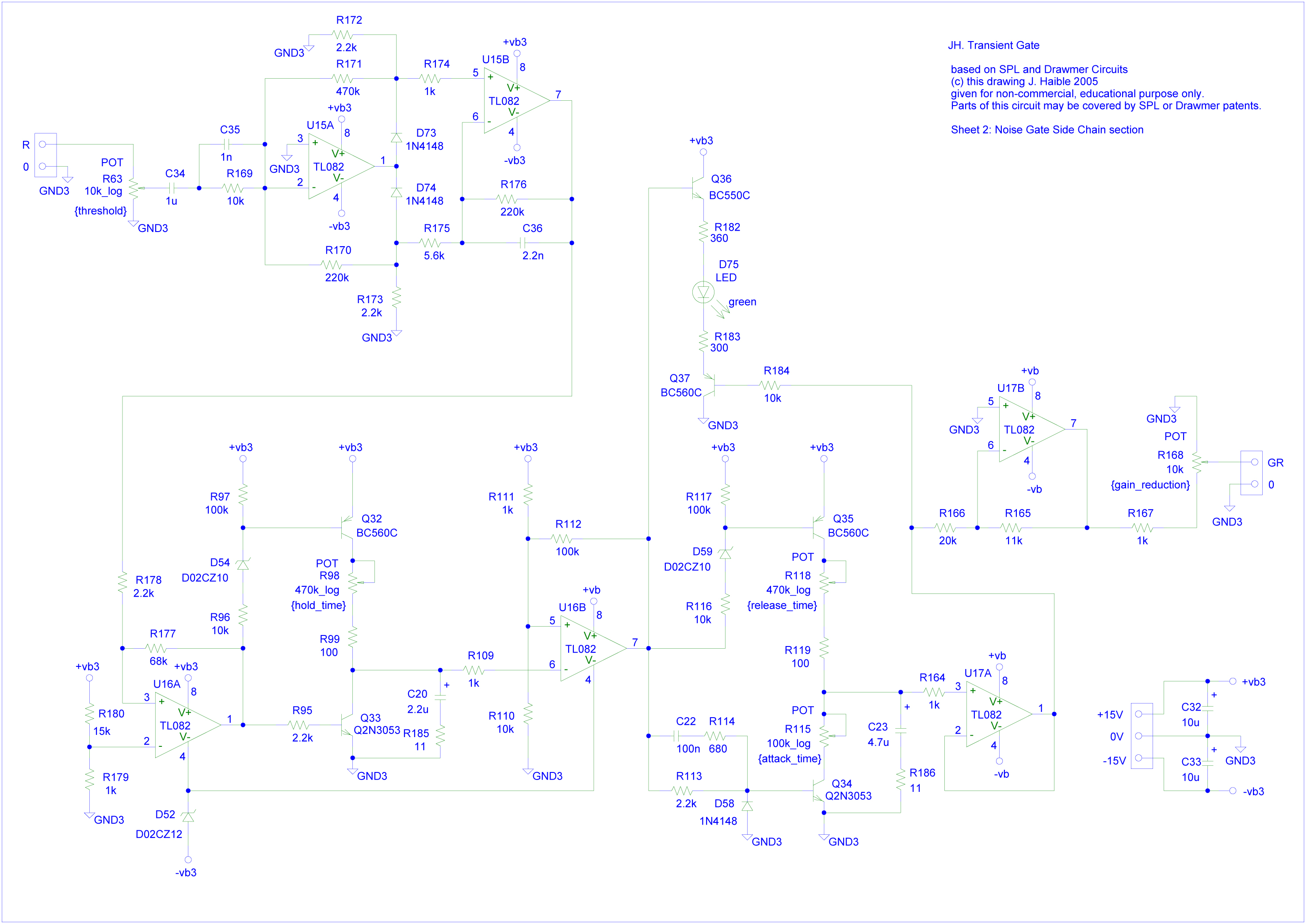

Jurgen Haible design of Noize Gate as part of the transient gate project ,the whole page is here : http://www.jhaible.de/transient/jh_tran_gate.html inspired by SPL and Drawmer

---

Haible - Noize Gate.jpg
Description:
Filesize:	1.07 MB
Viewed:	1594 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

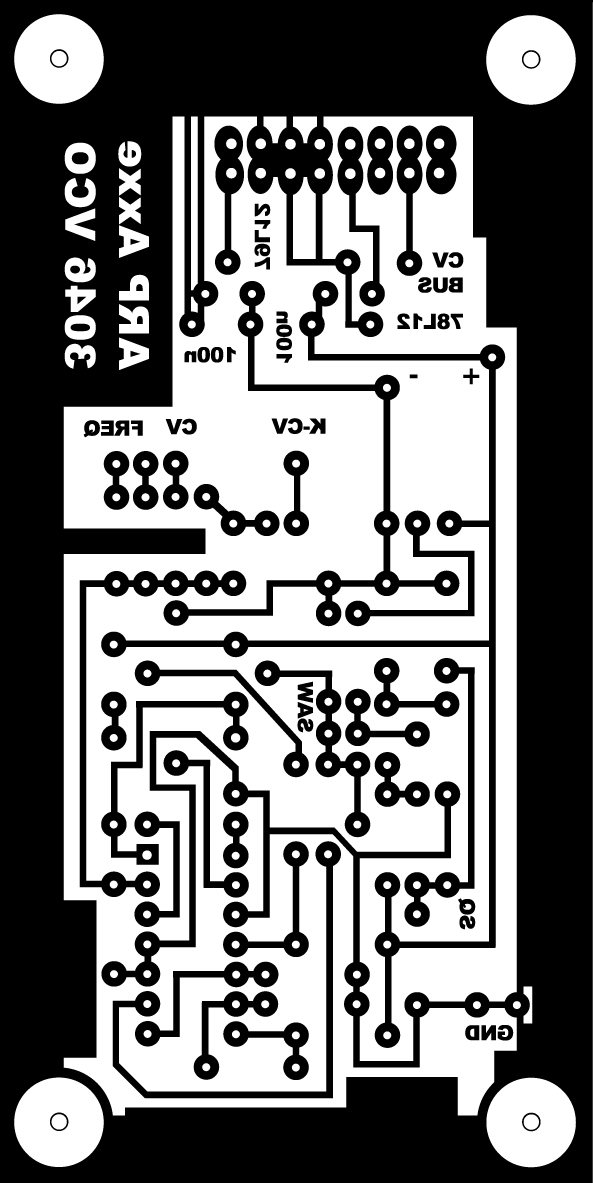

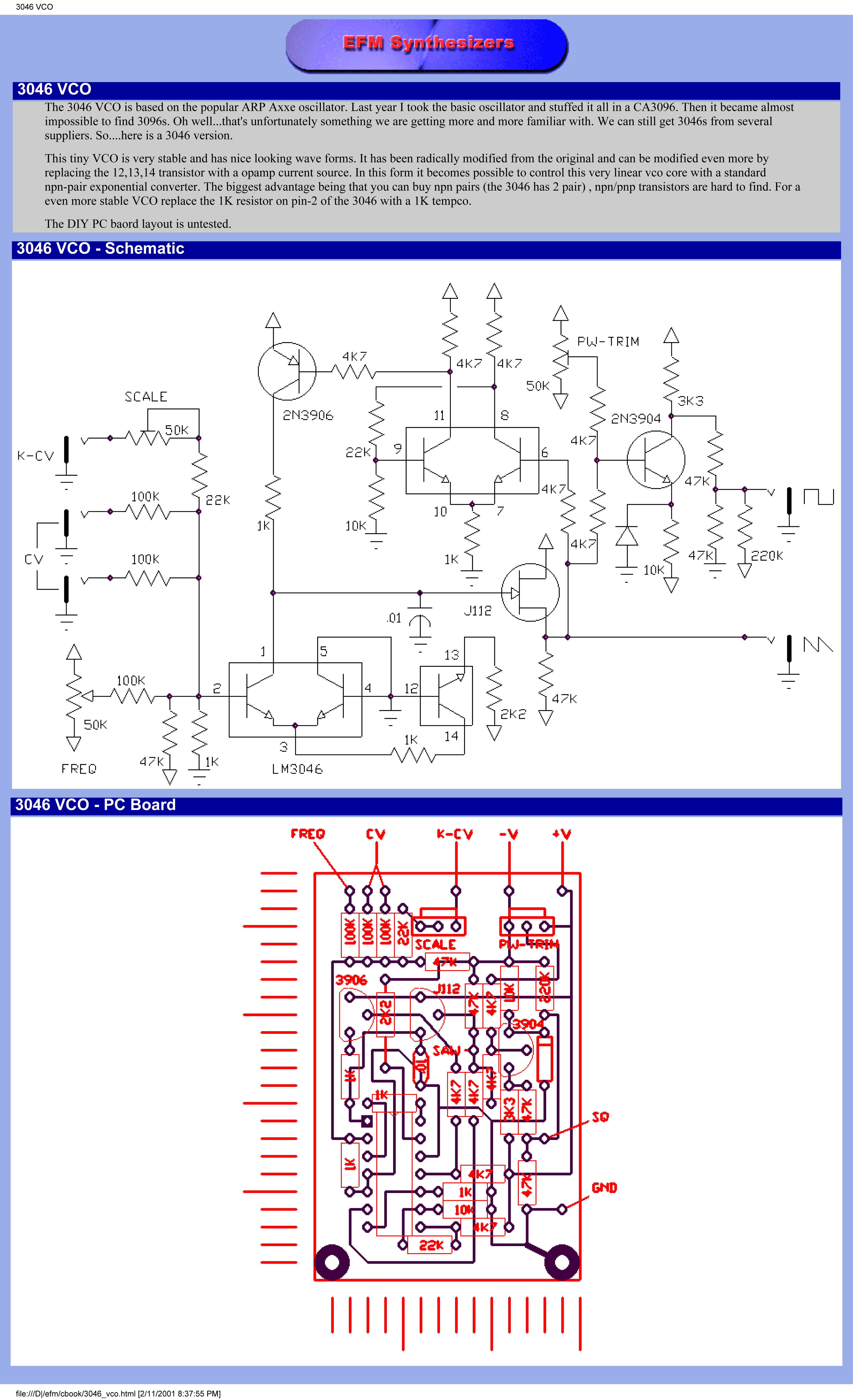

Arp Axxe VCO , Clone by EFM ,the layout and design is built and confirmed working on the following thread : http://www.electro-music.com/forum/topic-47625.html

---

Description:
Filesize:	2.89 MB
Viewed:	2149 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Description:
Filesize:	199.42 KB
Viewed:	1262 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

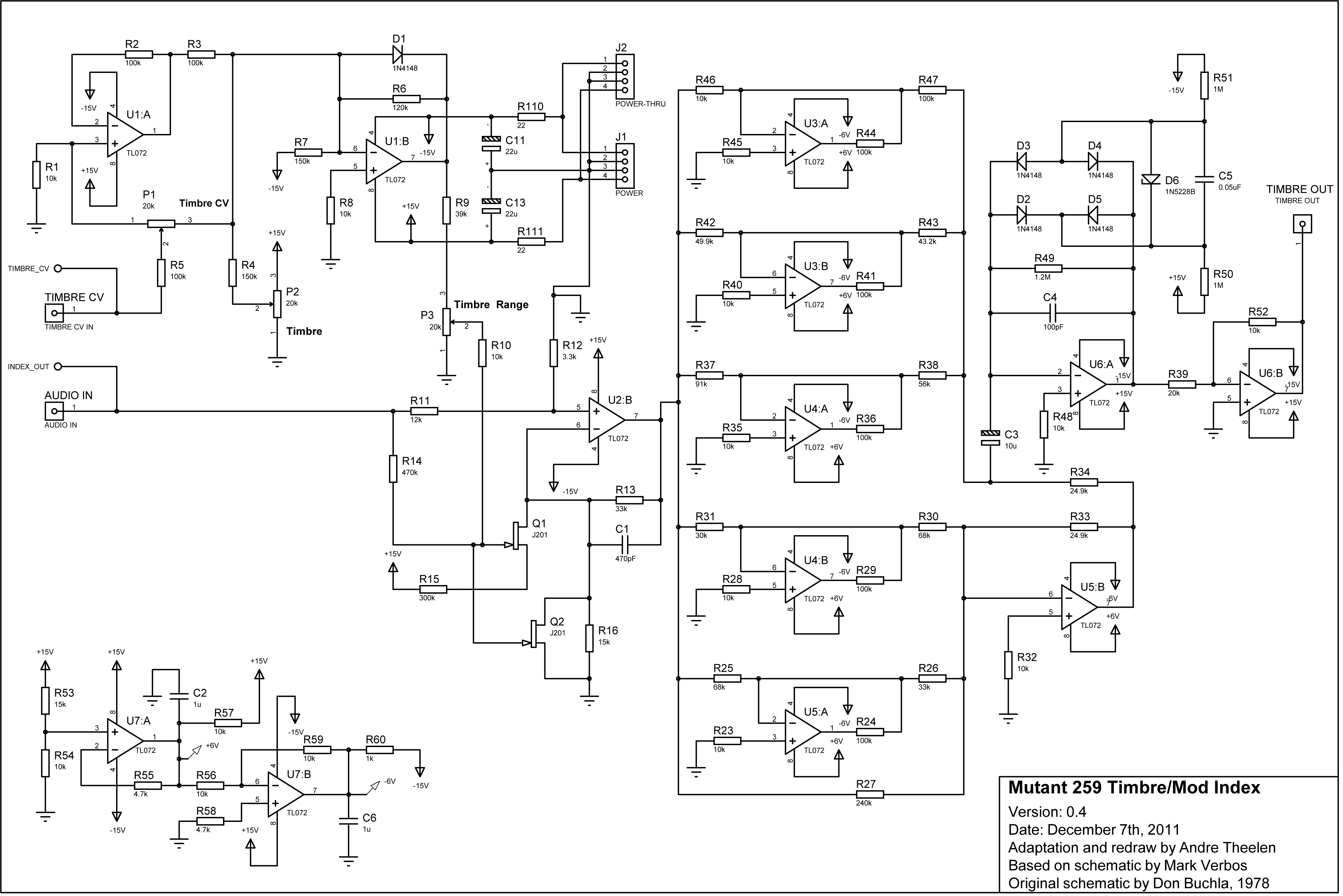

Buchla 259 Timbre Section ,redrawn and adapted by Andre Theelen ,here is the web page : http://www.ecalpemos.nl/2011/06/01/mutant-buchla-259-timbre-section/ with nice scope shots

---

Description:
Filesize:	747.27 KB
Viewed:	2181 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

Diode Waveshaper by Jim Patchell from his page : Complex CV Processor

Similar to the simple processor, except, you can set two break points where you want the gain of the module to change. In this way, you can shape an incoming signal if many ways. This module was primarily intended to be used with the filters to create phonemes. link: http://www.oldcrows.net/~patchell/synthmodulesII/index.html

---

Patchell - Diode Shaper.jpg
Description:
Filesize:	490.55 KB
Viewed:	1513 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

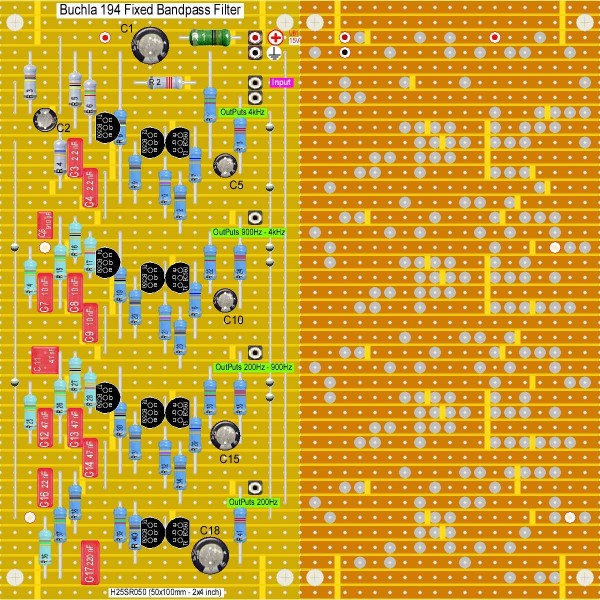

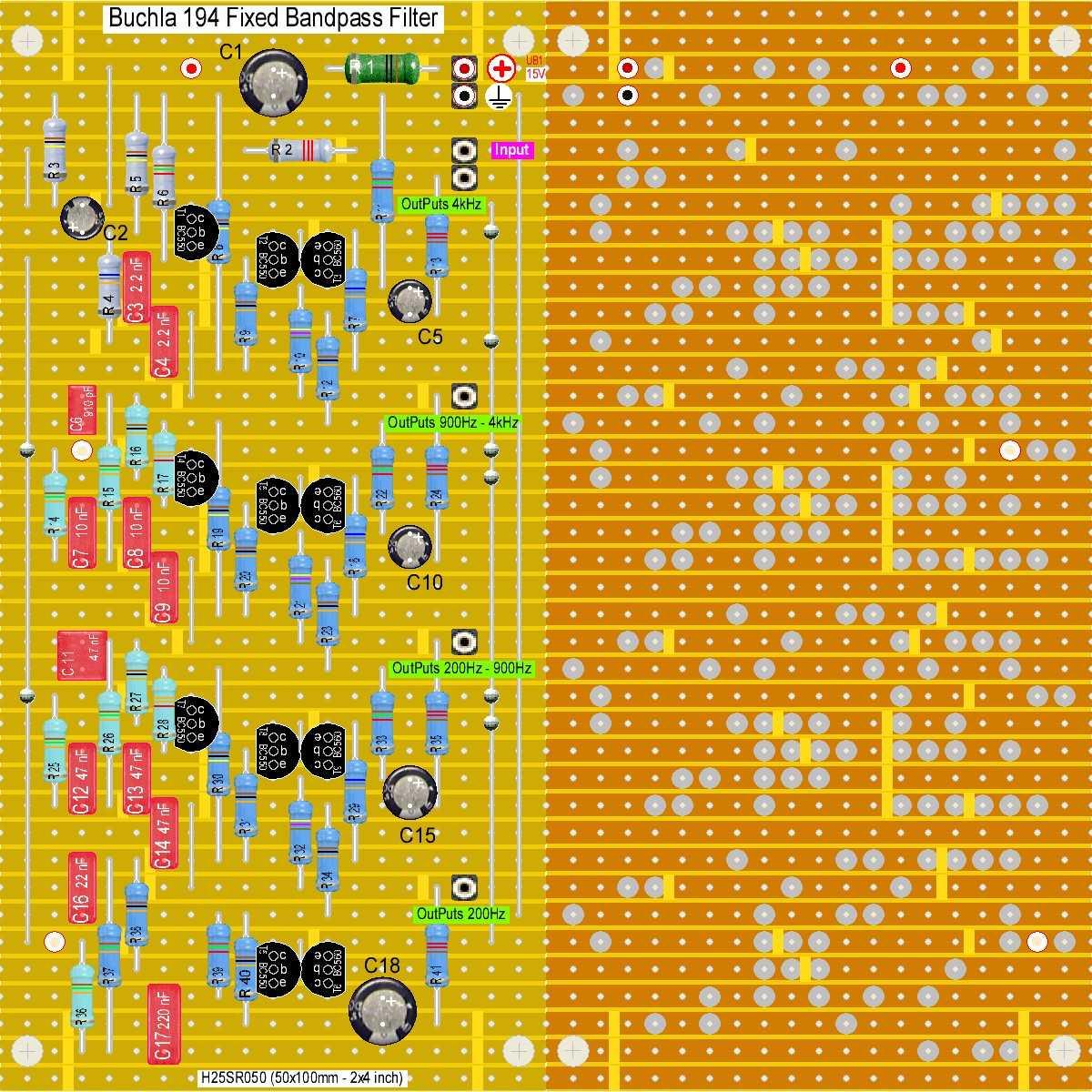

Buchla 194 Fixed Filter ,redrawn by Marjan Urekar , stripboard layout by Nardu from this thread : http://www.electro-music.com/forum/post-377289.html#377289

---

Description:
Filesize:	370 KB
Viewed:	1712 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Description:
Filesize:	207.86 KB
Viewed:	1228 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

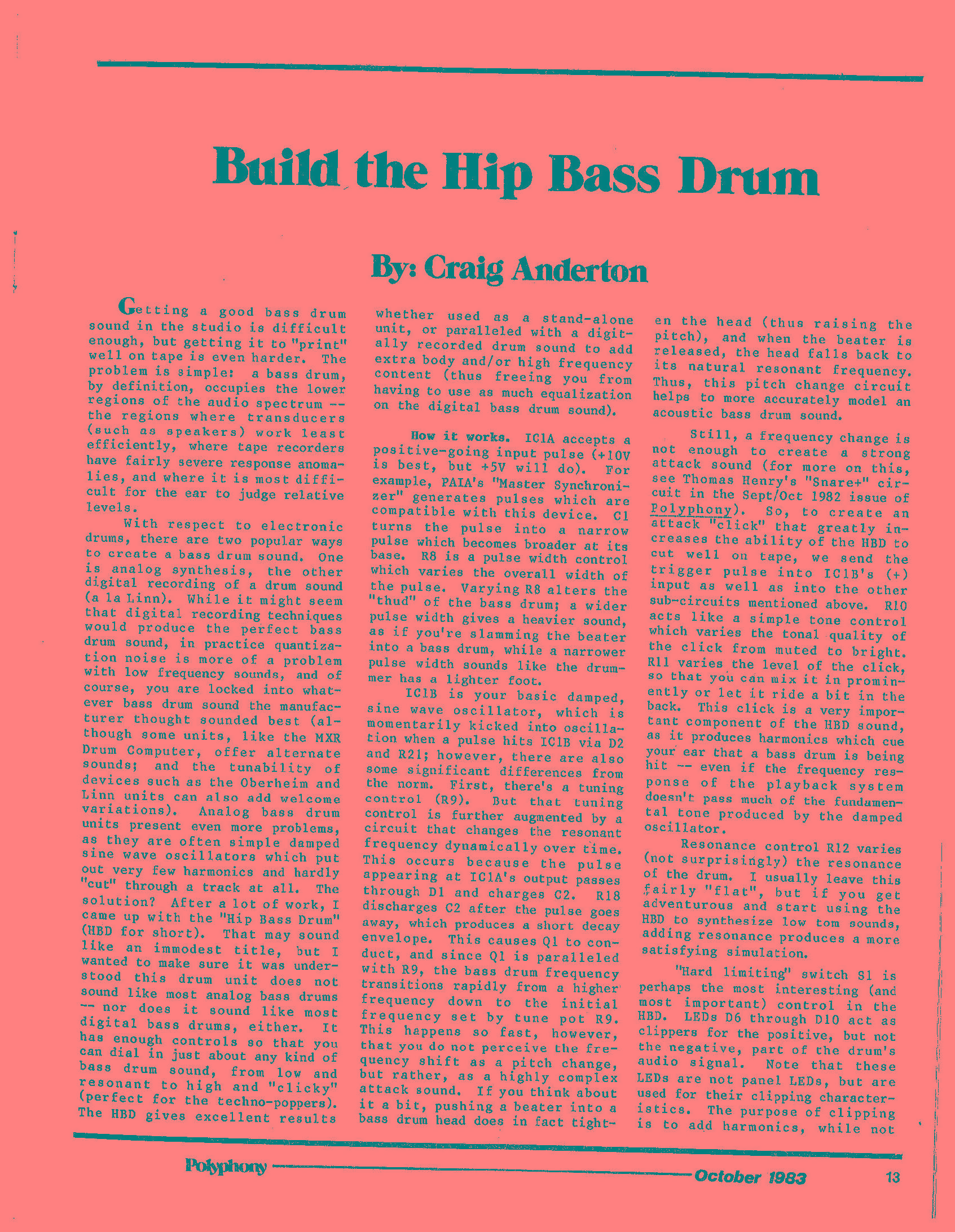

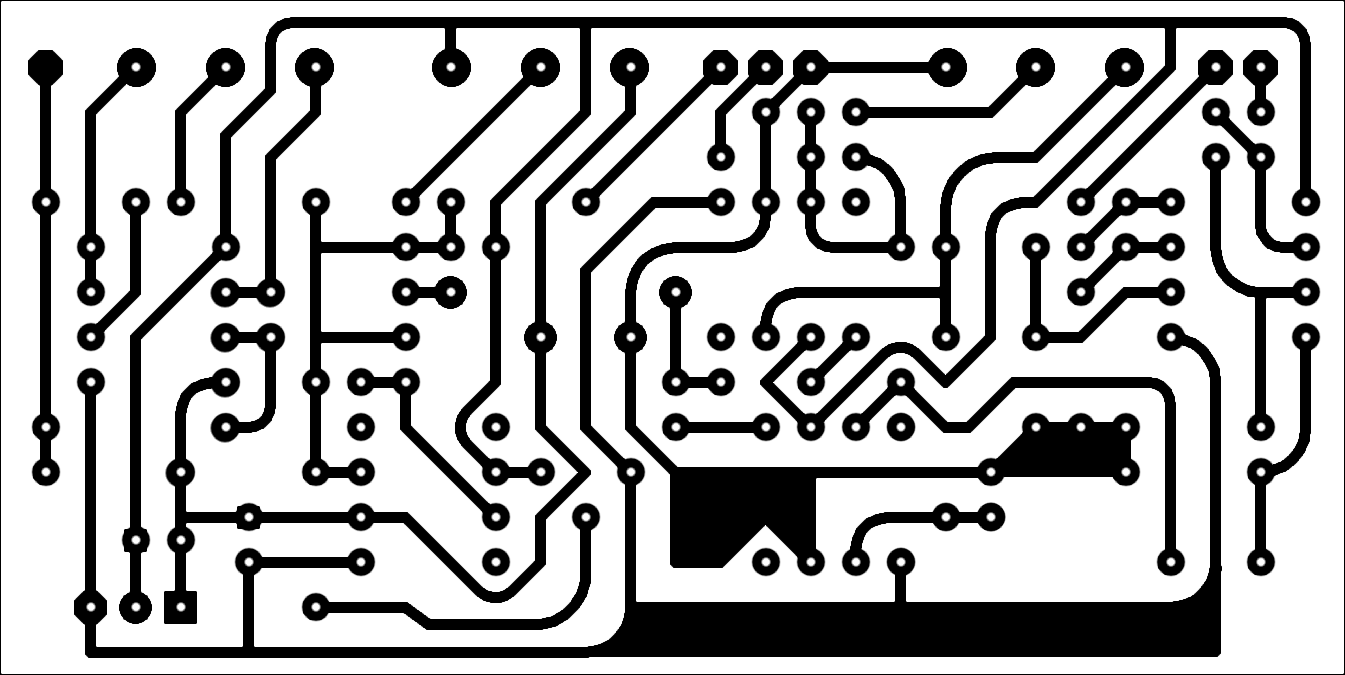

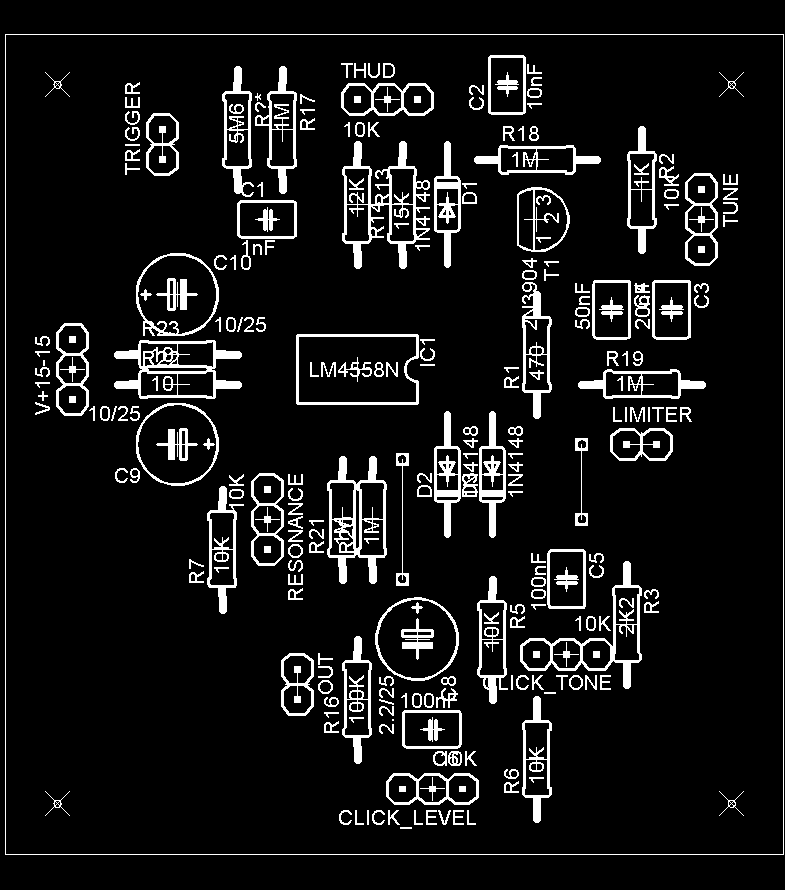

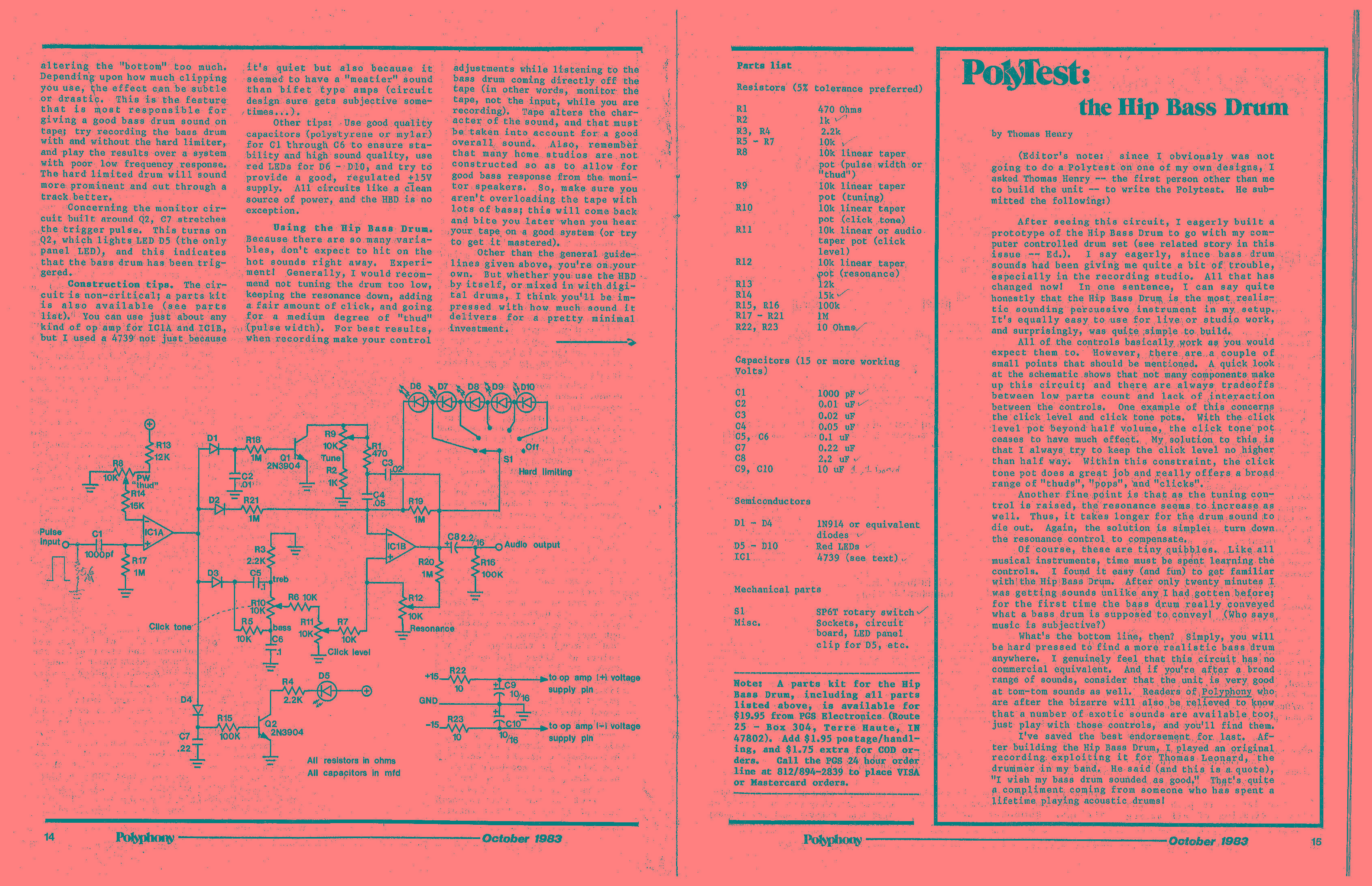

Hip Bass drum by Craig Anderton

---

Description:
Filesize:	604.93 KB
Viewed:	1373 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Description:
Filesize:	1.21 MB
Viewed:	1888 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

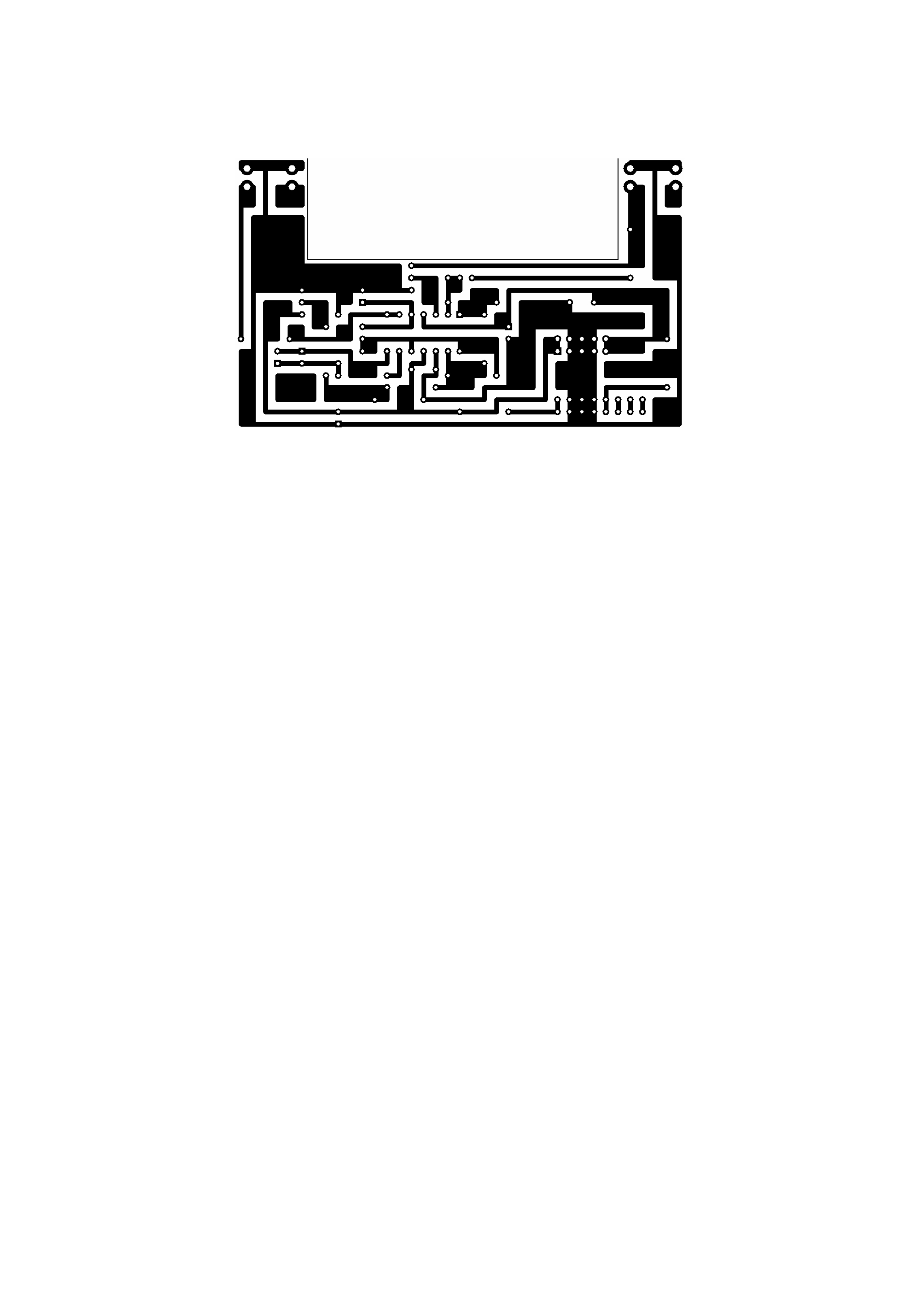

Description:		Download
Filename:	hip_bass_drum_pcb_205.bmp
Filesize:	347.52 KB
Downloaded:	1207 Time(s)

---

---

Description:		Download
Filename:	hip_bass_drum_layout_200.bmp
Filesize:	86.97 KB
Downloaded:	1200 Time(s)

---

[vladosh]

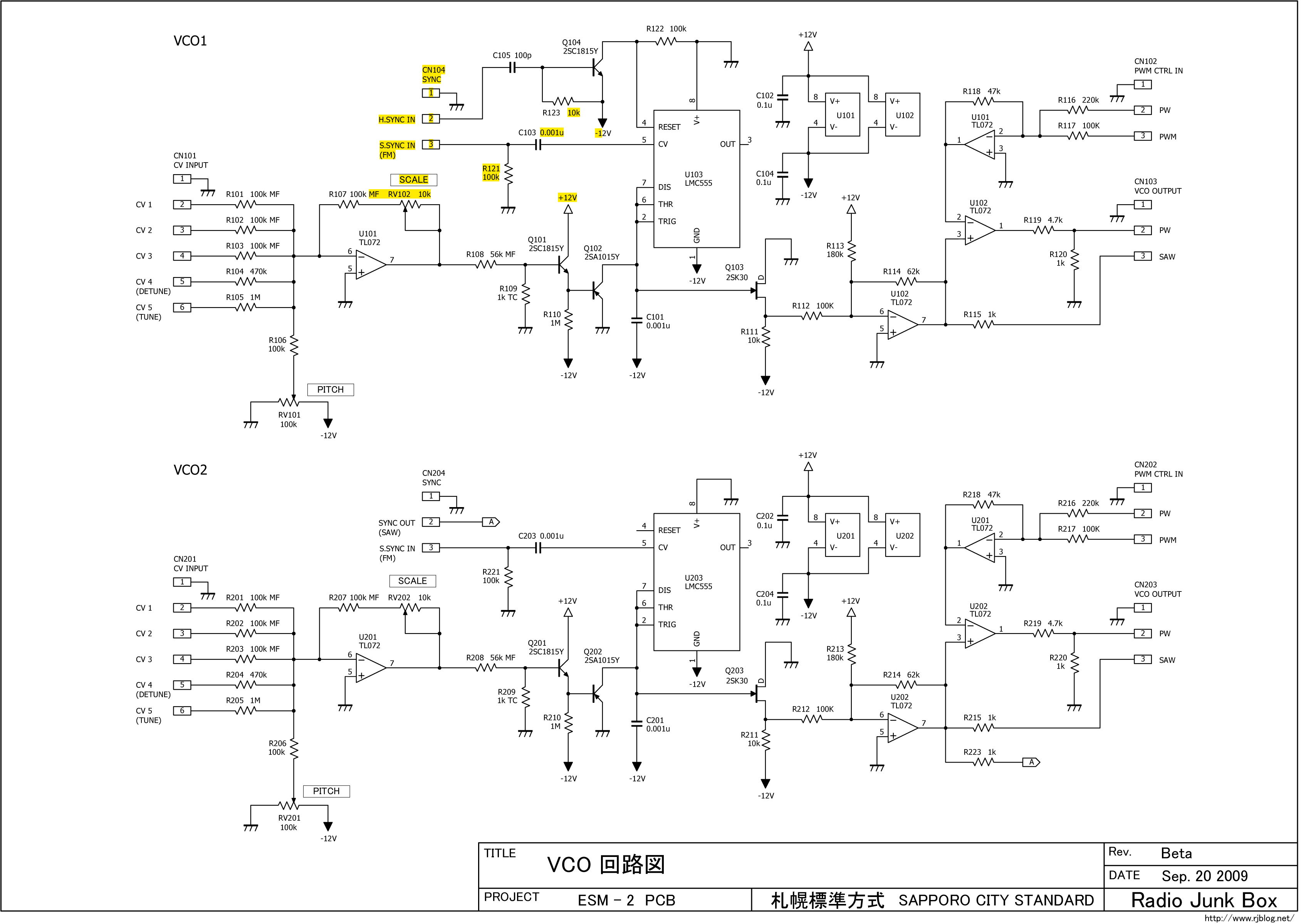

Japanese ESM VCO ,visit RJBlog for more info on the ESM synthesizer : http://www.rjblog.net/archives/2009/e000325.php

---

Description:
Filesize:	728.87 KB
Viewed:	1965 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

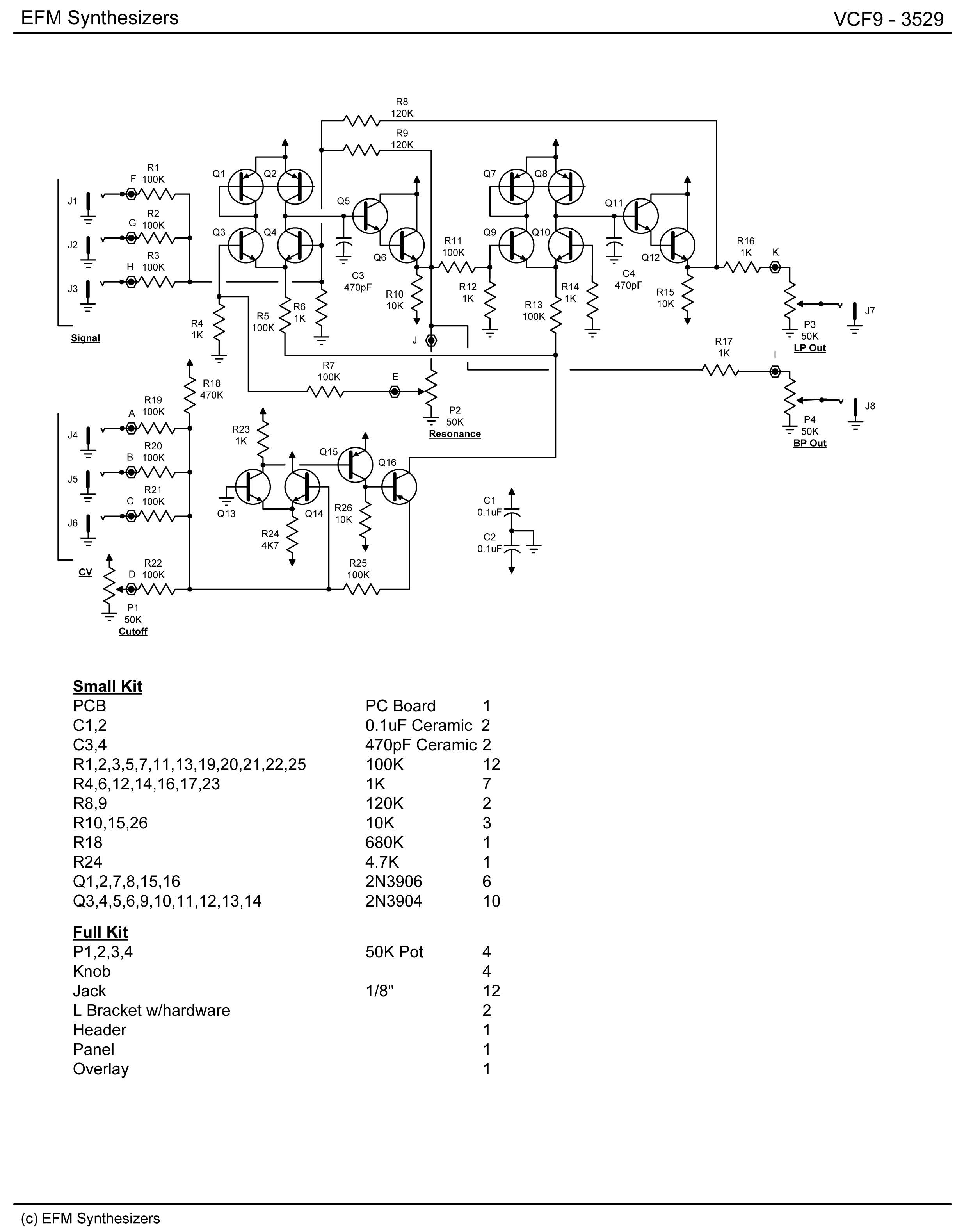

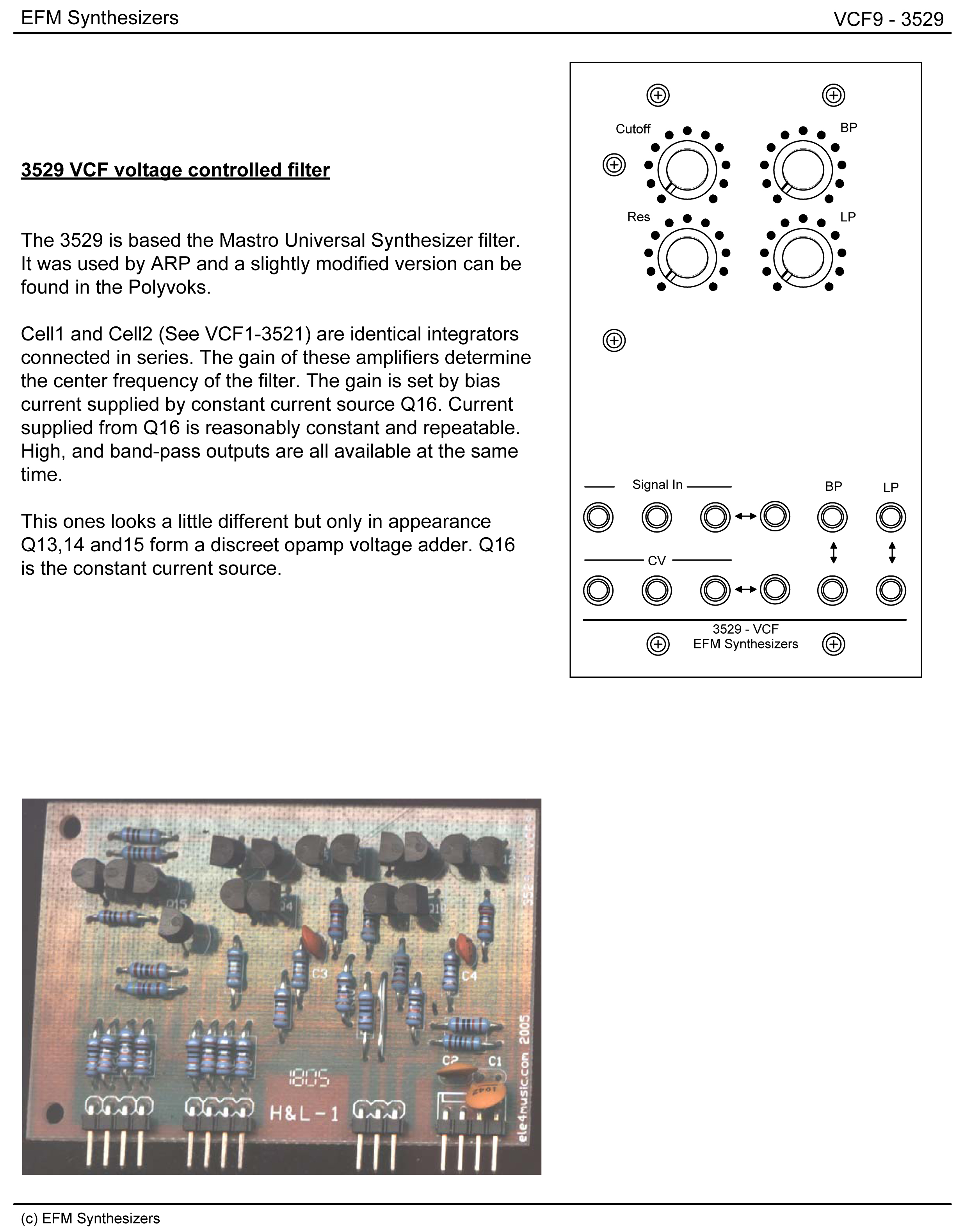

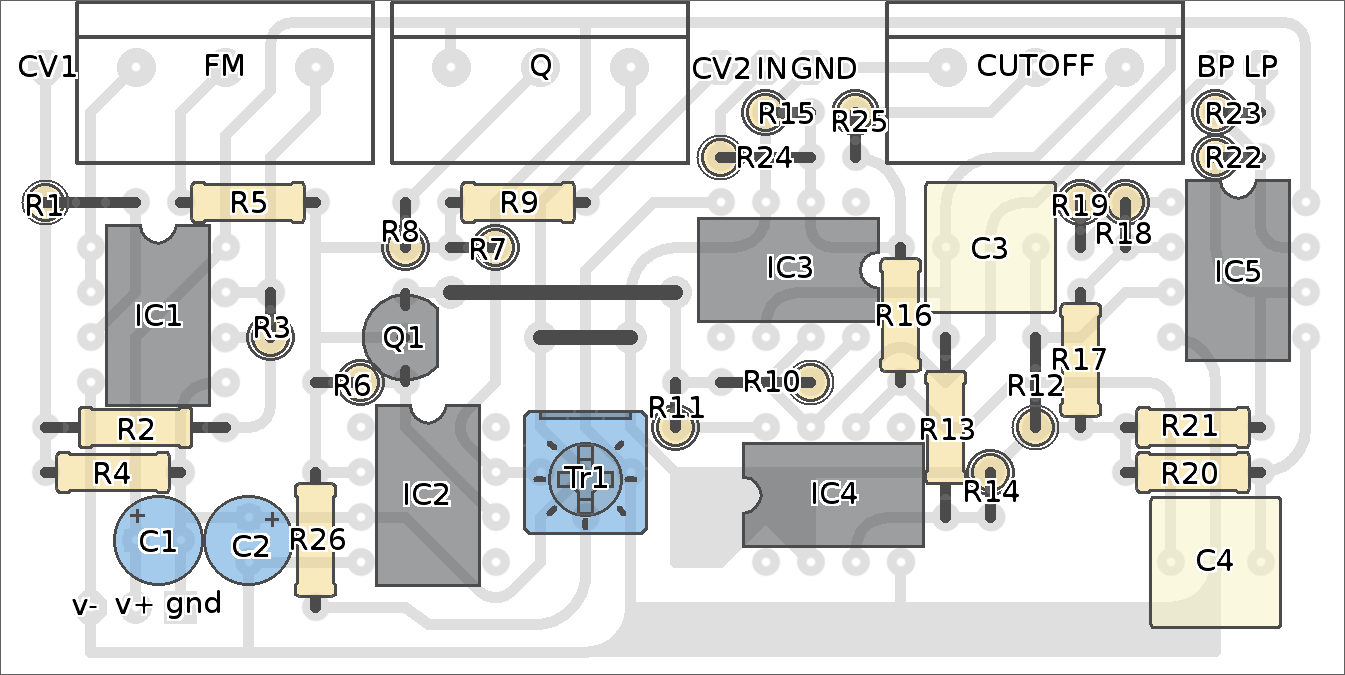

Maestro Universal Filter clone by EFM

---

Description:
Filesize:	1.32 MB
Viewed:	1211 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Description:
Filesize:	592.19 KB
Viewed:	1640 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

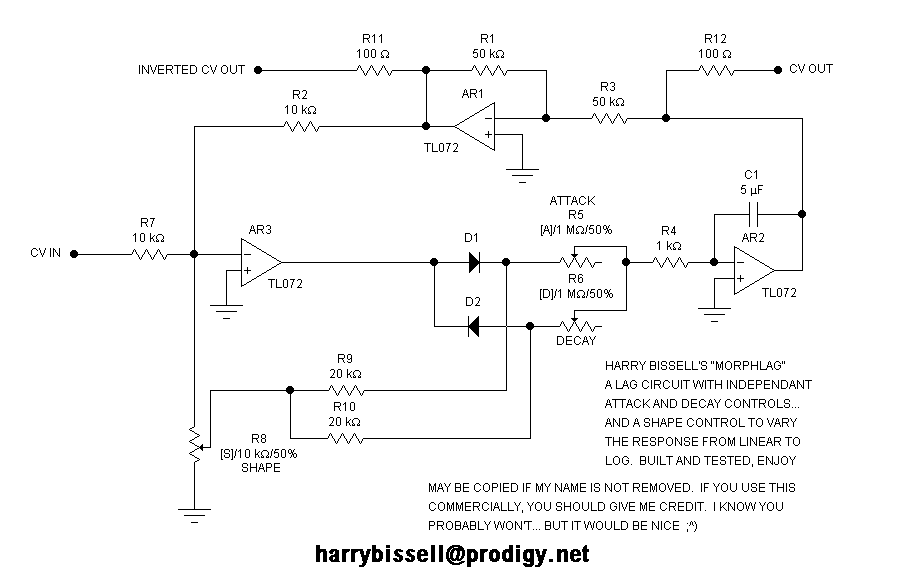

Harry Bissell's Morphlag circuit

---

Description:
Filesize:	10.84 KB
Viewed:	1967 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

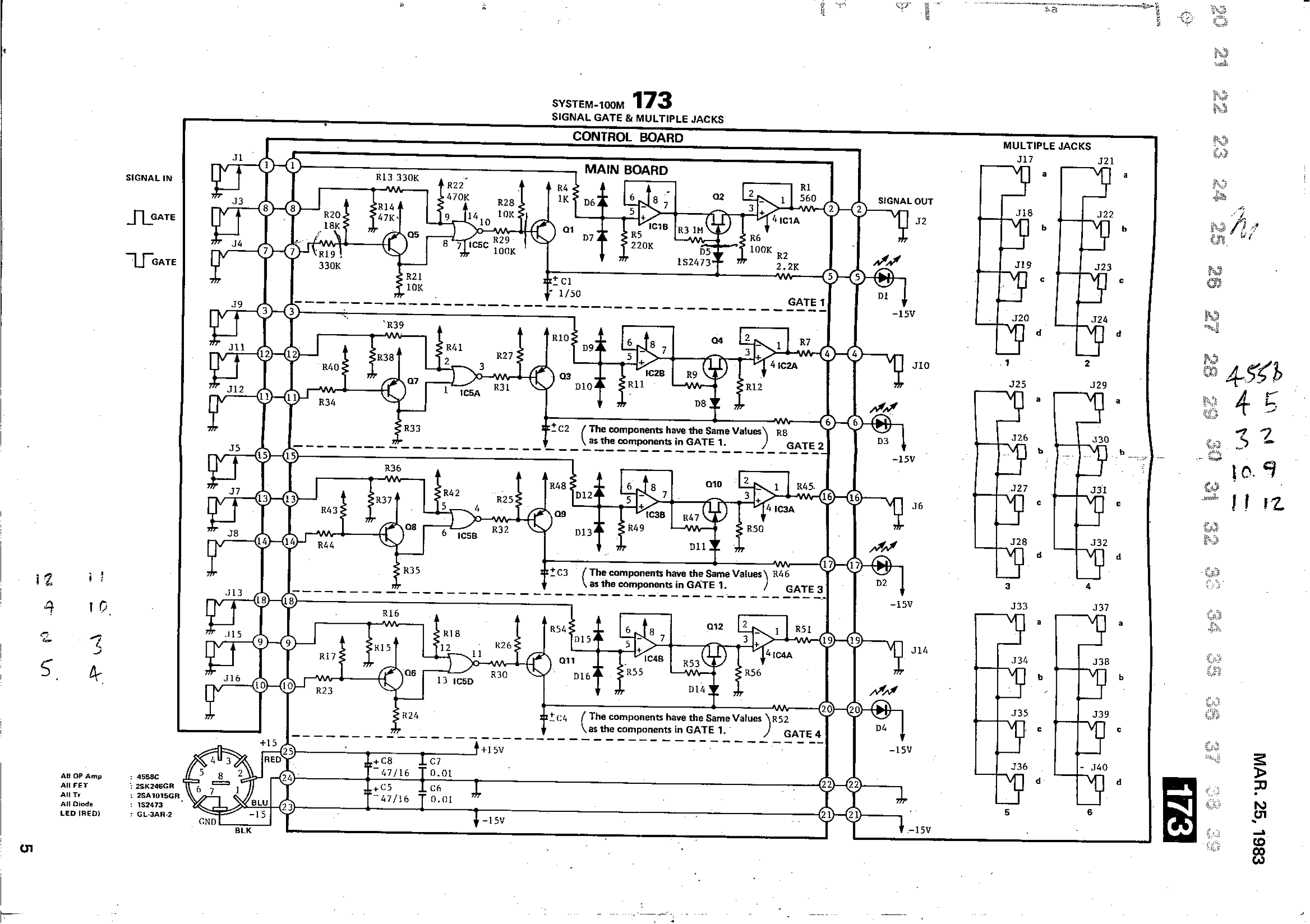

Roland 100M Signal Gate

---

Description:
Filesize:	1.23 MB
Viewed:	1600 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

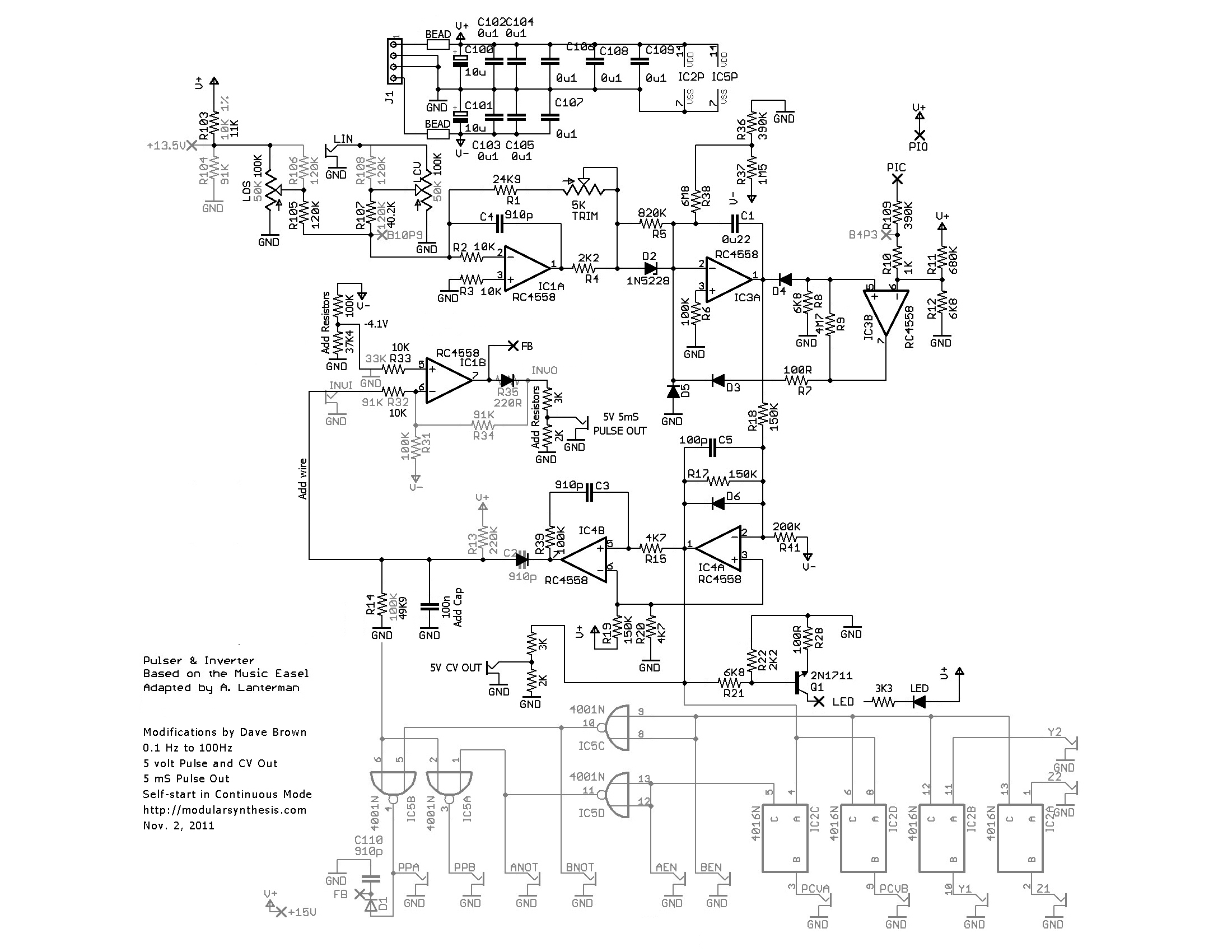

Buchla Pulser schematic from the MusicEasel , redrawn by A. Lanterman and Modified by Dave Brown , more info : http://modularsynthesis.com/lanterman/puls-cross-timbre/pls-crs-tmb.htm

---

DJB Pulser Rev1 Modifications - updated no error.jpg
Description:
Filesize:	574.96 KB
Viewed:	1488 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

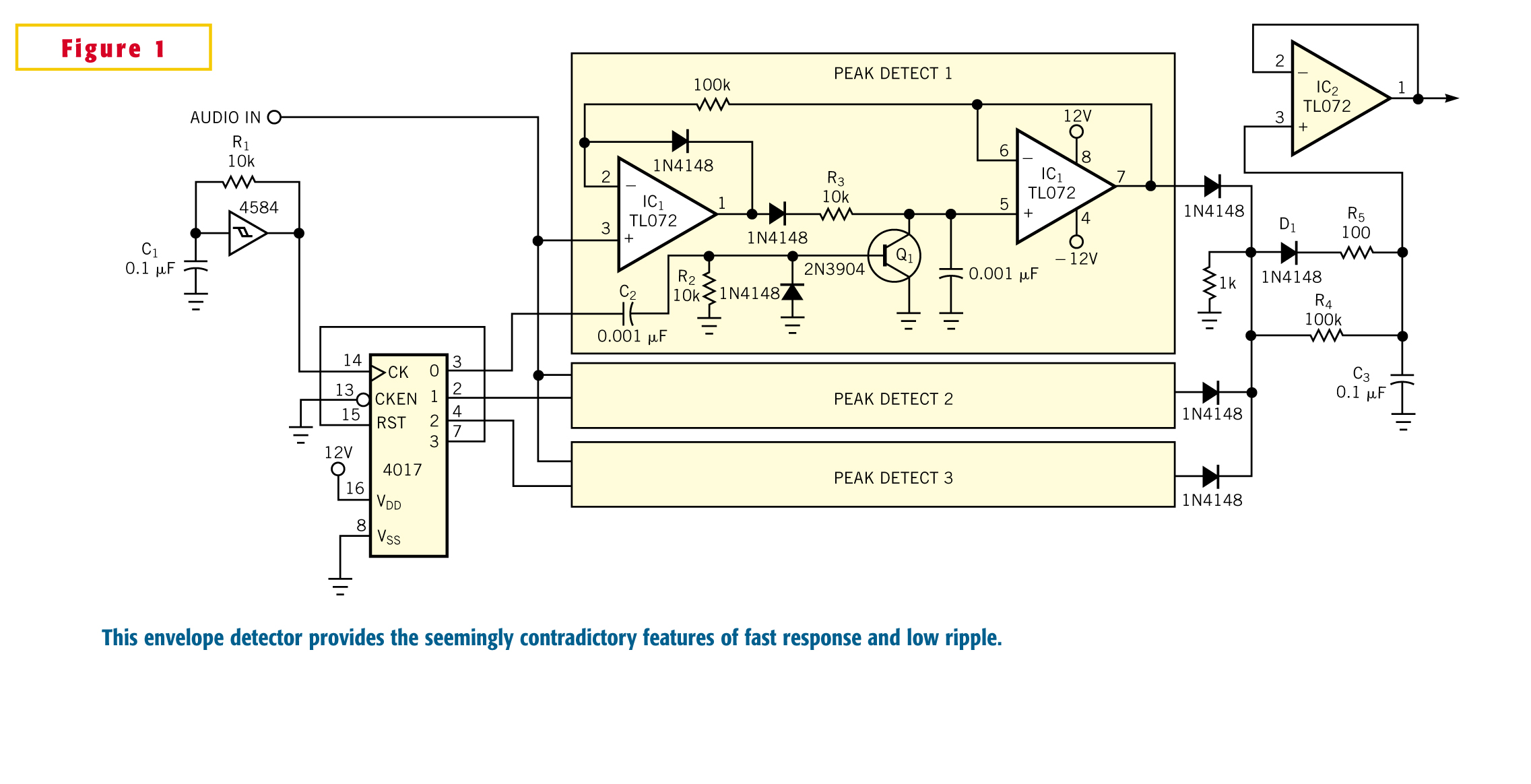

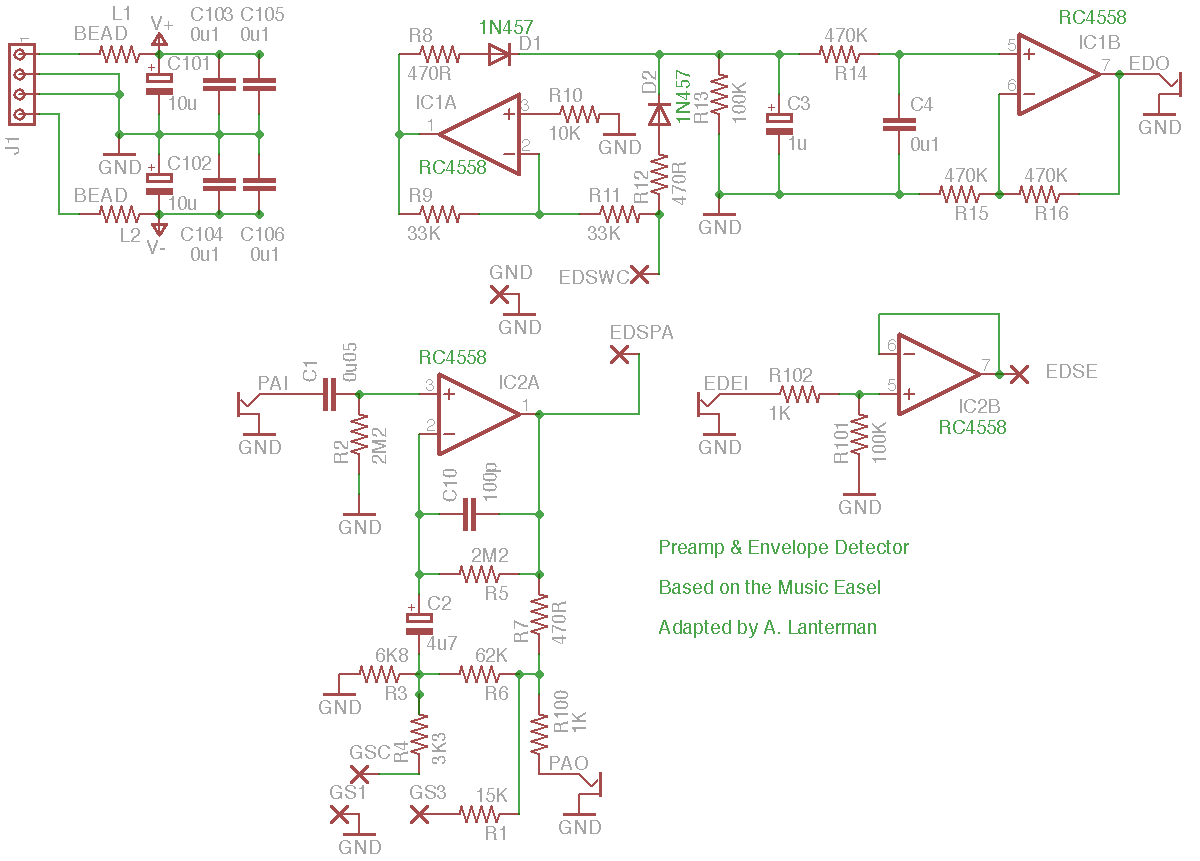

Buchla MusicEasel Envelope Follower .Original circuit by Don Buchla (used with his kind permission); adapted by Aaron Lanterman http://users.ece.gatech.edu/~lanterma/buchla/boards/mea_pead/mea_pead_rev1.html ,second circuit is envelope follower by Harry Bissell page is here: http://www.edn.com/design/analog/4344656/Envelope-follower-combines-fast-response-low-ripple

---

Description:
Filesize:	27.16 KB
Viewed:	1395 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Description:
Filesize:	347.18 KB
Viewed:	1521 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

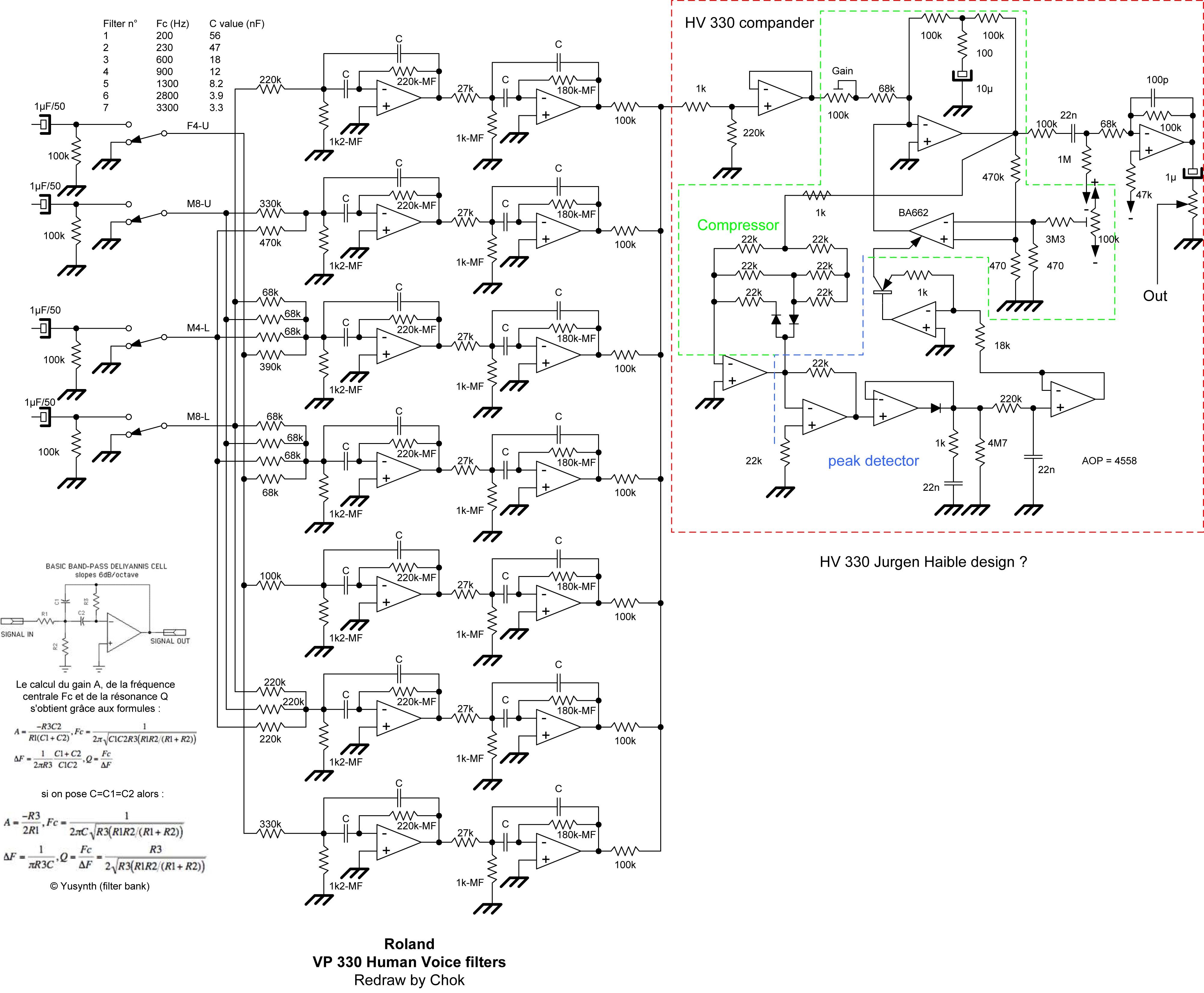

The Vocal Filter section of the Roland VP330 ,redrawn and built by Chok ,more on this topic : http://www.electro-music.com/forum/topic-53405.html ,more info on cloning this filter on this page : http://s127.beta.photobucket.com/user/the_garranimal/library/VP-330%20Human%20Voice%20Filter%20Clone

---

Description:
Filesize:	1.46 MB
Viewed:	1527 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

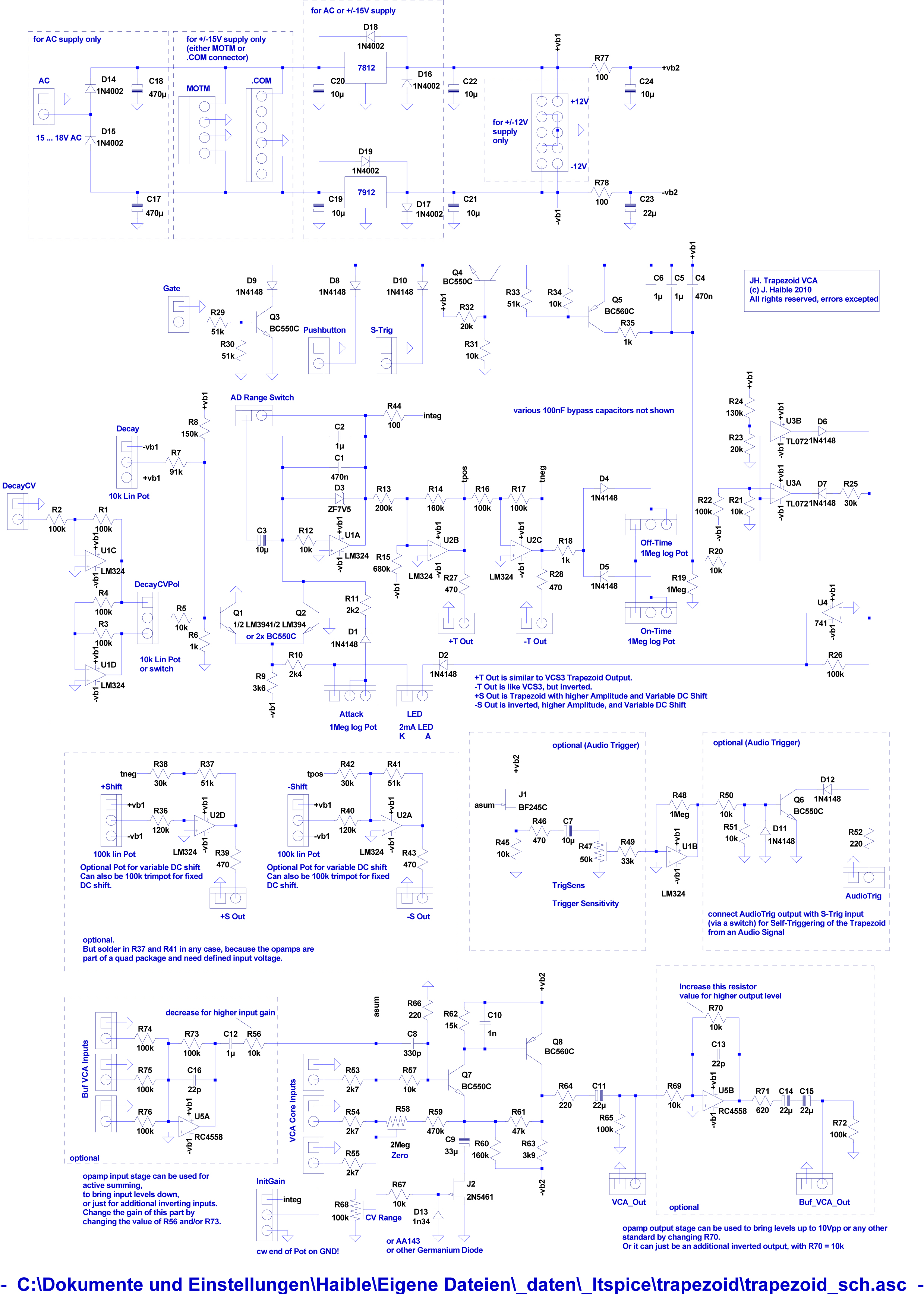

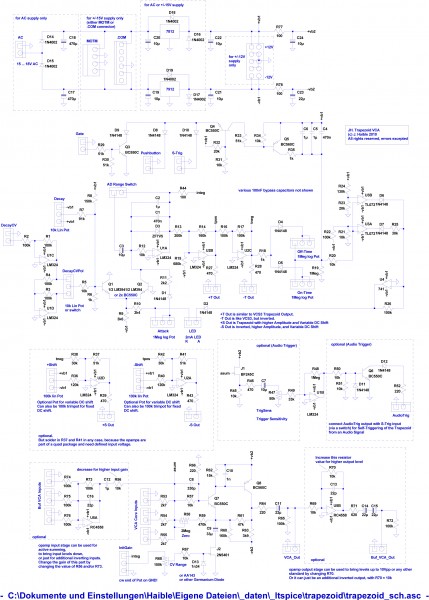

Jurgen Haible Trapezoid VCA ,the whole page is here : http://www.jhaible.de/trapezoid/trapezoid.html description from there :
Emulating the EMS VCS3 and Synthi A Trapezoid Generator without copying the actual circuit
Unique FET-based VCA included
Parameters not independend of each other - quirky and inspiring like the original
Positive and negative Polarity with variable DC shift
Self-Cycle Mode smoothly activated towards the end of Off-Time knob range
Standard Voltage Trigger and Switch Trigger inputs
3 Power options:
+/-15V with MOTM and Synthesizers.com connectors
+/-12V with "Euro standard" 10-pin connector
15V AC Wallwart - ideal for making a standalone box
Voltage controlled Decay with positive or negative amount
A variety of extra functions that you can implement, or omit.

---

Description:
Filesize:	2.09 MB
Viewed:	1447 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

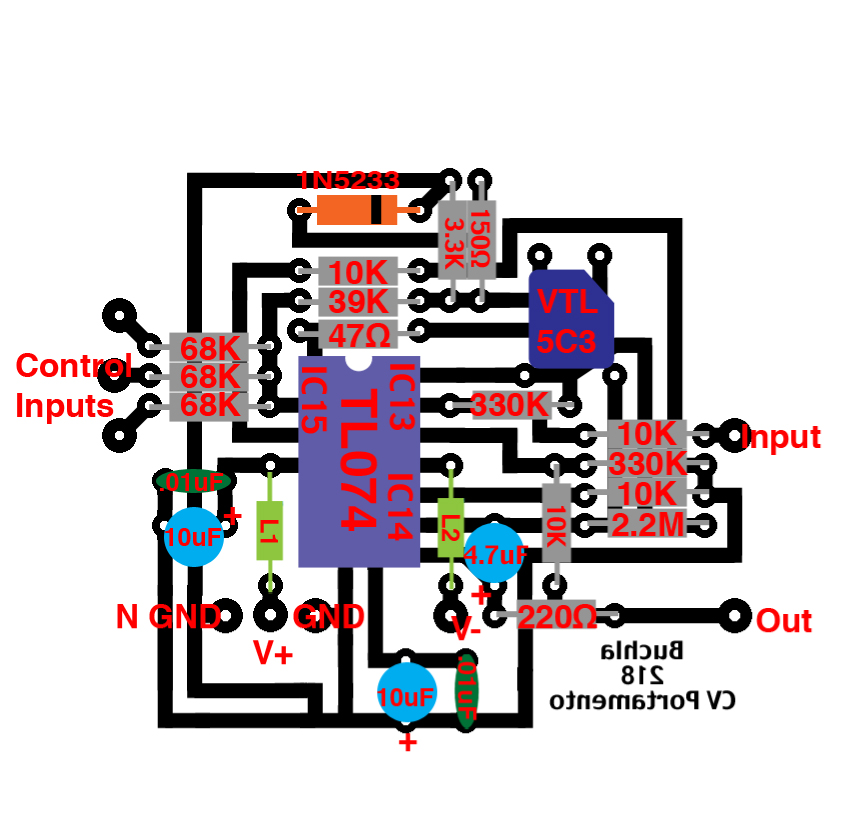

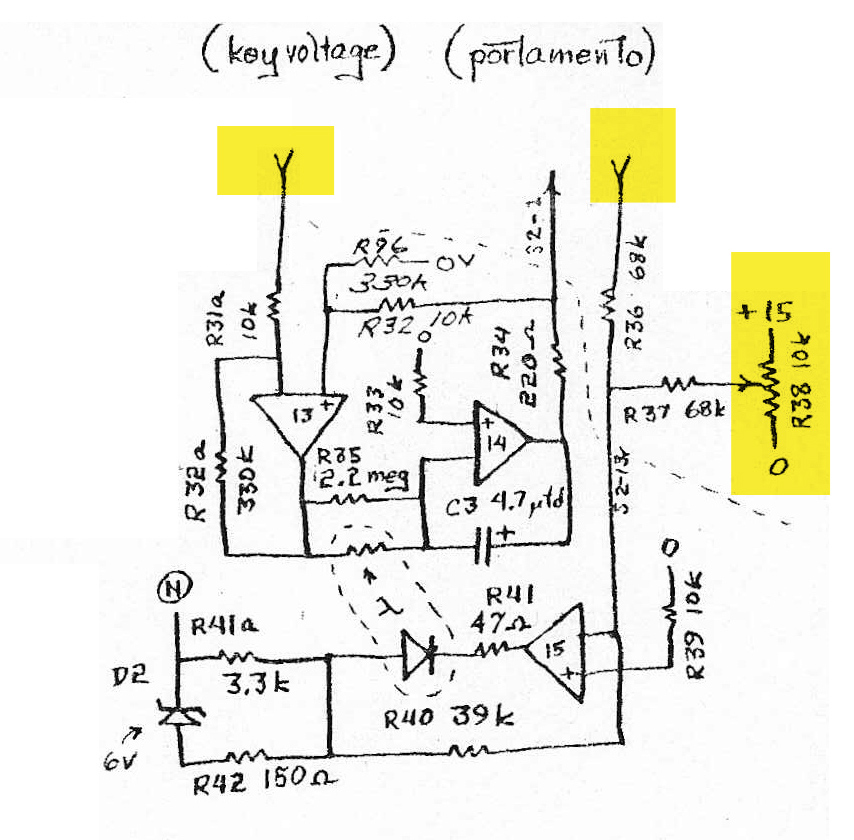

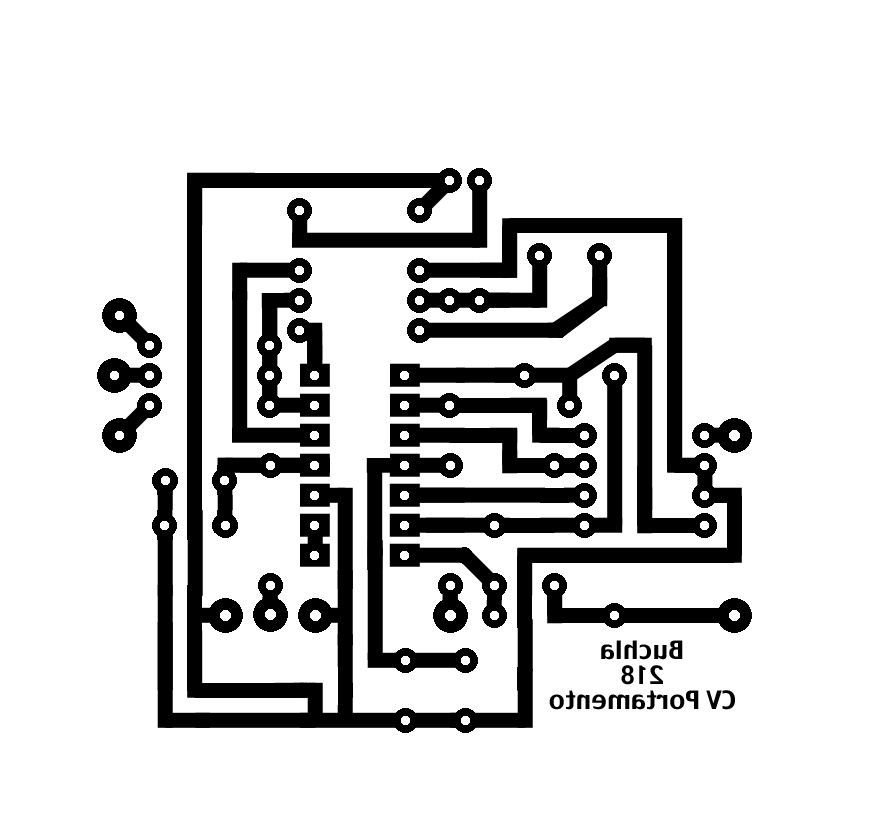

Buchla 218 Slew from this topic : http://www.electro-music.com/forum/topic-19064.html layout provided by vtl5c3

---

Description:
Filesize:	258.49 KB
Viewed:	1082 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Description:
Filesize:	276.41 KB
Viewed:	1049 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Description:
Filesize:	174.78 KB
Viewed:	1212 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

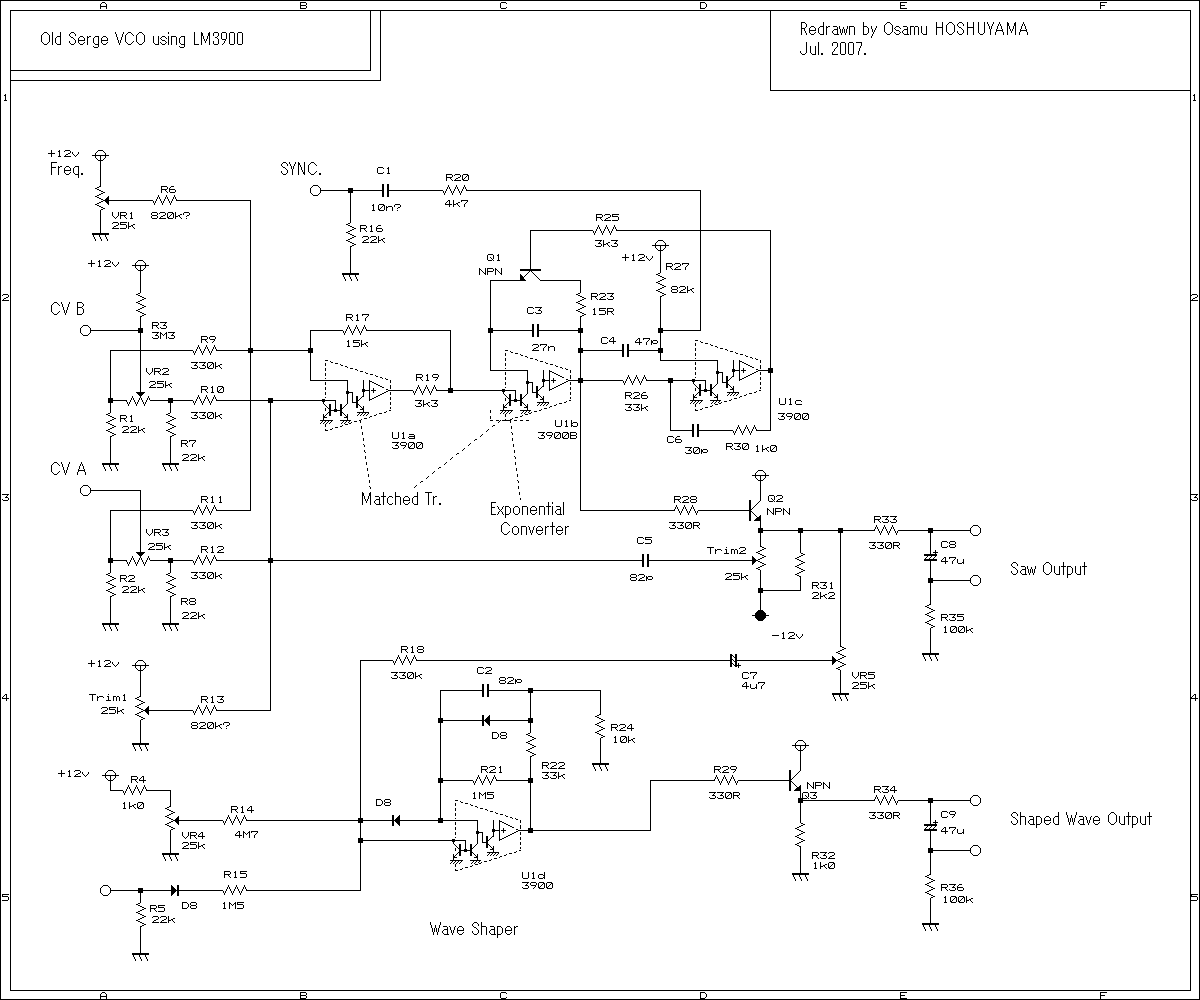

Old Serge VCO using LM3900 and part of the wavemulitplier circuit ,redrawn by Osamu Hoshuyama

---

Description:
Filesize:	23.26 KB
Viewed:	1823 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

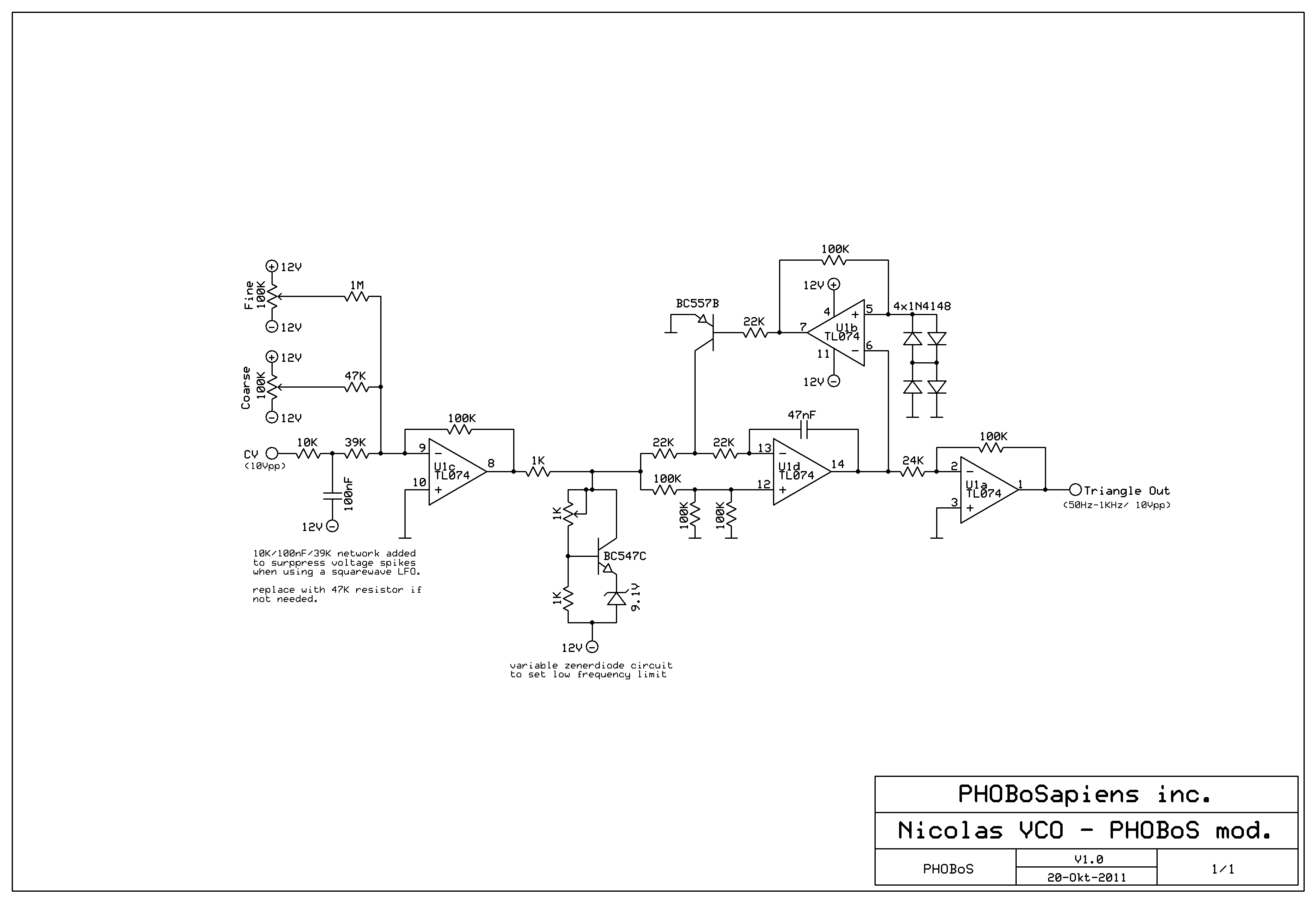

Nicolas' Super simple V/Hz VCO modified by Phobos ,from this topic : http://electro-music.com/forum/post-363816.html
I had build Nicolas' Super simple V/Hz VCO succesfully before and since it's a pretty simple circuit (for a VCO) I decided
to use it for this synth aswell. The first change I made was to get the amplitude up to +/-5Vpp I tried a couple
of things and I think the 4 diodes are actually a leftover from those experiments. But the easiest thing to do was
just to add an extra output amp. The highest frequency is allready limited by the circuit itself so with the resistor
values I choose it doesn't matter if the CV get's above +5V, the frequency just doesn't get higher.
On the low end however the thing starts acting a bit weird and then stops, so; zenerdiode limiter to the rescue.
As you can see this time I used the variable zener diode circuit I found which makes it much easier to set the
correct limit.
and then there is the resistor capacitor network on the input. Allthough my LFO's didn't seem to have any spikes
according to my scope (I added some caps to surpress those), the squarewaves did seem to cause some peaks on the output
of the VCO. so I experimented a bit which some different cap/resistor placements untill they were gone.
the frequency range might seem a bit limited but remember it was originally designed for a dronebox.
I also designed a sinewaveshaper with some diodes and a vactrol VCA but didn't have enough panel space. So it will
probably end up in a seperate case.

---

Nicolas VCO (PHOBoS mod).GIF
Description:
Filesize:	51.75 KB
Viewed:	1925 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

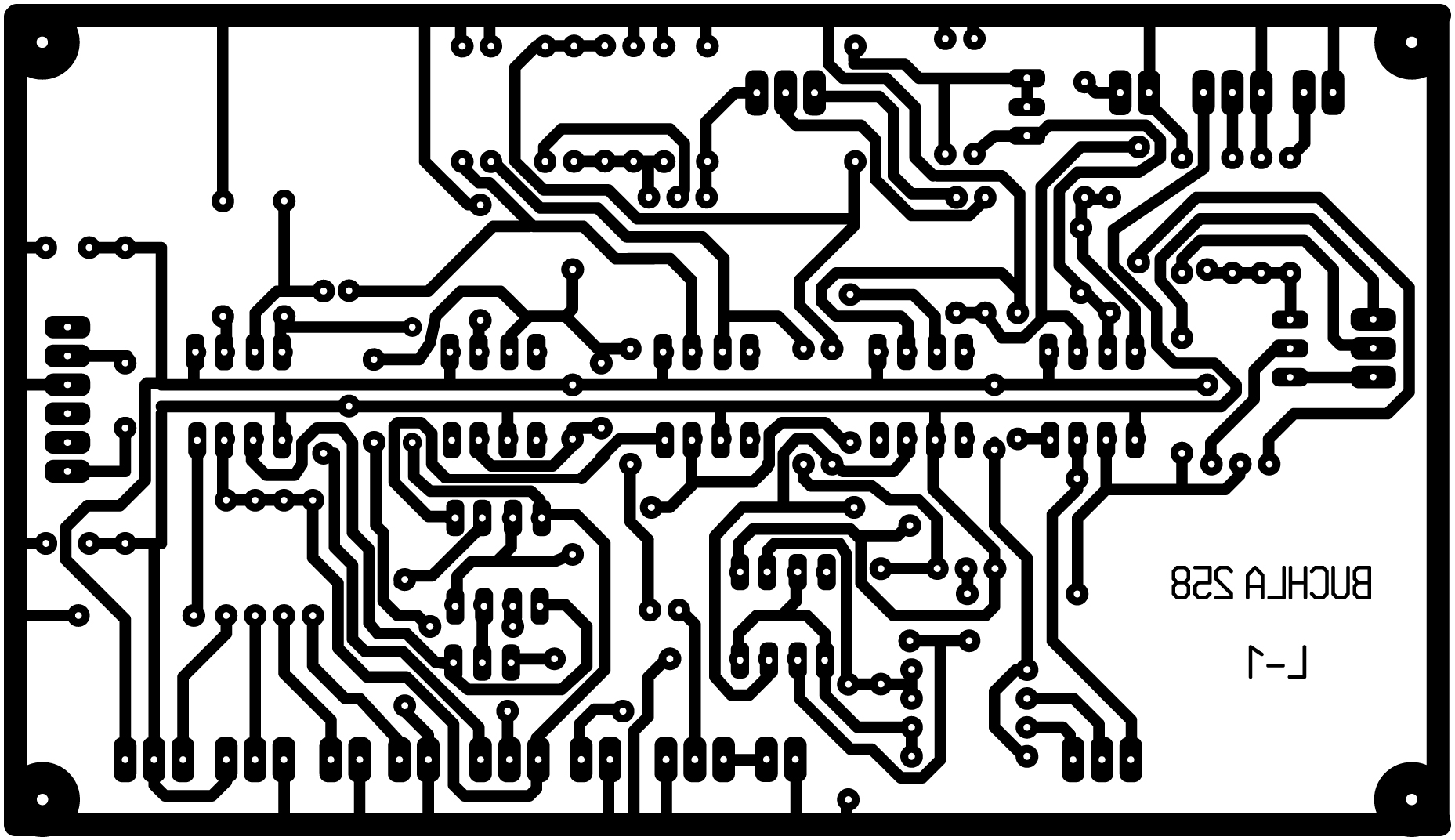

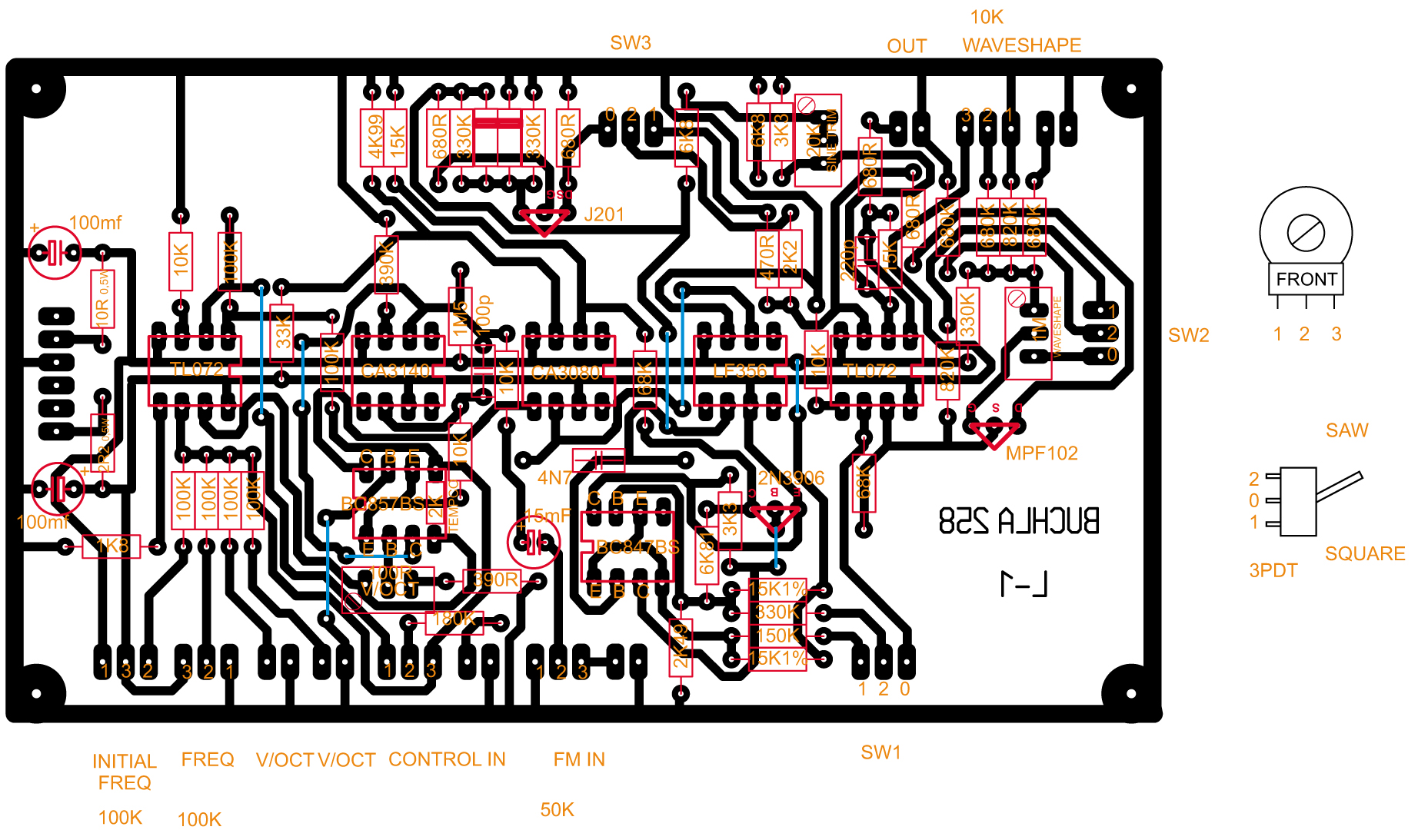

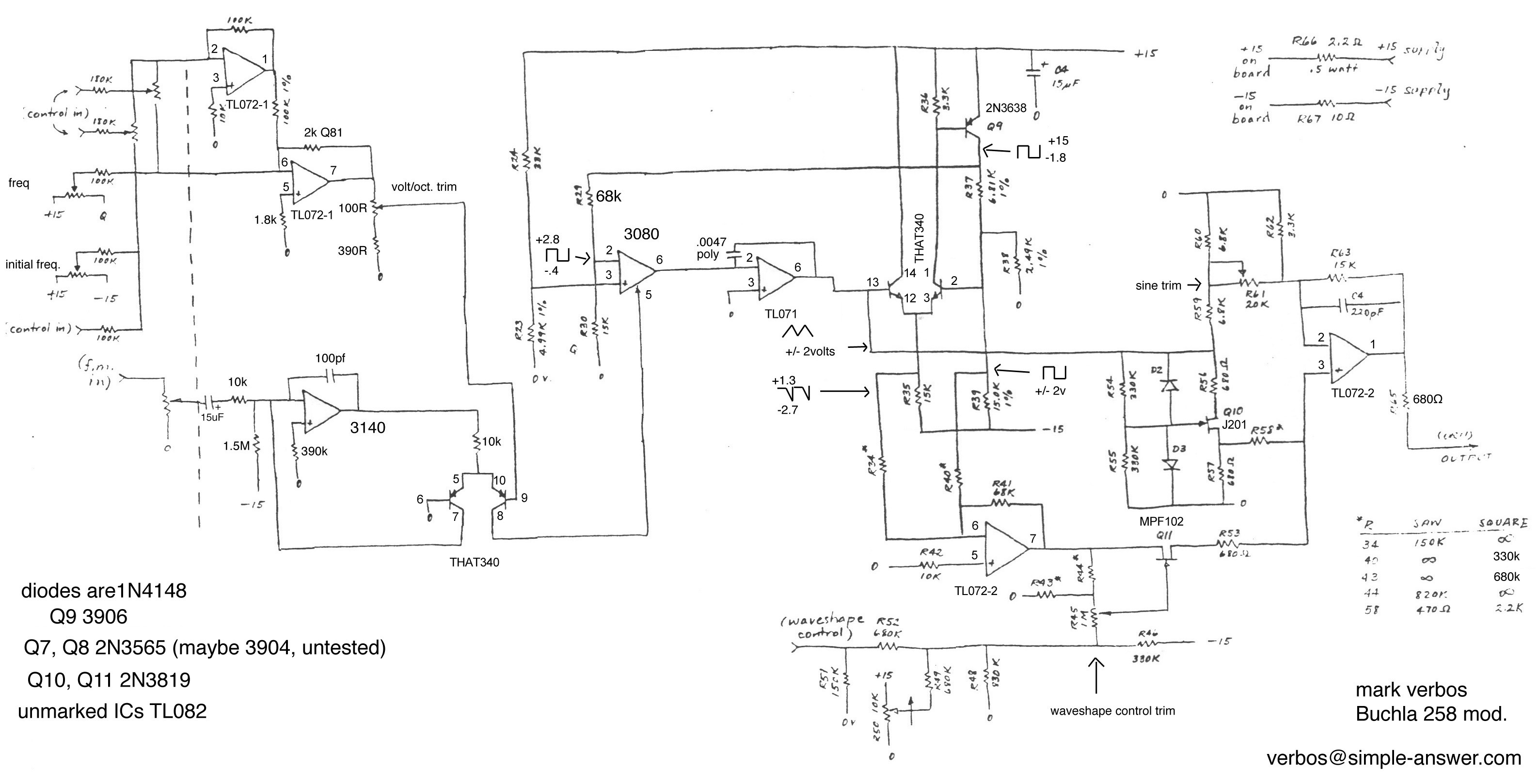

Buchla 258 VCO ,layout original by Mark Verbos ,modified Layout by L1 ,the topic is here : http://srv3.electro-music.com/forum/topic-16502-125.html

---

BUCHLA_1_258_169 Layout s.jpg
Description:
Filesize:	852.47 KB
Viewed:	1452 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

BUCHLA_1_258_169 Layout.jpg
Description:
Filesize:	492.29 KB
Viewed:	1206 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Buchla 258 J3RK annotated schematic.jpg
Description:
Filesize:	471.15 KB
Viewed:	2485 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

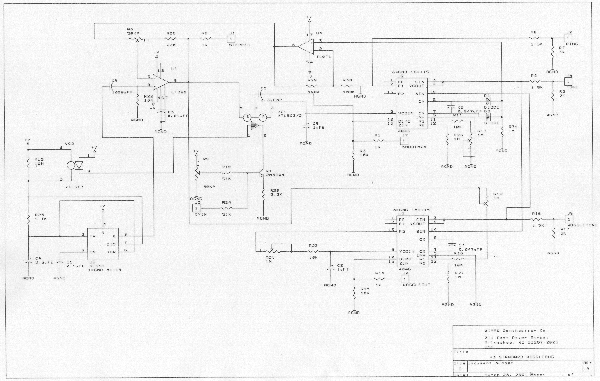

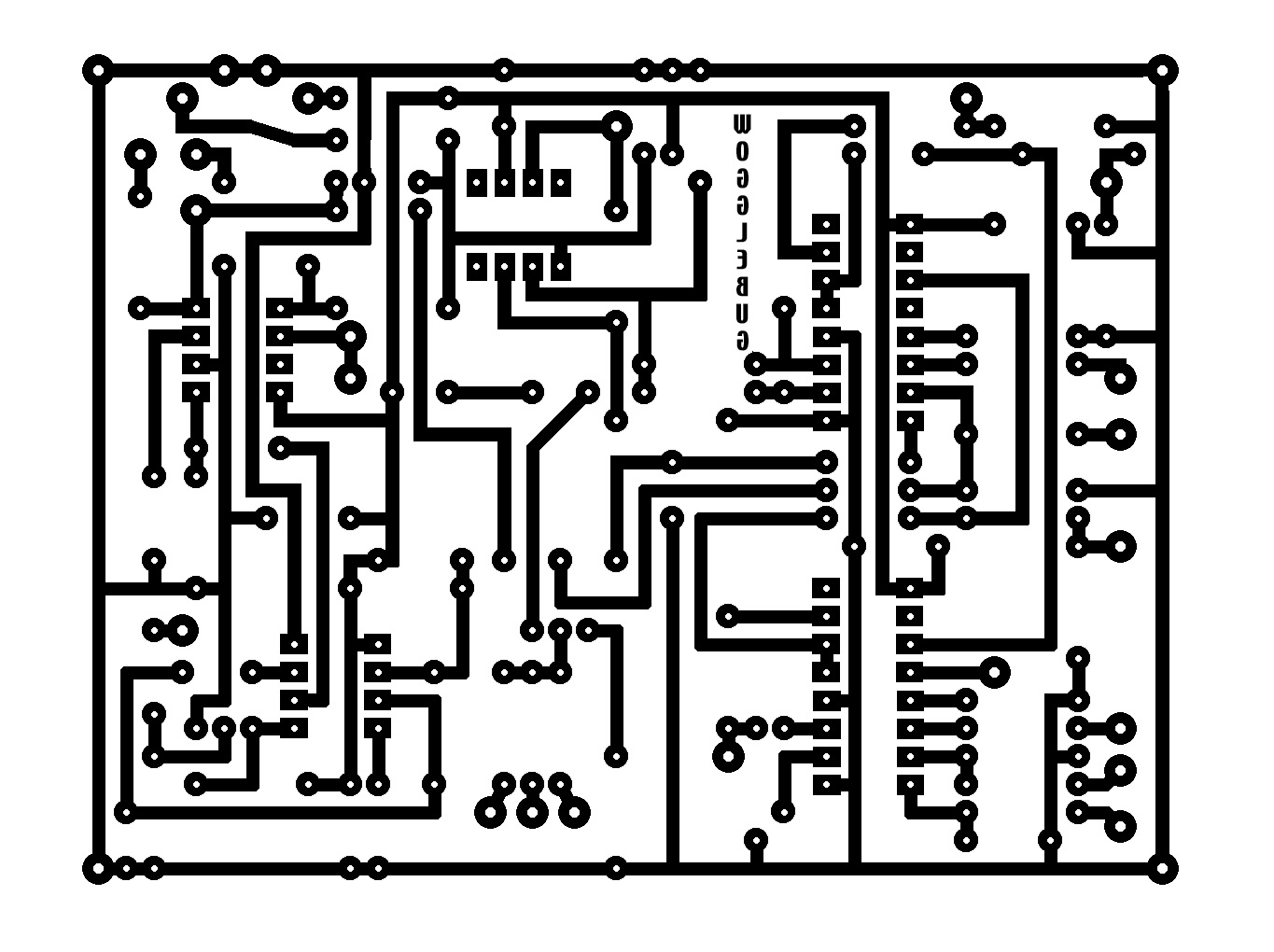

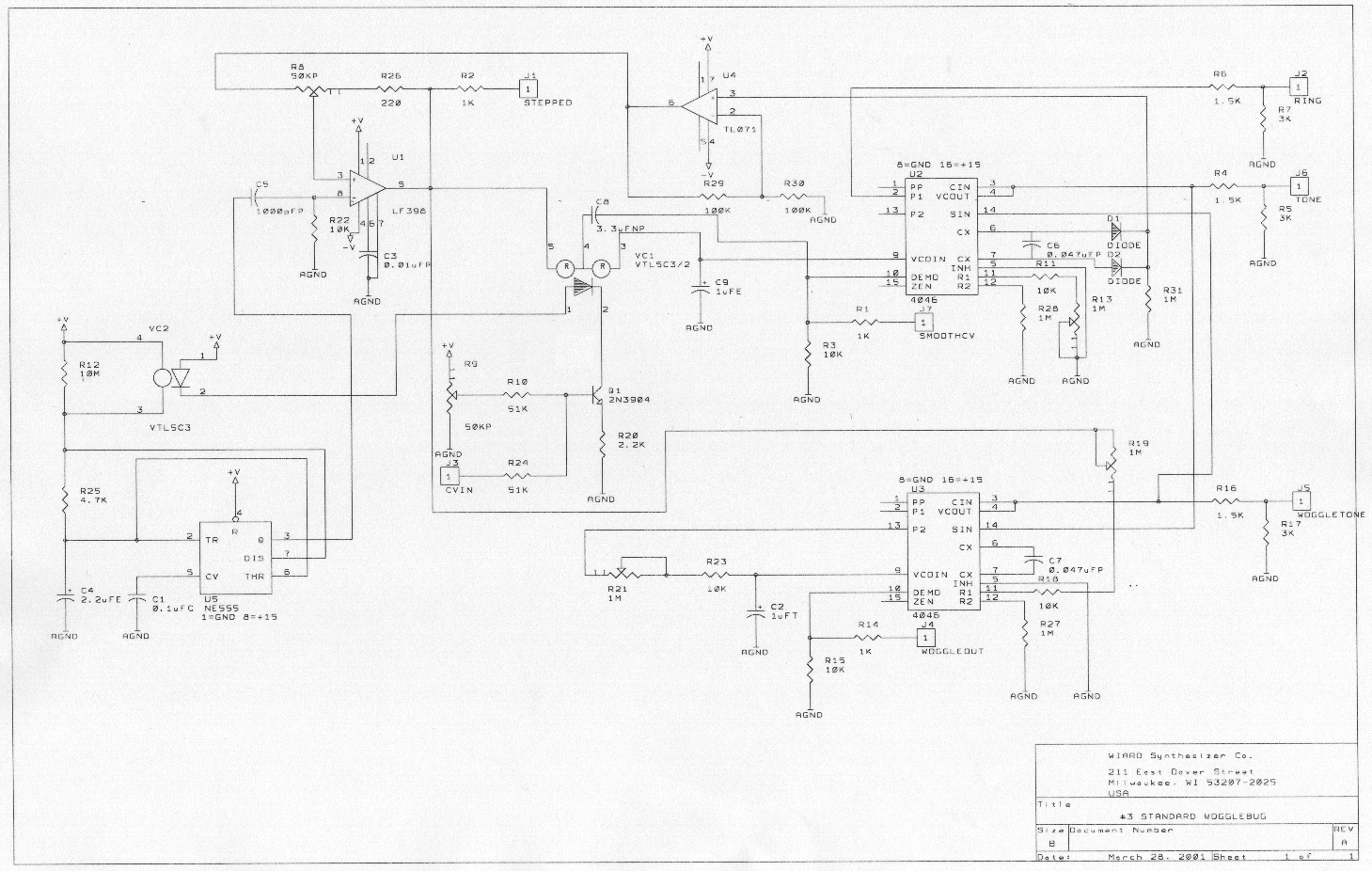

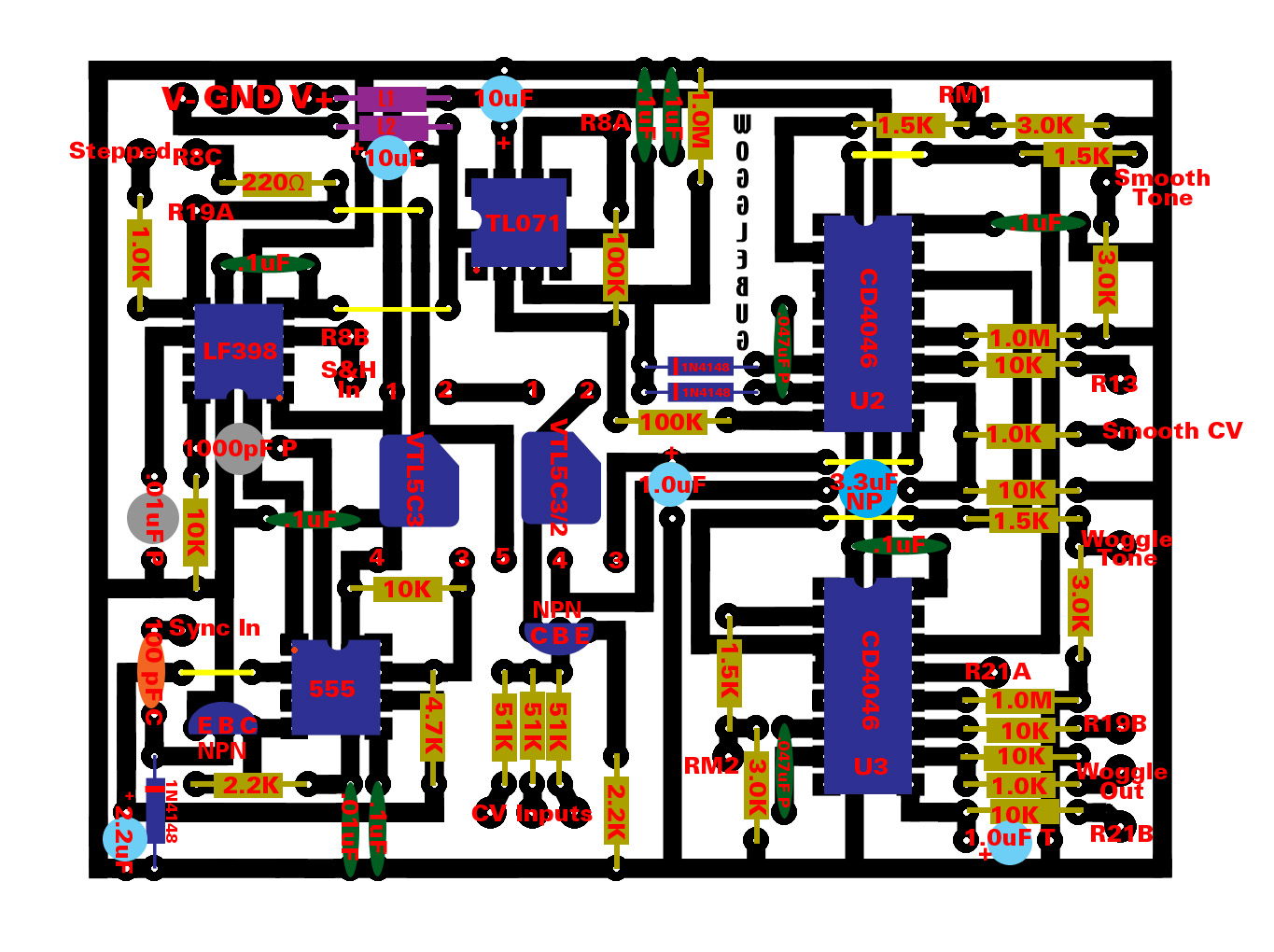

Grant Richter's Wogglebug ,layout by vtl5c3 ,the whole topic is here : http://electro-music.com/forum/topic-14064-25.html

---

Description:
Filesize:	911.4 KB
Viewed:	1552 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Description:
Filesize:	470.66 KB
Viewed:	1110 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Description:
Filesize:	229.03 KB
Viewed:	1130 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

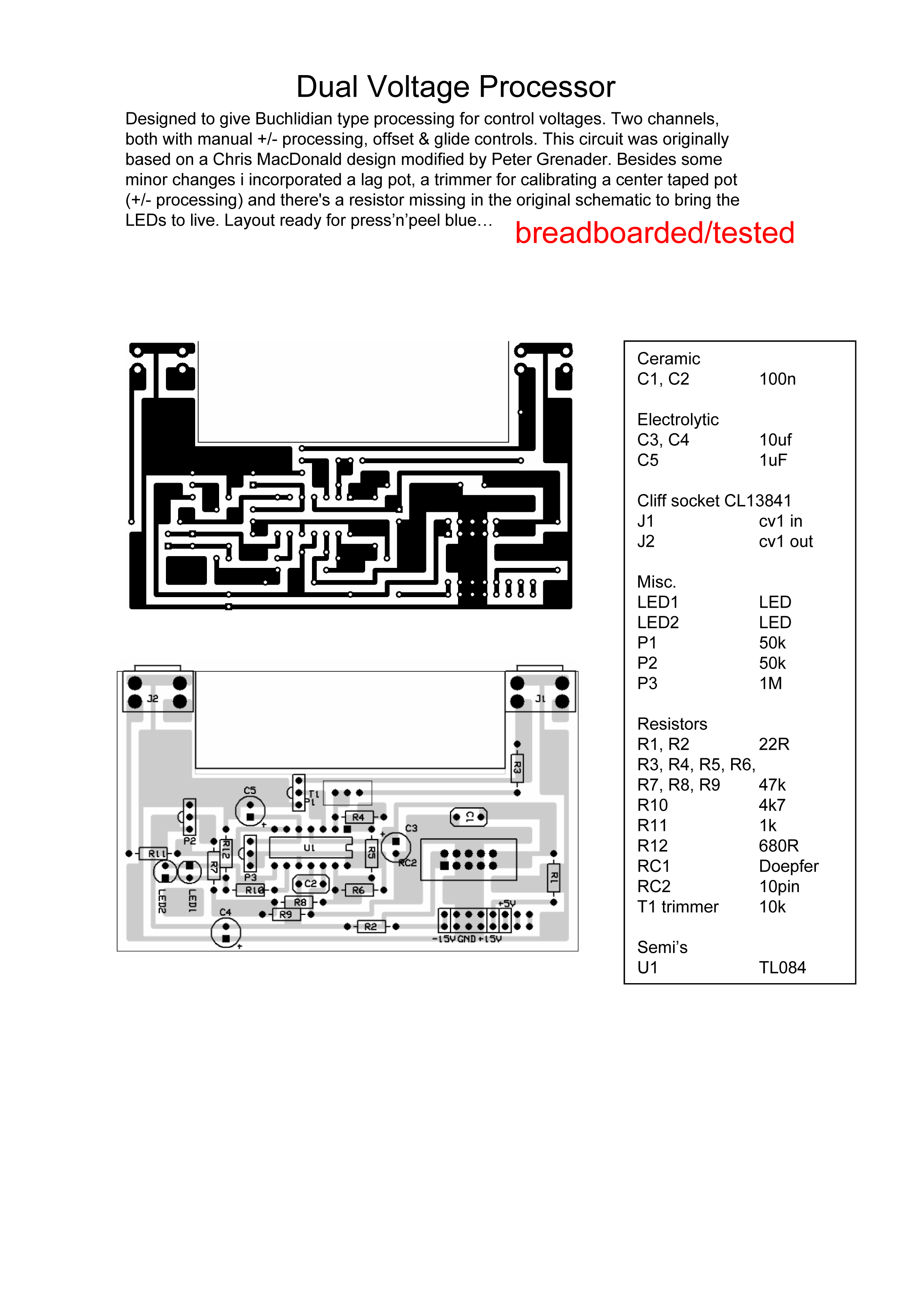

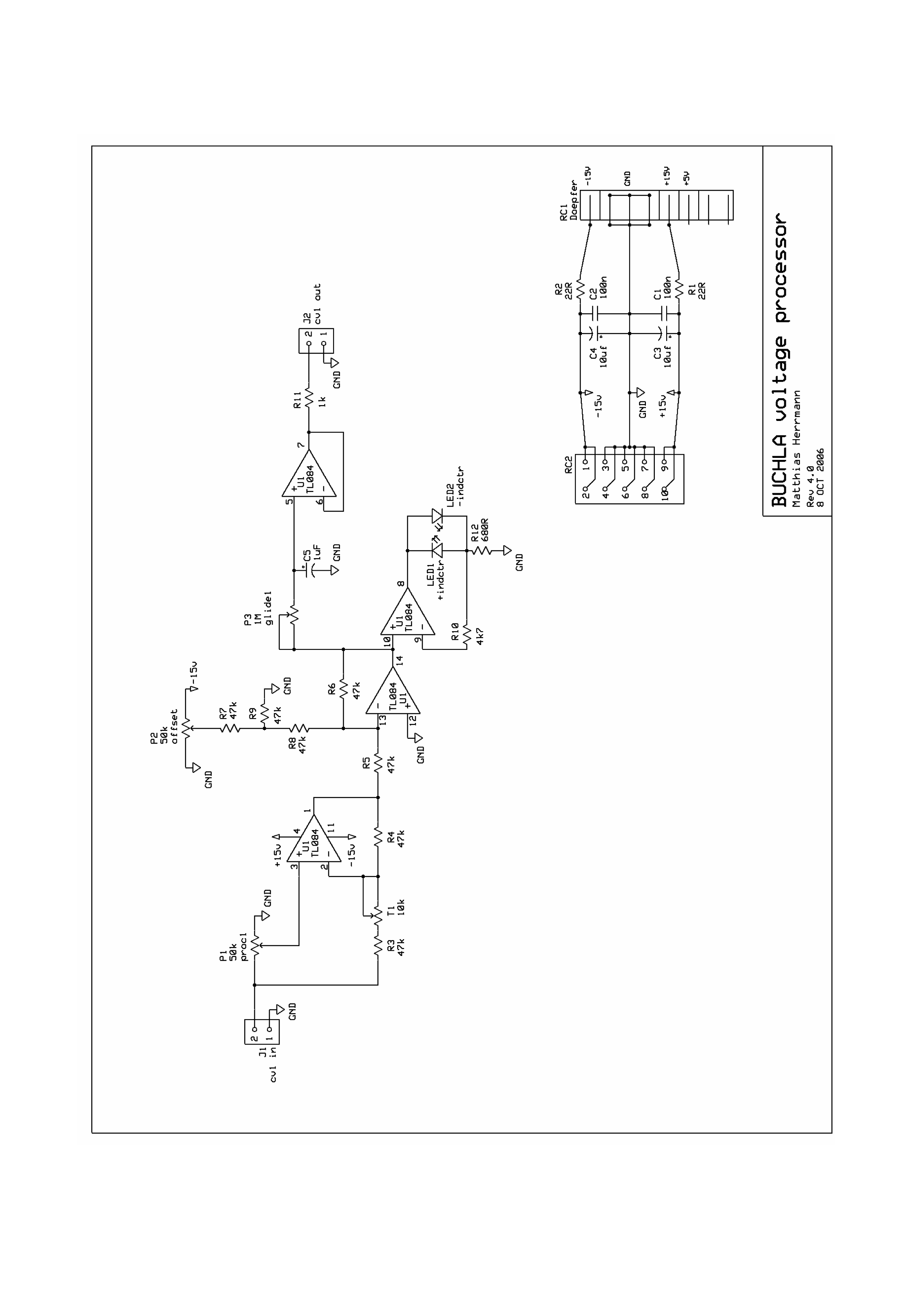

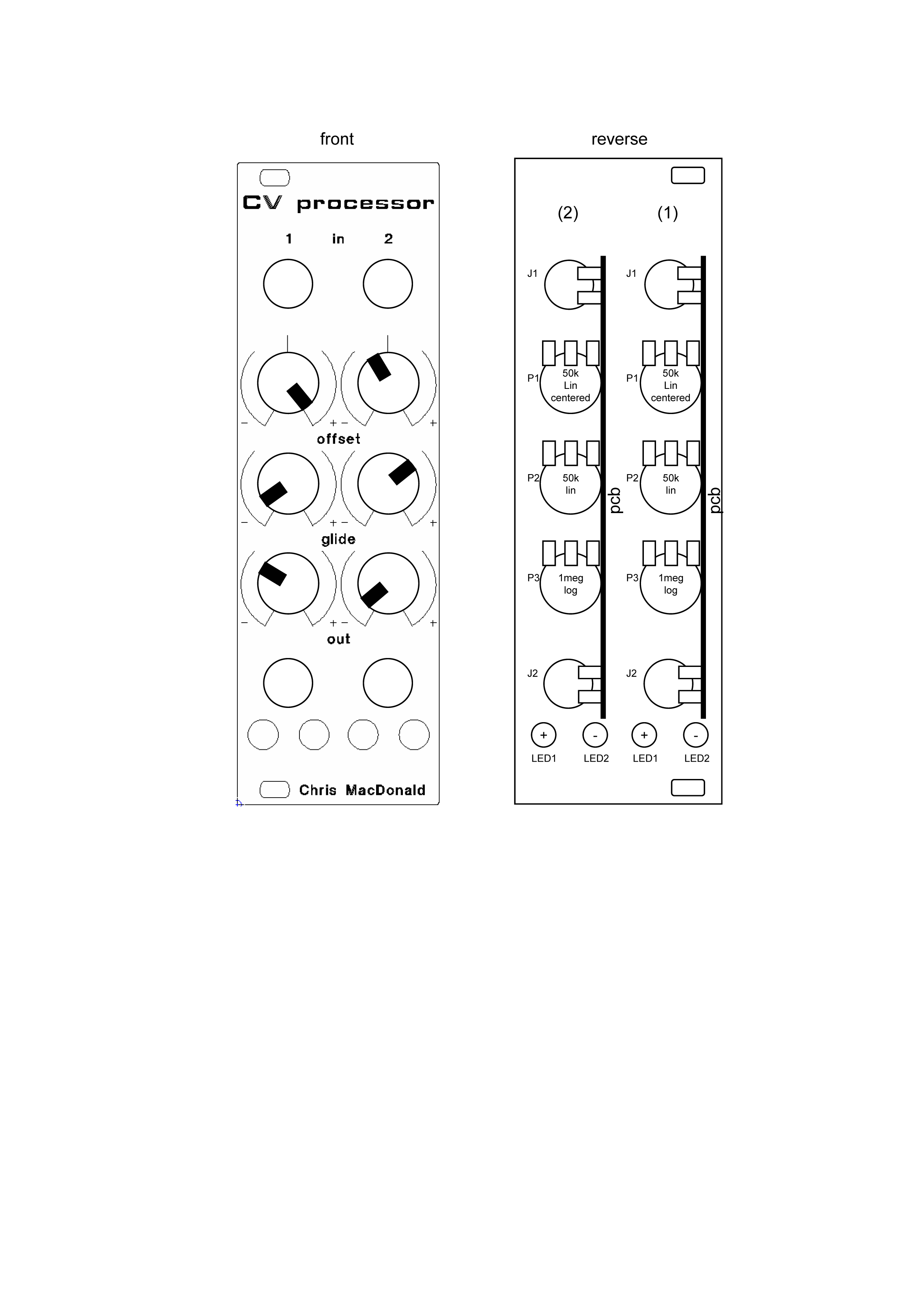

BUCHLAesque - Voltage Processor by Fonitronik and originally based on a Chris MacDonald design modified by Peter Grenader .From Fonik's site : This module incorporates two buchlaidian types of voltage and audio processing.

The CD processor is designed to give Buchlidian type processing for control voltages. Two channels, both with manual +/-processing, offset & glide controls. This circuit was originally based on a Chris MacDonald design modified by Peter Grenader. Besides some minor changes i incorporated a lag pot, a trimmer for calibration of a center taped pot (+/-processing) and there's a resistor missing in the original schematic to bring the LEDs to live.
BTW wiring the offset pot between the supply rails gives you the possibility of negative offset, too... link : http://www.modular.fonik.de/Page15.html

---

dual voltage processor-1.jpg
Description:
Filesize:	725.61 KB
Viewed:	1226 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

dual voltage processor-2.jpg
Description:
Filesize:	309.27 KB
Viewed:	1484 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

dual voltage processor-3.jpg
Description:
Filesize:	320.37 KB
Viewed:	1146 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

dual voltage processor-4.jpg
Description:
Filesize:	150.49 KB
Viewed:	1064 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

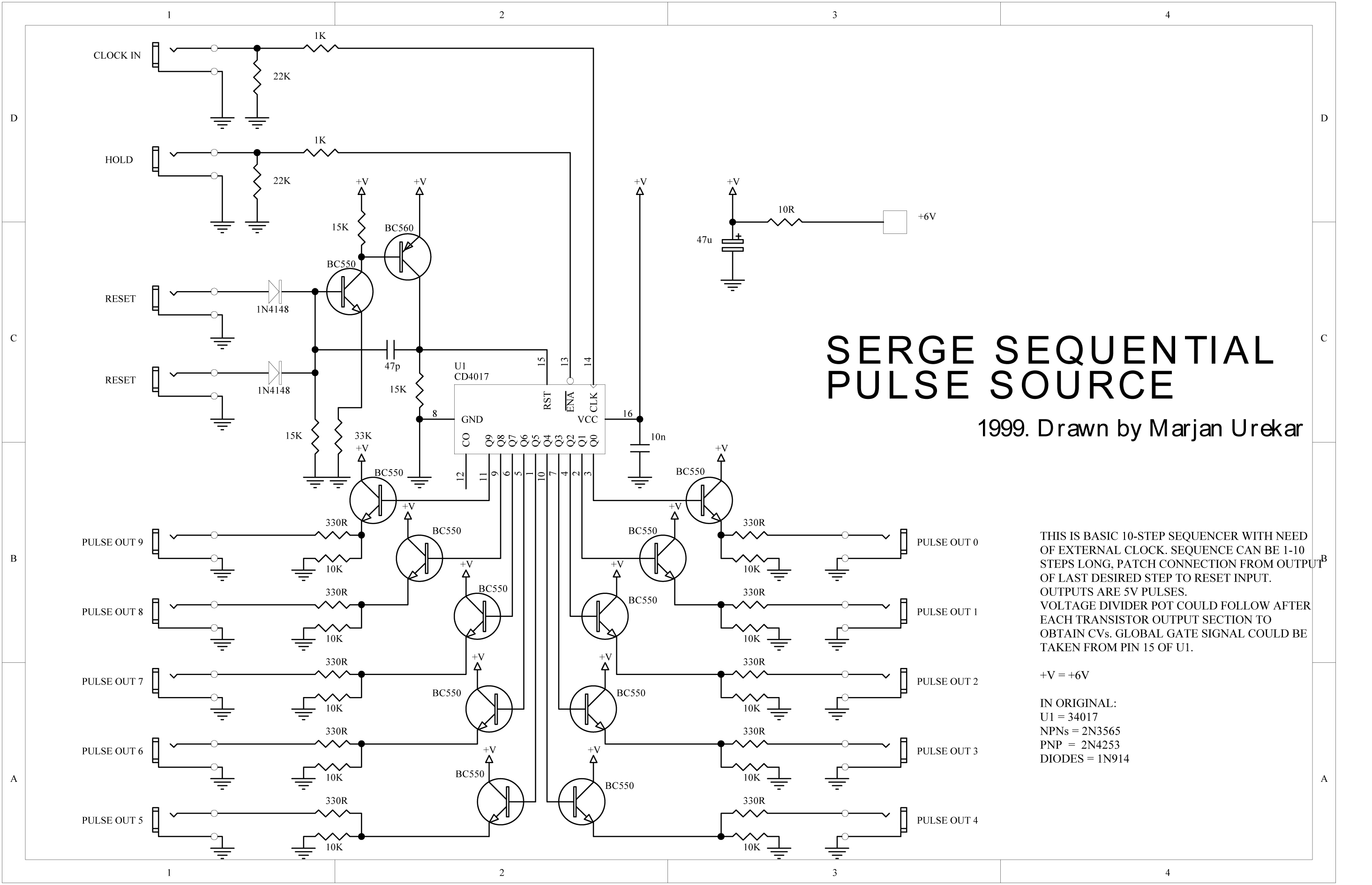

Serge Sequential pulse redrawn by Marjan Urekar ,website : http://urekarm.tripod.com/synth/download.html

---

Description:
Filesize:	590.33 KB
Viewed:	1589 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[vladosh]

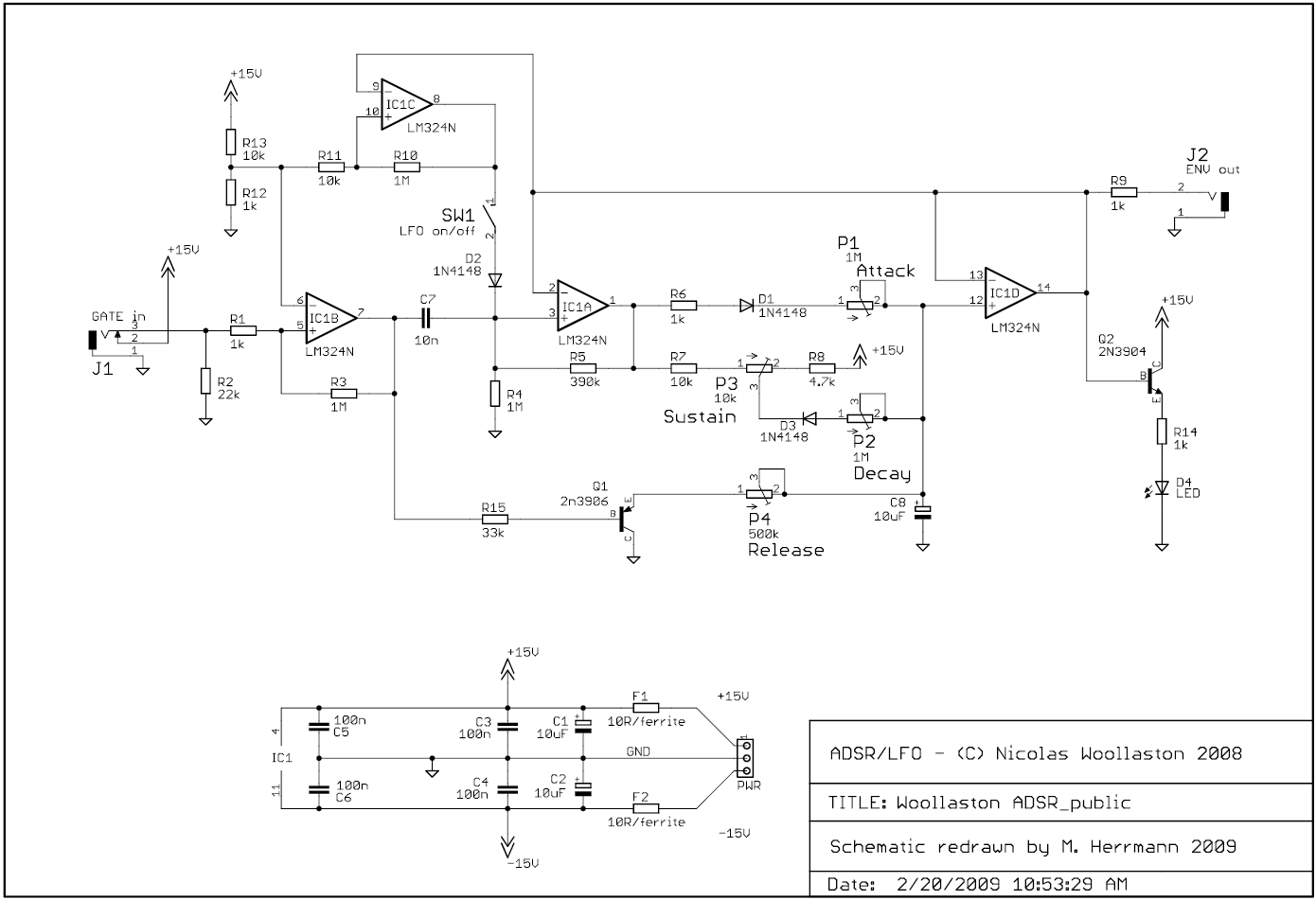

ADSR design by Nicolas Woollaston redrawn by M. Herrmann , more on this thread : http://electro-music.com/forum/topic-31473.html

---

Description:
Filesize:	51.32 KB
Viewed:	1712 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---
