Work done here was between 2008-2012. I haven't posted an update in a while, so here goes....
thanks for looking.

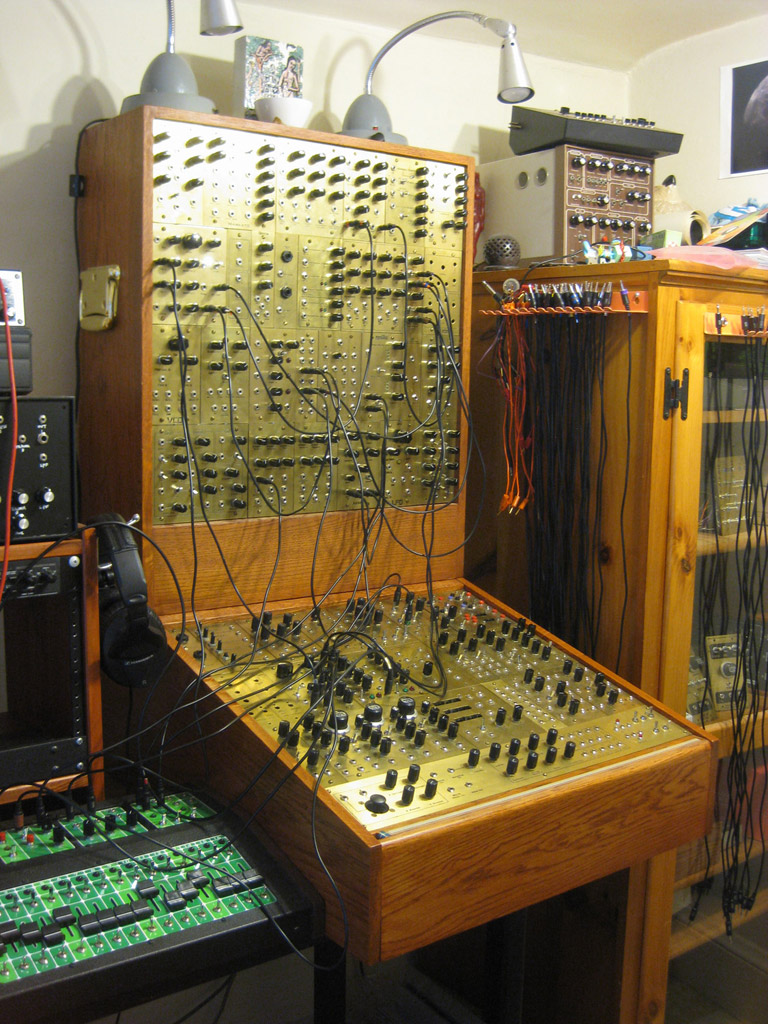

Top Cabinet
Row 1: XR-VCO (T.Henry), Mankato LPF (T.Henry), Wave Multiplier (CGS), 291 BPF clone, Klangwerk Balanced Modulator (Blacet), VCA-1(T.Henry)
Row 2: Morphing Terrarium (MOTM), Analog Shift Register (CGS), Synthacon Filter (CGS), FX send (CGS), Mixer/ Processor (Blacet), Dual Presets/Pattern (Bugbrand), Dual Low Pass Gate (Fonik), Dual VCA [unfinished] (T.Henry)
Row 3: VCO (MFOS), Noise/ S&H (MOTM), Korg Resonator (Fonik), Multiples, Pulse Divider/ Logic (CGS), Miniwave (Blacet),
Uncorrelated Random Voltages (from the Easel, thanks Romeo), ADSR (MFOS)
Row 4: SNVoice (T.Henry, #3 Wogglebug x2, ADSR (MFOS), VCLFO (MFOS), Super Psycho LFO (CGS)
Lower Cabinet
Row 1: FX send (CGS), Dark Star Chaos (Blacet), VCLFO (MFOS), Gated Comparator (CGS), Utility LFOs (CGS), VC Slope (CGS), Hardware Neurons (G. Richter),
Row 2: 266 Stored Random Voltages [unfinished], 266 Quantized Random Voltages [unfinished], Binary Zone (Blacet), Dual Attenuverter (Fonik), 266 Sample & Hold, Dual Burst Generator (CGS), VCA (MOTM), 440 LPF (MOTM)
Row 3: Overdrive (Oakley), Living VCOs (J. Haible), VC Clock & Event Generator (Blacet), Multiples, 2x 281 Function Generator clones (Toppobrillo)
Row 4: Joystick, Appendage (Stites)
-Klee visible in lower left (green console)
Description: |
|
Filesize: |
287.26 KB |
Viewed: |
484 Time(s) |
This image has been reduced to fit the page. Click on it to enlarge. |
|
|
|
Back to top
|
|
|
Skrog Productions
Joined: Jan 07, 2009 Posts: 1196 Location: Scottish Borders
Audio files: 155
|
Posted: Wed Jun 06, 2012 1:10 pm Post subject:
|
|
|
wow , that looks a really nice modular system you have there
Dave. |
|
Back to top
|
|
|
sonicwarrior
Joined: Dec 22, 2005 Posts: 266 Location: Cologne, Germany
|
Posted: Thu Jun 07, 2012 3:41 am Post subject:
|
|
|
MFOS Dual VCA with a frontpanel from Bridechamber (the CV2 and audio inputs are normalled) + Mungo1 Mute Mod:
|
|
Back to top
|
|
|
JingleJoe
Joined: Nov 10, 2011 Posts: 878 Location: Lancashire, England
Audio files: 14
|
Posted: Thu Jun 07, 2012 5:13 am Post subject:
|
|
|
Photon, that's a wonderful synth! Is it brass paneled!? That's almost steampunk, love it _________________ As a mad scientist I am ruled by the dictum of science: "I could be wrong about this but lets find out"
Green Dungeon Alchemist Laboratories |
|
Back to top
|
|
|
sonicwarrior
Joined: Dec 22, 2005 Posts: 266 Location: Cologne, Germany
|
Posted: Thu Jun 07, 2012 10:23 am Post subject:
|
|
|
The first day I was able to finish two modules. Here is a 4ms SCM built from a kit:
|
|
Back to top
|
|
|
sduck
Joined: Dec 16, 2007 Posts: 459 Location: Nashville
Audio files: 5
|
Posted: Sat Jun 09, 2012 10:37 am Post subject:
|
|
|
Here's what just got finished. Just a quickie project that wasn't even in my backlog, but a friend sent me the pcb after I fixed his version of this, and then... well here it is.
Another one with the beautiful and oh-so-affordable roof flashing from Home Depot. And the panel is Front Panel Express with their new powder coat finish - I've been meaning to try this on a cheapo panel, and here it is. It looks great, seems really durable, and is REALLY black. I'm not sure it's worth the extra 15.50 they tacked onto the price that the ordering program didn't show.
|
|
Back to top
|
|
|
marvkaye
Joined: Mar 14, 2011 Posts: 225 Location: Fla
|
Posted: Sat Jun 09, 2012 11:12 am Post subject:
|
|
|
Another amazing job, sduck.... everything you do is top notch, even the simple stuff like this one. Keep up the great work and thanks for sharing. |
|
Back to top
|
|
|
sonicwarrior
Joined: Dec 22, 2005 Posts: 266 Location: Cologne, Germany
|
Posted: Thu Jun 21, 2012 2:04 pm Post subject:
|
|
|
MFOS Noise Cornucopia:
- Old PCB but I put a 1M trimmer in place of R8 to be able to adjust the noise
- Bridechamber front panel with slow/fast switch, but I put an on-on-on switch in there and connected the /2 (fast), /16 (center) and /128 (slow) positions
This will be my only analog noise module in 5U and I'm quite satisfied. Good extension to my Curetronic DigiNoise (which can be clocked by the Noise Cornucopia for extreme madness). |
|
Back to top
|
|
|
mrkva
Joined: Jan 25, 2012 Posts: 41 Location: poland/slovakia/netherlands
|
|
Back to top
|
|
|
sonicwarrior
Joined: Dec 22, 2005 Posts: 266 Location: Cologne, Germany
|
Posted: Sat Jun 23, 2012 7:44 am Post subject:
|
|
|
My first finished module from Ken Stone: A CGS65 Tube VCA with most of the mods that PrimateSynthesis described in this fantastic forum:
|
|
Back to top
|
|
|
sduck
Joined: Dec 16, 2007 Posts: 459 Location: Nashville
Audio files: 5
|
Posted: Tue Jun 26, 2012 11:18 am Post subject:
|
|
|
So back on page 4 of this thread I showed off the Korgasmatron II I had just finished. Just before I finished it, David Dixon announced that he had further perfected his circuit into the korgasmatron III, and now I've built one of those:
|
|
Back to top
|
|
|
Broadwave
Joined: Feb 16, 2007 Posts: 347 Location: Manchester UK
Audio files: 6
|
Posted: Wed Jun 27, 2012 2:26 pm Post subject:
|
|
|
Almost done... 4 years of pain, embarrassment (when I've not had a clue what I was doing!) and joy. All finished except for the last 3 modules. Still awaiting PCB's from Futurlec, which I did as a test, otherwise I would have made them myself - 8 weeks and still waiting
Many thanks to all who helped when I was stuck and desperately needed help : )
Basic rundown:
Row 1 - Modular ARP Odyssey MkI
CV/Gate Access Buss
ARP LFO/Noise/Mixer/S&H
ARP MkI VCO x 2
ARP Dual Ring Mod (X-OR)
4 Input Mixer
ARP 4023 12dB VCF
ARP ADSR Envelope
ARP AR Envelope/VCA
Row 2 - Modular ARP Odyssey MkIII
CV/Gate Access Buss
ARP LFO/Noise/Mixer/S&H
ARP MkIII VCO x 2
4 Stage Divider (Sub-Osc)
4 Input Mixer
ARP 4075 24dB VCF
ARP ADSR Envelope
ARP AR Envelope/VCA
Row 3 & 4 - Most of an ARP 2600
Master CV Module (Tune, Fine, FM1, FM2, Glide)
ARP 2600 VCO with Waveshapers and Sync x 3
6 Stage Divider (Sub-Osc)
2 x 4 Dual Mixer - can be switched to 1x8
ARP 4035 VCF... That errr.."Moog" one
ARP ADSR Envelope
ARP Lin/Log VCA
Distribution (Buffers and Multiples)
CV Recorder (PIC based - Used as S&H, and Dual channel 44/48 note step sequencer)
ARP Ring Mod
ARP Noise x 2
ARP Switch (Modified)
Dual Basic VCA (Curtis CEM 3330)
ARP Voltage Processors
ARP ADSR Envelope x 2
Row 5 - Various
Master CV Module (Tune, Fine, FM1, FM2, Glide)
Utility Module (Lag, Shift, Comparator - Thomas Henry)
4 x 4 Uni/Bi-Polar Matrix Mixer
ARP ADSR Envelope
Doepfer Moog VCF
Dual VCA (Curtis CEM 3330)
Row 6 - Various
CV/Gate Buss
Keyboard Interface (Power, CV and Gate)
ARP 2600 VCO x 3 (Not yet built)
12dB State Variable Filter (MFOS)
Dual LFO x 2 (Korg MS20)
Keyboard
Based on the ARP 3620 Keyboard, Muti/single trig section replaced by PIC 44 Note Step Sequencer and LFO reset off switch.
No idea what to do next... I have a box full of unfinished modules/projects etc. _________________ Kronos 2-88, Kronos 61, Studiologic Sledge V2/SL, Broadwave ARP 2600EX, Broadwave 18U ARP based Eurorack Modular, Broadwave Minimoog Clone, GEM S2 Turbo.
Synth DIY Projects
Musical Doodlings |
|
Back to top
|
|
|
blue hell
Site Admin
Joined: Apr 03, 2004 Posts: 24075 Location: The Netherlands, Enschede
Audio files: 277
G2 patch files: 320
|
Posted: Wed Jun 27, 2012 2:28 pm Post subject:
|
|
|
AndyR1960 wrote: | Almost done |
oh wow, that looks great! _________________ Jan
also .. could someone please turn down the thermostat a bit.
|
|
Back to top
|
|
|
LektroiD
Joined: Aug 23, 2008 Posts: 1018 Location: Scottish Borders
Audio files: 2
G2 patch files: 2
|
|
Back to top
|
|
|
bubzy
Joined: Oct 27, 2010 Posts: 594 Location: United Kingdom
Audio files: 64
|
|
Back to top
|
|
|
Psyingo
Joined: Jun 11, 2009 Posts: 248 Location: Canada
|
Posted: Fri Jul 13, 2012 10:30 am Post subject:
|
|
|
heres some pedals and an amp ive built this year.
left to right:
1st row: green ringer clone, fuzz face clone, germanium booster
2nd row: bazz fuss, octave up of my own design, fuzz pedal of my own design.
3rd row: AMP! lm386 amp housed in an old 60s hifi speaker enclosure i found on the side of the road.
i play bass, so these are really quite fun. especially the octave ups, it gets real clangy |
|
Back to top
|
|
|
elmegil
Joined: Mar 20, 2012 Posts: 2177 Location: Chicago
Audio files: 16
|
|
Back to top
|
|
|
dougseidel
Joined: Feb 10, 2010 Posts: 74 Location: NJ
|
Posted: Mon Jul 16, 2012 11:26 am Post subject:
|
|
|
Psyingo:
That's a very nice looking family! Where do you get those aluminum(?) boxes? _________________ http://soundcloud.com/douglasmseidel |
|
Back to top
|
|
|
Psyingo
Joined: Jun 11, 2009 Posts: 248 Location: Canada
|
Posted: Mon Jul 16, 2012 12:07 pm Post subject:
|
|
|
dougseidel wrote: | Psyingo:
That's a very nice looking family! Where do you get those aluminum(?) boxes? |
the aluminum boxes in the front row are some old 60s era RF (i think) filter boxes i have, i have a couple dozen of them, they need a lot of work to get them to that state though, they need to be sanded to remove a coat of paint and there are some metal protrusions that need to be cut off and sanded down aswell. they are nice small, sturdy boxes though, i like them. |
|
Back to top
|
|
|
PHOBoS
Joined: Jan 14, 2010 Posts: 5581 Location: Moon Base
Audio files: 705
|
|
Back to top
|
|
|
elmegil
Joined: Mar 20, 2012 Posts: 2177 Location: Chicago
Audio files: 16
|
Posted: Mon Jul 16, 2012 6:38 pm Post subject:
|
|
|
Thanks PHOBoS
It was a weird looking Phillips Magnavox surround speaker. I did skin it, originally it had dusty cloth covering it. Sadly, even though it would have come in a pair, the thrift where I bought it couldn't find the mate. I've looked online as well and while I see reference to it, I haven't found any other pictures much less sources for more. |
|
Back to top
|
|
|
sonicwarrior
Joined: Dec 22, 2005 Posts: 266 Location: Cologne, Germany
|
Posted: Wed Jul 18, 2012 12:35 pm Post subject:
|
|
|
A difficult birth but with great help from this forum I was able to get it to work:
Ken Stone CGS58 Dual Utility LFO
Mods:
The big knob indicates a 10-turn 20K pot on LFO2 and it has a 2K trimmer instead of the 4K7 resistor and a 330N cap.
LFO1 has a 1K resistor and a 3.3 uF cap.
Slow mo fun. |
|
Back to top
|
|
|
bod
Joined: Apr 28, 2009 Posts: 148 Location: Glasgow
|
|
Back to top
|
|
|
bod
Joined: Apr 28, 2009 Posts: 148 Location: Glasgow
|
Posted: Sat Jul 21, 2012 10:58 am Post subject:
Re: MOFS WSG |
|
|
elmegil wrote: | Final build, very happy with it. |
Love the finish on this, and thats an awesome case! It's got a strange darth vader/gas mask esque style to it! What's it from?! |
|
Back to top
|
|
|
|
