PostPosted: Mon Dec 10, 2012 9:13 am    Post subject: JH Living VCO stripboard Reply with quote  Mark this post and the followings unread
really challenge this circuit ! I hope i got it right ,here is the page for the circuit : http://www.jhaible.de/living_vcos/jh_living_vcos.html

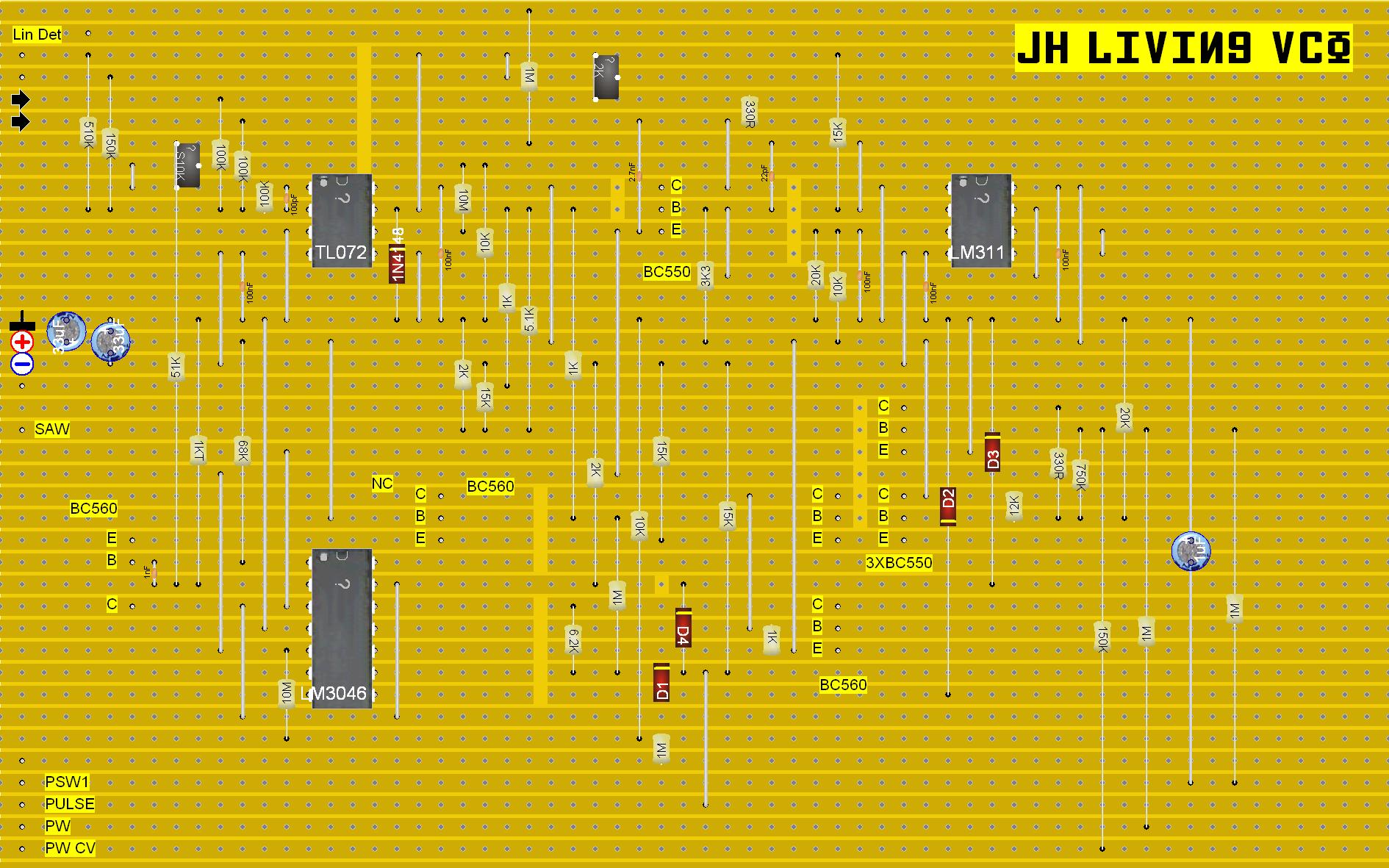

JH LIVING VCO.JPG
 Description:
 Filesize:  395.89 KB
 Viewed:  1058 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

JH LIVING VCO.JPG
Back to top
View user's profile Send private message
Nardu



Joined: Feb 28, 2011
Posts: 62
Location: Braila, Romania
PostPosted: Sun Jan 27, 2013 10:55 am    Post subject: Reply with quote  Mark this post and the followings unread

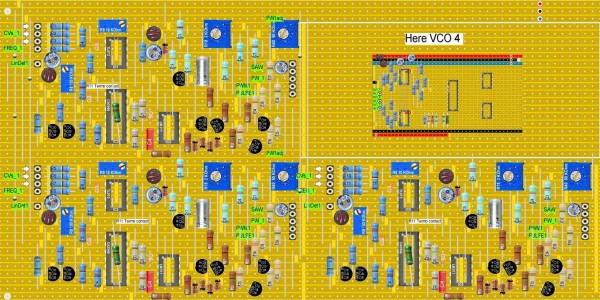

Another version of design.
- With a little adaptor, stripboard too, it's posible to change easy the CA3046 with 2SC1583, SSM2210 or LM394.
- Entire project fits on a H25SR200 (200x100mm - 8x4 inch)
I have not yet finished the VCO4

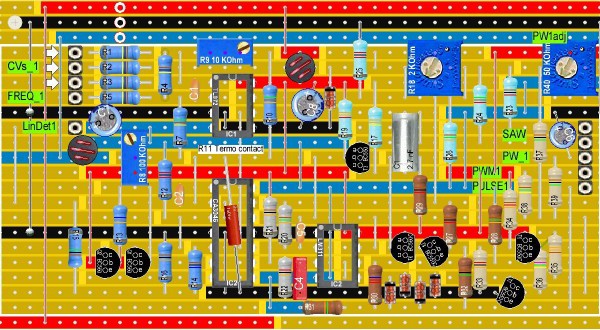

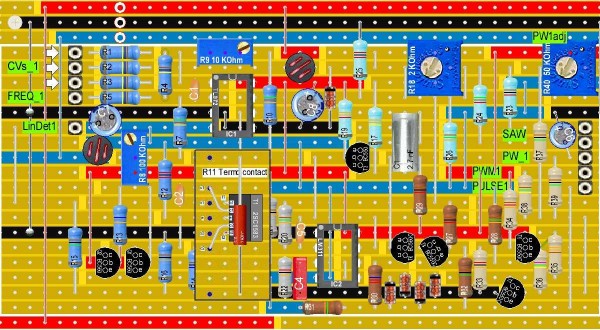

Living VCOs CA3046.jpg
 Description:
 Filesize:  181.82 KB
 Viewed:  923 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Living VCOs CA3046.jpg

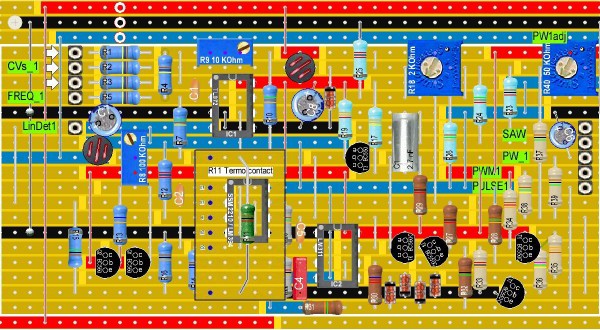

Living VCOs SSM2210 - LM394.jpg
 Description:
 Filesize:  180.52 KB
 Viewed:  714 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Living VCOs SSM2210 - LM394.jpg
Living VCOs - 2SC1583.jpg
 Description:
 Filesize:  136.6 KB
 Viewed:  691 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Living VCOs - 2SC1583.jpg

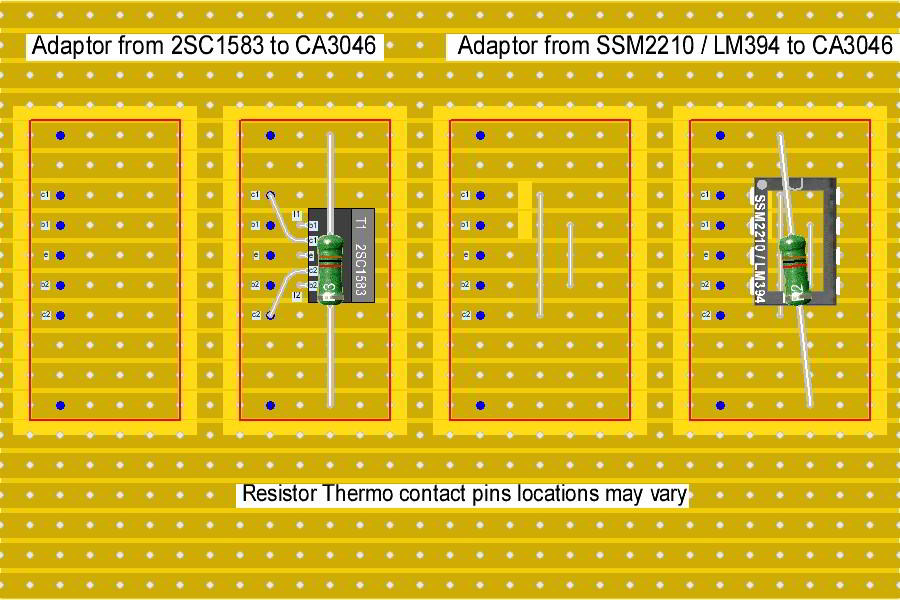

Adaptor 2SC1583 - SSM2210 - LM394 to CA3046.jpg
 Description:
 Filesize:  87.47 KB
 Viewed:  646 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Adaptor 2SC1583 - SSM2210 - LM394 to CA3046.jpg
 Description:
 Filesize:  219.42 KB
 Viewed:  914 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.


Last edited by Nardu on Sat Feb 09, 2013 5:43 am; edited 3 times in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website
vladosh



Joined: Aug 02, 2010
Posts: 678
Location: macedonia
Audio files: 51
PostPosted: Sun Jan 27, 2013 11:12 am    Post subject: Reply with quote  Mark this post and the followings unread
very neat Nardu !!
cheers
Back to top
View user's profile Send private message
Paradigm X



Joined: Feb 15, 2011
Posts: 363
Location: Null and void
Audio files: 2
PostPosted: Sun Jan 27, 2013 12:18 pm    Post subject: Reply with quote  Mark this post and the followings unread
nice one both of you, thanks!
Back to top
View user's profile Send private message
feggster



Joined: Sep 12, 2011
Posts: 52
Location: uk
PostPosted: Wed Feb 06, 2013 5:59 am    Post subject: Reply with quote  Mark this post and the followings unread
these look great, are any of them verified as working?
I see a lot of nice stripboard / vero board layouts on here but hardly any are verified!
Back to top
View user's profile Send private message
vladosh



Joined: Aug 02, 2010
Posts: 678
Location: macedonia
Audio files: 51
PostPosted: Thu Feb 07, 2013 5:04 am    Post subject: Reply with quote  Mark this post and the followings unread
hi feggster i haven't built the living vco's but from my layouts here in this section i have built and verified these :
http://electro-music.com/forum/topic-50460.html
http://electro-music.com/forum/topic-51454.html
http://electro-music.com/forum/topic-52452.html
http://electro-music.com/forum/topic-54120.html
http://electro-music.com/forum/topic-56044.html
http://electro-music.com/forum/topic-46138.html
Back to top
View user's profile Send private message
feggster



Joined: Sep 12, 2011
Posts: 52
Location: uk
PostPosted: Thu Feb 07, 2013 5:26 am    Post subject: Reply with quote  Mark this post and the followings unread
thanks vladosh Very Happy that will keep me occupied for a while.
Back to top
View user's profile Send private message
Nardu



Joined: Feb 28, 2011
Posts: 62
Location: Braila, Romania
PostPosted: Sat Feb 09, 2013 7:39 pm    Post subject: Reply with quote  Mark this post and the followings unread

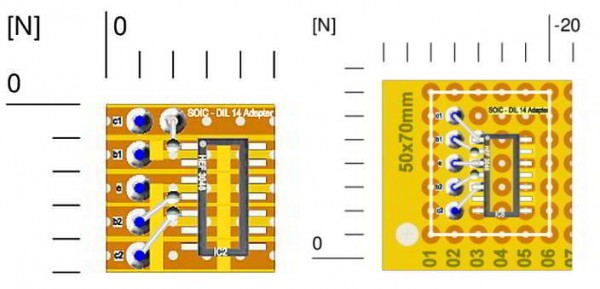

If you have a HFA3046 SOIC 14 package - http://www.intersil.com/content/dam/Intersil/documents/fn30/fn3076.pdf ,
use a little piece of striboard 0.5x0.5 inch - 12.7x12.7 mm to adapt the HFA3046 SOIC 14 to DIL14

Adaptor_HFA_3046_SOIC-DIL_14_stripboard v1.jpg
 Description:
 Filesize:  29.62 KB
 Viewed:  608 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Adaptor_HFA_3046_SOIC-DIL_14_stripboard v1.jpg
Back to top
View user's profile Send private message Send e-mail Visit poster's website
isak



Joined: Dec 13, 2009
Posts: 847
Location: Israel
Audio files: 18
PostPosted: Mon Nov 11, 2013 12:14 am    Post subject: Reply with quote  Mark this post and the followings unread
Hi guys.

I see the JH site is not working any more.
Is theres any chance for the living vco scheme?

Cheers,
Isak E.
_________________
http://www.myspace.com/mgmtrance
Back to top
View user's profile Send private message
LFLab



Joined: Dec 17, 2009
Posts: 497
Location: Rosmalen, Netherlands
PostPosted: Mon Nov 11, 2013 2:32 am    Post subject: Reply with quote  Mark this post and the followings unread
Juergen Haible has passed away unfortunately, but luckily the information from his site can be found elsewhere:
http://www.jhaible.com/wsdindex.html

Keep his work alive!
Back to top
View user's profile Send private message
isak



Joined: Dec 13, 2009
Posts: 847
Location: Israel
Audio files: 18
PostPosted: Mon Nov 11, 2013 7:44 am    Post subject: Reply with quote  Mark this post and the followings unread
I knew that, it is sad.

Thanks for the link.
_________________
http://www.myspace.com/mgmtrance
Back to top
View user's profile Send private message
mercury8



Joined: Nov 25, 2018
Posts: 14
Location: grand rapids ohio
PostPosted: Fri Dec 21, 2018 3:26 pm    Post subject: Reply with quote  Mark this post and the followings unread
HAS ANYONE TRIED THIS OR VERIFIED IT. I FIGURE SINCE IT WAS DISGNED BY THE AWSOME NARDU THAT ITS PROB GOOD BUT STILL WANT TO KNOW FORSURE OF COURSE. THANKS ALOT NARDU YOU RULE
