3rd run of PCBs for the PS3100 Resonators & the X-panfader

Junk Rhythm · Joined: Jan 07, 2008 Posts: 81 Location: San Francisco, CA

I'll jump onto that list for 2 when it happens.

crashlander42 · Joined: Oct 21, 2006 Posts: 292 Location: Orlando, FL (US)

Stereo version? I'm listening... Very Happy

whomper · Posted: Sat Sep 27, 2008 9:50 pm Post subject:

I had build one of the 2nd run to great results.

Will probably join for the 3rd stereo version

camelneck · Joined: Sep 27, 2008 Posts: 68 Location: KY (USA)

>>Fonik wrote,
I could do a 3rd run any time, if there is enough interest (50 PCBs min).
OTH i'd liked to do a stereo version (plans are laid out in my head)<<

This is wonderful news!!! I was about ready to design and etch my own board, but I'd much rather wait a few weeks/months and have a quality PCB.

What changes are you currently considering when you say "a stereo version"? Are you talking about adding a custom stereo panning circuit to the rev2 PCB board? Or are you talking about adding another set of resonators so there would be 6 band pass filters total (3 per each channel)?

Regardless, I hope that you plan to leave the basic design as is, including the LFO. (I'm really impressed with the sound samples I've heard!) If that is the case, I'll purchase 2 boards so I can build both a mono and a stereo version. Smile

fonik · Posted: Mon Sep 29, 2008 6:59 am Post subject:

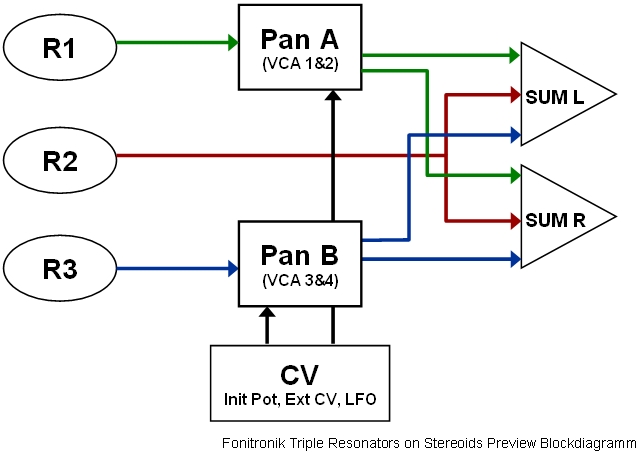

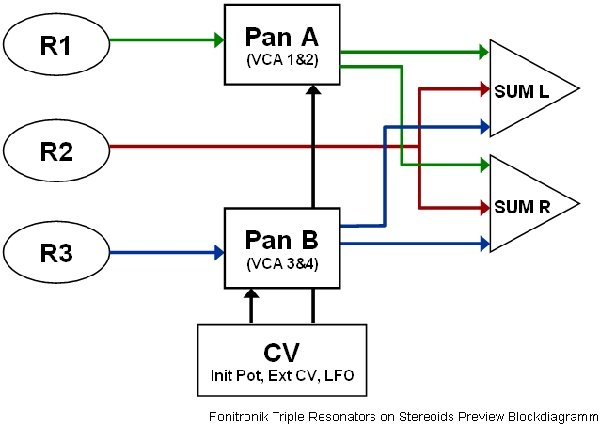

the idea was to have the original PS3100 resonators three BPFs and pan them into stereo like this (the wet/dry mix would be sacrificed - i don't use it at all):


Description:

Filesize:

76.82 KB

Viewed:

979 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

kitsch-bent · Joined: Aug 03, 2008 Posts: 15 Location: USA

stereo version sounds wonderful. i'd certainly be up for at least 2 boards...

djthomaswhite · Joined: Nov 22, 2007 Posts: 140 Location: Orange, CA

I'd want one of these Matthias! Stereo would be a nice bonus,

Thomas

numbertalk · Posted: Fri Oct 03, 2008 10:15 am Post subject:

Count me in for 1 when there's a 3rd run. Thanks!

phdinfunk · Joined: Jun 04, 2008 Posts: 119 Location: Taiwan

Yea, I'd take precisely one of those boards on the third run.

camelneck · Joined: Sep 27, 2008 Posts: 68 Location: KY (USA)

Matthias,
Thanks for posting the diagram for your stereo resonator design. That was the basic approach that I was hoping you would take.

I assume that this diagram only shows the new features that you plan to add, such as adding additional CV inputs to control panning. In other words,

1) Do you plan to make any changes to any of the original features such as the way the original CV inputs that control the frequency of each resonator are implemented?

2) Also, since you are adding the stereo panner, do you still plan to keep the LFO in the new design. (I certainly hope so.)

Anyway, I'm really anxious to get a hold of a couple of the rev 3 boards!

David

LektroiD · Posted: Fri Oct 03, 2008 3:36 pm Post subject:

Two here if there's another run! Wink

fonik · Posted: Sat Oct 04, 2008 6:25 am Post subject:

whomper · Posted: Sat Oct 04, 2008 7:09 am Post subject:

fonik · Posted: Sat Oct 04, 2008 8:27 am Post subject:

numbertalk · Posted: Wed Nov 12, 2008 10:19 am Post subject:

Just checking to see if any updates on a 3rd run of a stereo version of this board - how close to 50 people are on board, how far down in your work queue is the design updates, etc?

Thanks!

stijn · Posted: Wed Nov 12, 2008 11:44 am Post subject:

great you're doing another run!

put me down for one board please!

BananaPlug · Posted: Wed Nov 12, 2008 1:33 pm Post subject:

Sounds like the one board vs. two boards decision could be a tough call but I'll put in my two cents worth and say it would be cool if the two board solution resulted in a VC pan board suitable for use on its own. Needless to say this would unleash a flurry of feature requests and requirements that go beyond what's needed for the resonater. Surprised

Just for kicks, here's a Vactrol panner:
http://www.simple-answer.com/vac-panner.jpg

It would have the desirable (to me anyway) effect of reducing the depth of panning as the frequency of the LFO goes up.

fonik · Posted: Wed Nov 12, 2008 2:27 pm Post subject:

me myself am voting for the two board solution. i just have etched a prototype. it provides 4 simple VCAs and a CV summer/inverter to allow stereo-x-pan (one channel left, while the other is right), plus a third input, going straight to both outputs.
the VCAs are all coupled, though. and at the moment i won't allow any feature creep Very Happy

i will see how it works out. the panners VCAs ahve no trimmers for offset or anything (which could be ammended, i think)...

henrikgo · Joined: Jul 05, 2008 Posts: 40 Location: sweden

One PCB for me too!

plord · Joined: Dec 15, 2007 Posts: 19 Location: El Cerrito, CA

Put me down for one, for certain.

Luka · Joined: Jun 29, 2007 Posts: 1003 Location: Melb.

im keen too

numbertalk · Posted: Wed Nov 12, 2008 5:24 pm Post subject:

A 2 board design is fine with me. Definitely in for a pair.

camelneck · Joined: Sep 27, 2008 Posts: 68 Location: KY (USA)

>>Just checking to see if any updates on a 3rd run of a stereo version of this board - how close to 50 people are on board, how far down in your work queue is the design updates, etc? <<

That's a good question. I wonder if Mathias (Fonik) has been keeping a list? As soon as Matthias finishes his design, I'd like for someone to start an official list to see how close we are to 50. I'm afraid that some people may not be aware of this discussion since the title for this thread doesn't mention 'Stereo' PS-3100 Resonators.

I wonder if Moderator Scott can change the title of this thread to "PCB Boards for Stereo PS-3100 Resonator Project".

For those new to this thread, here is a summary concerning what's been said so far:
------------
On On Sept 27, 2008. Matthias (Fonik) mentioned 2 scenarios,

Scenario #1
>>i could do a 3rd run any time, if there is enough interest (50 PCBs min). <<Scenario>> OTH i'd liked to do a stereo version (plans are laid out in my head), this could take some weeks. and there are other projects on my pile as well. <<

However, as discussion progressed on the matter, Matthias seemed to be favoring option #2 and seemed really psyched about developing a stereo resonator. I missed out on the first two runs so I'll be happy with either scenario. I plan to buy 2 PCB's regardless because I would like to build both a mono version and a stereo version.

Scenario #2 should be very similar to scenario #1 with the addition of a voltage controlled stereo panner. Matthias says the only thing he plans to delete from the original Rev2 PS-3100 Resonator PCB is the wet/dry mix control, which many people won't use or even implement.

Although I'm really anxious to order my 2 PCB's, Matthias did say he was working on some other projects and that it would be a few weeks before he would finish the design. IMO, there seem to be 2, maybe 3*, design issues that haven't been resolved and they are interlocked with each other.

1) Complexity of the VCA's for the VC Stereo Panner
2) Whether it should be a single PCB or dual PCB design
*3) Adding another LFO or an Envelope Generator of some sort.

Issue #3 is my own addition and it hasn't been mentioned on this board until now.

MY PERSONAL PREFERENCES
Personally, I would like to see the 2nd scenario with a 2-PCB design implemented. I also favor keeping the existing resonator (rev 2) board as is. It would contain the 3 resonators and the LFO (minus the wet/dry control if need be). The 2nd board could contain the VC stereo panner, and either a 2nd LFO or an envelope generator. Using 2 boards, Matthias would have more room to build a better, more flexible VCA that could even be used as a standalone VCO panner. A 2nd board would probably also provide room for either a 2nd LFO or a simple Envelope Generator to be added.

I don't have a PS-3100 resonator module, so I can't do any experimentation, but I don't think the existing LFO would be very
effective at simultaneously controlling the resonators and the VC panner. I think using the existing LFO to control one while using an EG or a 2nd LFO the other would be much better especially if the 2nd LFO or the EG could also be delayed. Neither would have to be very complicated and the Envelope Generator wouldn't have to be an ADSR. It could be an AD-, AR-, ASR-, DAR-, or DASR -type EG with a delay time pot, an attack pot, a decay/release pot, and perhaps a sustain off/on switch.

Of course, each resonator and the VC panner should have their own separate CV inputs so an external LFO can always be used as the 2nd LFO, or even a 3rd LFO. So this 2nd LFO/EG option wouldn't have to be implemented unless there was sufficient space on the 2nd PCB for both it and the VC Panner. In addition, if you didn't want this option, you could simply not implement it.

Finally, I plan to buy two PCB's if it is a single PCB design, or two 2-PCB sets (4 PCB's) if it is a dual PCB design. The main reason why I like the dual PCB design best with the Resonators and LFO#1 on PCB#1 and the VC panner plus a 2nd LFO/EG on PCB #2 is because of the flexibility it offers. With the 2-PCB design, I could choose to build 3 different modules using these 4 boards--a mono version of the PS-3100 Resonators (1 PCB), a standalone VC Panner w/ delayed LFO or EG (1-PCB), and a stereo version of the PS-3100 Resonators w/ 1 or 2 LFO's (2 PCBs). There aren't two many DIY Projects for VC Panners and I definitely want one of these in the modular system that I'm building.

David

LektroiD · Posted: Wed Nov 12, 2008 8:19 pm Post subject:

I'd be interested too!

1, perhaps 2, dependant on price of course Smile
