Show your Benjolin / Zeitgeist

macumbista · Posted: Tue Mar 18, 2014 8:10 am Post subject:

A Static Environment for Complementary Instabilities from macumbista on Vimeo.

A Static Environment for Complementary Instabilities

++dual butterfly benjolin++chaotic feedback++
++symmetrical patching++high resonance++
++total harmonic distortion++
++no changes++no cuts++
++get hypnotized++

18 march 2014

fluxmonkey · Joined: Jun 24, 2005 Posts: 708 Location: cleve

steve from Telecult Powers got my first Zeitgeist, and the wife appropriated my Benjolin, so i had to replace 'em. The modules, not the friends & family.

b


Description:

Filesize:

54.95 KB

Viewed:

1027 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Filesize:

70.95 KB

Viewed:

948 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Filesize:

74.43 KB

Viewed:

1074 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

Repeater · Joined: Mar 19, 2011 Posts: 13 Location: Rochester

Here's my Double Benjolin.
Posted Image, might have been reduced in size. Click Image to view fullscreen.

blue hell · Posted: Wed Feb 04, 2015 5:45 pm Post subject:

modulator_esp · Posted: Wed Feb 04, 2015 6:40 pm Post subject:

very nice

Starspawn · Joined: Jun 14, 2013 Posts: 85 Location: Oslo

Heres my Benjolin in Euro.
Posted Image, might have been reduced in size. Click Image to view fullscreen.

With most of the Caspar mods. [/img]

L´Andratté · Posted: Sun Mar 15, 2015 12:40 pm Post subject:

fluxmonkey · Joined: Jun 24, 2005 Posts: 708 Location: cleve

L´Andratté · Posted: Sun Mar 15, 2015 1:08 pm Post subject:

Nice.I´m currently planning on building a dual benjolin in a nice metal box I found. Will bring out all inputs and outputs to the front.

I figured stuff like if both 4021s are chained in series and clocked from the same osc, the output of the 2nd 4021 will be a delayed version of the first, could yield interesting arabesques. And much more. Inspiring circuit!

EDIT: actually Rob describes just that in this threadhttp://electro-music.com/forum/topic-41489.html

fetideye · Joined: Jun 22, 2015 Posts: 27 Location: Netherlands

here's my benjolin i build (a while ago)
I rewired it yesterday, because the header pin wires were failing, those were very thin wires!

replaced the 7809 as well.

now all is well again Smile

L´Andratté · Posted: Thu Jan 07, 2016 12:37 pm Post subject:

Fetideye- what happend to your connector? And regulator too?
Nice looking box you have there. I´m still building my double benjolin (that will live in an old east german toolbox) and are interested in your xperiences happy smoker

Macumbista- Your butterfly benjolin is killer. And letterstamped is so beautiful if done well, I could never achieve that when I tried, maybe I should try again...

macumbista · Posted: Thu Jan 07, 2016 12:40 pm Post subject:

fetideye · Joined: Jun 22, 2015 Posts: 27 Location: Netherlands

macumbista · Posted: Fri Jan 08, 2016 6:05 am Post subject:

L´Andratté · Posted: Sun Feb 14, 2016 7:21 am Post subject:

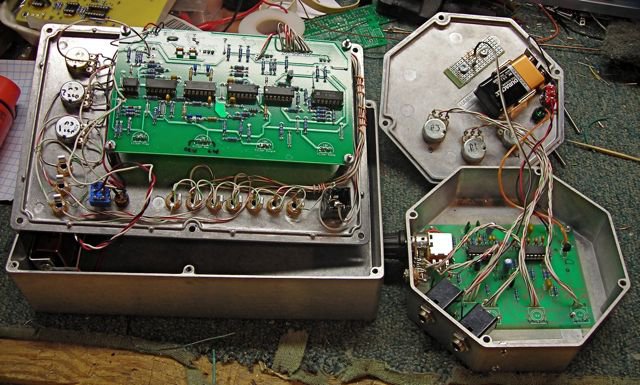

Here´s my Twinjolin, labeling will be following with old school Dymo- I just love the rundown industrial look...

Thanks Rob, a lot of fun already!
And thanks Macumbista for inspiration Very Happy

a few mods:
-switch for loopx1/off/loopx2
-switch for loop lenght, 6/8 steps on rungler 1, 7/8 steps on rungler 2
-switch for crossfeed of selected output bits rungler 1 into data in on rungler 2 (and vice versa for weird canons)
-ext. clock inputs on both runglers for syncing the runglers etc.
-Hp/Bp outs added (especially love the Hp)
-internal resonance trimmer (parallel to R28) for max.Q up to self oscillation (which is actually not desirable as s.o. is frequency dependent and sets in with high squealing, but you can trim resonance to the edge, for for even more wet/pingy sound than given circuit)

Powersupply is MFOS circuit, jacks are 3,5mm type high quality

Dual Zeitgeist will be following! I found the pcb layout on muffwiggler-

Posted Image, might have been reduced in size. Click Image to view fullscreen.

macumbista · Posted: Mon Feb 15, 2016 9:15 am Post subject:

L´Andratté · Posted: Tue Feb 16, 2016 1:43 am Post subject:

Thanks!

Loop lenght: really simple, put the node of R16/R17 on the middle lug of a switch, and put the bit out pins of the 4021 on the outer lugs...
You could use 3throw switch for all possibilities, but I used 2 throw...

It would probably be good practice to buffer the filter outs, but I think it is not necessary with any sane load impedance (just as the original lp out).

The crossfeed feature is a winner, btw. With the runglers synced, benj2 plays the pattern of benj1 with eight step delay, trhat ties everything together nicely, I recorded a little piece, that I will upload asap (I record on cassette) cyclops

Chaz · Joined: Jun 24, 2016 Posts: 1 Location: Santa Fe New Mexico

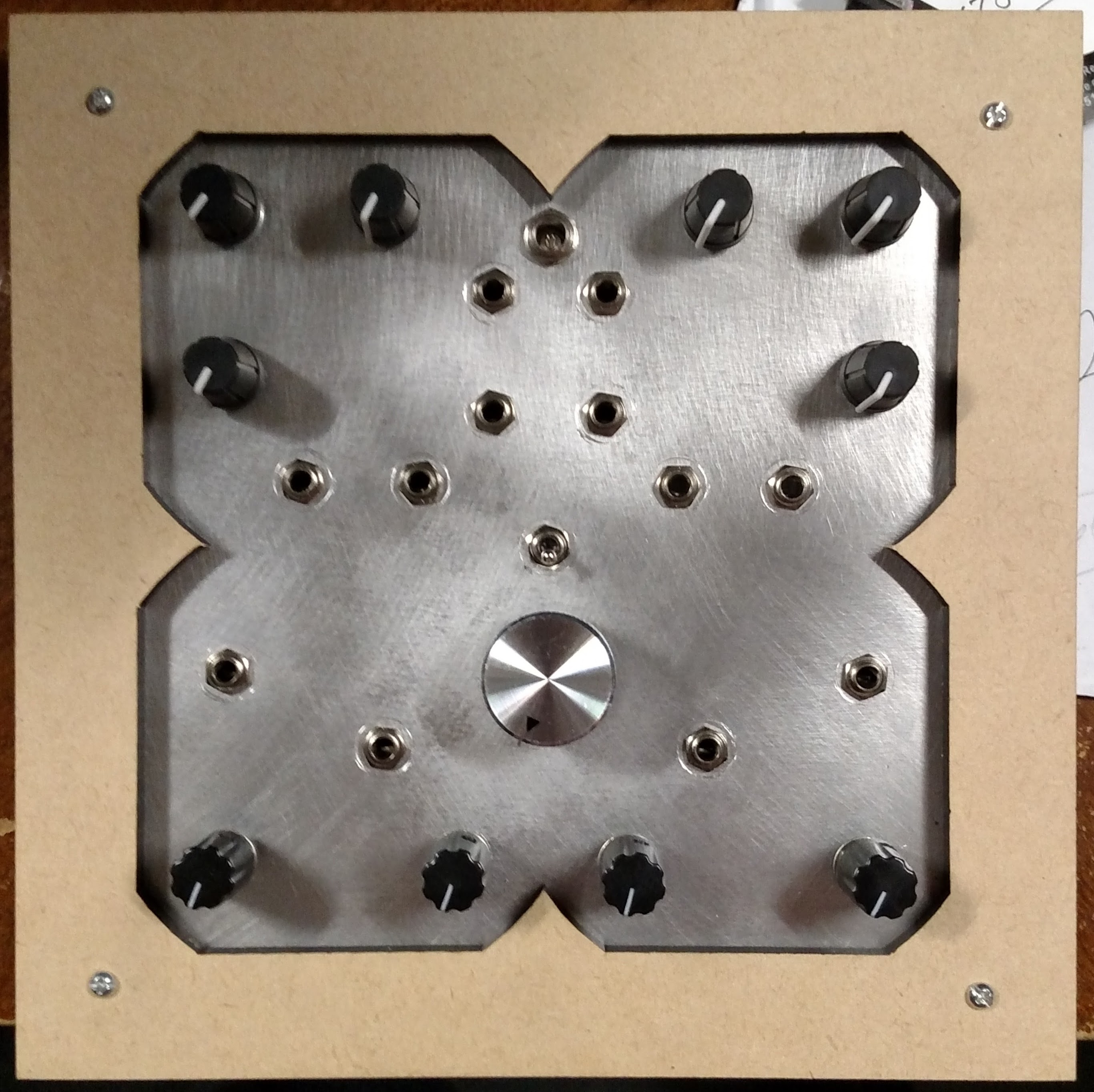

This is my Benjolin standalone unit adapted for an interactive art show in Santa Fe. The front selector switch chooses the various output. I added a rack mount compressor/limiter to the output which equalizes volume through the transition from filtered(low level) to pulse, sawtooth wave(high) nicely. Next time I will spring for the extra long potentiometer for the oscillator pitch. Thanks to MFOS for the power supply PCB art. I love my Benjolin!


Description:

Filesize:

422.77 KB

Viewed:

552 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

mosc · Posted: Mon Jul 04, 2016 2:06 pm Post subject:

All of these are really splendid. I've always liked Plexiglas cases.

elmegil · Posted: Mon Jul 04, 2016 3:38 pm Post subject:

I'd swear I had posted mine, but apparently not....


Description:

Filesize:

715.01 KB

Viewed:

540 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

macumbista · Posted: Fri Nov 18, 2016 4:02 am Post subject:

If you're curious to try this thing out and don't have any hardware, I just released a Pure Data version of the Benjolin here:

http://macumbista.net/?page_id=4690

mosc · Posted: Wed Dec 21, 2016 2:11 pm Post subject:

Inventor · Posted: Mon Dec 26, 2016 6:48 pm Post subject:

I just tried it a few hours ago and all I can say is "Amazing!". I'd recommend this to anyone, and I've started broadcasting with it on em radio (on my local channel, not any of the main ones). Thanks!

Les

phisynth · Joined: Jan 03, 2017 Posts: 2 Location: brussels

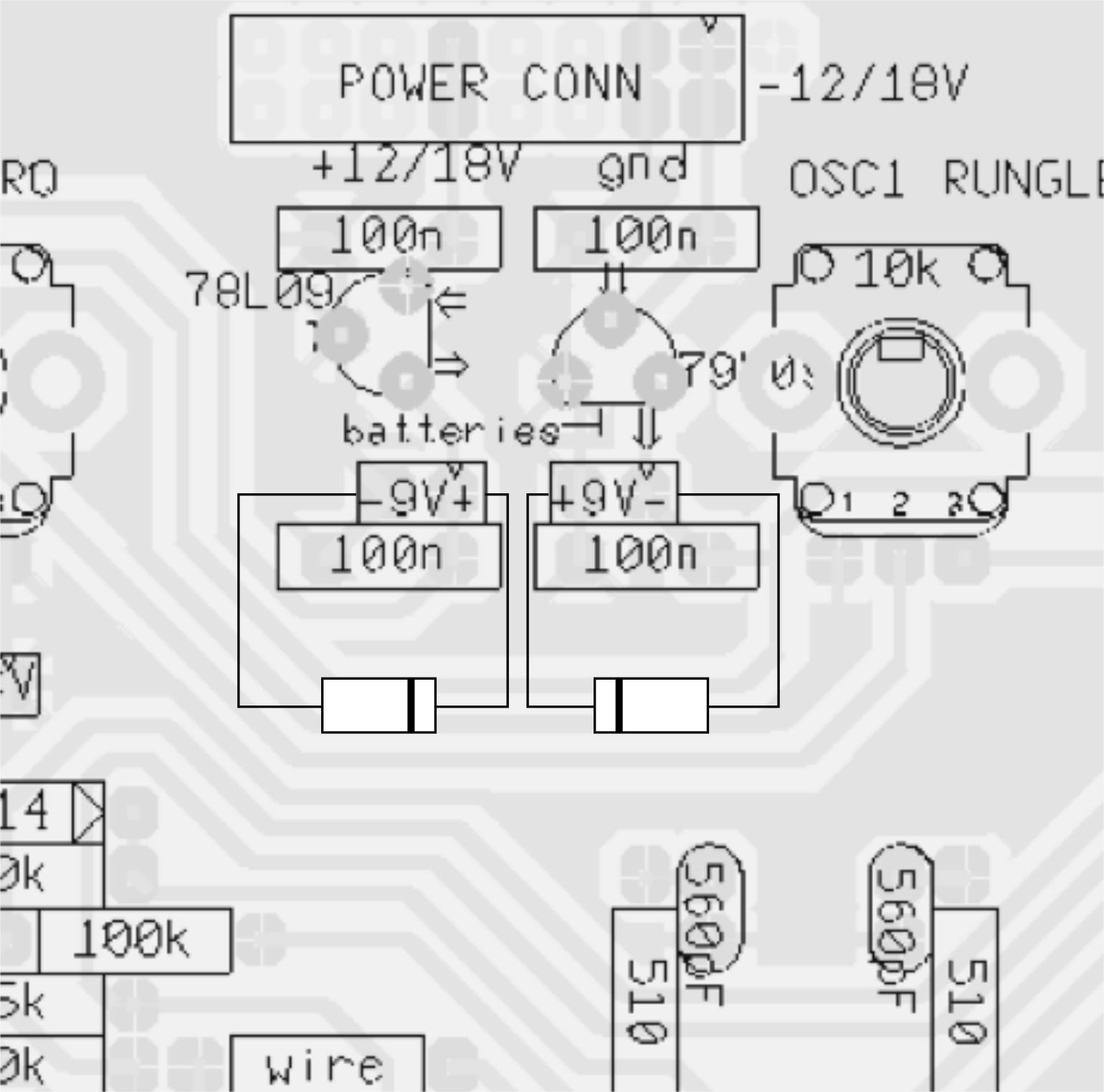

Hello, here's my Modcan A format dual Benjolin (using elmegil's fantastic PCB's) :

The panel is a temporary paper faced version, and an unusual 3U wide.

I added an op-amp to raise the filter output on par with the other outputs, I also plant add some normalisations using push-pull pots, and I am now considering maybe adding some of the Casper mods (and modify the panel to make it even larger)

Posted Image, might have been reduced in size. Click Image to view fullscreen.

This thing is just awesome Very Happy

phisynth · Joined: Jan 03, 2017 Posts: 2 Location: brussels

nobody cares, but...here's the expanded version :

Posted Image, might have been reduced in size. Click Image to view fullscreen.
