Appendage Ribbon Controller Eurorack Adapter PC Board 2020
Post new topic   Reply to topic Moderators: jksuperstar, Scott Stites, Uncle Krunkus
Page 1 of 1 [10 Posts]		 View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Author Message
State Machine
Janitor
Janitor


Joined: Apr 17, 2006
Posts: 2810
Location: New York
Audio files: 24
PostPosted: Wed Nov 28, 2018 11:46 am    Post subject:  Appendage Ribbon Controller Eurorack Adapter PC Board 2020
Subject description: Build Manual for Adaption of the Scott Stites Appendage Ribbon Controller to Eurorack Modular		 Reply with quote  Mark this post and the followings unread

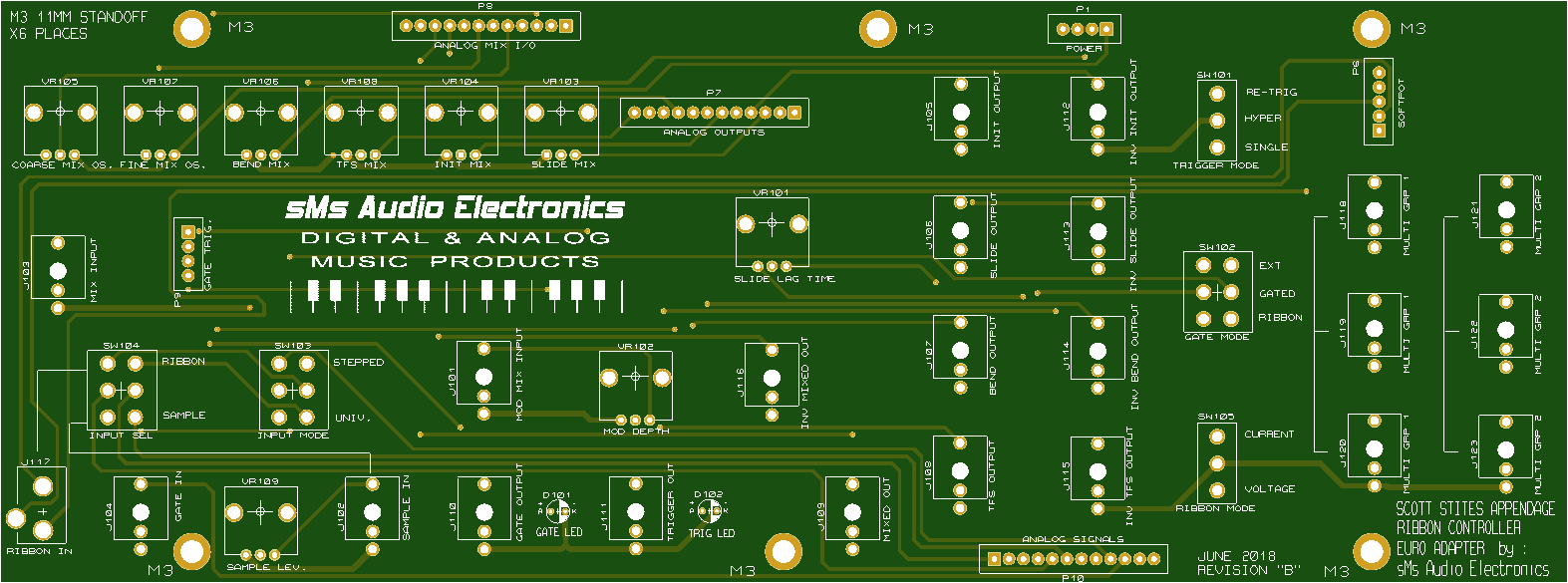

The Appendage EURO adapter PC board is HERE and is designed to allow the legacy appendage printed circuit board to be housed and powered within the Eurorack synthesis environment or in a standalone enclosure. The adapter PCB is the interface between the front panel and any appendage PC board. The adapter accepts all the front panel switches, jacks, potentiometers and connects to the Appendage PCB via header connectors thus eliminating hours of cable fabrication and front panel wiring. The adapter PCB is secured to the appendage PCB via six 11mm standoffs, and twelve 3mm screws creating a sturdy and reliable module assembly. See photo section in the manual for an example build. The adapter is not only good for new builds but also for those who haven’t built their appendage PCB’s yet because of the large panel wiring job. It’s a design whose time has finally come!

STOCK QUANTITY: 49 Updated April 23, 2020

Printed Circuit Board (2 Layer, White Silkscreen, Green Soldermask) ---- $20.00

Adapter board parts kit $89.00

Shipping to US/CAN _________ $8.50
Shipping all other destinations _________ $14.00 (Add $5.00 if parts are ordered please)


Please Send Payments via Paypal to: billnrob@optonline.net

Download the build manual below..

NOTE: The front panel is not in full production yet, BUT, you can download my Front Panel Express layout !! You can also get all the dimension information in the FPD file so that you can make your own. More on the panel soon

New stock of Through Hole Appendage PC Boards available NOW !

Link below for Appendage PC Board availability and pricing:
http://electro-music.com/forum/topic-38547.html

Front Panel Express Design Software Download:

https://www.frontpanelexpress.com/downloads/front_panel_designer/?no_cache=1

Adfapter Board Image.png
 Description:
 Filesize:  77.24 KB
 Viewed:  582 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Adfapter Board Image.png
APPENDAGE_EURO_ADAPTER_BUILD_MANUAL.pdf
 Description:

Download (listen)
 Filename:  APPENDAGE_EURO_ADAPTER_BUILD_MANUAL.pdf
 Filesize:  2.84 MB
 Downloaded:  3735 Time(s)
PANEL_EURO_APPENDAGE.fpd
 Description:

Download (listen)
 Filename:  PANEL_EURO_APPENDAGE.fpd
 Filesize:  204.69 KB
 Downloaded:  619 Time(s)
Bill Of Materials APPENDAGE EURO (1).txt
 Description:

Download (listen)
 Filename:  Bill Of Materials APPENDAGE EURO (1).txt
 Filesize:  3.44 KB
 Downloaded:  621 Time(s)

Last edited by State Machine on Mon Mar 23, 2020 1:58 pm; edited 6 times in total
Back to top
View user's profile Send private message Send e-mail
elmegil



Joined: Mar 20, 2012
Posts: 2179
Location: Chicago
Audio files: 16
PostPosted: Fri Apr 05, 2019 6:52 pm    Post subject: Reply with quote  Mark this post and the followings unread
HOW DID I MISS THIS? Smile
Back to top
View user's profile Send private message
State Machine
Janitor
Janitor


Joined: Apr 17, 2006
Posts: 2810
Location: New York
Audio files: 24
PostPosted: Sun Apr 07, 2019 10:28 am    Post subject: Reply with quote  Mark this post and the followings unread
Busy life is all. Thanks Pete.

Enjoy the project! 😀

Bill
Back to top
View user's profile Send private message Send e-mail
elmegil



Joined: Mar 20, 2012
Posts: 2179
Location: Chicago
Audio files: 16
PostPosted: Fri Apr 12, 2019 12:03 pm    Post subject: Reply with quote  Mark this post and the followings unread
One kind request, if you ever do another run....

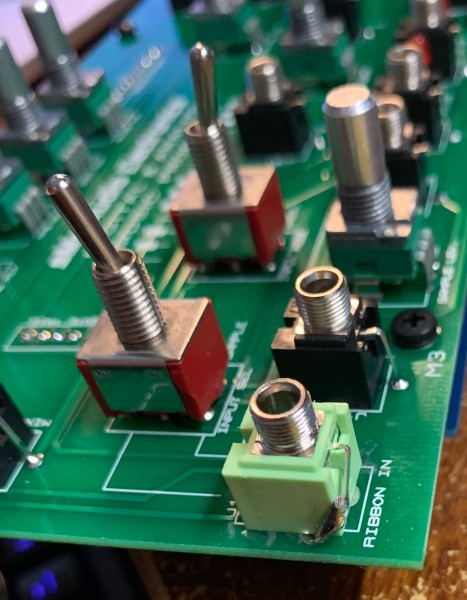

... add another hole for sleeve on the ribbon connection. There is a footprint for a stereo jack that matches the footprint of the other "thonkiconn" jacks, the green ones on this page:

https://www.thonk.co.uk/shop/3-5mm-jacks/

I was able to twist one around and make it fit, and I think it's centered, so I don't need it per-se, but those jacks are more likely to be around in someones inventory than the kobiconn stereos, because other modules are starting to use them particularly for MIDI connections.

Another pad with a trace to the original sleeve position would be all it takes to be able to use either one.

 Description:
 Filesize:  166.77 KB
 Viewed:  433 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Back to top
View user's profile Send private message
State Machine
Janitor
Janitor


Joined: Apr 17, 2006
Posts: 2810
Location: New York
Audio files: 24
PostPosted: Sat Apr 13, 2019 9:21 am    Post subject:   Reply with quote  Mark this post and the followings unread
Quote:
One kind request, if you ever do another run....

... add another hole for sleeve on the ribbon connection. There is a footprint for a stereo jack that matches the footprint of the other "thonkiconn" jacks, the green ones on this page:

https://www.thonk.co.uk/shop/3-5mm-jacks/

I was able to twist one around and make it fit, and I think it's centered, so I don't need it per-se, but those jacks are more likely to be around in someones inventory than the kobiconn stereos, because other modules are starting to use them particularly for MIDI connections.

Another pad with a trace to the original sleeve position would be all it takes to be able to use either one.


Thanks so much for that excellent suggestion!! I shall make the footprint for the ribbon jack usable for both jack types Cool
Back to top
View user's profile Send private message Send e-mail
loydb



Joined: Feb 04, 2010
Posts: 393
Location: Providence, RI
PostPosted: Mon Jun 01, 2020 5:25 am    Post subject: Reply with quote  Mark this post and the followings unread
Mine arrived today, thanks!
_________________
MFOS Ultimate Expand-o-tron Build Log: http://www.electro-music.com/forum/post-308797.html#308797
MFOS Mini-Controller Build Log [FINISHED!]: http://www.electro-music.com/forum/topic-42968.html
Back to top
View user's profile Send private message
Benjamin AM



Joined: Nov 04, 2010
Posts: 83
Location: Boise
PostPosted: Mon Mar 13, 2023 8:36 am    Post subject: Reply with quote  Mark this post and the followings unread
What’s the HP of the faceplate?
Back to top
View user's profile Send private message
elmegil



Joined: Mar 20, 2012
Posts: 2179
Location: Chicago
Audio files: 16
PostPosted: Mon Mar 13, 2023 10:13 am    Post subject: Reply with quote  Mark this post and the followings unread
Just measured mine to remember -- it's 54HP
Back to top
View user's profile Send private message
Benjamin AM



Joined: Nov 04, 2010
Posts: 83
Location: Boise
PostPosted: Mon Mar 13, 2023 10:20 am    Post subject: Reply with quote  Mark this post and the followings unread
elmegil wrote:
Just measured mine to remember -- it's 54HP

Where did you get yours milled?
Back to top
View user's profile Send private message
elmegil



Joined: Mar 20, 2012
Posts: 2179
Location: Chicago
Audio files: 16
PostPosted: Mon Mar 13, 2023 11:44 am    Post subject: Reply with quote  Mark this post and the followings unread
It's been years, but I *believe* it was Front Panel Express (and yes, it was kinda spendy)
Back to top
