4 Channel Quadrature LFO
Post new topic   Reply to topic Moderators: DrJustice
Page 1 of 1 [8 Posts]
View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Author Message
Grumble



Joined: Nov 23, 2015
Posts: 1205
Location: Netherlands
Audio files: 30

PostPosted: Sat Jan 16, 2021 4:18 am    Post subject: 4 Channel Quadrature LFO
Subject description: Module in progress
Reply with quote  Mark this post and the followings unread


_________________
my synth

Last edited by Grumble on Mon Jan 18, 2021 3:44 pm; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website
Blue Hell
Site Admin


Joined: Apr 03, 2004
Posts: 23500
Location: The Netherlands, Enschede
Audio files: 262
G2 patch files: 320

PostPosted: Sun Jan 17, 2021 5:08 pm    Post subject: Reply with quote  Mark this post and the followings unread

hmm something X Y Cool
_________________
Jan
also .. could someone please turn down the thermostat a bit.
Posted Image, might have been reduced in size. Click Image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website
Grumble



Joined: Nov 23, 2015
Posts: 1205
Location: Netherlands
Audio files: 30

PostPosted: Mon Jan 18, 2021 7:09 am    Post subject: Reply with quote  Mark this post and the followings unread

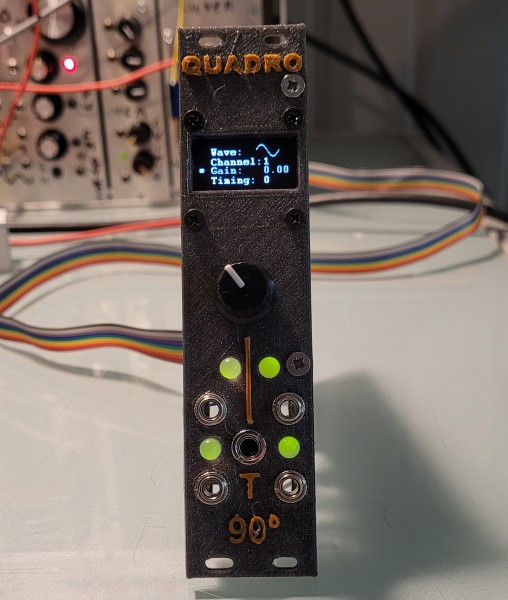

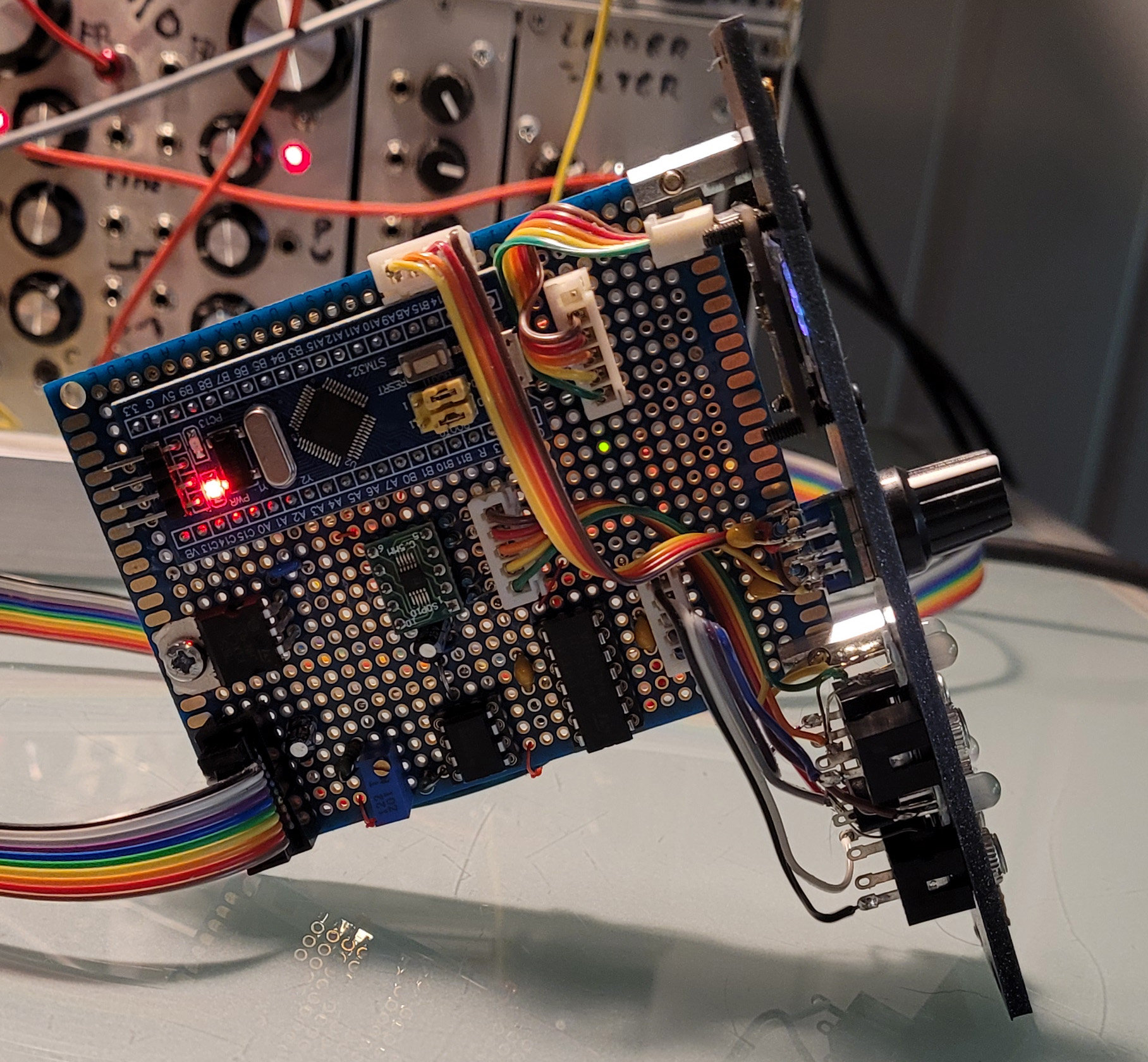

What You see here is the output signal of two of the four outputs of a quadrature LFO, four outputs all 90 degrees shifted and the idea is that you can choose 4 different wave forms for each output. I am playing with the idea to construct each wave form out of four parts of the four wave form types, e.g. you can have one output a clean sine wave, while the next consists of for different parts of wave forms, so you can have the first quarter a sine shape, the next quarter a saw part etc.
But that would take some extra programming... but I’m playing with the idea.
The four leds are red/green leds, so when an output is more positive than 2.5 volt it will light up green, lower as 2.5 volt it will light up red.(starting very dim to more brightness)


SCH-quadrature.pdf
 Description:

Download
 Filename:  SCH-quadrature.pdf
 Filesize:  156.35 KB
 Downloaded:  24 Time(s)


_________________
my synth
Back to top
View user's profile Send private message Visit poster's website
Blue Hell
Site Admin


Joined: Apr 03, 2004
Posts: 23500
Location: The Netherlands, Enschede
Audio files: 262
G2 patch files: 320

PostPosted: Mon Jan 18, 2021 7:48 am    Post subject: Reply with quote  Mark this post and the followings unread

Cool!

I'm finding 120 degrees nice to have too BTW Laughing

_________________
Jan
also .. could someone please turn down the thermostat a bit.
Posted Image, might have been reduced in size. Click Image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website
Grumble



Joined: Nov 23, 2015
Posts: 1205
Location: Netherlands
Audio files: 30

PostPosted: Mon Jan 18, 2021 11:21 am    Post subject: Reply with quote  Mark this post and the followings unread

What is special about 120 degrees?
_________________
my synth
Back to top
View user's profile Send private message Visit poster's website
Blue Hell
Site Admin


Joined: Apr 03, 2004
Posts: 23500
Location: The Netherlands, Enschede
Audio files: 262
G2 patch files: 320

PostPosted: Mon Jan 18, 2021 11:44 am    Post subject: Reply with quote  Mark this post and the followings unread

Grumble wrote:
What is special about 120 degrees?


That when added up you get constant power.

I use it for (slow) fading three part things, such that the levels can be more or less equal over the course.

Also you can add up two phases to get one inbetween, so a 60 degree phase.

_________________
Jan
also .. could someone please turn down the thermostat a bit.
Posted Image, might have been reduced in size. Click Image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website
Grumble



Joined: Nov 23, 2015
Posts: 1205
Location: Netherlands
Audio files: 30

PostPosted: Mon Jan 18, 2021 2:54 pm    Post subject: Reply with quote  Mark this post and the followings unread

That makes sense... but would require so much more programming...


 Description:
 Filesize:  878.22 KB
 Viewed:  7 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  818.8 KB
 Viewed:  9 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
my synth
Back to top
View user's profile Send private message Visit poster's website
Grumble



Joined: Nov 23, 2015
Posts: 1205
Location: Netherlands
Audio files: 30

PostPosted: Wed Jan 20, 2021 3:00 am    Post subject: Reply with quote  Mark this post and the followings unread



Demo (allow for subtitles)

_________________
my synth
Back to top
