2011 Build Pictures

SubG (deactivated) · Joined: Oct 09, 2009 Posts: 70

Yes is Juergen Haible pcb's

LektroiD · Posted: Tue Nov 15, 2011 1:09 pm Post subject:

Here's my work for the year, I know it's a bit ghetto style, but I'd rather spend the little money I have on functionality rather than looks.. I won't be doing any more work this year, as I'm in the process of moving (which also means I'll have a much needed dedicated workshop).


Description:

Modular

Filesize:

1.16 MB

Viewed:

459 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

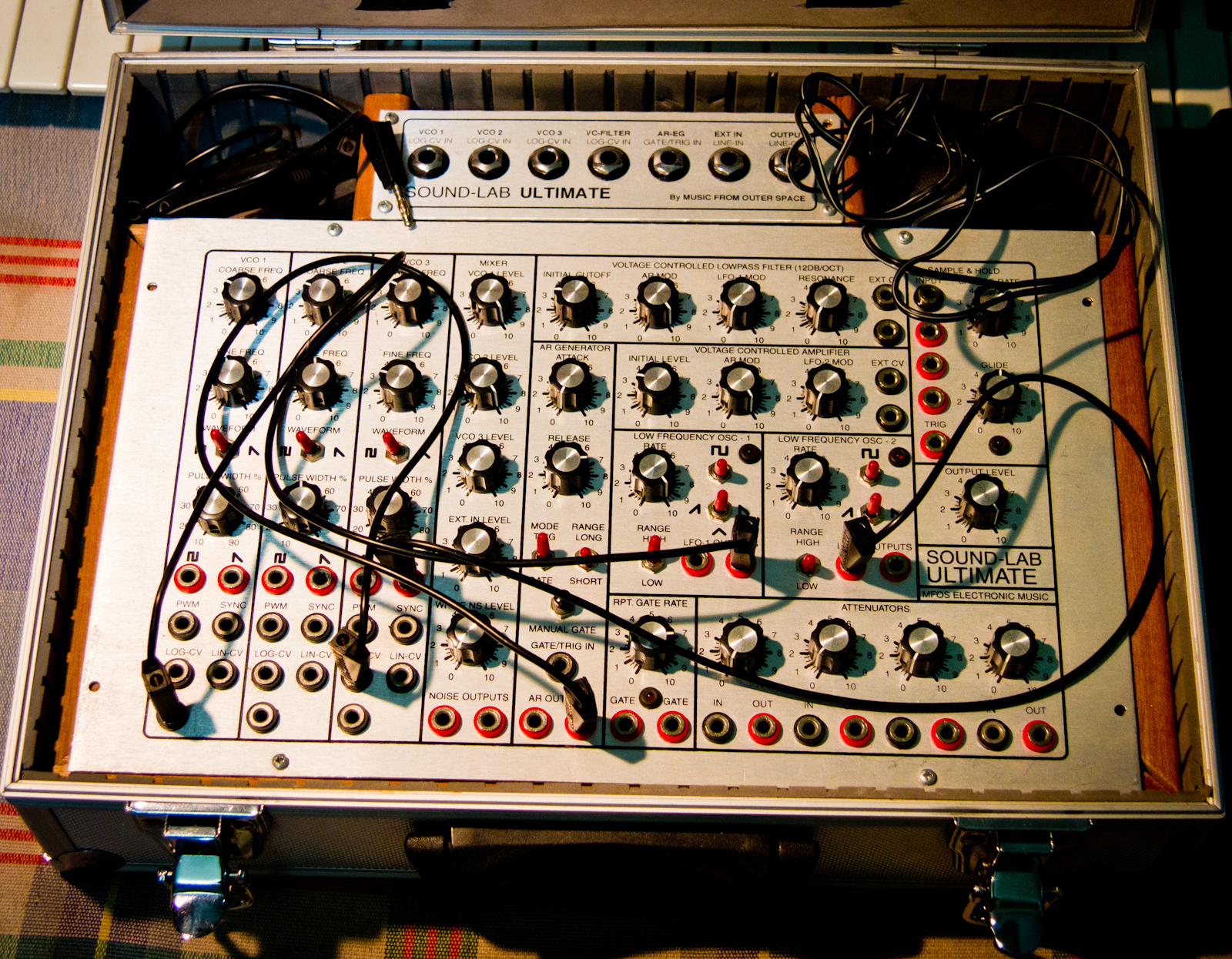

Suitcase

Filesize:

2.02 MB

Viewed:

412 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

Sebo · Joined: Apr 27, 2007 Posts: 564 Location: Argentina

They look great!!!

Skrog Productions · Posted: Thu Nov 17, 2011 11:02 am Post subject:

Impressive modular Rich , those spare spaces will fill up in no time Smile

Dave

fluxmonkey · Joined: Jun 24, 2005 Posts: 708 Location: cleve

3 ian fritz modules, 1 yusynth. that ChaQuO is awesomes.


Description:

Filesize:

298.27 KB

Viewed:

422 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

LektroiD · Posted: Fri Nov 18, 2011 1:12 am Post subject:

prgdeltablues · Posted: Fri Nov 18, 2011 3:07 am Post subject:

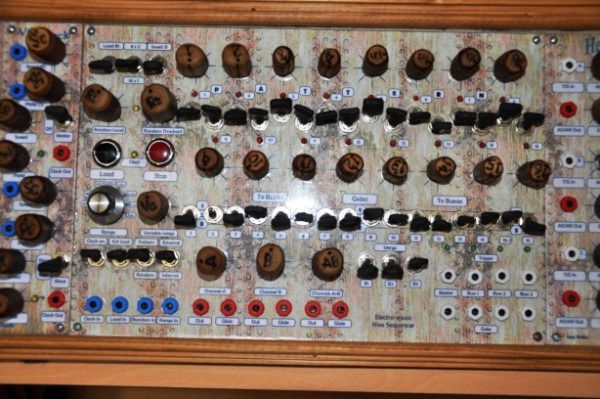

2011 modules - concentrated on the Klee sequencer and some utility modules. Also modded earlier builds to run on four way power headers (V+,AGnd,DGnd,V-) rather than just one ground.

CV mixer (cookbook)
Klee sequencer (e-m)[/img]
Hex AD/Ar (frijtz)
Quad VCA (nicolas)

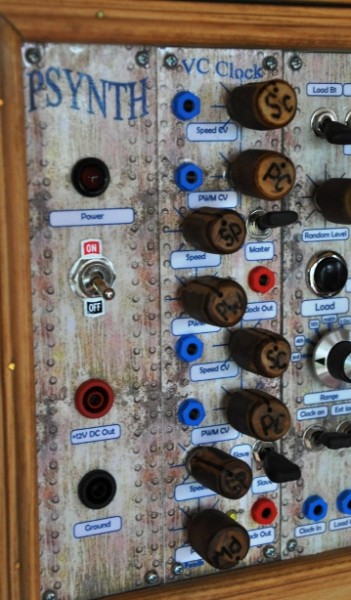

VC clock (fonik)

VC clock.JPG

Description:

Filesize:

206.03 KB

Viewed:

353 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

Quad VCA.JPG

Description:

Filesize:

241.77 KB

Viewed:

354 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

Hex ADR.JPG

Description:

Filesize:

240.46 KB

Viewed:

347 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Filesize:

242.48 KB

Viewed:

351 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

CV Mixer.JPG

Description:

Filesize:

1.69 MB

Viewed:

316 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

PHOBoS · Posted: Fri Nov 18, 2011 6:34 am Post subject:

that looks great prgdeltablues!
I'm really diggin' the diy wooden knobs, well done thumleft

fonik · Posted: Fri Nov 18, 2011 11:32 am Post subject:

i'd like to see a pictire of the complete system - will be awesome, i bet.

ericcoleridge · Joined: Jan 16, 2007 Posts: 889 Location: NYC

Nice work Flux.

Are those FPD panels? I'm just wondering if you had Serge Pot scales in HPGL/FPD? I'd like to get a hold of these scales

prgdeltablues · Posted: Sat Nov 19, 2011 4:20 am Post subject:

Thanks for the comments.

Complete system? In SDIY??

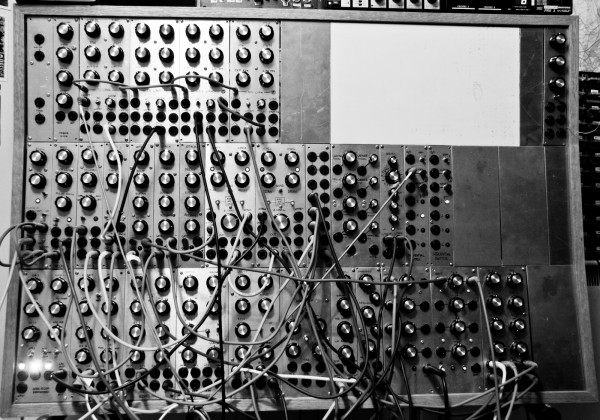

Here's the current state of play - two cabinets with a couple of spaces left. Just buidling a dual MFOS State Variable Filter to fit into one gap. Not sure about the other yet. Then I need to build the third cabinet...

Psynth cabinets.JPG

Description:

Filesize:

555.82 KB

Viewed:

226 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

fonik · Posted: Sat Nov 19, 2011 4:28 am Post subject:

complete SDIY? no, you are right - almost impossible...

i like this ambivalent design: electronic, but with wooden GUI thumleft

prgdeltablues · Posted: Sat Nov 19, 2011 4:34 am Post subject:

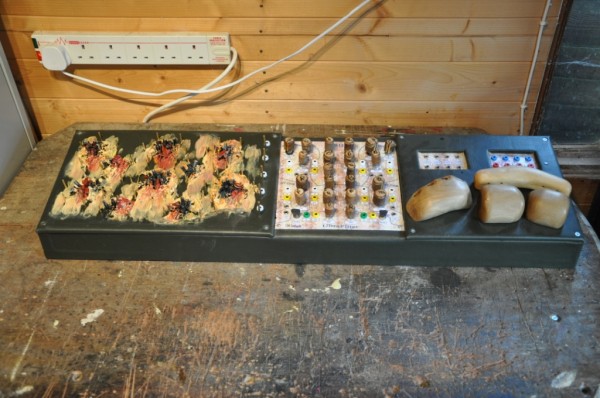

And here's some pics of my other 2001 build - a manifestation of Peter Blasser's Rollz5. Anyone familar with Peter's circuits will know they are.. a bit different. The Rollz5 is essentially a percussion machine. On the left of my version are the drumbrains - multiple transistor-based pulse generators that you connect together to create rhythmic patterns. In the centre are the various percussion modules which I've brought out to a modular synth interface. These are basically unstable oscillators - the pulses from the drumbrain kick the oscillators into action, but the oscillations then decay fairly quickly.

You can also trigger the percussion from a standard trigger, and drive a normal synth from the drumbrain (it tends to put out negative-going impulses so neds to be routed through a full-wave rectifier first). Madness ensues when it drives the Klee.

On the right are some LDR's hidden inside blocks of eucalyptus that serve as variable resistors. You can play these with your fingertips, or just waving a hand over them changes the incident light sufficiently. Any signal can be put through them - CV for the 1V/Oct input to an oscillator is sort of theramin like. CV for the cutoff of a filter, audio, etc. CV for the VC Clock driving the Klee.


Description:

Filesize:

493.66 KB

Viewed:

263 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

nerdware · Joined: Jul 11, 2009 Posts: 91 Location: UK

Are you sure that synth isn't edible?

jean-louise · Posted: Sat Nov 19, 2011 7:12 am Post subject:

it looks great!

mosc · Posted: Sat Nov 19, 2011 12:24 pm Post subject:

PHOBoS

I'm working on a new synth and I just finished the sequencer. I use
cardboard 'ghetto' panels untill I have everything build (to avoid having a big
mess of wires, pots, switches, jacks, and PCB's).

I remembered I had a small cardboard box almost the size as the panel I
made for the sequencer so I decided to box it up. This also gave me
something to mount the PCB on.

I smell a rat

another part of the synth + audio can be found here


Description:

Mad Monkey Sequencer (temporary enclosure)

Filesize:

932.97 KB

Viewed:

218 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

SubG (deactivated) · Joined: Oct 09, 2009 Posts: 70

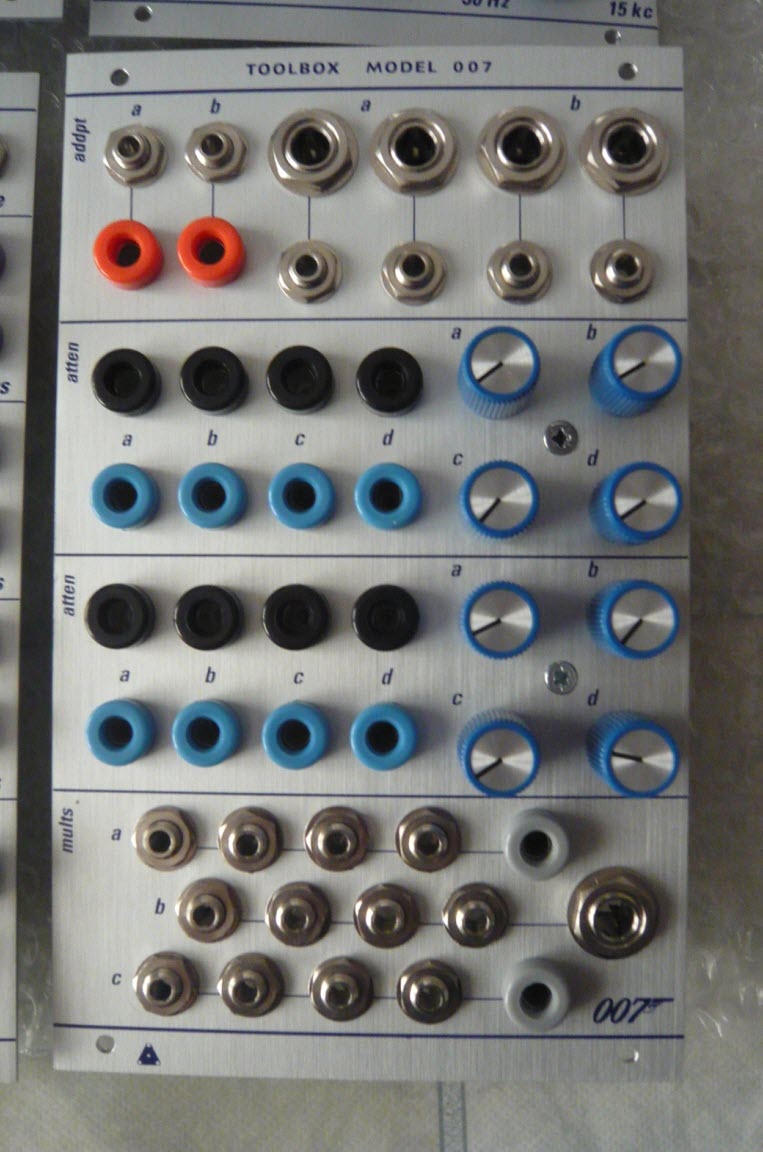

007


Description:

Filesize:

107.34 KB

Viewed:

205 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

kkissinger · Posted: Mon Nov 21, 2011 10:48 pm Post subject:

Sometimes I wish there was a "like" button for posts here! This thread is always an inspiration and I enjoy all the approaches to instrument building here.

Photon · Posted: Tue Nov 22, 2011 8:08 am Post subject:

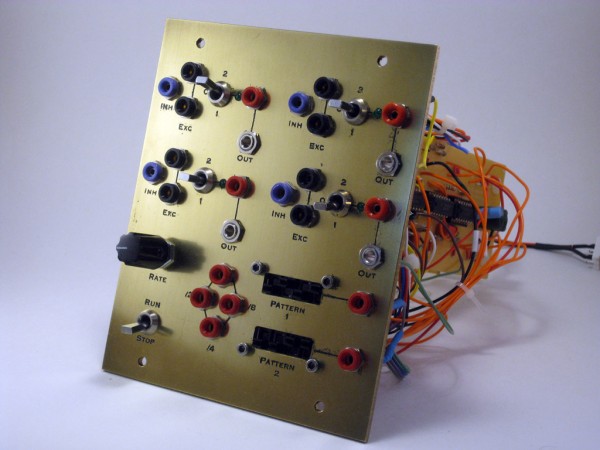

This is Grant Richters' Neural Pulser module. There’s a master clock with whole, 1/2, 1/4 and 1/8th divisions. The two banks of mini-slide switches are 2 binary rate multiplier based pattern generators. The outputs of all these divisions and multiples are patched to the 4 ‘Neurons’ (top half of panel) using stackable mini-connectors. Each Neuron has 2 Excitatory inputs and 1 Inhibitory input. A 3-way switch lets you select between the logic functions: not / or / and. So you get 4 different simultaneous patterns based on the same clock with related variations at the flick of a switch.


Description:

Filesize:

346.95 KB

Viewed:

193 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

Filesize:

236.26 KB

Viewed:

200 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

kkissinger

When my granddaughter visited last year she was fascinated with all the stuff in my studio and I asked her if she'd like me to build something for her. Well, she said, "Yes!". I asked her what colors she wanted and she chose a yellow panel with purple lettering.

Danno G will no doubt recognize the case -- it is from a mixer that he gave me during one of the swap and shops. Well, the mixer was pretty well used however the case made an excellent housing for the new WSG project.

The mixer was drilled for slide pots and the back panel had a lot of holes in it (it had been modded quite a bit). The holes in the back allow the speaker's sound to escape from the case and I just glued a grill cloth across the back. For the control panel, I simply made an overlay panel (in the opened up pic, you may notice some of the original drillings).

I added an internal amp/speaker to it however the unit has a audio ouput jack that, as expected, cuts off the speaker when a patch cord is plugged in.

I've had a lot of fun playing with the WSG. For such a simple circuit (six schmit trigger oscillators and a op-amp based filter) it makes so many sounds that I've already spent three hours just messing with it.

Well, my grandkids and son will probably love it -- not so sure about my daughter-in-law! Very Happy


Description:

The Weird Sound Generator

Filesize:

1.49 MB

Viewed:

222 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.


Description:

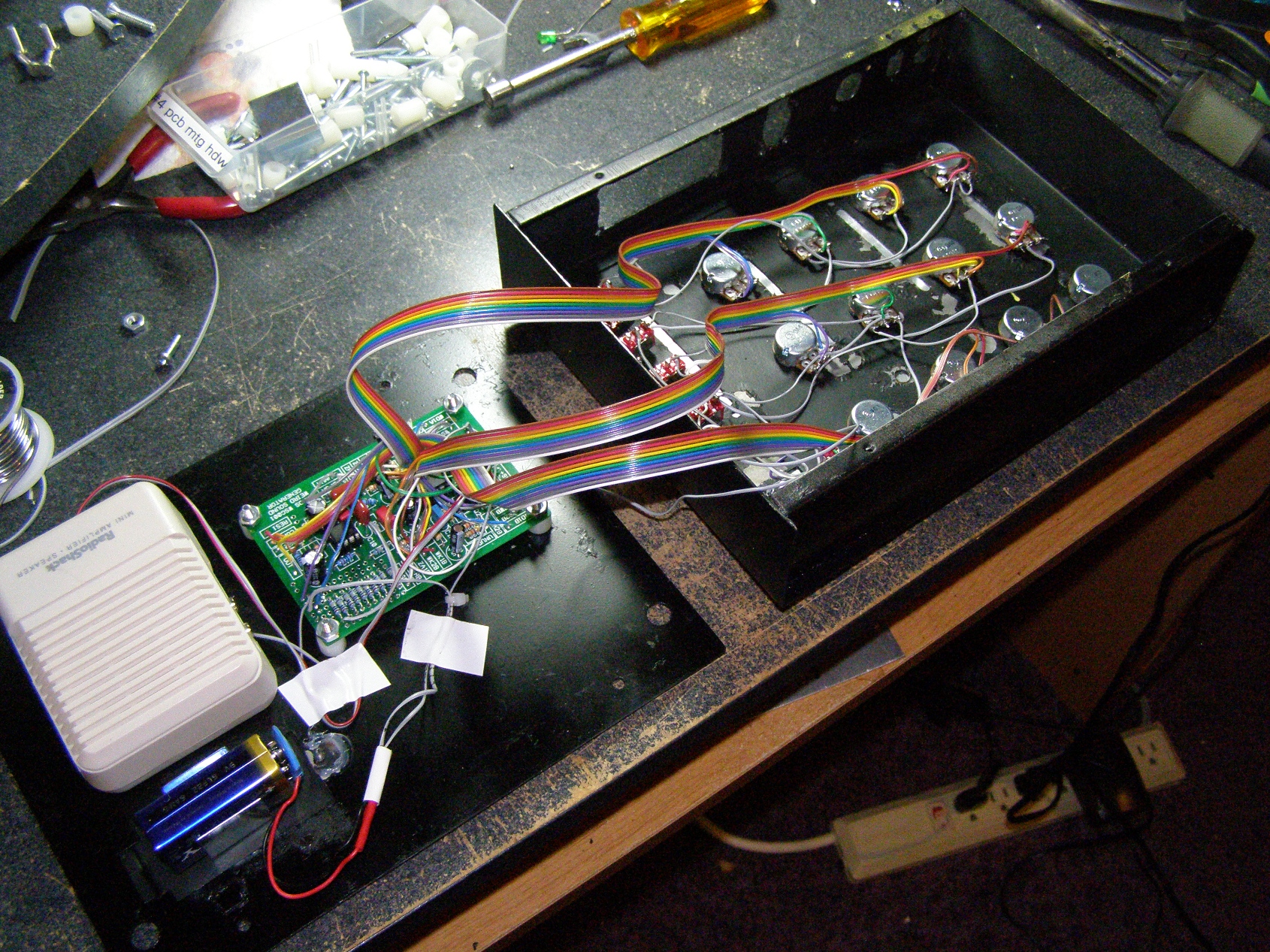

The Weird Sound Generator under the covers. I mounted a little RS Amp and speaker. The battery clip is mounted on a 9v battery access panel for easy battery replacement.

Filesize:

1.47 MB

Viewed:

209 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

State Machine · Posted: Wed Nov 23, 2011 7:37 am Post subject:

Unique panel Photon ... I am "liking" it Wink

Kevin ... yes a LIKE button would be cool. A "like counter" would be handy.

Bill

fonik · Posted: Wed Nov 23, 2011 7:56 am Post subject:

and/or something like "MyLikes" in the signature? would this be codable?

emdot_ambient · Joined: Nov 22, 2009 Posts: 667 Location: Frederick, MD
