2013 Build Pictures

fonik

I finished my 2nd prototype of a Thomas Henry 555-VCO tonight (had to do a few corrections using new unfamiliar solder, so the PCB looks a little bit worn out):

Posted Image, might have been reduced in size. Click Image to view fullscreen.

TH_555-VCO new by fonitronik, on Flickr

EdisonRex · Posted: Sat Jan 05, 2013 5:36 pm Post subject:

Beautiful, Mattias.

It doesn't look that bad at all. Smile

roglok · Joined: Aug 28, 2010 Posts: 202 Location: uptown

fonik

Boogdish · Joined: Sep 21, 2009 Posts: 122 Location: Bloomington, IN

I've finished three modules this week! Some of the PCB stuffing on these was done in 2012, so maybe that's cheating, but I'm still happy.
Posted Image, might have been reduced in size. Click Image to view fullscreen.

On the left is two bandpass filters and a mixer. Center is a new project of my own design. And on the right is EFM 3522 which I'm really happy with.

elmegil · Posted: Fri Jan 11, 2013 10:43 pm Post subject:

First completed module of the new year, though I did most of the soldering last year....

Pay no attention to the weirdness with the label Smile


Description:

Filesize:

868.62 KB

Viewed:

621 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

mrkva · Posted: Sun Jan 13, 2013 9:46 am Post subject:

3x nicolases saw vco + mix

fonik · Posted: Mon Jan 14, 2013 6:45 am Post subject:

finished the hexinverter.net seqSQUARED last night:

diablojoy · Posted: Sat Feb 02, 2013 12:22 am Post subject:

nice one matthias
I am all over the shop lately with builds but i actually managed to complete this one in the last week.
A boogdish voltage to rhythm convertor
quite fun it is too !

voltage to rhythm.jpg

Description:

Filesize:

504.93 KB

Viewed:

595 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

Heavy Metal Kid · Joined: Nov 05, 2012 Posts: 18 Location: Oslo

Made a couple of LM386 amps and housed them in honey cans. The one on the left has a bumped speaker and sounds noticably crappier than the other one. Smile

PHOBoS · Posted: Sat Feb 02, 2013 6:30 am Post subject:

nice speakers! flower

-------------------------------------------------------

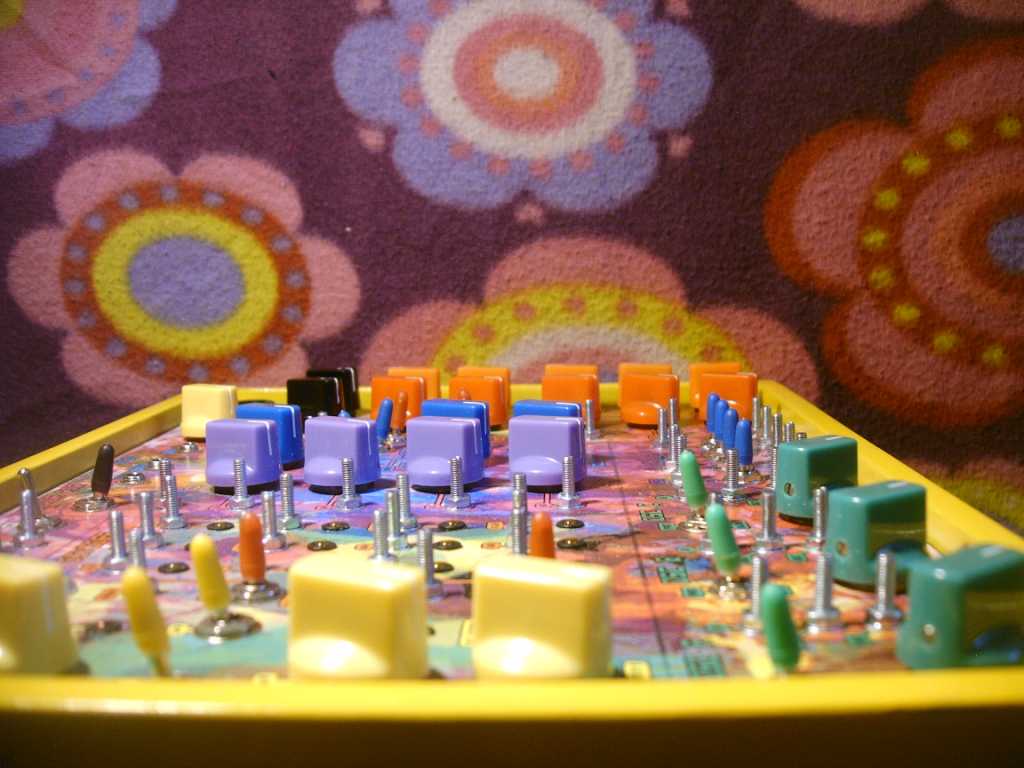

here's my latest finished project, which started out with
Tim Escobedo's PWM circuit and as usual I added some more things to it.
I will probably post some more details later in another thread.
but here are the pics Cool

PWMlunetta - 04.jpg

Description:

Filesize:

100.15 KB

Viewed:

449 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

PWMlunetta - 03.jpg

Description:

Filesize:

66.62 KB

Viewed:

583 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

PWMlunetta - 07.jpg

Description:

Filesize:

85.87 KB

Viewed:

444 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

Skrog Productions · Posted: Sat Feb 02, 2013 6:44 am Post subject:

excellent colours Smile

almost matches the fleece pattern in the background.

Great build phobos.

Bogus Noise · Joined: Jun 03, 2009 Posts: 65 Location: Sheffield

Meant to post this at the end of last year, but... well... things got a bit hectic! I know it looks rough, but as I'm starting out I wanted a usable modular more than I wanted to spend ages on panels, building a proper case etc. Also no particularly esoteric modules just yet, figured it'd be best to get all the basics going first Smile

It's mounted in a flatmate's old CD shelving unit (almost Euro size already), using panels made from a nasty kind of plastic I found loads of offcuts of next to a bin outside a furniture shop. I'll break the bank another day.

Posted Image, might have been reduced in size. Click Image to view fullscreen.

Modules are:

1 x Basic 4011 clock for the sequencer
1 x Dual Channel 4017 CV/Gate/Trigger Sequencer, with built in glide and crossfade between the two CV channels
3 x Thomas Henry VCA
4 x Ray's Cool New LFO (skipped the sine output for now)
1 x Dual Slew (just left over from prototyping the sequencer)
1 x MFOS Soundlab MiniSynth Plus VCF
1 x Transistor Noise
1 x Dual AR Gen
...aaaaaand a crappy 555 osc for a testing sound source. A proper osc is pretty high up the priority list!

Mostly built on stripboard as well, aside from a Ray Wilson bipolar power supply.

Actually, there's another cool project from 2012 I didn't get to post yet, but I need to finish the video first! Should be doing plenty this year too though Smile

zthee · Joined: Feb 20, 2008 Posts: 414 Location: Stockholm

I built a TKB -

Posted Image, might have been reduced in size. Click Image to view fullscreen.

isak · Posted: Mon Feb 11, 2013 5:26 am Post subject:

Not finished yet, need to check why the LP dose not sounds good with valvucaster overdrive, unlike the BP and HP, that sounds amazing.

Posted Image, might have been reduced in size. Click Image to view fullscreen.

MFOS - SVF
MFOS - LFO
MFOS - AR
MFOS - Audio to gate
MFOS - Noise
Bugbrand - Crusher
Valvucaster 12AU7 overdrive.

Draal · Posted: Mon Feb 11, 2013 6:04 am Post subject:

I'm working on a small machine based on some of my favorite lunetta chips. He's called V'Ger and is a portable racket maker as opposed to it's bigger patchable brother.

The chips:

1 x 40106 (made 4 oscillators in this set up)
1 x 4512 8 input data selector
1 x 4040 Divider
1 x 4046 built as a pitch tracker based on Nic Collins' design)

Three slow oscillators are the ABC controllers of the 4512. The C controler also has a switch to choose between the slow clock or the output of pin 2 of the pitch tracker.

Another clock with a HI/Lo switch goes to the 4040 to set the octaves that the 4512 will "play".

The 4046 has a Hi/Lo cap switch as well to offer some unique sounds.

I am still thinking about my enclosure; I have a few tins around here so I'll see where that takes me. Here's a crappy video of the device Smile

:

Heavy Metal Kid · Joined: Nov 05, 2012 Posts: 18 Location: Oslo

zthee · Joined: Feb 20, 2008 Posts: 414 Location: Stockholm

Heavy Metal Kid · Joined: Nov 05, 2012 Posts: 18 Location: Oslo

Thanks! What company is it, btw?

dougseidel · Joined: Feb 10, 2010 Posts: 74 Location: NJ

draal:
I love that - looks like it will be a fun instrument. the low-end sounds are great.

elmegil · Posted: Tue Feb 12, 2013 10:35 pm Post subject:

basic 40106 clock (thanks to diablojoy for pointing out the one-shot solution to make it a trigger clock without double triggering like I was when I tried to use a comparator), plus a couple stages of YuSynth clock divider, plus the "super simple S&H" circuit from kickstarter a while back....

Originally was going to be VC Noise + the S&H but I couldn't get it to fit into 1U so that went back onto a different spot on my backlog.

playing around with the S&H and the clock dividers:

https://soundcloud.com/elmegil/sample-and-thump


Description:

Filesize:

2.16 MB

Viewed:

420 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

fonik · Posted: Wed Feb 13, 2013 9:06 am Post subject:

i got a very cheap fake PELI case from an electronics remnants online store and decided to make a portable system from it:

bubzy · Posted: Wed Feb 13, 2013 10:58 am Post subject:

fonik stop!

your stuff is painfully neat Smile

nice work

Scot Solida · Joined: Oct 24, 2009 Posts: 100 Location: Hutchinson Kansas

I moved house a few months ago and have yet to set up my screen printing gear. However, I wanted to convert a Red Llama distortion clone into module form for convenience so decided to hand-paint the thing. My inner-teenager came to the fore, bringing with it all those years of drawing Tolkien and D & D pictures back in the early 1980s. Silly, but adds some color to the black metal facade.

Posted Image, might have been reduced in size. Click Image to view fullscreen.

It sounds like this:

http://www.theelectronicgarden.com/Scot/LittleFuzzy.mp3

mcop · Joined: Apr 27, 2012 Posts: 46 Location: Brighton UK
