Cacophonator Strip Board
Post new topic   Reply to topic Moderators: jksuperstar, Scott Stites, Uncle Krunkus
Page 1 of 5 [122 Posts]
View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Goto page: 1, 2, 3, 4, 5 Next
Author Message
-minus-



Joined: Oct 26, 2008
Posts: 760

Audio files: 13

PostPosted: Sun Mar 07, 2010 7:46 pm    Post subject: Cacophonator Strip Board
Subject description: A Laypersons Guide to Cacophony Oscillation
Reply with quote  Mark this post and the followings unread

A few weeks ago I created a strip board version of the Art Harrison Cacophonator. I have posted the diagrams so others may build this amazing device and enter the exciting field of Cacophony Oscillation!

Many thanks to Art for his correspondence and consent to posting these images.

ENJOY! Smile

PS: Art has a new link to his site:
http://theremin.us/

The Cacophonator schematic can be found here:
http://theremin.us/Circuit_Library/cacophonator.html


EDIT: These images below are the corrected ones. The incorrect ones have been removed.

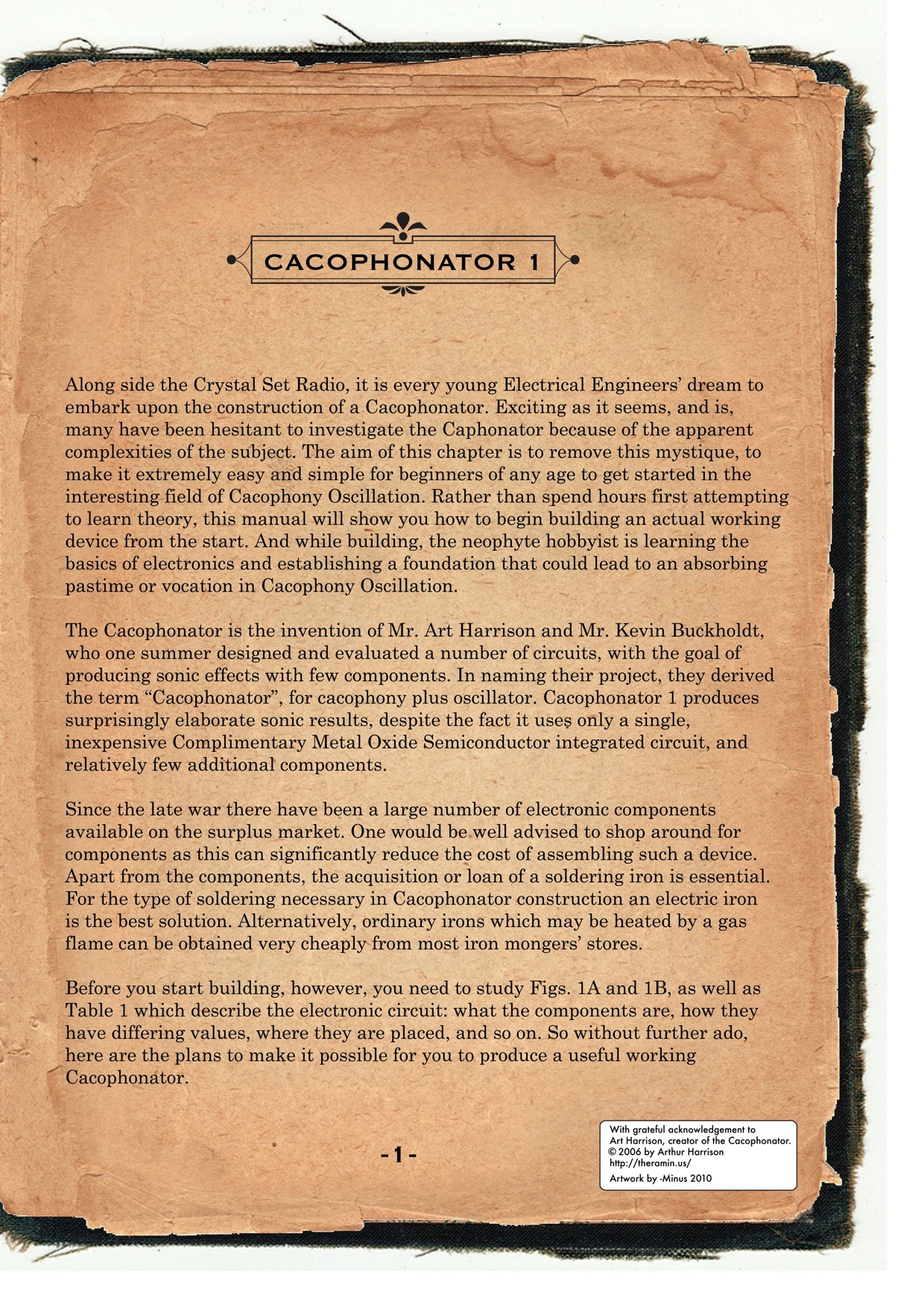

CACOPHONATOR 1 Page 1.jpg
 Description:
 Filesize:  896.93 KB
 Viewed:  963 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

CACOPHONATOR 1 Page 1.jpg



CACOPHONATOR 1 pg2 (2ND Edition).jpg
 Description:
amended 18 June 2010 (C4 placement corrected)
 Filesize:  877.9 KB
 Viewed:  1686 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

CACOPHONATOR 1 pg2 (2ND Edition).jpg



CACOPHONATOR 1 pg3 (2ND Edition).jpg
 Description:
amended 18 June 2010 (stripboard cut added above IC)
 Filesize:  843.67 KB
 Viewed:  1350 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

CACOPHONATOR 1 pg3 (2ND Edition).jpg



Last edited by -minus- on Thu Jun 17, 2010 9:24 am; edited 2 times in total
Back to top
View user's profile Send private message
Uncle Krunkus
Moderator


Joined: Jul 11, 2005
Posts: 4758
Location: Sydney, Australia
Audio files: 52
G2 patch files: 1

PostPosted: Mon Mar 08, 2010 4:24 am    Post subject: Reply with quote  Mark this post and the followings unread

Beautiful artwork -minus-. Very Happy
_________________
What makes a space ours, is what we put there, and what we do there.
Back to top
View user's profile Send private message Visit poster's website
adambee7



Joined: Apr 04, 2009
Posts: 420
Location: united kingdom

PostPosted: Mon Mar 08, 2010 6:09 am    Post subject: Reply with quote  Mark this post and the followings unread

thanks for the share man. I've got a spare 40106 here and some stripboard so i might aswell give this a go. Cheers. Very Happy Very Happy
Back to top
View user's profile Send private message
droffset



Joined: Feb 02, 2009
Posts: 486
Location: new zealand
Audio files: 2

PostPosted: Mon Mar 08, 2010 1:27 pm    Post subject: Reply with quote  Mark this post and the followings unread

That looks fantastic, many compliments!
_________________
==================
Check out the FREE Intro to Lunettas Document
https://docs.google.com/Doc?docid=0AZIwOP-PR9sSZDlidzgzbV8wY3RjenJqanY&hl=en

Edit: Spelling mistakes.
Back to top
View user's profile Send private message Visit poster's website
-minus-



Joined: Oct 26, 2008
Posts: 760

Audio files: 13

PostPosted: Mon Mar 08, 2010 9:02 pm    Post subject: Reply with quote  Mark this post and the followings unread

Thanks for the compliments! It means a lot to me. I had so much fun doing this too.

I'll post some sound samples soon too. Here's a link to elsewhere on the forum to photos of the Cacophonator I built:

http://electro-music.com/forum/topic-39579.html&postorder=asc&highlight=cacophonator&start=25


Krunkus has taught me well, but I am not a Strip Board Jedi yet!
Back to top
View user's profile Send private message
Inventor
Stream Operator


Joined: Oct 13, 2007
Posts: 5978
Location: San Antonio, Tx, USA
Audio files: 258

PostPosted: Tue Mar 09, 2010 2:39 am    Post subject: Reply with quote  Mark this post and the followings unread

hahaha, "Strip Board Jedi" - that's funny minus. As I mentioned to you in the chatroom, I really like your artistry in creating that old paper look in Adobe Illustrator. You have real talent, or so it appears. The look of the documentation you created is really compelling. Well done.

Les

_________________
"Let's make noise for peace." - Kijjaz
Back to top
View user's profile Send private message Send e-mail
Uncle Krunkus
Moderator


Joined: Jul 11, 2005
Posts: 4758
Location: Sydney, Australia
Audio files: 52
G2 patch files: 1

PostPosted: Tue Mar 09, 2010 4:01 am    Post subject: Reply with quote  Mark this post and the followings unread

As far as compacting a stripboard in a way which lends itself perfectly to being illustrated in an aesthetically superior way,.......... I would say "Built your lightsaber you have!" May the force be with you, always! salut
_________________
What makes a space ours, is what we put there, and what we do there.
Back to top
View user's profile Send private message Visit poster's website
-minus-



Joined: Oct 26, 2008
Posts: 760

Audio files: 13

PostPosted: Tue Mar 09, 2010 4:09 am    Post subject: Reply with quote  Mark this post and the followings unread

But Krunkus really is a Strip Board Jedi... (My father fought with him in the Clone Wars) Smile

Well, it's nice to be able to contribute to this forum in whatever way we can. Think about where we would be if it wasn't for E-M? We'd all be hermits living on a desert planet...or moisture farmers.

Thanks Les! Be great if a few others built this. The world could do with a bit more of this sort of noise!

AND THANKS KRUNKUS! respect
Back to top
View user's profile Send private message
-minus-



Joined: Oct 26, 2008
Posts: 760

Audio files: 13

PostPosted: Sun May 23, 2010 5:30 am    Post subject: Reply with quote  Mark this post and the followings unread

Just thought I should post an update in case anyone builds this thing! I had wiring issues on my colour change LED I used and had to replace it. In the process I tried the Cacophonator without the LED and noticed a HUGE difference in the time it takes for the large capacitor to discharge once the machine is turned off!

My recommendation is to omit the LED completely. The LED severely shortens the capacitor discharge time and much of the interesting noise the Cacophonator is capable of...
Back to top
View user's profile Send private message
Uncle Krunkus
Moderator


Joined: Jul 11, 2005
Posts: 4758
Location: Sydney, Australia
Audio files: 52
G2 patch files: 1

PostPosted: Sun May 23, 2010 6:05 am    Post subject: Reply with quote  Mark this post and the followings unread

You could also try just upping the current limiting resistor on the LED, (R15) and/or upping the value on the main decoupling cap. (the one across the power input)(C7) Wink
_________________
What makes a space ours, is what we put there, and what we do there.
Back to top
View user's profile Send private message Visit poster's website
-minus-



Joined: Oct 26, 2008
Posts: 760

Audio files: 13

PostPosted: Sun May 23, 2010 9:36 pm    Post subject: Reply with quote  Mark this post and the followings unread

Really? C7 is pretty huge at 2200uF! Not sure what I'd up it to? ....oh, wait a minute... This isn't some kind of electrical engineers joke you play on your apprentice is it? You know.... the left handed screwdriver, or the tin of checkered paint.

Ha ha! I think upping the resistor might be what I'll try first!

Thanks for the advice.....boss!
Back to top
View user's profile Send private message
Uncle Krunkus
Moderator


Joined: Jul 11, 2005
Posts: 4758
Location: Sydney, Australia
Audio files: 52
G2 patch files: 1

PostPosted: Mon May 24, 2010 2:00 am    Post subject: Reply with quote  Mark this post and the followings unread

Sorry, I didn't notice it was so big to start with.
Yeah, you can up the resistor so the cap discharges slower when the power is disconnected. The LED will be dimmer, but it's just to indicate power on, not for a light show.
Still, I spose getting rid of it completely would be a simpler option. Very Happy

_________________
What makes a space ours, is what we put there, and what we do there.
Back to top
View user's profile Send private message Visit poster's website
-minus-



Joined: Oct 26, 2008
Posts: 760

Audio files: 13

PostPosted: Mon May 24, 2010 4:23 am    Post subject: Reply with quote  Mark this post and the followings unread

That's ok uncle krunkus! Good to see you are still around! Smile Wink
Back to top
View user's profile Send private message
prgdeltablues



Joined: Sep 25, 2006
Posts: 170
Location: UK
Audio files: 10

PostPosted: Mon May 24, 2010 5:21 am    Post subject: Reply with quote  Mark this post and the followings unread

Nice compact layout!

I may be wrong, but shouldn't C4 connect to pin 9 (Input of osc4) rather than pin 10? And I think there' s a strip break missing in the 3rd row down - as it is, R14/C11 are linked to the +ve end of C6.

Love the introduction.

Peter
Back to top
View user's profile Send private message
blue_lu



Joined: Nov 16, 2009
Posts: 32
Location: Germany

PostPosted: Mon May 24, 2010 8:17 am    Post subject: Reply with quote  Mark this post and the followings unread

I was going to ask if the layout is verified. Because I built one, and it does not make any sound.

anyone here had a successful build with this layout?

thanks
Back to top
View user's profile Send private message
blue_lu



Joined: Nov 16, 2009
Posts: 32
Location: Germany

PostPosted: Wed May 26, 2010 2:05 pm    Post subject: Reply with quote  Mark this post and the followings unread

got home tonight, triple checked the cuts, parts and layout. fired her up again. led went on aaand SMOKE!

Edit: see below
Back to top
View user's profile Send private message
blue_lu



Joined: Nov 16, 2009
Posts: 32
Location: Germany

PostPosted: Thu May 27, 2010 2:12 am    Post subject: Reply with quote  Mark this post and the followings unread

it is not cap, but it was a resistor that smoked.

R10 is starting to smoke, just seconds after I apply current to the circuit. Shocked
what to do?!

just change the resistor and try again?
Back to top
View user's profile Send private message
-minus-



Joined: Oct 26, 2008
Posts: 760

Audio files: 13

PostPosted: Tue Jun 15, 2010 5:19 am    Post subject: Reply with quote  Mark this post and the followings unread

Sorry its not working for you blue_lu!

I built it and can verify that it does work. I'm away from home for a couple more days but will open up my box when I get home and double check the drawings with the build. If I find any mistakes in the drawings I shall correct them and let you know!

In the meantime if you have had any luck in finding a fault, let us know.
Back to top
View user's profile Send private message
-minus-



Joined: Oct 26, 2008
Posts: 760

Audio files: 13

PostPosted: Tue Jun 15, 2010 5:36 am    Post subject: Reply with quote  Mark this post and the followings unread

prgdeltablues wrote:
Nice compact layout!

I may be wrong, but shouldn't C4 connect to pin 9 (Input of osc4) rather than pin 10? And I think there' s a strip break missing in the 3rd row down - as it is, R14/C11 are linked to the +ve end of C6.

Love the introduction.

Peter


Just looking at the drawing now...

Yes, judging by Art's schematic, it does indeed look like I have made a mistake! Shocked C4 should go to pin 9!!!! Can't believe I missed this! Oh well, I shall fix this as soon as I get home on thursday.

And... the other things.... let me see.... yes. I think this may be wrong too! I shall have an URGENT and FINE TOOTHED COMB look over this as soon as I get home on thursday!!!!!!

Thanks for pointing this out Peter! I have not been near the net for a while and missed the comments recently. I shall fix this up very soon.
Back to top
View user's profile Send private message
-minus-



Joined: Oct 26, 2008
Posts: 760

Audio files: 13

PostPosted: Wed Jun 16, 2010 5:15 am    Post subject: Reply with quote  Mark this post and the followings unread

Not sure if my sent box in PM is registering correctly....

Anyway, this is a message to blu-lu , (and indeed anyone else who has experienced circuit board fires due to my clumbsy mistake X2), incase the message was not received:

Hi Blu-lu,

Firstly, I'm very sorry but there appears to be two mistakes in the Cacophonator drawings I posted!

As prgdeltablues correctly pointed out on the 24th May:
I may be wrong, but shouldn't C4 connect to pin 9 (Input of osc4) rather than pin 10? And I think there' s a strip break missing in the 3rd row down - as it is, R14/C11 are linked to the +ve end of C6.

This looks to be right to me. If you make a further cut in the stripboard on the third row down, just above the seven cuts under the IC, this should sort this problem out.

And if you move the position of C4 so the capacitor connects to PIN 9 of the IC (next pin down from shown at present), I think your Cacophonator should work.

Once again, I'm very sorry to have misled you! And apologize for the circuit board fires caused. When I return home in about 24 hours, I shall double check this and correct the drawings.

Steve
Back to top
View user's profile Send private message
blue_lu



Joined: Nov 16, 2009
Posts: 32
Location: Germany

PostPosted: Wed Jun 16, 2010 7:04 am    Post subject: Reply with quote  Mark this post and the followings unread

steve got the pm Wink

i will revise the layout according to the corections, but i broke my pinky yesterday. my whole right hAnd is now fixed and stabilized for the next 6 weeks. thanks for getting back to me, though. i - and others i think - appreciate it Smile
Back to top
View user's profile Send private message
-minus-



Joined: Oct 26, 2008
Posts: 760

Audio files: 13

PostPosted: Thu Jun 17, 2010 2:14 am    Post subject: Reply with quote  Mark this post and the followings unread

Just stepped in the door.... opened up the Cacophonator and the above comment about the cap and the extra cut above the IC is indeed correct.

Hope your finger gets better soon so you can get your Cacophonator working! I believe the sonic frequencies are capable of demolishing small stone structures, increasing crop yields and animal fertility, raising the dead, and perhaps mending broken bones.... but don't hold me to it. There may be another mistake in the drawing and none of the above may be possible.

I'll fix the drawings in the next few hours and resubmit them....
Back to top
View user's profile Send private message
tjookum



Joined: May 25, 2010
Posts: 353
Location: Netherlands
Audio files: 26

PostPosted: Thu Jun 17, 2010 11:44 am    Post subject: Reply with quote  Mark this post and the followings unread

making mistakes is human, don't sweat it, you did an amazing job there!

Maybe you could upload a soundsample so people get to listen before they build, always works for me Very Happy .

p.s.: Maybe you should have a peek in the lunettaforum, plenty more uses there to create mind expanding, boneshattering and even nice sounds with a 40106!

_________________
There he goes. One of God's own prototypes. A high-powered mutant of some kind never even considered for mass production. Too weird to live, and too rare to die.
Hunter S. Thompson
movies
noise
Back to top
View user's profile Send private message
-minus-



Joined: Oct 26, 2008
Posts: 760

Audio files: 13

PostPosted: Thu Jun 17, 2010 3:16 pm    Post subject: Reply with quote  Mark this post and the followings unread

hey thanks! I have been looking at the Lunetta forum. Need to gather together some more IC's and get some spare time to experiment. I shall post some sounds a little later today.... good idea! Got another set of illustrations nearing completion for a different device. Will post soon! And also a Lunetta idea to throw out there...
Back to top
View user's profile Send private message
-minus-



Joined: Oct 26, 2008
Posts: 760

Audio files: 13

PostPosted: Fri Jun 18, 2010 8:14 am    Post subject: Reply with quote  Mark this post and the followings unread

Here's some sound bites of the Cacophonator... a bit of reverb and delay added! All samples based upon the works of World renowned Science Fiction author, Arthur O'Skeely.


caco1.mp3
 Description:
Edit from: Return of the Hare Krishna Robots- Temple of the Orange Dorks

Download
 Filename:  caco1.mp3
 Filesize:  856.83 KB
 Downloaded:  657 Time(s)


caco2.mp3
 Description:
Excerpt from: Plijinieu, Oderely, Libije- The Wheel Men (Published 1962. The first edition was illustrated by Dean Augsfelster)

Download
 Filename:  caco2.mp3
 Filesize:  821.63 KB
 Downloaded:  537 Time(s)


caco3.mp3
 Description:
Part of the third movement, based upon the novel: Gay Nazi Wheelmen in the Year 2123 (Published 1963)

Download
 Filename:  caco3.mp3
 Filesize:  654.79 KB
 Downloaded:  496 Time(s)


caco4.mp3
 Description:
Outro to the musical: The Talking Penis (from the short story of the same title, published in 1961)

Download
 Filename:  caco4.mp3
 Filesize:  773.67 KB
 Downloaded:  492 Time(s)

Back to top
View user's profile Send private message
Display posts from previous:
Post new topic   Reply to topic Moderators: jksuperstar, Scott Stites, Uncle Krunkus
Page 1 of 5 [122 Posts]
View unread posts
View new posts in the last week
Goto page: 1, 2, 3, 4, 5 Next
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
e-m mkii

Please support our site. If you click through and buy from
our affiliate partners, we earn a small commission.


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
