scott where is your klee?
Smile
i'm only 400km from mine Very Happy
i'm in my wifes home town down on adriatic coast.
it is darn hot. juck Razz
Back to top
View user's profile Send private message
Uncle Krunkus
Moderator


Joined: Jul 11, 2005
Posts: 4761
Location: Sydney, Australia
Audio files: 52
G2 patch files: 1

PostPosted: Fri Jun 27, 2008 4:28 pm    Post subject: Reply with quote  Mark this post and the followings unread

Scott Stites wrote:
Quote:
I would replace the sliders with a switch of some type.


At least for the method of how I use the Klee, I'd have to disagree. This would sort of kill things for one step sequences. For the higher range sequences, the small adjustments do make quite a bit of difference.


What Scott is saying makes a lot of sense, and he has been using his Klee alot more than I have, so I will humbly make a 180degree turn on the "lose the sliders" opinion, and bow to the experience of my learned friend. Very Happy

_________________
What makes a space ours, is what we put there, and what we do there.
Back to top
View user's profile Send private message Visit poster's website
Luka



Joined: Jun 29, 2007
Posts: 1002
Location: Melb.

PostPosted: Fri Jun 27, 2008 8:39 pm    Post subject: Reply with quote  Mark this post and the followings unread

that panel looks great thomas, the line of switches is good thinking, i might re-make my panel based on that design while im still waiting for money to buy panel components
_________________
problemchild
melbourne australia
http://cycleofproblems.blogspot.com/
http://www.last.fm/user/prblmchild
Back to top
View user's profile Send private message
Scott Stites
Janitor
Janitor


Joined: Dec 23, 2005
Posts: 4127
Location: Mount Hope, KS USA
Audio files: 96

PostPosted: Fri Jun 27, 2008 10:09 pm    Post subject: Reply with quote  Mark this post and the followings unread

Well, actually Andy, it's not such a bad idea - it may work quite well for others. I think we'll find that one person's Klee is another's Clover Laughing

My Klee is in Kansas, but I'm in Penang, Malaysia right now for a good long time ('til end of July). Not sure if it's *really* 10,000 miles, but I figure it's close to that. I'm closer to Andy's Klee than to mine.

Hmmmm.........

_________________
My Site
Back to top
View user's profile Send private message
Scott Stites
Janitor
Janitor


Joined: Dec 23, 2005
Posts: 4127
Location: Mount Hope, KS USA
Audio files: 96

PostPosted: Fri Jun 27, 2008 10:10 pm    Post subject: Reply with quote  Mark this post and the followings unread

I keep forgetting to mention that is one spankin' badass circular panel! Very nice indeed.
_________________
My Site
Back to top
View user's profile Send private message
Uncle Krunkus
Moderator


Joined: Jul 11, 2005
Posts: 4761
Location: Sydney, Australia
Audio files: 52
G2 patch files: 1

PostPosted: Sat Jun 28, 2008 2:29 am    Post subject: Reply with quote  Mark this post and the followings unread

Scott Stites wrote:
I'm closer to Andy's Klee than to mine.

Hmmmm.........


Well,.... It's only a little flight down to Brisbane. Then a connector to Coffs Harbour. You get weekends off don't you? Charge work for it. Research and Development it's called. You can research the state of SDIY in Nambucca Heads, and we can develop a hangover together! Laughing

_________________
What makes a space ours, is what we put there, and what we do there.
Back to top
View user's profile Send private message Visit poster's website
sduck



Joined: Dec 16, 2007
Posts: 459
Location: Nashville
Audio files: 5

PostPosted: Thu Jul 03, 2008 8:17 pm    Post subject: Reply with quote  Mark this post and the followings unread

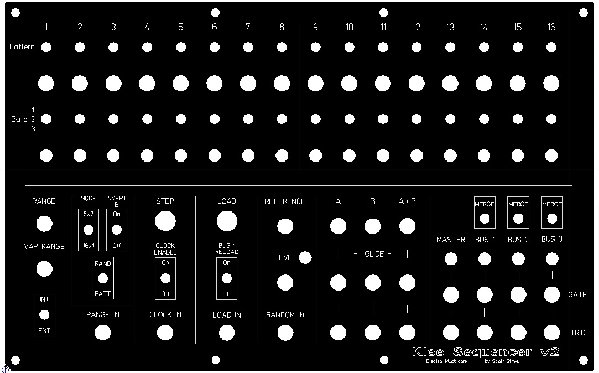

So here's mine. I probably get the award for ugliest klee panel yet.

Folks who also look in the modularsynthpanels yahoo group have already seen this, and the .fpd file is available there - I can post it here also if there's any interest.

I just wanted something that would fit right into my otherwise mostly motm format synth. It's actually Clickmrmike's design, with some slight tweaks of the switch positioning and labeling. I basically took an old milton panel design and modified the bottom of it.

Apologies for getting the electro-music Klee label wrong - I didn't read all of the applications and build thread until after I designed it.

So anyway, this panel is on its way to me from Seattle as of now, and I've got the boards half stuffed, and many of the panel parts are here or are on the way also. When I posted this design on modularsynthpanels, it seemed to get things going, and Thomas White did his amazing oval design, which'll also work for my purposes, so I'll probably end up getting one of those once Scott Deyo starts producing them cheaply. I like this straightforward, linear design, but I also really like the oval design - one can have 2 klees, right? This is assuming that eventually there'll be a third board run (hope!).


 Description:

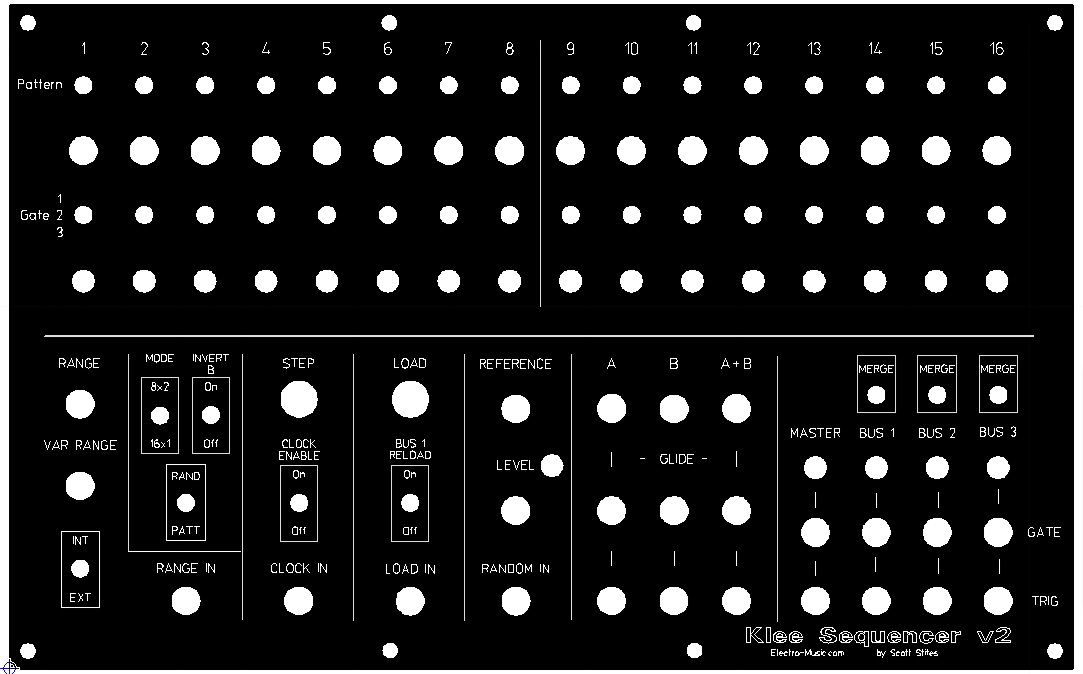

Screen capture of my klee panel in front panel designer
 Filesize:  144.47 KB
 Viewed:  346 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
fonik



Joined: Jun 07, 2006
Posts: 3862
Location: Germany
Audio files: 23

PostPosted: Fri Jul 04, 2008 1:51 am    Post subject: Reply with quote  Mark this post and the followings unread

fonik wrote:
bugfight wrote:
was it the sparkfun 4x4?

http://www.sparkfun.com/commerce/product_info.php?products_id=7835
they are kinda big...

BINGO! thank you so much!

these seem to be momentaries, aren't they? i am not quite sure about the mechanical details anyway. how do they work?

_________________
Posted Image, might have been reduced in size. Click Image to view fullscreen.
cheers,
matthias
____________
fonitronik at
FlickR (pix) / SoundCloud (sounds) / YouTube (vids) / Vimeo (vids) / facebook (news)
Back to top
View user's profile Send private message Send e-mail Visit poster's website
mono-poly



Joined: Jul 07, 2004
Posts: 935
Location: Rotterdam, Netherlands
Audio files: 2

PostPosted: Wed Jul 09, 2008 6:30 am    Post subject: Reply with quote  Mark this post and the followings unread

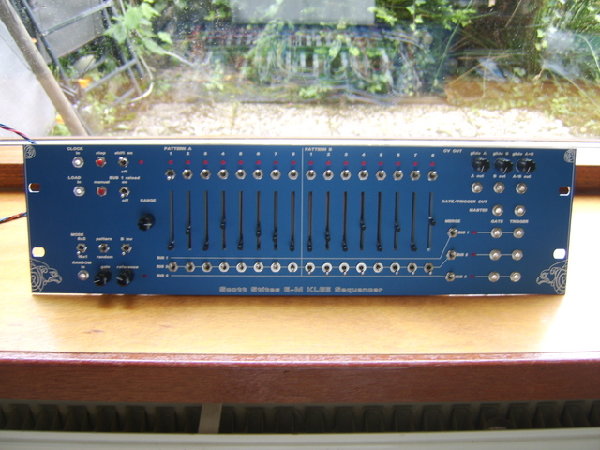

Wiard Klee


 Description:
wiard klee
 Filesize:  259.99 KB
 Viewed:  330 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
State Machine
Janitor
Janitor


Joined: Apr 17, 2006
Posts: 2772
Location: New York
Audio files: 24

PostPosted: Wed Jul 09, 2008 4:40 pm    Post subject: Reply with quote  Mark this post and the followings unread

Quote:
Wiard Klee


Very very nice design Mono-Poly !!! All these great front panel iterations, there should be a Klee picture book made up Very Happy

Bill
Back to top
View user's profile Send private message Send e-mail
sduck



Joined: Dec 16, 2007
Posts: 459
Location: Nashville
Audio files: 5

PostPosted: Wed Jul 09, 2008 4:56 pm    Post subject: Reply with quote  Mark this post and the followings unread

mono-poly wrote:
Wiard Klee


That is really nice. Is that an official Wiard implementation of the klee, or a look-alike version?
Back to top
View user's profile Send private message
mono-poly



Joined: Jul 07, 2004
Posts: 935
Location: Rotterdam, Netherlands
Audio files: 2

PostPosted: Thu Jul 10, 2008 11:07 am    Post subject: Reply with quote  Mark this post and the followings unread

It is DIY for in my Wiard setup.
Back to top
View user's profile Send private message
Scott Stites
Janitor
Janitor


Joined: Dec 23, 2005
Posts: 4127
Location: Mount Hope, KS USA
Audio files: 96

PostPosted: Thu Jul 10, 2008 6:05 pm    Post subject: Reply with quote  Mark this post and the followings unread

Man, that is just absolutely beautiful.
_________________
My Site
Back to top
View user's profile Send private message
bugfight



Joined: Aug 02, 2007
Posts: 188
Location: Arlington, TX USA

PostPosted: Tue Jul 15, 2008 11:13 am    Post subject: Reply with quote  Mark this post and the followings unread

fonik wrote:
fonik wrote:
bugfight wrote:
was it the sparkfun 4x4?

http://www.sparkfun.com/commerce/product_info.php?products_id=7835
they are kinda big...

BINGO! thank you so much!

these seem to be momentaries, aren't they? i am not quite sure about the mechanical details anyway. how do they work?


sorry, i've been out of town and missed this.
yep they're momentaries.
there's conductive carbon on each silicon button and it contacts a pad on the pcb.

cool, sparkfun finally added diode pads to their pcb (to avoid ghosting in matrix switch circuits). i wound up making my own pcbs...
Back to top
View user's profile Send private message
Luka



Joined: Jun 29, 2007
Posts: 1002
Location: Melb.

PostPosted: Thu Jul 17, 2008 7:11 pm    Post subject: Reply with quote  Mark this post and the followings unread

well here is my contribution

Posted Image, might have been reduced in size. Click Image to view fullscreen.

my modular panel material is a bit different from most,
im using rusty steel that i have found around our warehouse.
so here is my rusty klee.
sorry about photo quality

im still waiting for my switches,
then ill finally check the circuit build for any problems.
so excited !

cant wait to hear this baby in action

_________________
problemchild
melbourne australia
http://cycleofproblems.blogspot.com/
http://www.last.fm/user/prblmchild
Back to top
View user's profile Send private message
sduck



Joined: Dec 16, 2007
Posts: 459
Location: Nashville
Audio files: 5

PostPosted: Thu Jul 17, 2008 7:25 pm    Post subject: Reply with quote  Mark this post and the followings unread

At first glance I went "ewww, that's some serious funk". But then I found I couldn't look away - that panel has some serious depth, and looks like it'll be real fun to use. Cool variant on the steampunk thing. Thanks for sharing!
Back to top
View user's profile Send private message
Luka



Joined: Jun 29, 2007
Posts: 1002
Location: Melb.

PostPosted: Thu Jul 17, 2008 7:56 pm    Post subject: Reply with quote  Mark this post and the followings unread

yeah its a bit grimey. but i kinda like that

one day ill have some cash and ill get some aluminium panels cut for all my panels, for now i like the industrial rust edge. this machine is going to make good noise so rust fits in with that theme Smile

_________________
problemchild
melbourne australia
http://cycleofproblems.blogspot.com/
http://www.last.fm/user/prblmchild
Back to top
View user's profile Send private message
seraph
Editor
Editor


Joined: Jun 21, 2003
Posts: 12185
Location: Firenze, Italy
Audio files: 33
G2 patch files: 2

PostPosted: Fri Jul 18, 2008 12:34 am    Post subject: Reply with quote  Mark this post and the followings unread

Luka wrote:

so here is my rusty klee


it looks like some ancient time machine Shocked hypnotic Exclamation

Wink

_________________
homepage - blog - forum - youtube

Quote:
The man that hath no music in himself, nor is not mov'd with concord of sweet sounds, is fit for treasons, stratagems and spoils; the motions of his spirit are dull as night and his affections dark as Erebus: Let no such man be trusted. - W. Shakespeare
Back to top
View user's profile Send private message Visit poster's website
Sound



Joined: Jun 06, 2006
Posts: 842

Audio files: 1

PostPosted: Fri Jul 18, 2008 3:39 pm    Post subject: Reply with quote  Mark this post and the followings unread

OH! Luka! Its amazing!

Please, could you upload a high resolution picture? I would like to look your klee more detailed!

Could you explain how you do your front panels a little bit?

Thanks!
Back to top
View user's profile Send private message
Luka



Joined: Jun 29, 2007
Posts: 1002
Location: Melb.

PostPosted: Fri Jul 18, 2008 5:40 pm    Post subject: Reply with quote  Mark this post and the followings unread

ok, ill try find a camera (and ill chuck into this post)


Basically i found lots of sheets of 1mm steel which were rusty as hell (only surface rust and only slighty correoded on one side). i pulled out our angle grinder and cut it to measure a moog unit system. desinged the panel in photoshop ( i actually designed it for brass but i made it in rust to suffice for the moment but i think ill keep a whole cabinet in rust now )

drilled the holes with a drill press, and labeled it by hand with a sharpie. drilling wasnt too hard, it was a lot easier than i expected however i never had drilled much aluminium before this. after making some aluminium panels for other people i must say it is so malable and easy to work with Smile
so then i added led bezels and some cheap knob that im using for my whole cabinet. now waiting for switches. (200 on the way) i hate waiting for international deliveries Sad

i have an enitre rack near completion of modular done in rusty steel. i like it a lot. it is a good means of recycling, it looks a lot different to most people's modular systems, and it is so much fun using angle grinders and heavy metal tools Smile it also has a industrial edge and seems fitting for a modular synth.

attached is my design, soon to come high res pictures if i find a camera
the rust has a really amazing natural corrosion patterns so ill put some time into take the photos right once i find a camera


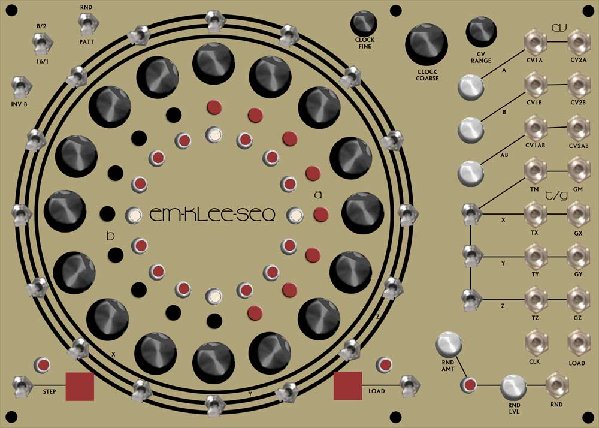

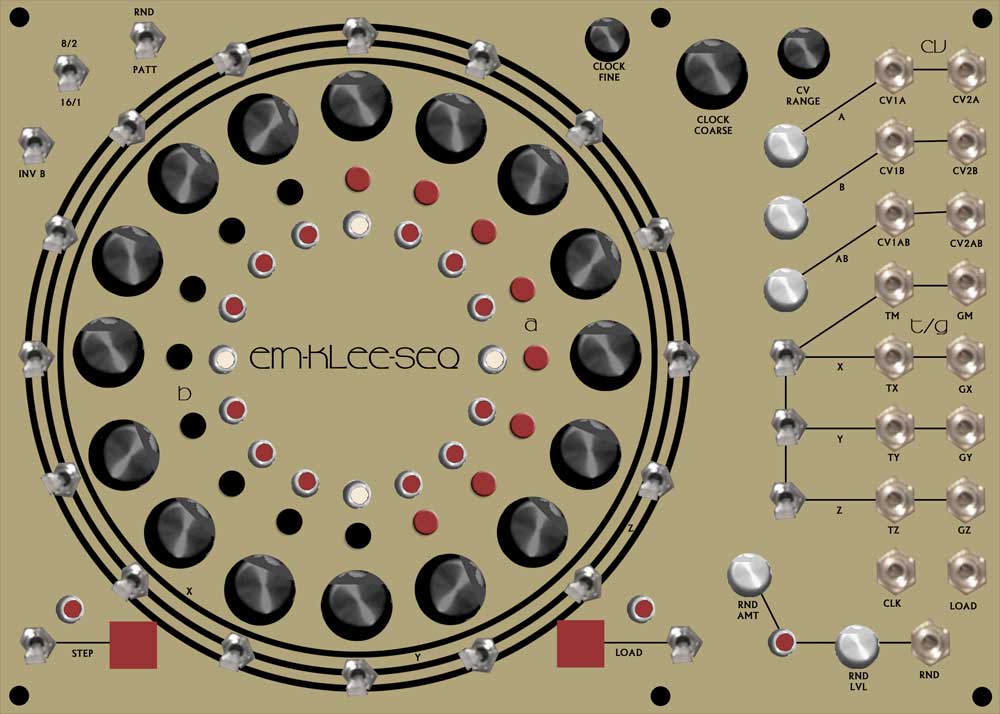

 Description:
klee panel design, ive changes a few slight things when i drilled and marked the panel
main differences are the position of the merge T&G, the colour of the LEDs, and that i wont be using push buttons for the inner row of switches (obviously the switc
 Filesize:  77.51 KB
 Viewed:  205 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
problemchild
melbourne australia
http://cycleofproblems.blogspot.com/
http://www.last.fm/user/prblmchild
Back to top
View user's profile Send private message
sduck



Joined: Dec 16, 2007
Posts: 459
Location: Nashville
Audio files: 5

PostPosted: Fri Jul 18, 2008 8:03 pm    Post subject:
Subject description: my klee, part 2
Reply with quote  Mark this post and the followings unread

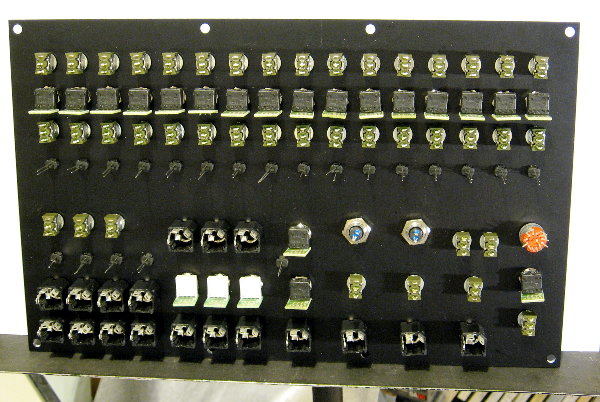

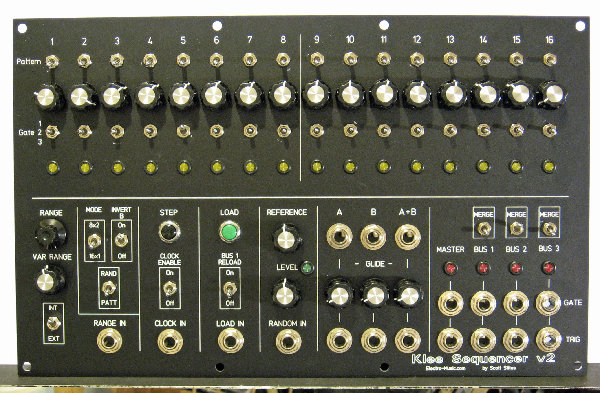

Ok, here's 2 pics of my ugly duckling klee in it's current state. Just a ton of wiring to do yet. I wanted to get a halfway decent pic as I'm off on vacation next week, and won't be able to work on the thing, and need a pic to keep my head in the game. I just threw the knobs on loosely for the picture - don't want to mess them up while soldering tons of wires on the back - but also wanted to have a feel for how the thing will look like completed, and so I could fulfill the instructions on the bottom of page 21.


 Description:
 Filesize:  1.49 MB
 Viewed:  251 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  1.53 MB
 Viewed:  179 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
Luka



Joined: Jun 29, 2007
Posts: 1002
Location: Melb.

PostPosted: Fri Jul 18, 2008 9:06 pm    Post subject: Reply with quote  Mark this post and the followings unread

im really not looking forward to wiring the beast ;; sigh
have a nice holliday sduck Wink

_________________
problemchild
melbourne australia
http://cycleofproblems.blogspot.com/
http://www.last.fm/user/prblmchild
Back to top
View user's profile Send private message
State Machine
Janitor
Janitor


Joined: Apr 17, 2006
Posts: 2772
Location: New York
Audio files: 24

PostPosted: Sat Jul 19, 2008 5:14 am    Post subject: Reply with quote  Mark this post and the followings unread

Been looking at the panels guys and I continue to be amazed at the variations ....... great work to all !!!! I love it Wink

Bill
Back to top
View user's profile Send private message Send e-mail
softfin



Joined: Oct 11, 2006
Posts: 271
Location: Far in the north
Audio files: 1

PostPosted: Wed Jul 23, 2008 9:42 am    Post subject: Reply with quote  Mark this post and the followings unread

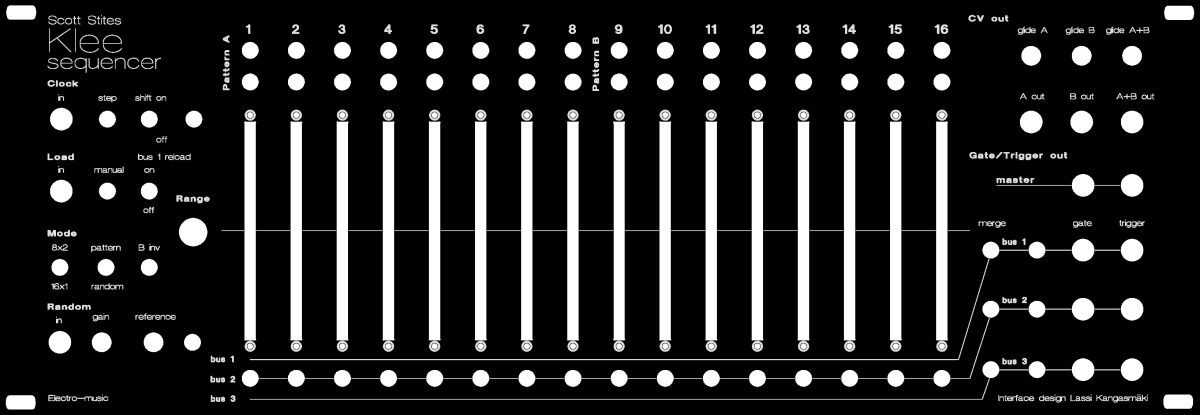

I finally bite the bullet and designed a panel for my Klee. Very Happy
I used Fonik's panel layout as a starting point and modified it quite a bit to better suit my tastes (bigger sliders).
The price estimate for the panel was a positive surprise: it will probably cost only a little more than 100eur Smile


 Description:
 Filesize:  118.65 KB
 Viewed:  319 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
Rykhaard



Joined: Sep 02, 2007
Posts: 1290
Location: Canada

PostPosted: Wed Jul 23, 2008 9:58 am    Post subject: Reply with quote  Mark this post and the followings unread

Luka wrote:

now waiting for switches. (200 on the way) i hate waiting for international deliveries Sad


That panel looks WILD!! Very Happy And it's JUST inspired me as well! Since I use wood for my panels, I'm going to search around / keep my eye open to see if I can find any flat BARK, in any type of wood. I love the look of yours extremely, especially in the Industrial (mechanical and musically) frame of mind! Twisted Evil At the very least, for future art on my panels, I'm going to keep the 'industrial' in mind, pictures wise! Smile

Now - the other reason for replying - 200 switches?? From WHERE? How much??? With all of the sequencers that I have planned at the moment (2 more Ray Wilson MFOS sequencer digital boards, just arrived in the mail - weeeee! Smile ) I'm going to need at least 100 each of ON/ON and ON/OFF/ON switches. I'm looking for great priced sites.
Where are your 200 coming from and if eBay - please let me know when they arrive; how long they took to ship and their cost! Smile
Back to top
View user's profile Send private message Yahoo Messenger MSN Messenger
Display posts from previous:
Post new topic   Reply to topic Moderators: Scott Stites, Uncle Krunkus, v-un-v
Page 10 of 16 [399 Posts]
View unread posts
View new posts in the last week
Goto page: Previous 1, 2, 3, ..., 8, 9, 10, 11, 12, 13, 14, 15, 16 Next
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software » Klee sequencer
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
e-m mkii

Please support our site. If you click through and buy from
our affiliate partners, we earn a small commission.


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
