DIY | VCO | Paia

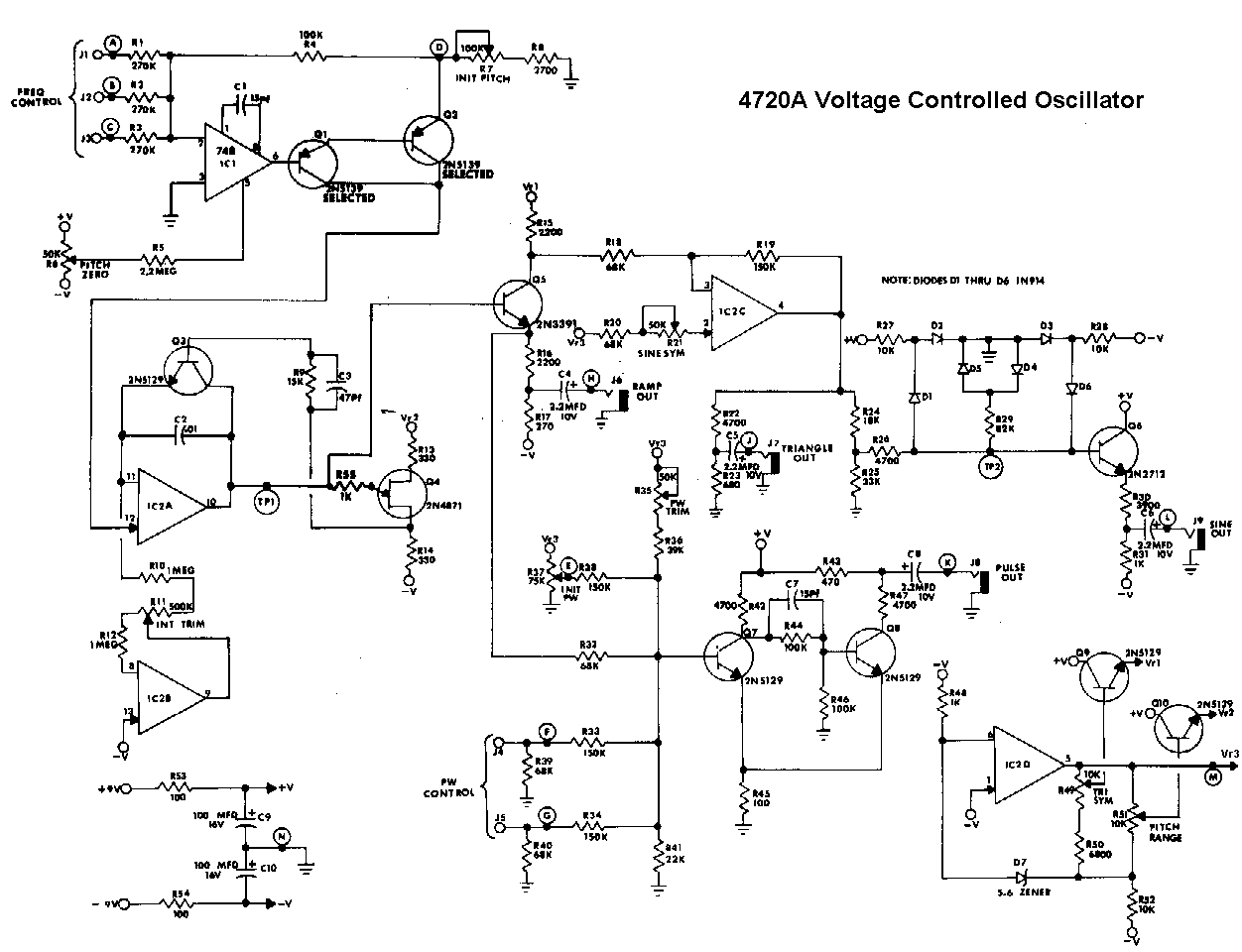

4720A Voltage Controlled Oscillator by Paia , get the whole document on construction of this module on Paia Talk : http://www.paia.com/talk/viewtopic.php?f=6&t=191 and this link for troubleshooting guide by Scott Lee : http://www.paia.com/talk/viewtopic.php?f=29&t=209
